Hafele 833.89.200 Series Inline Switch Instruction Manual

833.89.200 Series Inline Switch
Instruction Manual

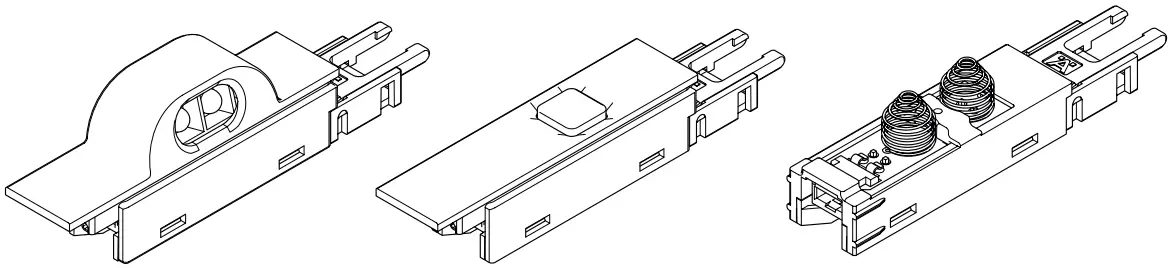

833.89.200 Series Inline Switch

				W	TA
833.89.282 833.89.283 833.89.284			0 – 3000	0 W – 60 W	-20°C – +45°C -4°F – +113°F
833.89.281
833.89.280			0 – 200
833.89.292 833.89.293 833.89.294			0 – 3000	0 W -120 W
833.89.291
833.89.290			0 – 200

12 V	833.89.282 833.89.283 833.89.284		1min 3min 5min
24 V	833.89.292 833.89.293 833.89.294		1min 3min 5min

Subject to alteration
© 2020 by Häfele GmbH & Co KG
Adolf-Häfele-Str. 1 · D-72202 Nagold
www.hafele.com
