Instruction Leaflet
IL03802001Z Moeller Series P1 Main Switch
Electric current! Danger to life!
Only skilled or instructed persons may carry out the following operations.

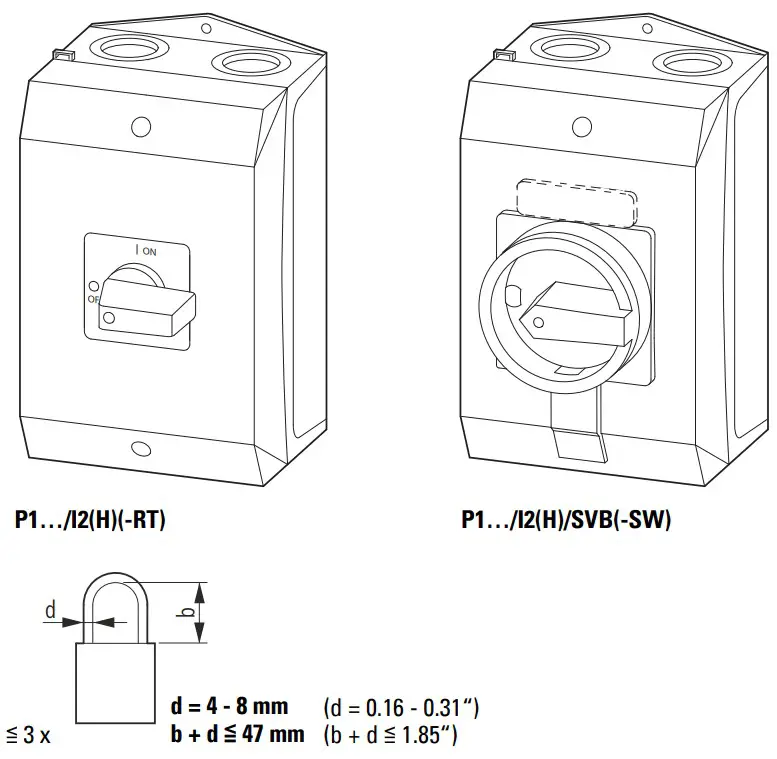

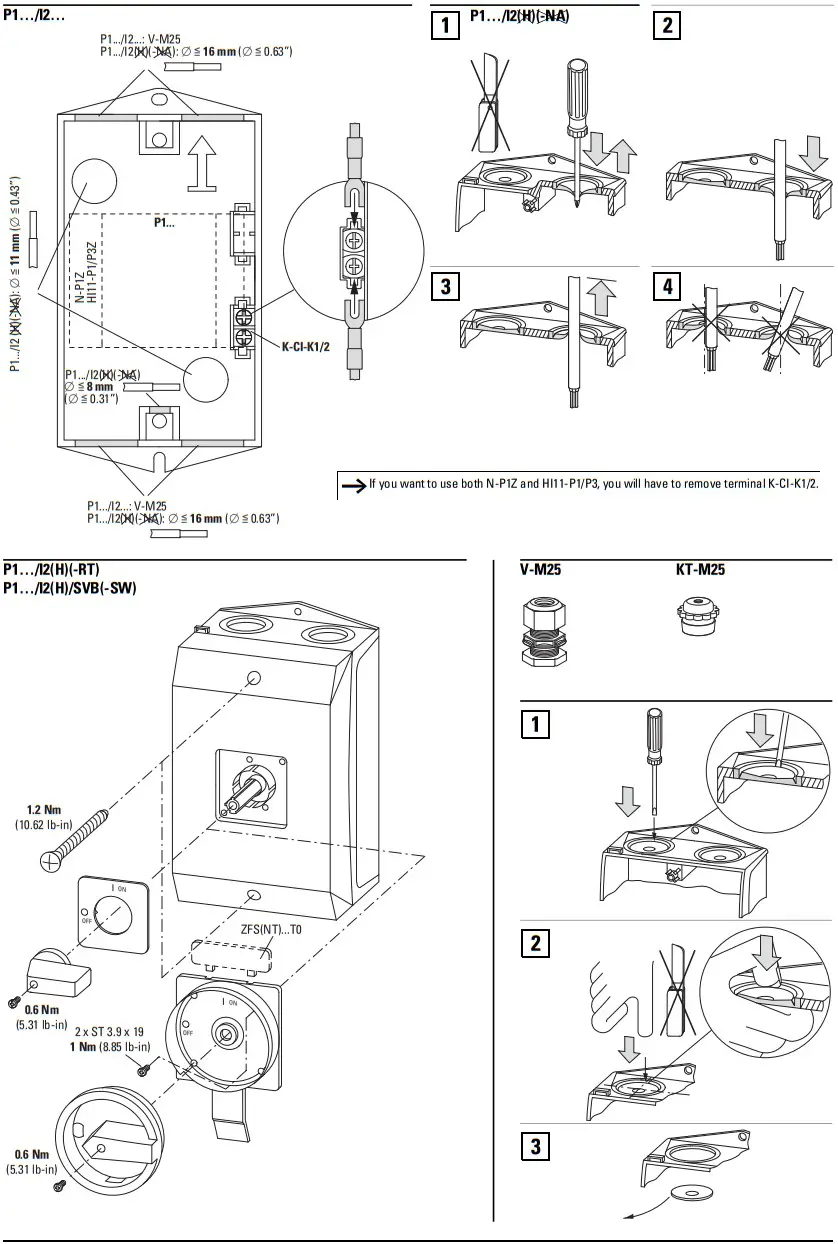

P1…/I2…
 |  | a |
| P1 | 10.5 mm (0.41″) | |
| HI11-P1/P3 | 7.5 mm (0.3″) | |
| K-CI-K1/K2 | 9 mm (0.35″) |
HI11-P1/P3
 | 0.5 – 1.5 mm² | 1 Nm (8.85 lb-in) |
 | 0.75 – 2.5 mm² | |
| AWG 18 – AWG 14 |
P1…
 | 1 x 1.0 – 4.0 mm² 2 x 1.0 – 4.0 mm² | 1.6 Nm (14.16 lb-in) |
 | 1 x 1.5 – 6.0 mm² 2 x 1.5 – 6.0 mm² | |
 | 2 x 10 mm²* | |
| AWG 14 – AWG 8 |
75 °C Cu wire only
* Part no. Forkterm-P1 for line/load terminals
UL-File: E 36 332
Suitable For Use As Motor Branch Circuit
Disconnecting Means With Suffix SVB.
Break All Lines.

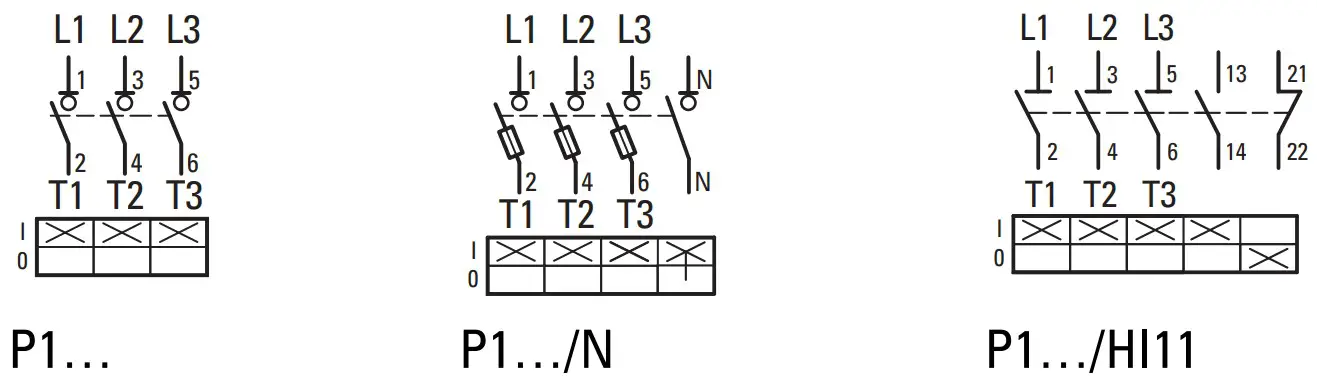

Wiring diagrams
