Moes BH19-220819 Smart Switch Instruction Manual

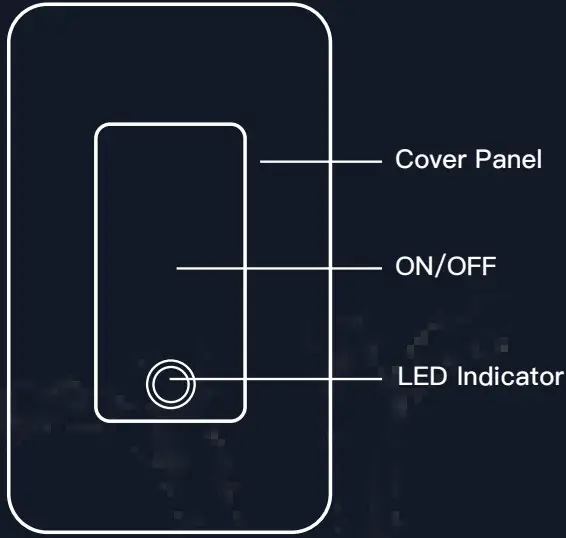

Product Outline
Indicator Light Status
| Light Color | Light Status | Switch Status |
| White | ON | Power ON |
| OFF | Power OFF | |
| Blink Quickly (0.5s ) | Ready for default configuration mode | |
| Blink Slowly (1s ) | Ready for AP (Access Point) configuration mode |
Specification
| Model: | WS-SR-US-T |
| Input Power: | 100~245V AC 50/60Hz |
| Control Principle : | Relay |
| Wireless Protocol: | WiFi 802.11 b/g/n 2.4GHz |
| Max Current: | 10A |
| Standby Power: | ≤0.5W |
| Button Life: | 500K times |
| Dimension: | 106*45*35 mm |

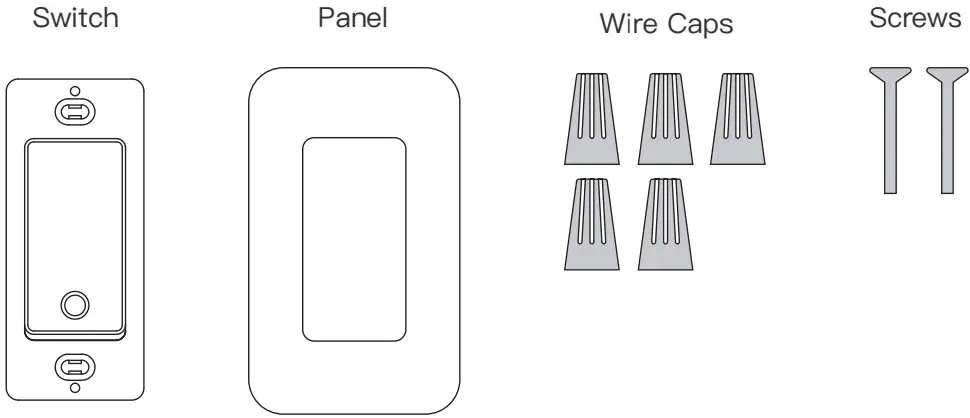

Contents Supplied
