Powering Business Worldwide
08/22 IL008025ZU
Instruction Leaflet
DMM-40-4+SK Switch Disconnector
Electric current! Danger to life!
Installation, commissioning and maintenance work must be carried out by qualified personnel only.

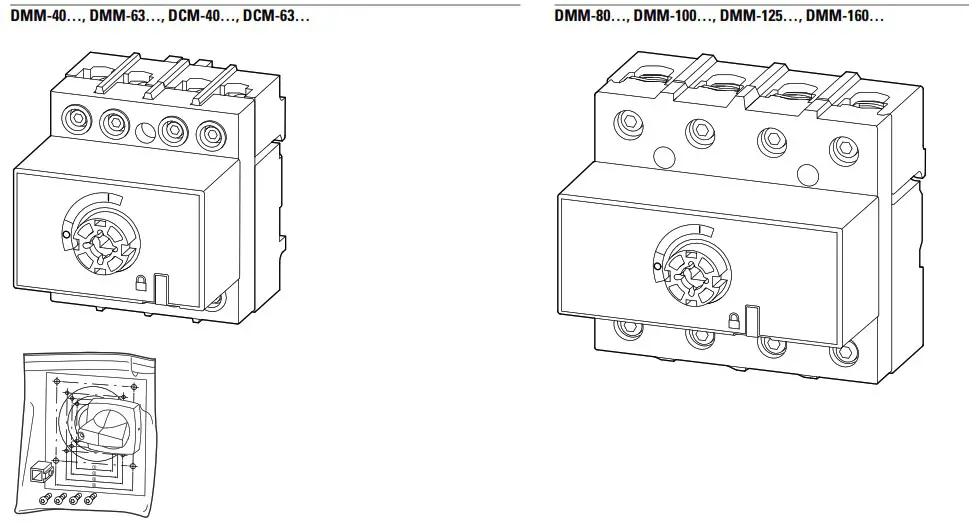

DMM-40…, DMM-63…, DCM-40…, DCM-63…,
DMM-80…, DMM-100…, DMM-125…, DMM-160…
CAUTION
Use protective covers and/or additional shielding if mounted without an enclosure.

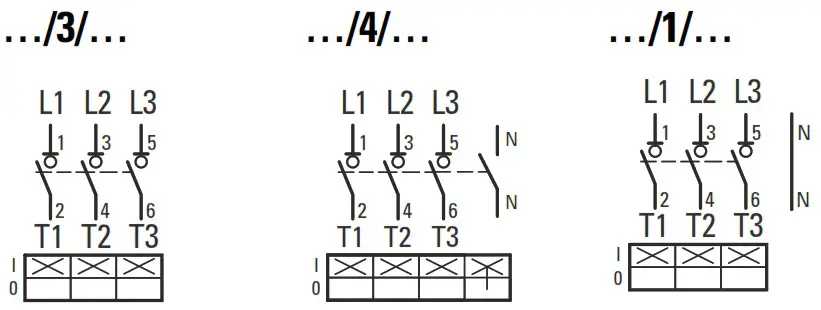

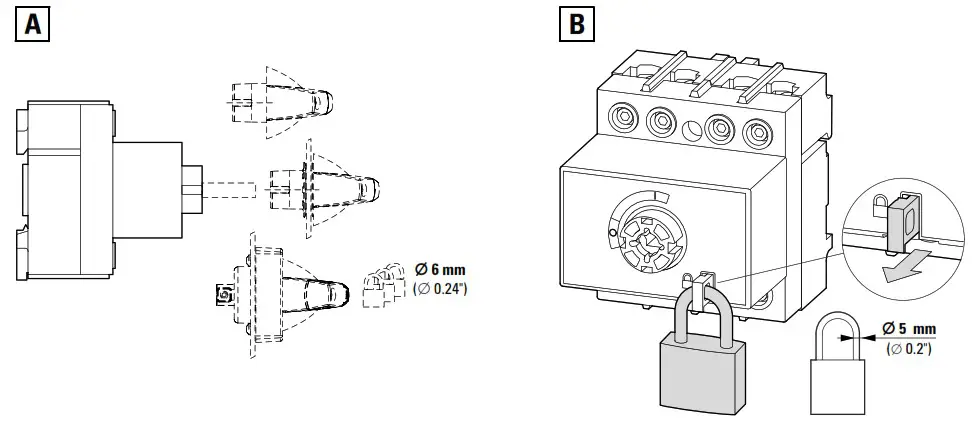

Connections
M-40…, DMM-63…, DCM-40…, DCM-63…
 | 1.5 – 25 mm2 | 2 Nm (17.7 lb-in) |
 | 2.5 – 16 mm2 |
MM-80…, DMM-100…, DMM-125…, DMM-160…
| 6 – 70 mm2 | 7 Nm (61.96 lb-in) |
| 6 – 70 mm2 |
 | a |
| DMM-40…, DMM-63…, DCM-40…, DCM-63… | 14 mm (0.55“) |
| MM-80…, DMM-100…, DMM-125…, DMM-160… | 21 mm (0.83“) |
4K6…MMDCM/DMM

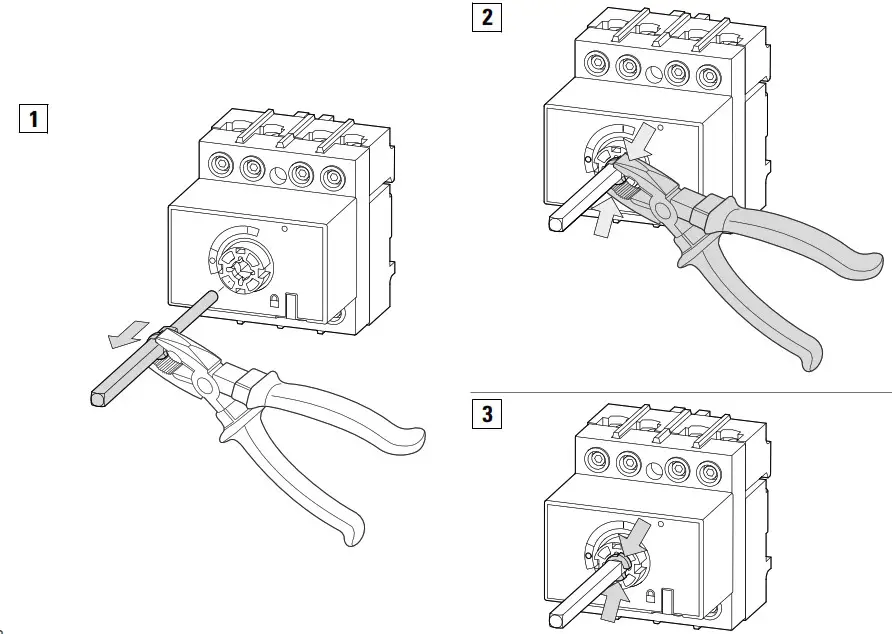

SHAFTSETDCM/DMM

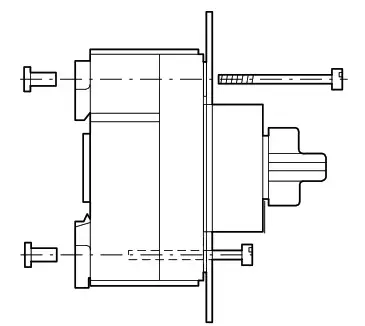

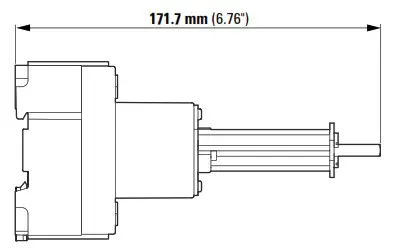

Front mounting
 |  |
DMM-40…, DMM-63… 1 x
DCM-40…, DCM-63… 1 x
DMM-80…, DMM-100… 2 x
DMM-125…, DMM-160… 2 x

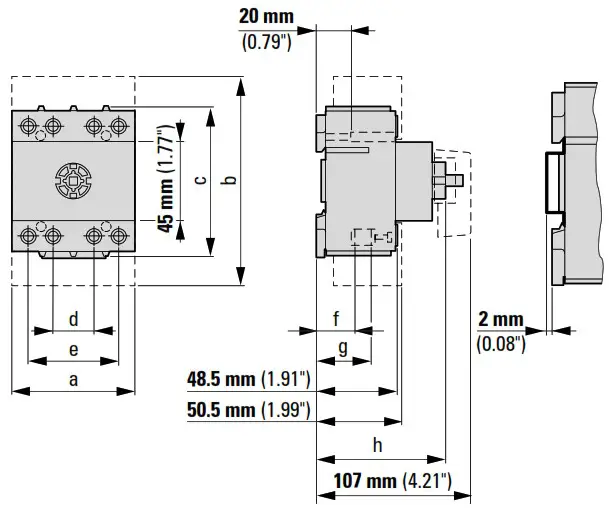

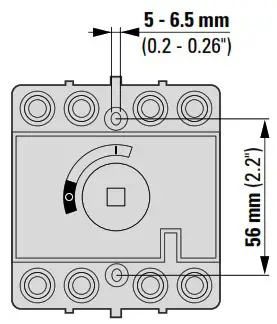

Dimensions
| DMM-40…, DMM-63…, DCM-40…, DCM-63… | DMM-80…, DMM-100…, DMM-125…, DMM-160… | |
| a | 72 mm (2.83“) | 108 mm (4.25“) |
| b | 136 mm (5.35“) | 157 mm (6.18“) |
| c | 83 mm (3.27“) | 105 mm (4.13“) |
| d | 22 mm (0.87“) | 27 mm (1.06“) |
| e | 50.5 mm (1.99“) | 81 mm (3.19“) |
| f | 20 mm (0.79“) | 15.5 mm (0.61“) |
| g | 30 mm (1.18“) | 27 mm (1.06“) |
DMM-40…, DMM-63…,
DMM-80…, DMM-100…,
DMM-125…, DMM-160…
DCM-40…, DCM-63…
| h | 92 mm (3.62“) | 77 mm (3.03“) |
| DMM-40…, DMM-63…, DCM-40…, DCM-63… | DMM-80…, DMM-100…, DMM-125…, DMM-160… |
 |  |
© 2016 Eaton Industries GmbH
Eaton Electrical Products Ltd, Melton Road, Burton-on-the-Wolds, Leicestershire, LE12 5TH, United Kingdom
Eaton.com/contacts
Eaton.com/aftersales
Eaton.com/documentation
08/22 IL008025ZU
Eaton.com/recycling
