Altronix Al600xb220 Xbv Series Power Supply Charger Boards Installation Guide

XBV Series
Power Supply/Charger Boards
Installation Guide

Overview:

Altronix XBV Series power supply/chargers convert a 220VAC (working range 198VAC – 256VAC), 50/60Hz input to a 12VDC or 24VDC output.

Specifications:

Output:

• Filtered and electronically regulated output.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when switched over to battery backup.

Visual Indicators:

• AC input, DC output, and BAT trouble LED indicators.

Supervision:

• AC fails supervision (form “C” contacts).
• Low battery and battery presence supervision (form “C” contacts).

Additional Features:

• Short circuit and thermal overload protection.

Board Dimensions (L x W x H approximate):
AL300XB2V: 7.1” x 4.5” x 1.44” (180.3mm x 114.3mm x 36.6mm).
AL400XB2V: 7.1” x 4.5” x 1.44” (180.3mm x 114.3mm x 36.6mm).
AL600XB220: 7.1” x 4.5” x 2” (180.3 mm x 114.3 mm x 50.8 mm).
AL1012XB220: 7.25” x 4.5” x 1.75” (184.2mm x 114.3mm x 44.5mm).
AL1024XB2V: 8.4” x 4.5” x 1.4” 213.4mm x 114.4mm x 35.6mm).

Stand-by Specifications:
AL300XB2V:

AL400XB2V:

AL600XB220:

AL1012XB220:

AL1024XB2V:

Installation Instructions:

Wiring methods shall be in accordance with article 760 of The National Electrical Code or NFPA 72, as well as all applicable local codes and authorities having jurisdiction.
The product is intended for indoor use only.

1. Mount the power supply/charger board in the desired location/enclosure (mounting hardware included).

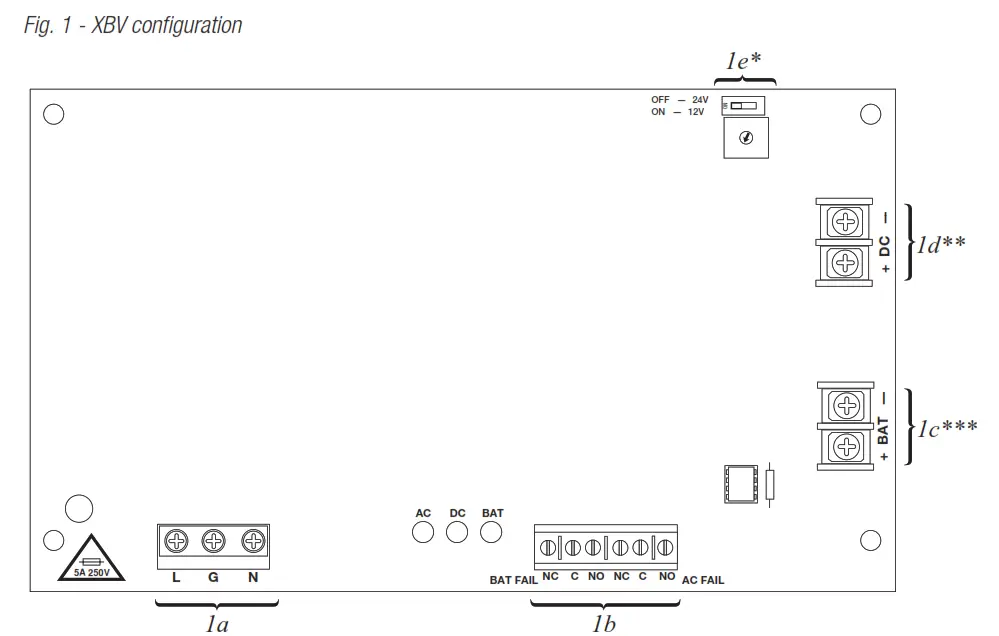

2. Set desired DC output voltage by setting SW1 to the appropriate position on the power supply board (Fig. 1e, pg. 4).
3. Connect unswitched AC power (220VAC 50/60Hz) to the terminals marked [L, G, N] (Fig. 1a, pg. 4).
   Use 14 AWG or larger for all power connections (Battery, AC input, DC output).
   Use 22 AWG to 18 AWG for power-limited circuits (AC Fail/Low Battery reporting).
   Keep power-limited wiring separate from non-power-limited wiring (220VAC 50/0Hz Input, Battery Wires). Minimum 0.25” spacing must be provided.
   CAUTION: Do not touch exposed metal parts. Shut branch circuit power before installing or servicing equipment. There are no user-serviceable parts inside.
   Refer installation and servicing to qualified service personnel.
4. Measure output voltage before connecting devices. This helps avoid potential damage.
5. Connect devices to be powered to the terminals marked [+ DC –] (Fig. 1d, pg. 4).
6.  For Access Control applications batteries are optional. When batteries are not used, a loss of AC will result in the loss of output voltage. When the use of stand-by batteries is desired, they must be lead acid or gel type. Connect the battery to terminals marked [+ BAT –] (Fig. 1c, pg. 4).
   Note: Separate enclosures must be used for housing 40AH or 65AH batteries.
7. It is required to connect appropriate signaling notification devices to [AC FAIL] & [BAT FAIL] (Fig. 1b, pg. 4) supervisory relay outputs. Use 22AWG to 18AWG wires. AC fail will report in 5 minutes. To delay the report for 6 hours cut the “AC Delay” jumper (Fig. 1, pg. 4).

Wiring:

Use 18 AWG or larger for all low voltage power connections.
Note: Take care to keep power-limited circuits separate from non-power-limited wiring (220VAC, Battery).

Maintenance:

The unit should be tested at least once a year for the proper operation as follows:

Output Voltage Test: Under normal load conditions, the DC output voltage should be checked for proper voltage level.
Battery Test: Under normal load, conditions check that the battery is fully charged, and check the specified voltage (12VDC @ 13.2 or 24VDC @ 26.4) both at the battery terminal and at the board terminals marked [+ BAT –] to ensure that there is no break in the battery connection wires.
Replacing Batteries: Disconnect existing batteries. Connect the battery to the terminals marked [+ BAT –]. Use two (2) 12VDC batteries connected in series for 24VDC operation.

LED Diagnostics (AL300XB2V, AL400XB2V and AL600XB220):

LED Diagnostics (AL1012XB220 and AL1024XB2V):

*Output Voltage Selection DIP Switch. Not applicable for AL1012XB220 and AL1024XB2V.
** AL1012XB220 terminals marked [– DC +]
*** AL1024XB2V terminals marked [– BAT +]

Terminal Identification:

Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: [email protected] | Lifetime Warranty
IIXBV Rev. XBV-081518
