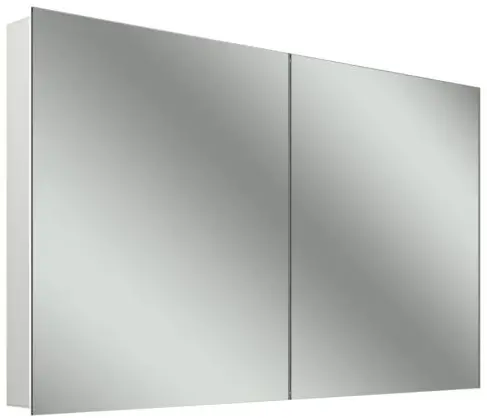

ADVANCED Line Comfort 2 TW
Assembling instructions
ALC 2
 |  |  |  |  |
Electric installation work may only be carried out by approved specialists according to the local regulations. Liability will only be accepted by us when our products are installed by qualified engineers. The light sources incorporated in this product should only be replaced by the manufacturer, or by another similarly well-qualified person.
Rooms with baths or showers have to be protected with a residual-current-operated protective device (RCD) FI (RCD) I ∆ n = 30mA.
Volume 2 min. protection IP X4. Volume 2 no socket admitted.
BS 7671 – 601
The product must be disposed of separately from normal household waste.
The product is controlled after current guidelines.
Indoor installation only
Energy efficiency class:
| Scope of delivery | 60, 70, 80, 90,100 cm | 1201130,140,150 cm |
| Mirror cabinet | 1 | 1 |
| Glass shelf | 2 | 4 |
| Suspension rail | 2 | 2 |
| Set of screws | 1 | 1 |
| Magnifying mirror | 1 | 1 |
Turn off the electricity before beginning.

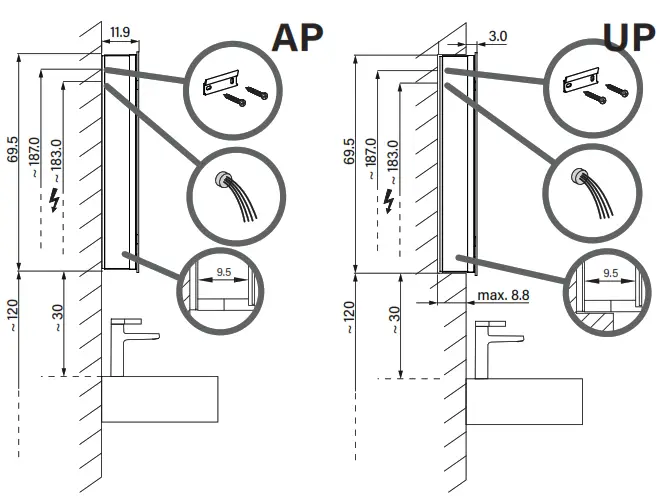

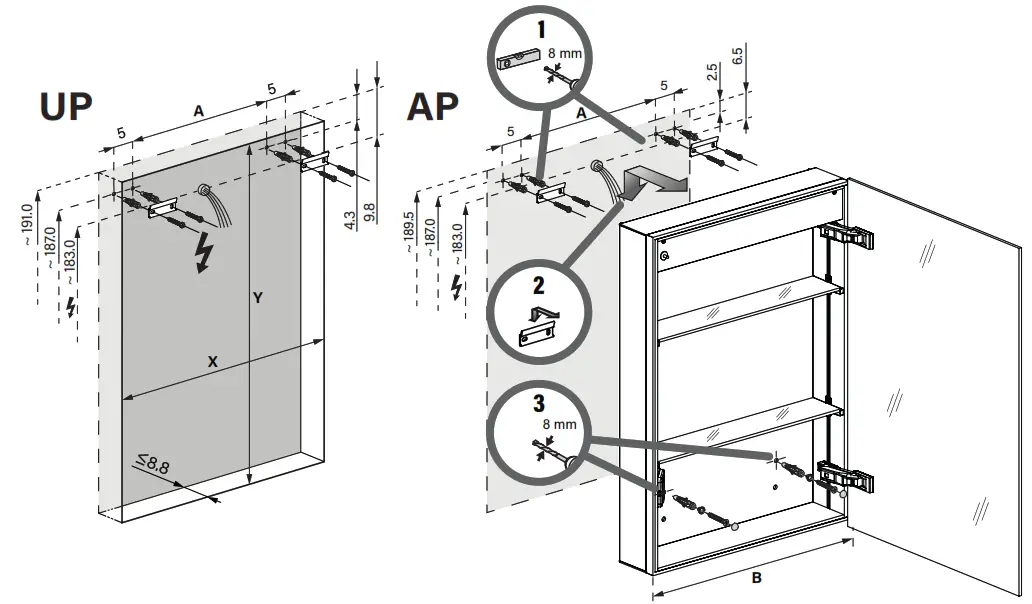

Flush mounting:
the recess dimensions X by Y and the fixing system for the mirrored cabinet will need to be determined on-site.

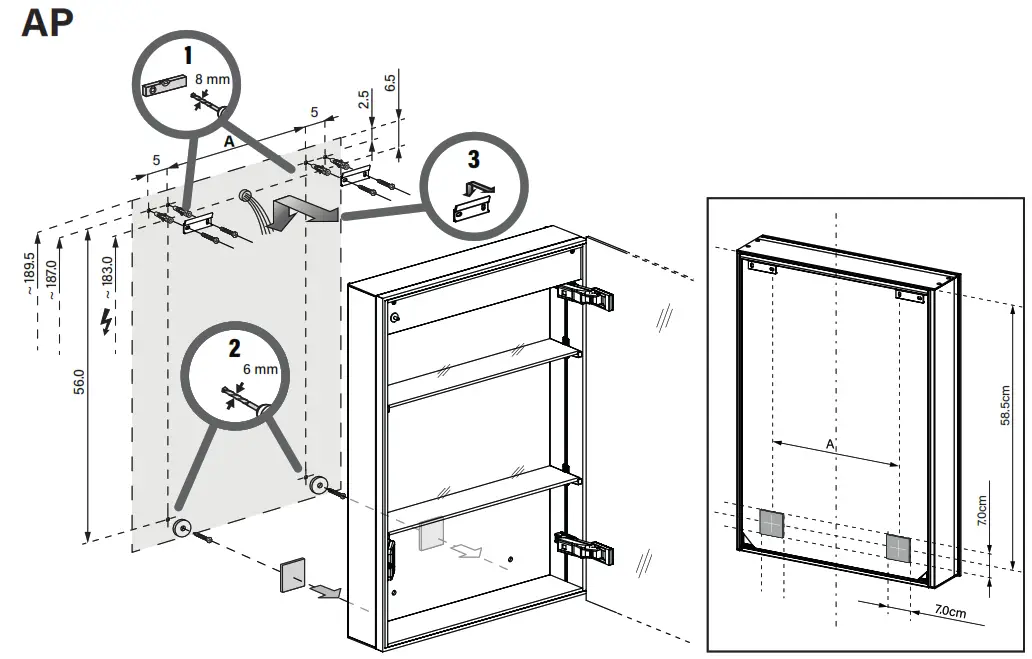

| ALC2 | A | B |
| 50.. | 19 | 49.5 |
| 60.. | 29 | 59.5 |
| 70.. | 39 | 69.5 |
| 80.. | 49 | 79.5 |
| 90.. | 59 | 89.5 |
| 100.. | 69 | 99.5 |
| 120.. | 89 | 119.5 |
| 130.. | 99 | 129.5 |
| 140. . | 109 | 139.5 |
| 150.. | 119 | 149.5 |
Mirror rear wall fixed with a magnet.

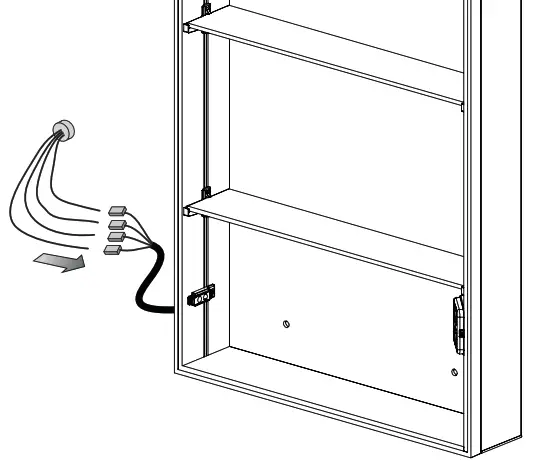

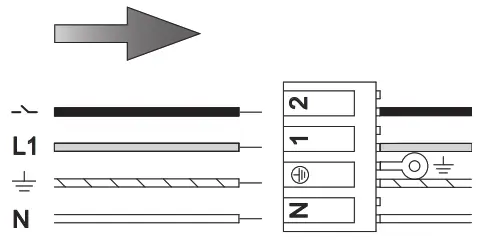

Wiring

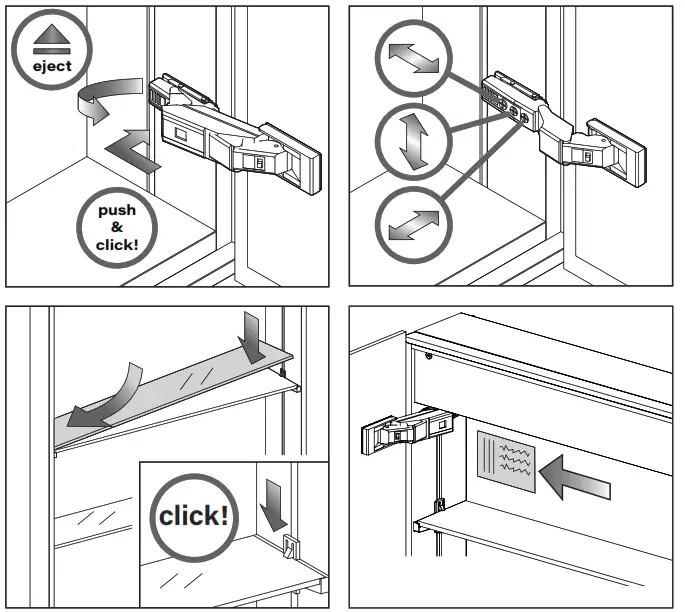

Adjustments
Follow care tips.
W. Schneider+Co. AG, Neue Dorfstrasse 27, CH–8135 Langnau a.
A. www.wschneider.com
Schneider mirrors – the high-quality Swiss brand
