Assembling instructions
PLS 1

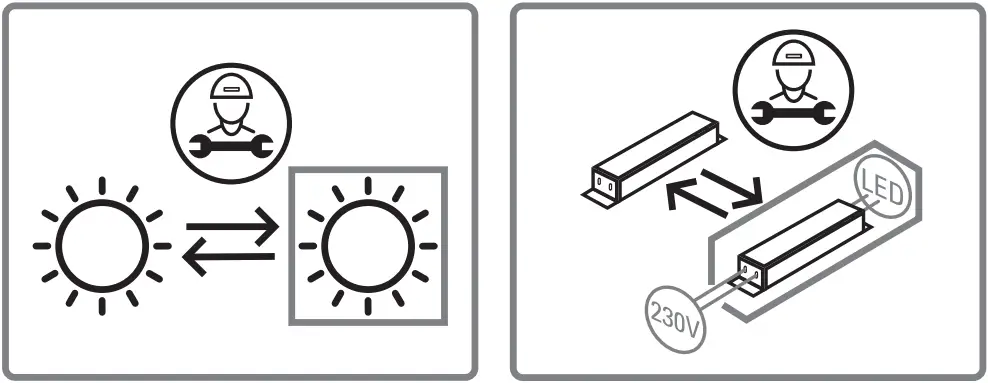

Electric installation work may only be carried out by approved specialists according to the local regulations. Liability will only be accepted by us when our products are installed by qualified engineers. The light sources incorporated in this product should only be replaced by the manufacturer, or by another similarly well-qualified person.

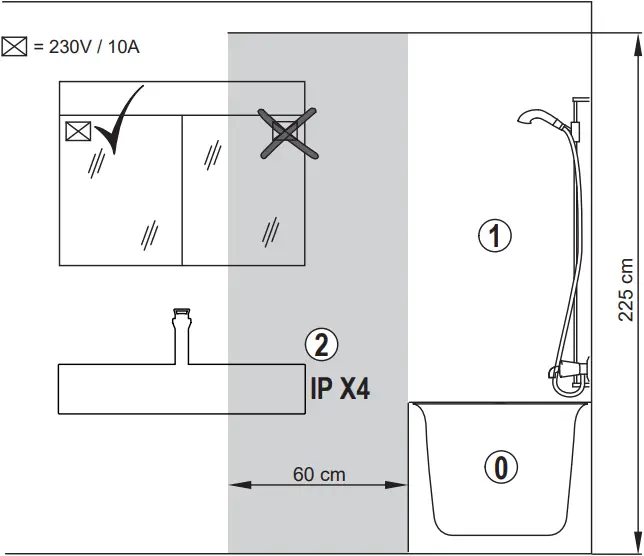

Rooms with bath or shower have to be protected with residual-current-operated protective device (RCD) FI (RCD) I ∆ n = 30mA.
Volume 2 min. protection IP X4. Volume 2 no socket admitted.
BS 7671 – 601
The product is controlled after current guidelines.
Indoor installation only
The product must be disposed of separately from normal household waste.
Energy efficiency class:
| Scope of delivery | 50, 60, 70, 80 cm | 90, 100, 120, 130 cm | 150, 180 cm |

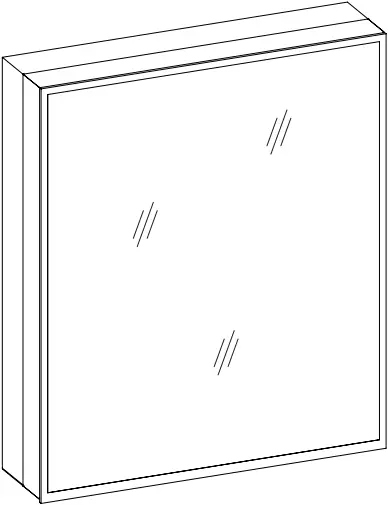

| Mirror cabinet | 1 | 1 | 1 |
| Glass shelf | 2 | 4 | 6 |
| Suspension rail | 2 | 2 | 2 |
| Set of screws | 1 | 1 | 1 |
| Magnifying mirror | 1 | 1 | 1 |
1 Assembling instructions

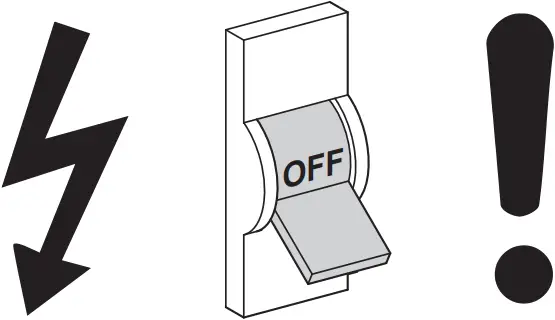

Turn off electricity before beginning.

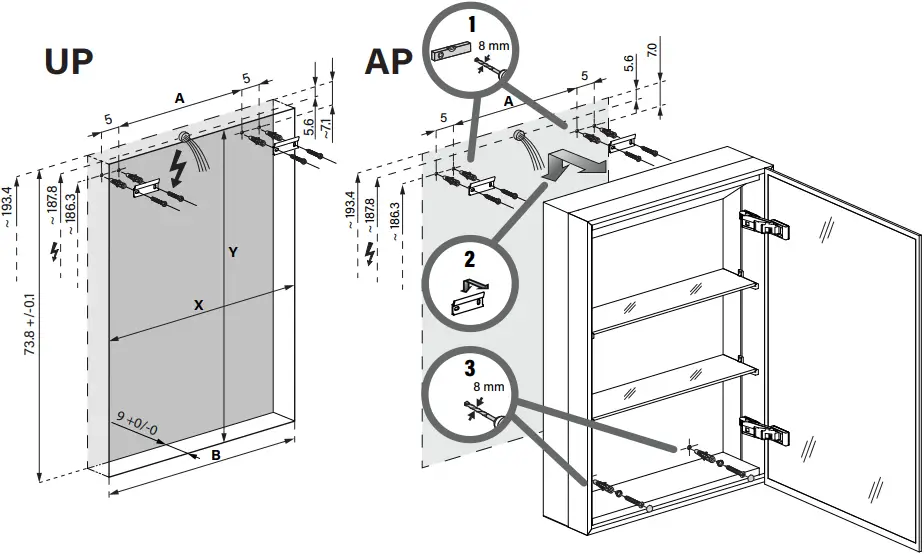

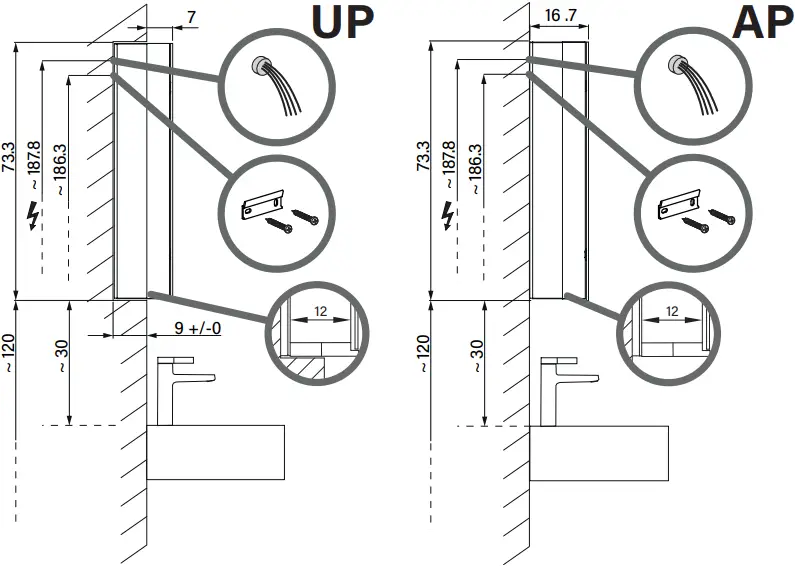

Flush mounting:
the recess dimensions X by Y and the fixing system for the mirrored cabinet will need to be determined on site.
UP | A | B |
| 50.. | 34.6 | 53 |
60.. | 44.6 | 63 |
| 70.. | 54.6 | 73 |
80.. | 64.6 | 83 |
| 90.. | 74.6 | 93 |
100.. | 84.6 | 103 |
| 120.. | 104.6 | 123 |
130.. | 114.6 | 133 |
| 150.. | 134.6 | 153 |
180.. | 164.6 | 183 |
Mirror rear wall fixed with magnet.

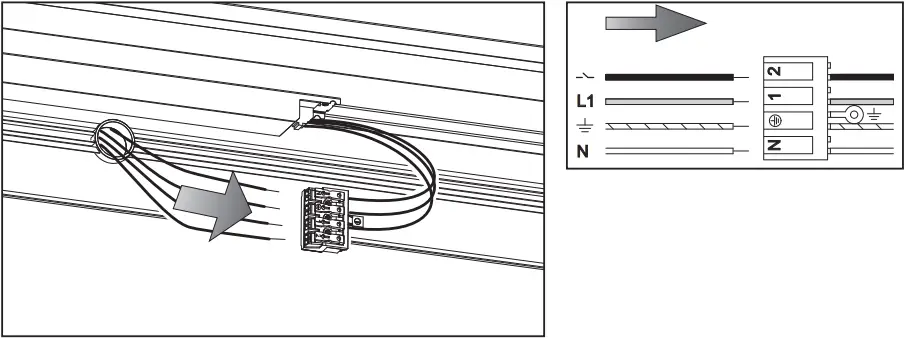

2 Wiring

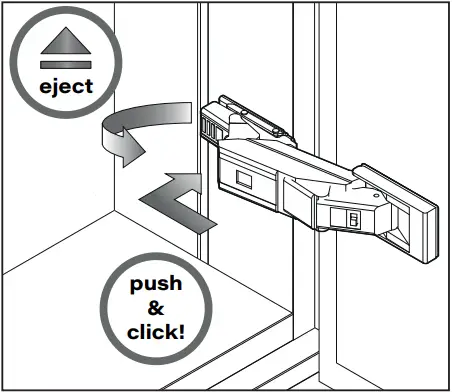

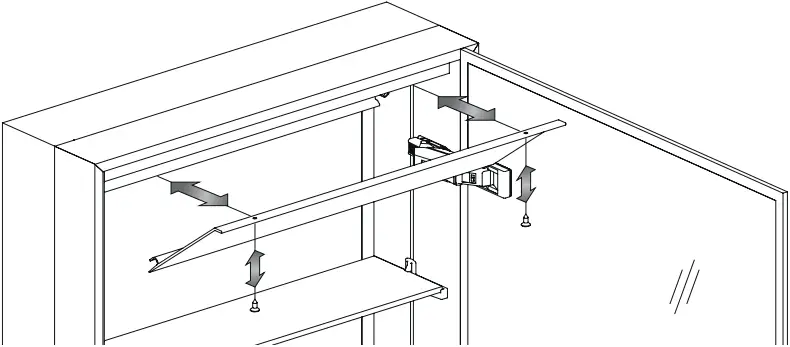

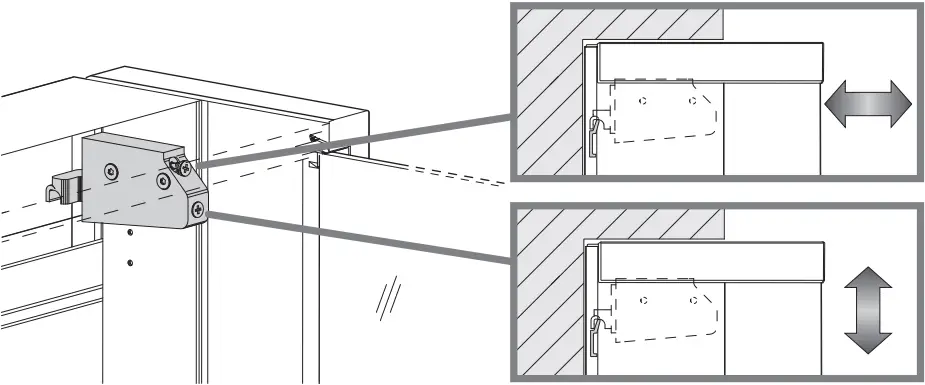

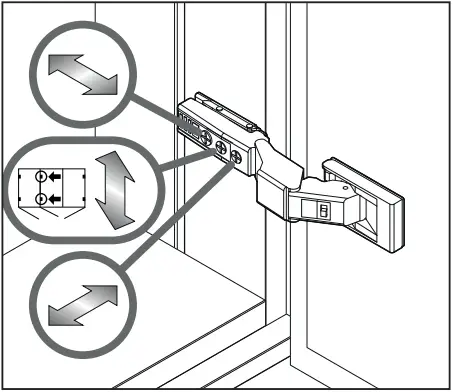

3 Adjustments
- Follow care tips.
Alterations are reserved
694.342 01.21/C
W. Schneider+Co. AG, Neue Dorfstrasse 27, CH–8135 Langnau a. A. www.wschneider.com
Schneider mirrors – the high-quality Swiss brand
