THORN S 1400-840 DI HFI BK Novaline Style
Mounting instructions
Important notices. Please, read first! Keep the instructions safe! Specifications are subject to change without notice! If you have questions, please contact the manufacturer.

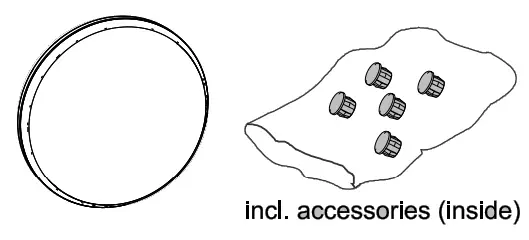

PACKAGE CONTENTS

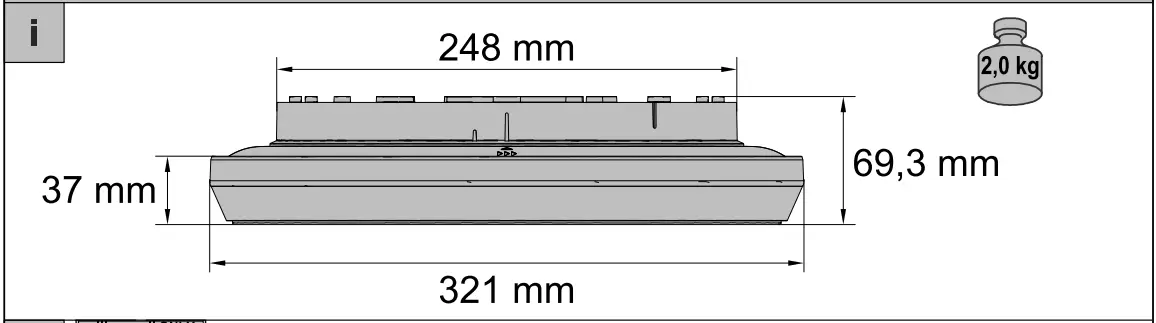

dimensions

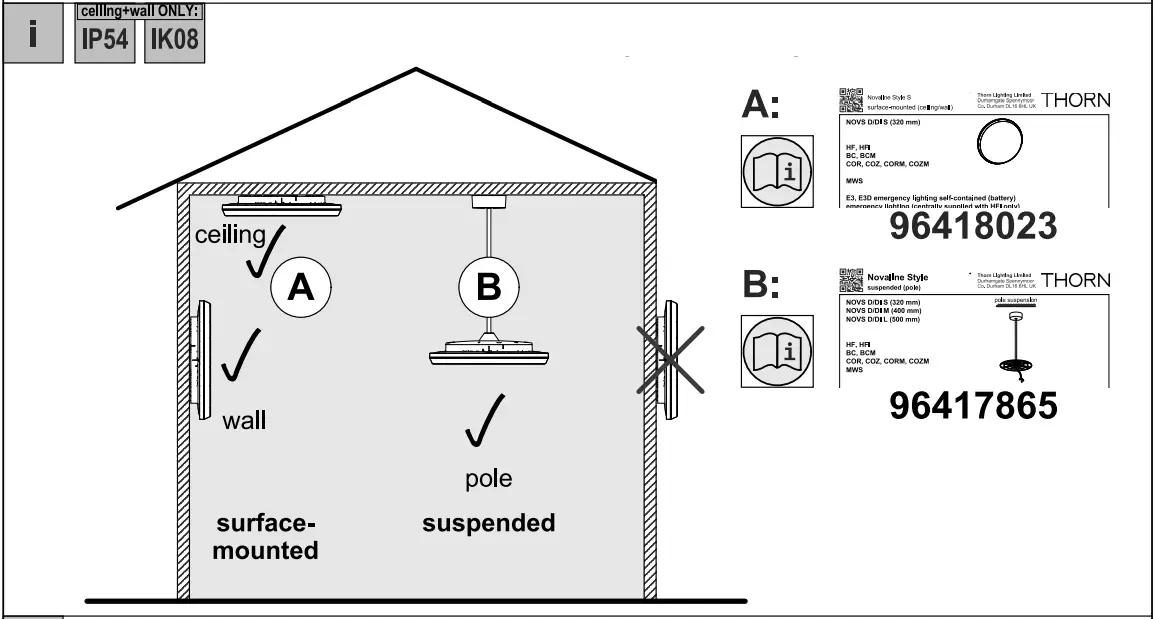

MOUNTING OPTIONS (overview)
MOUNTING OPTIONS B ONLY: accessory kits

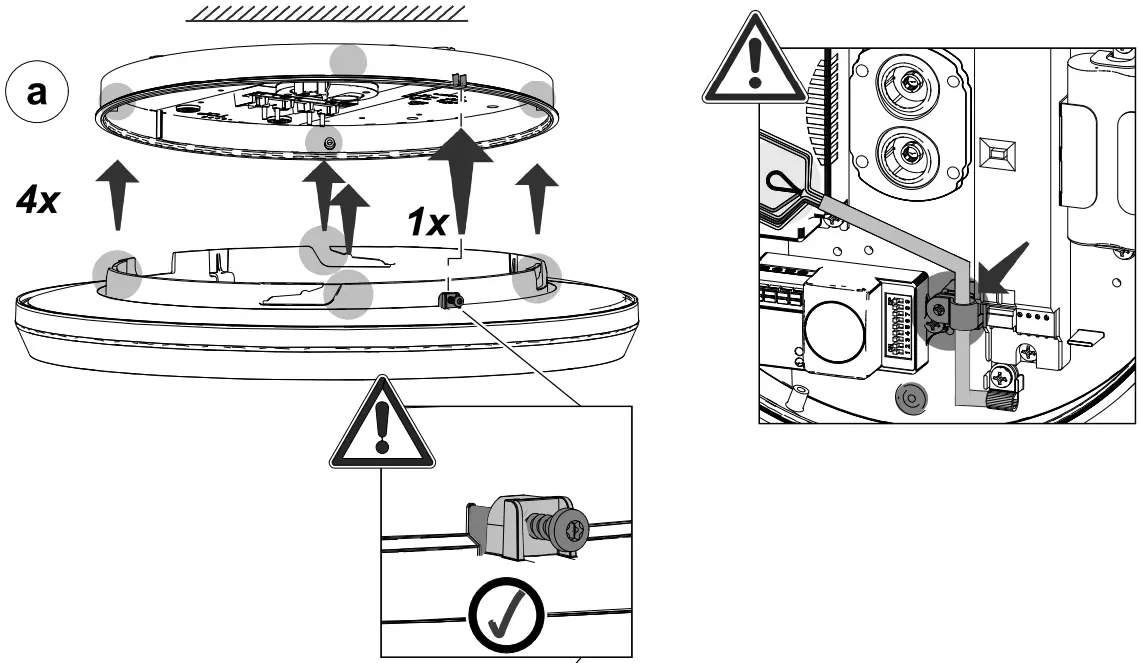

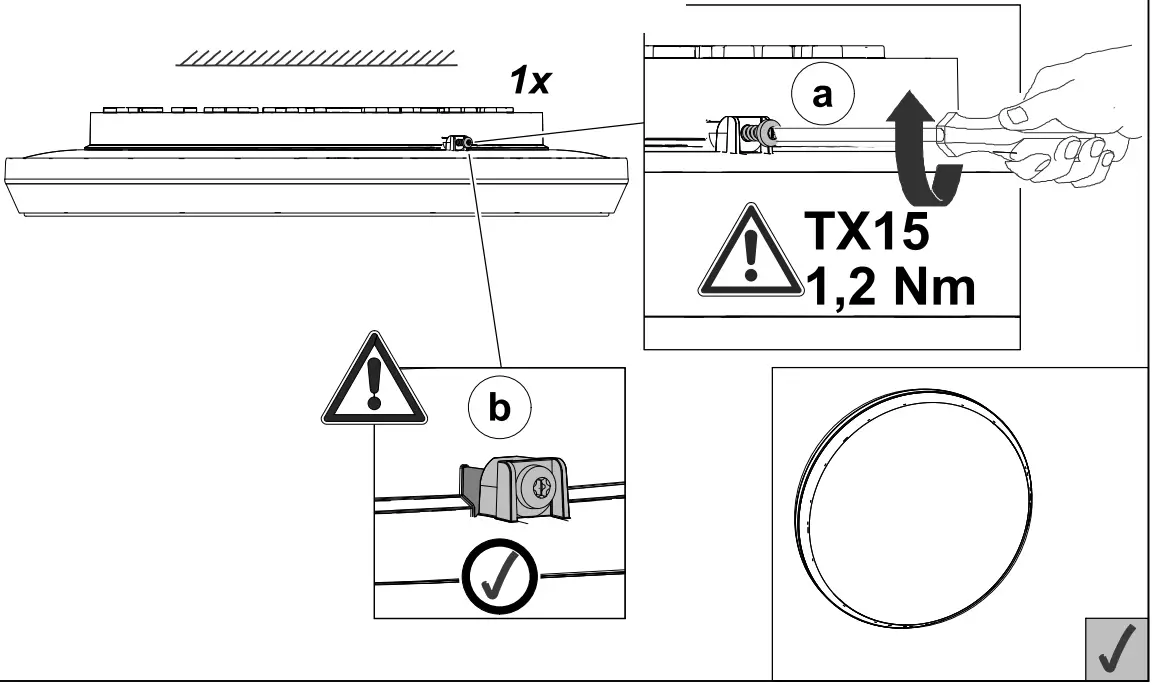

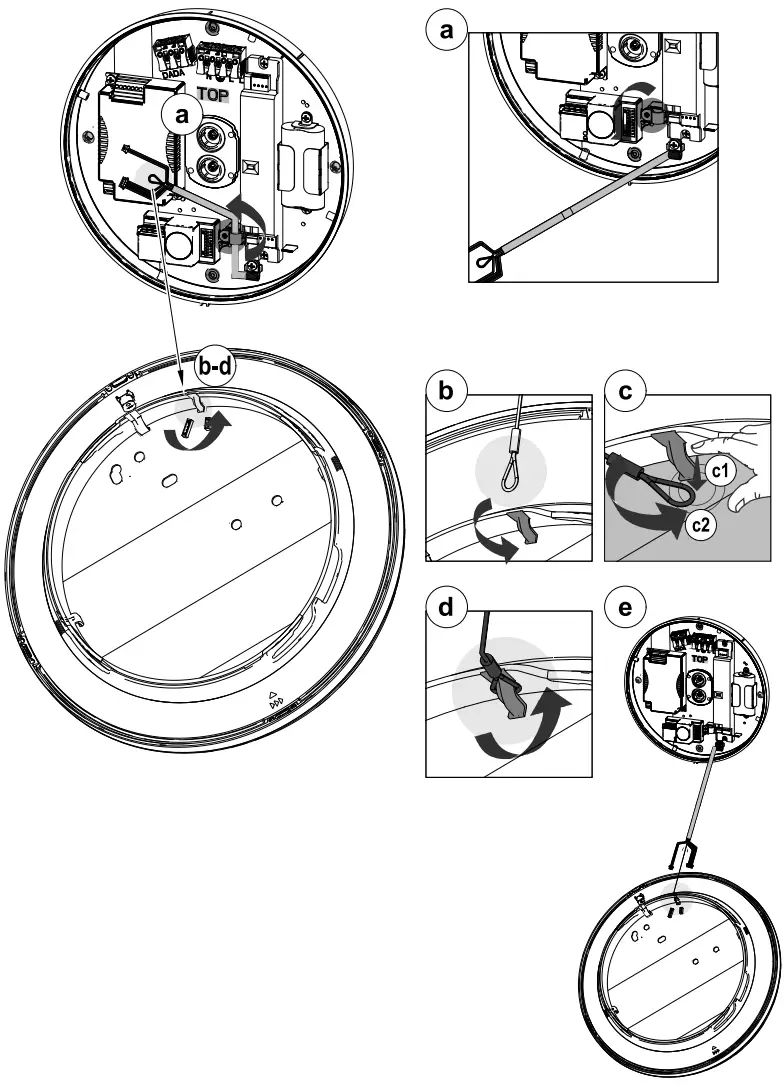

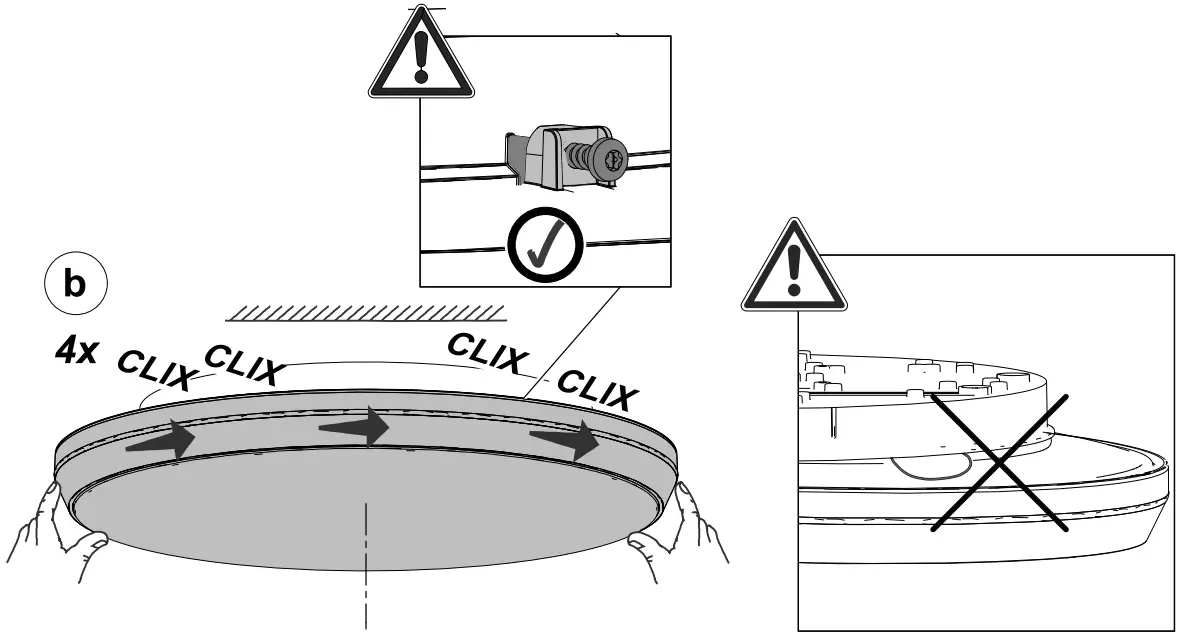

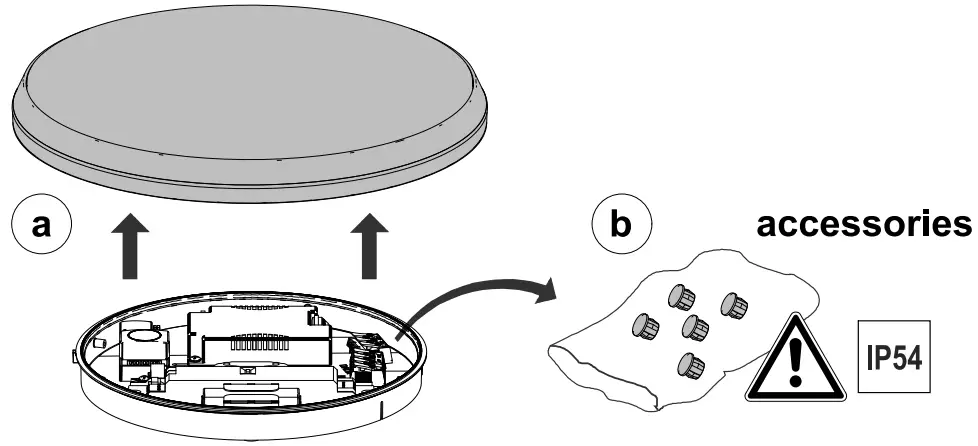

MOUNTING OPTION A: ceiling/wall

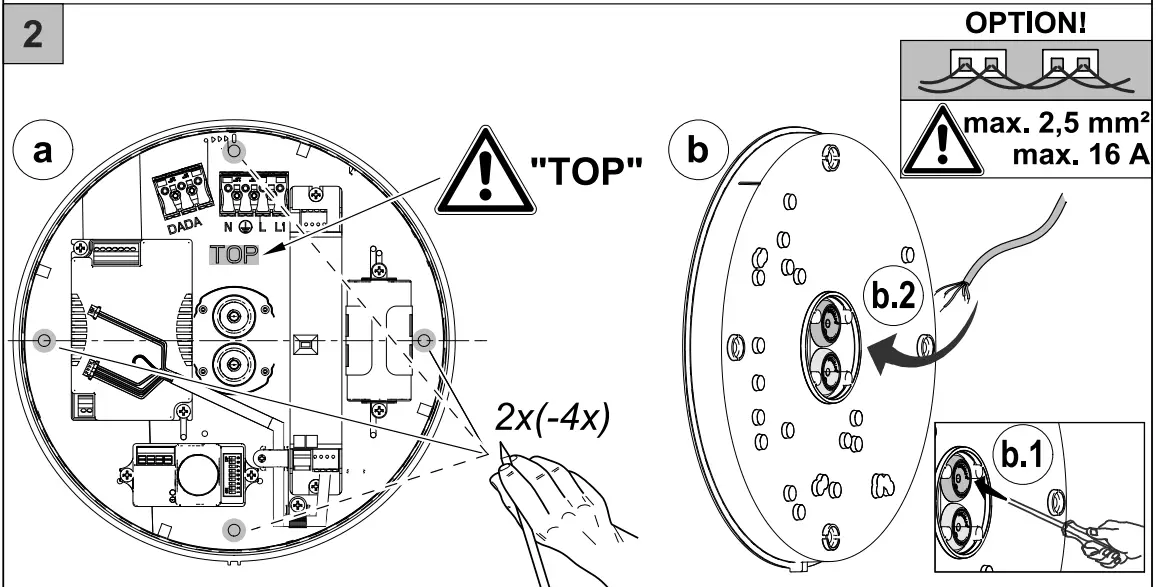

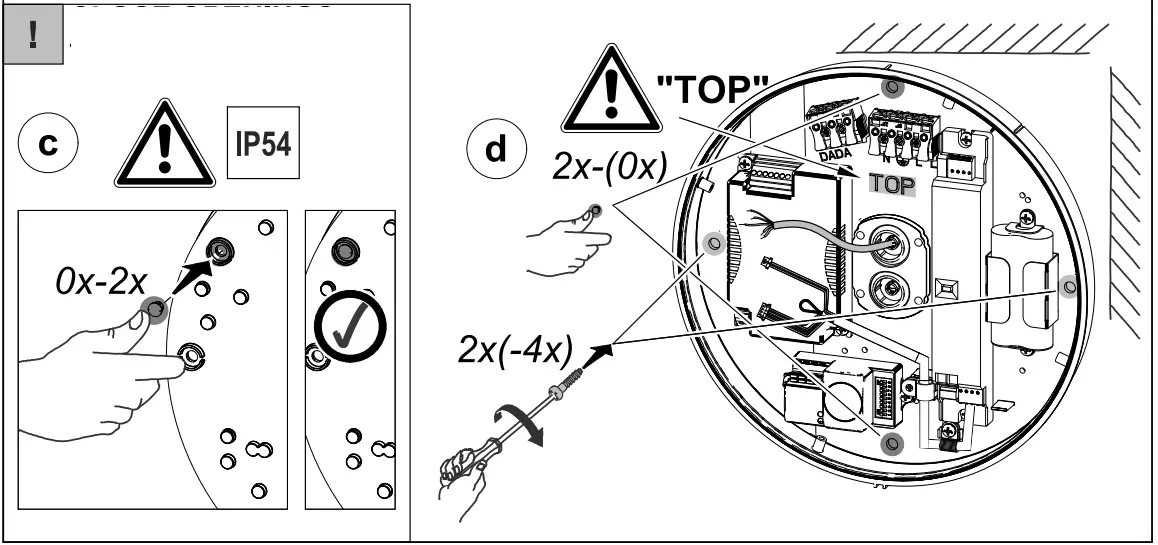

CLOSE OPENINGS from the back
MOUNTING OPTION A: ceiling/wall

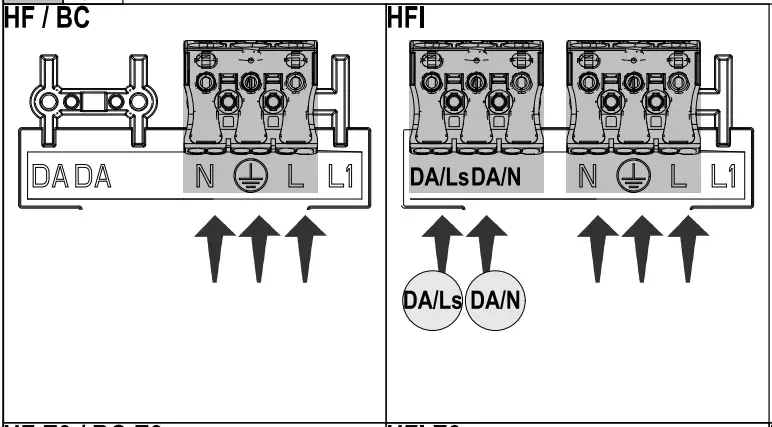

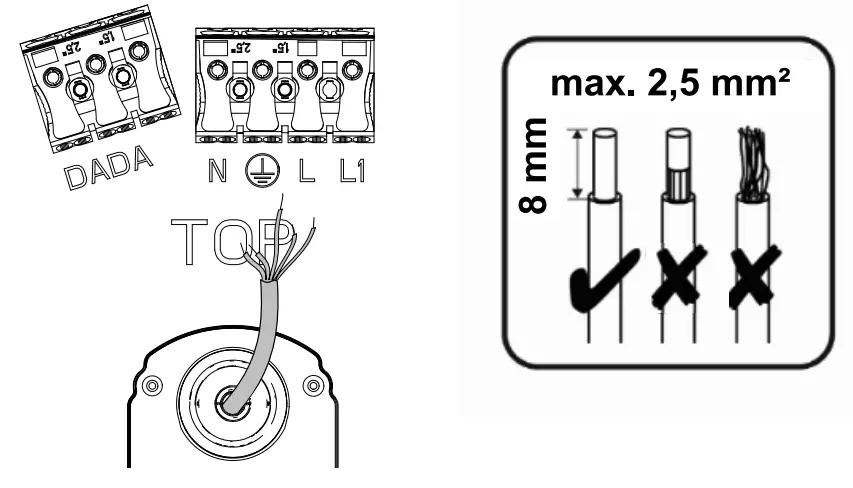

WIRING DIAGRAMS: Standalone luminaires

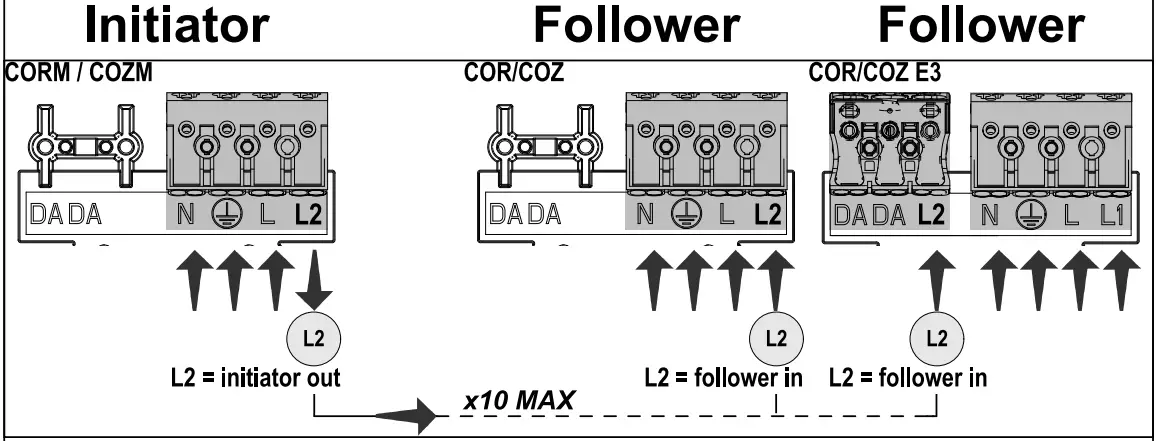

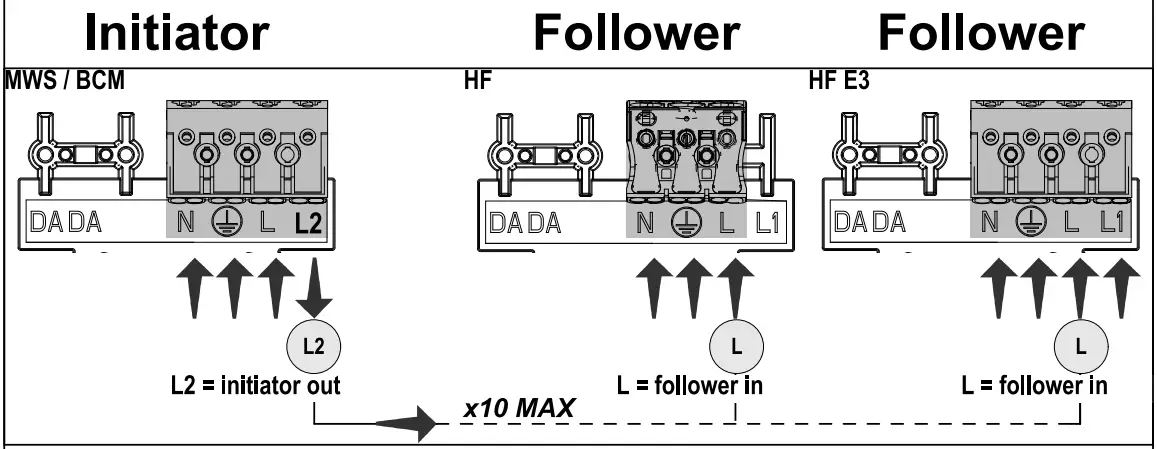

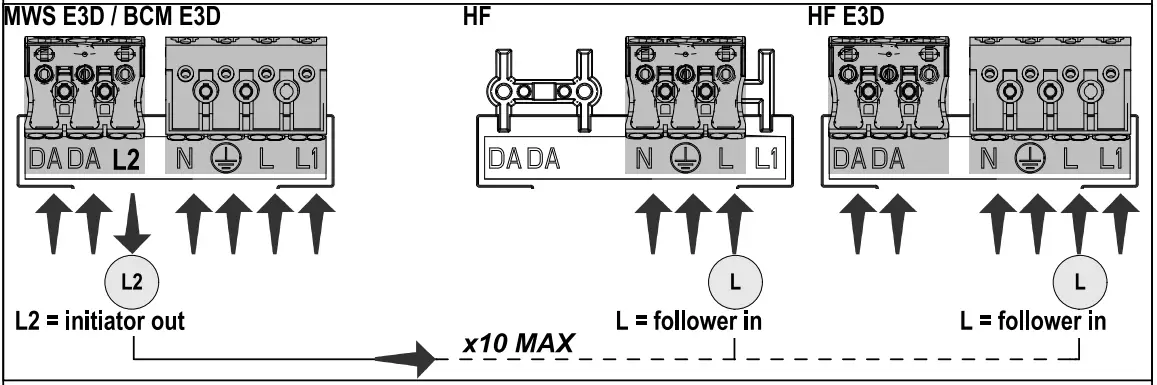

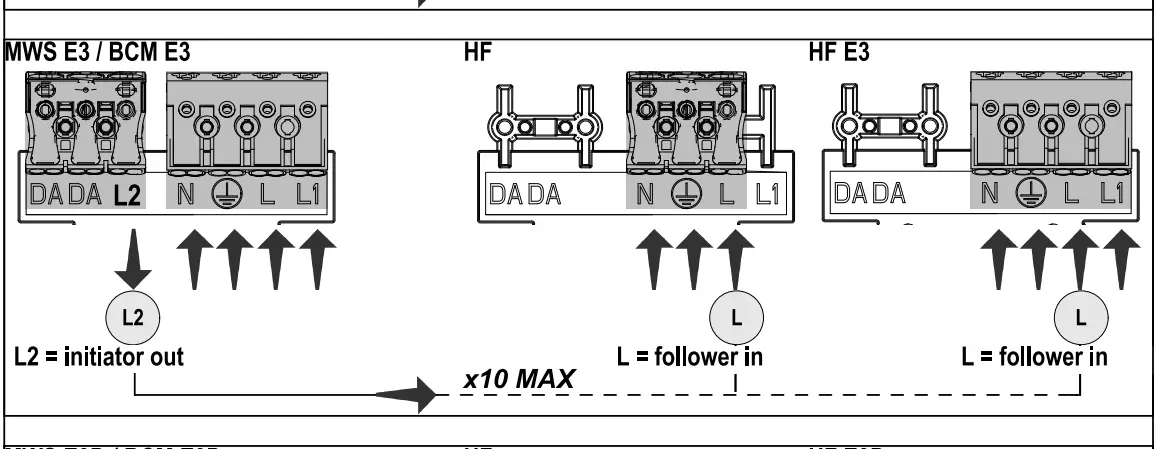

WIRING DIAGRAMS: Initiator-Follower circuits 1-3

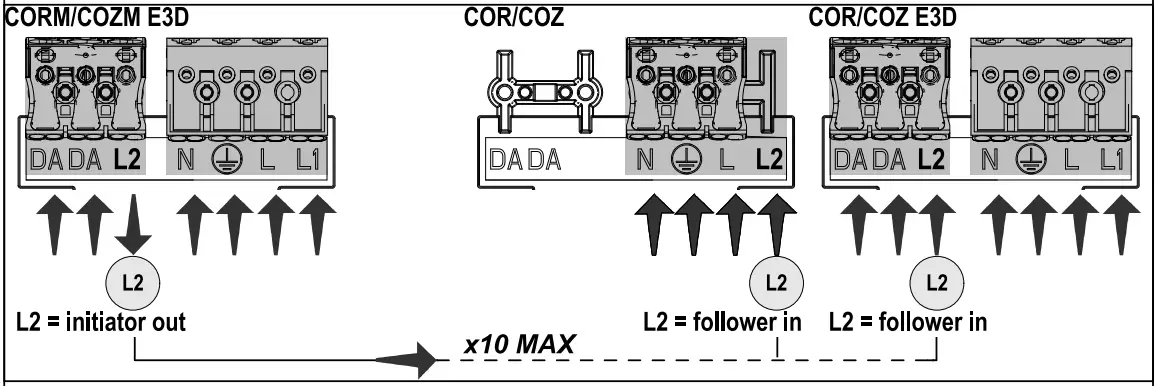

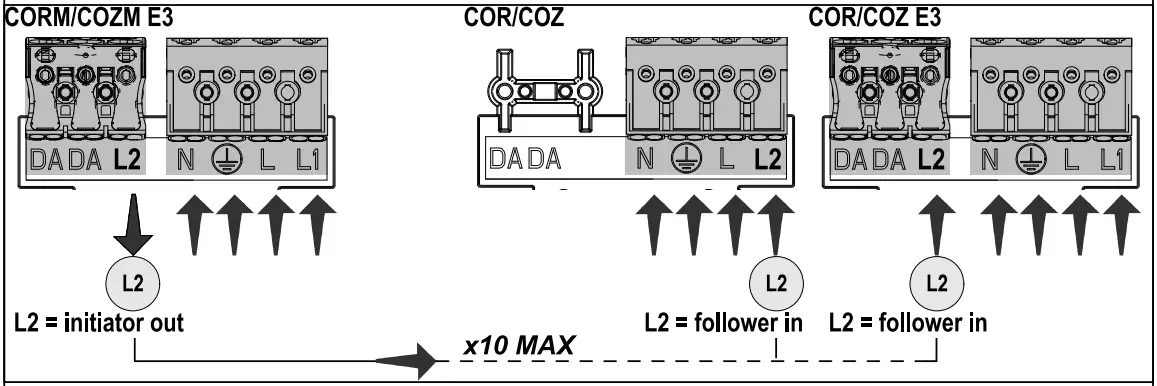

WIRING DIAGRAMS: Initiator-Follower circuits 4-6

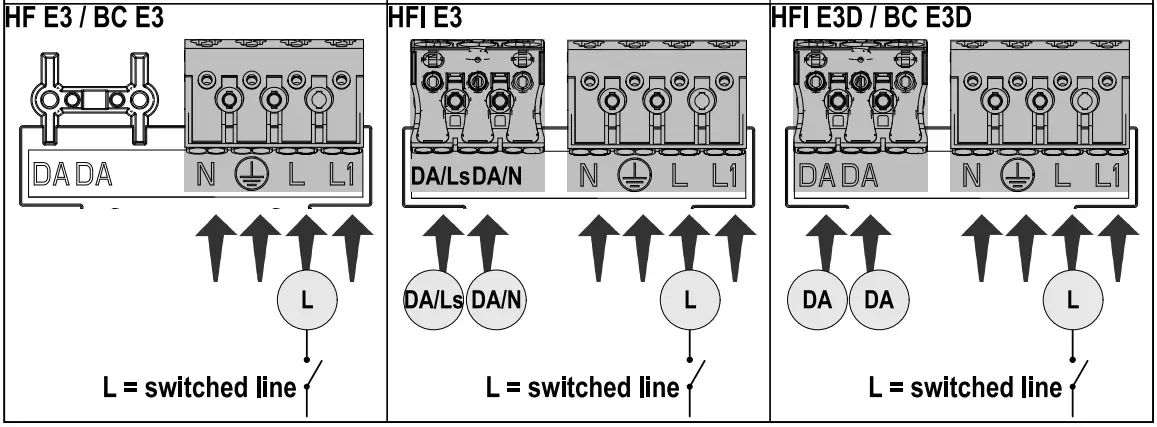

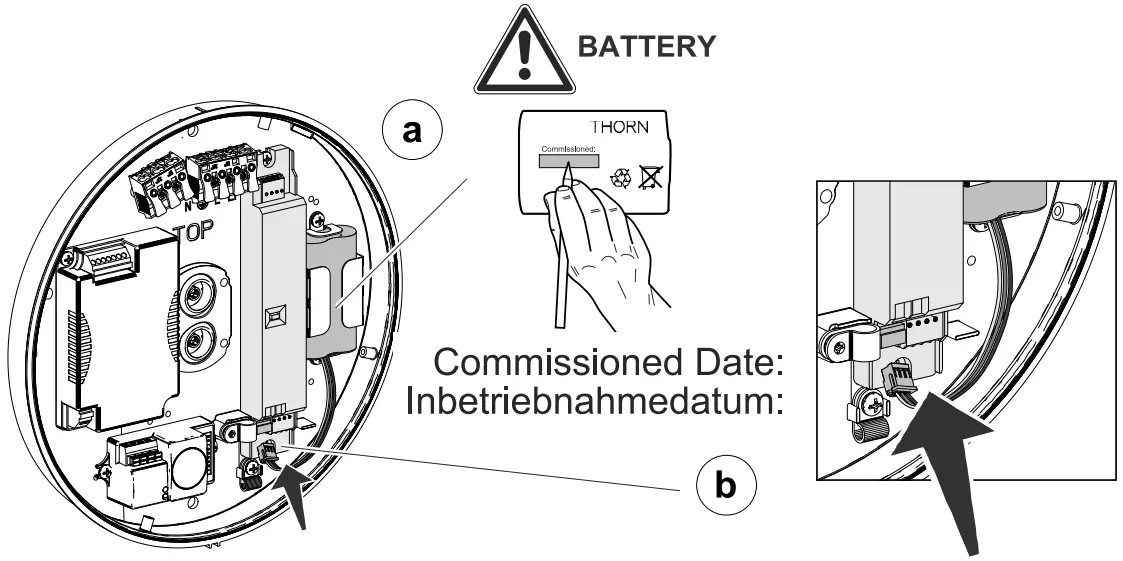

OPTION E3, E3D: emergency self-contained (battery)

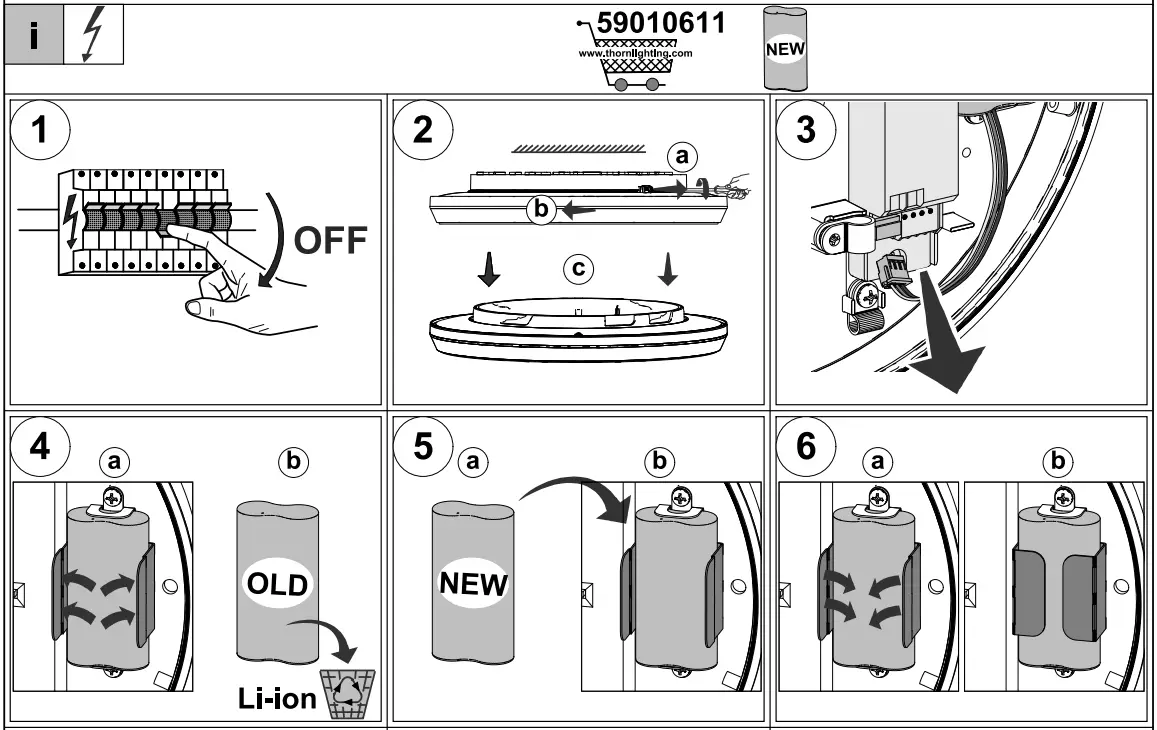

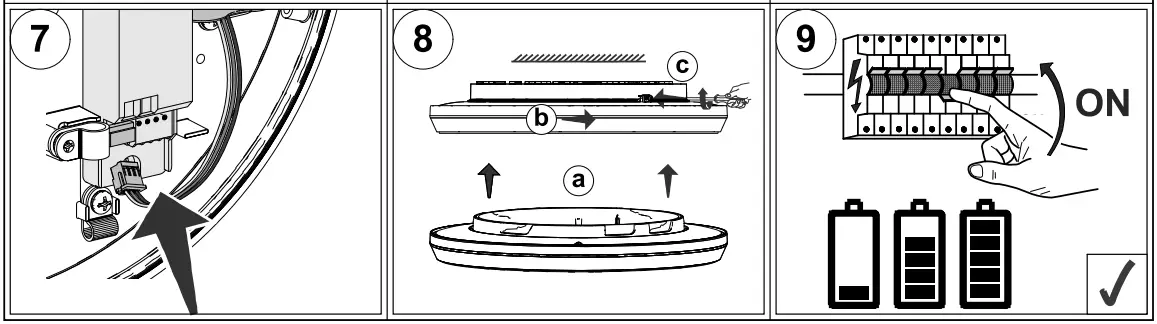

Change battery

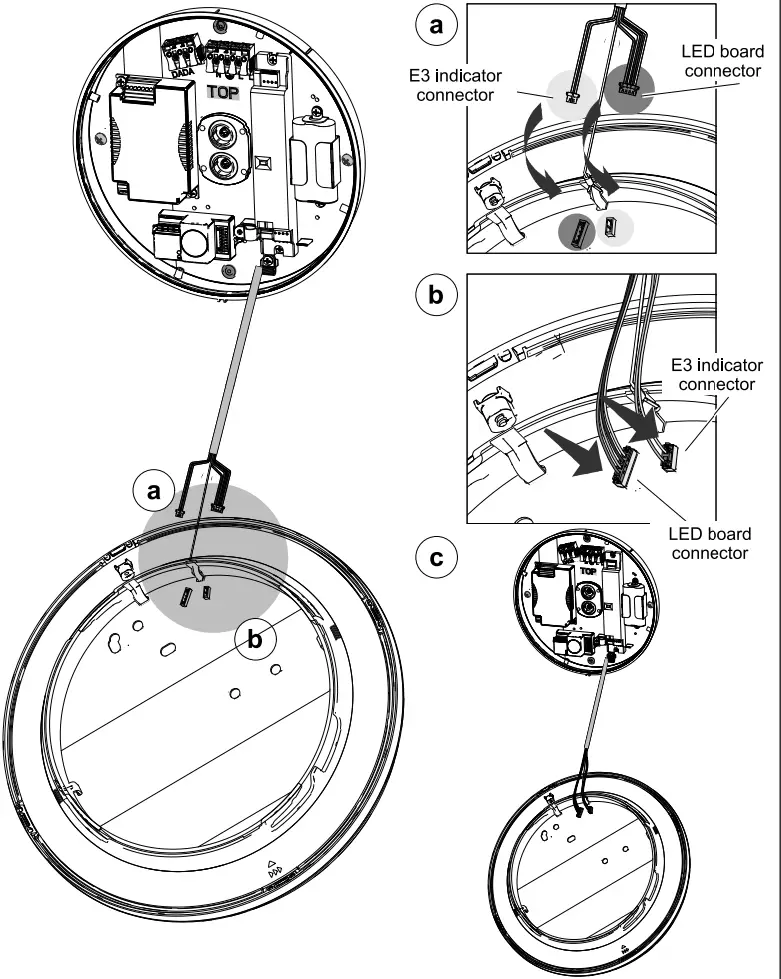

MOUNTING OPTION A: ceiling/wall

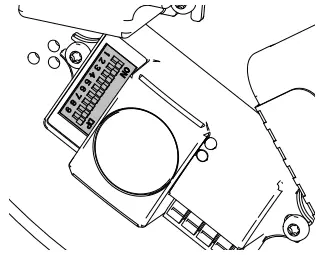

OPTION SENSOR MWS
www.thornlighting.com/PDB/Ressource/manual/96416799.pdf
MOUNTING OPTION A: ceiling/wall
MOUNTING OPTION A: ceiling/wall
Instructions for installation and operation!
The installation and commissioning of the luminaire as well as any modification to the luminaire may only be performed by authorized personnel (qualified electrician). National installation regulations must be observed. Before any work on the appliance is done, it must be disconnected from mains. Hot plug-in is not an option and may cause damage to the lamp or luminaire! The manufacturer is not liable for damages resulting from improper or faulty installation or operation or from unauthorized modifications to the luminaire. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person.
Caution, risk of electric shock!
Specifications are subject to change without notice! If you have questions, please contact the manufacturer.

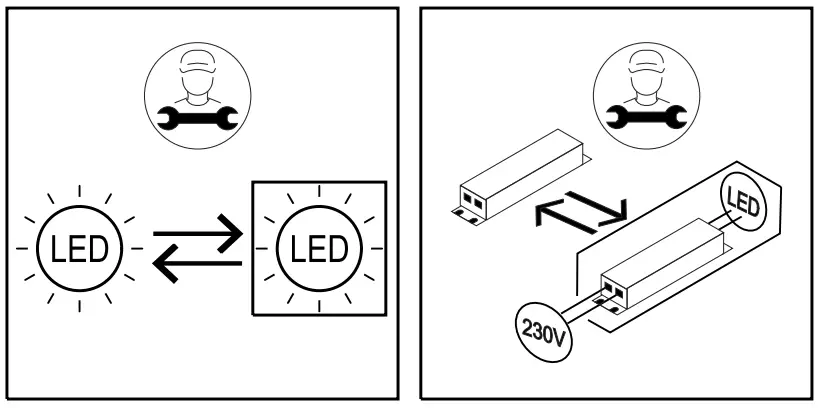

Info on (non-) replaceability:
