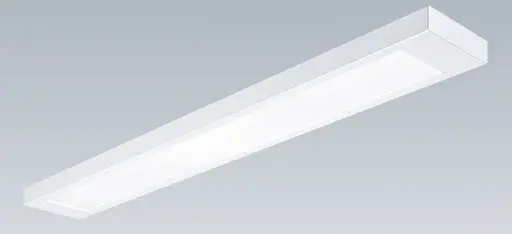

THORN Punch 3 LRO Lighting System
Contents hide
A. Surface-mounted
B. Suspended
C. Suspended continuous row

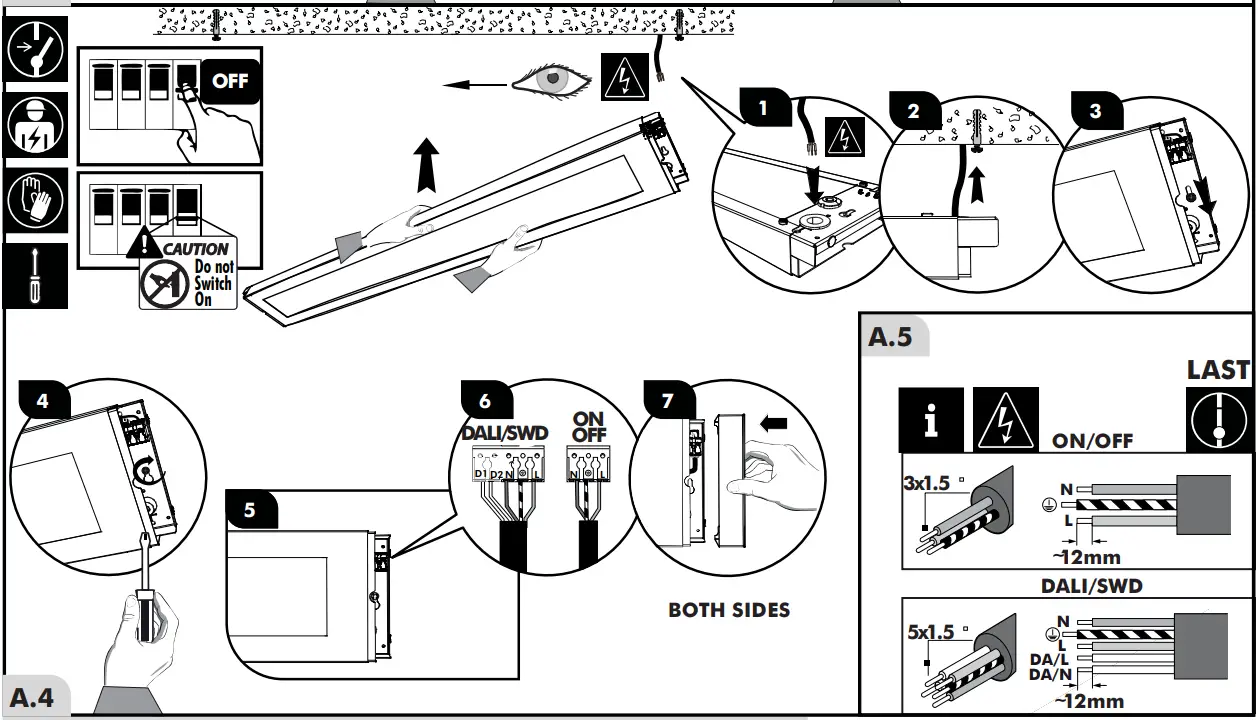

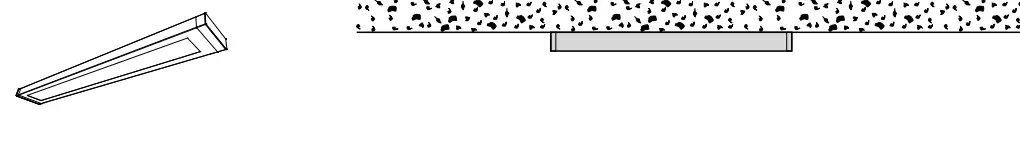

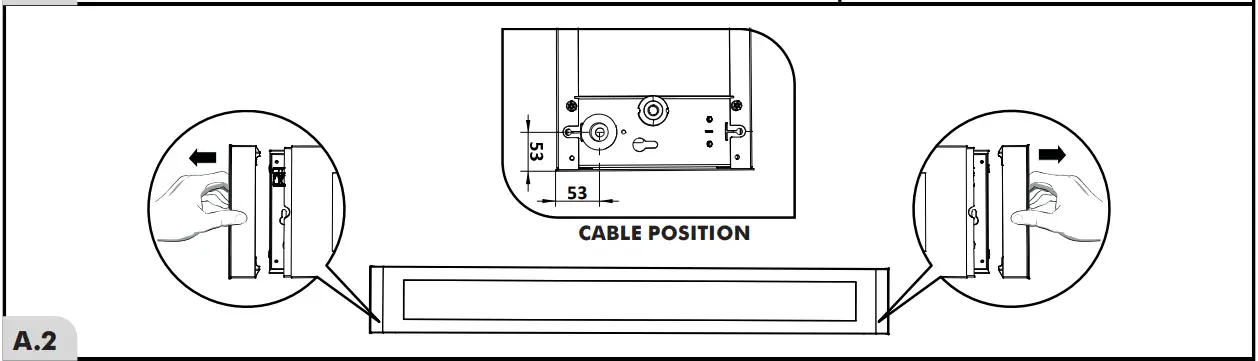

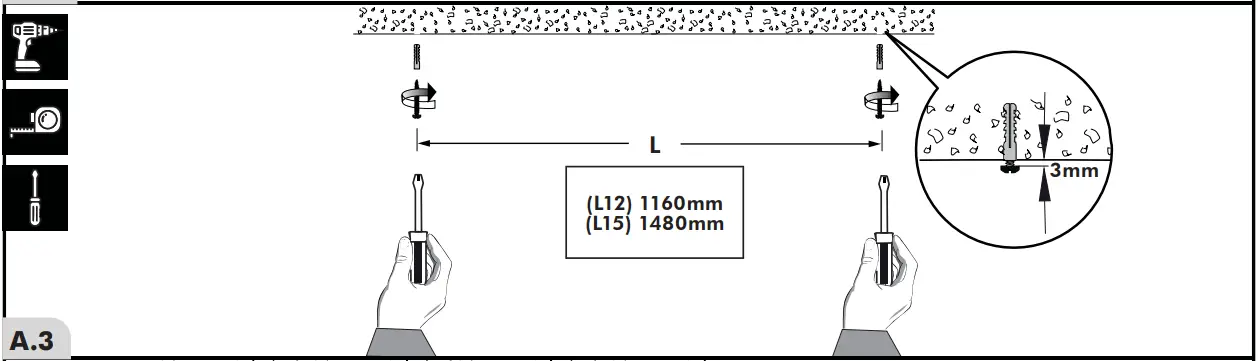

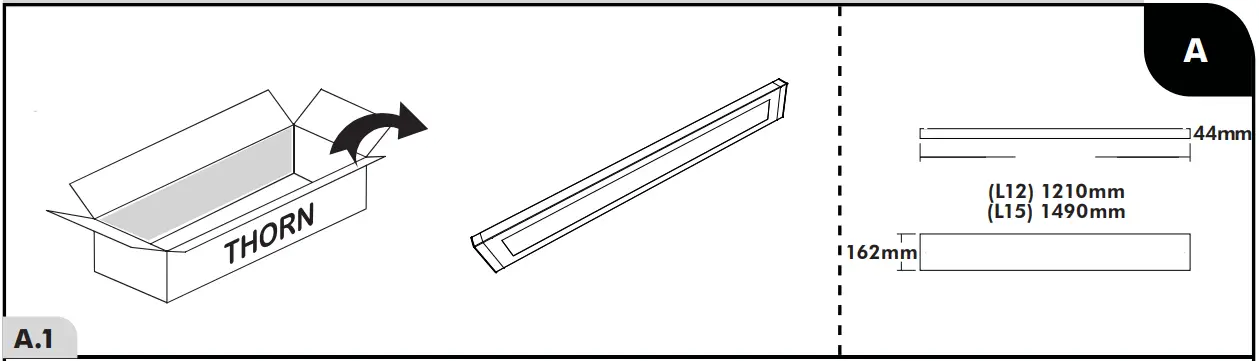

Punch 3 LRO (MSC) “Surface-mounted”

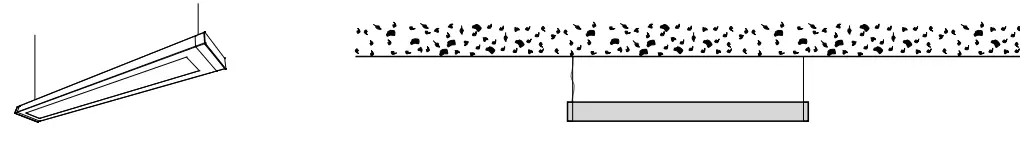

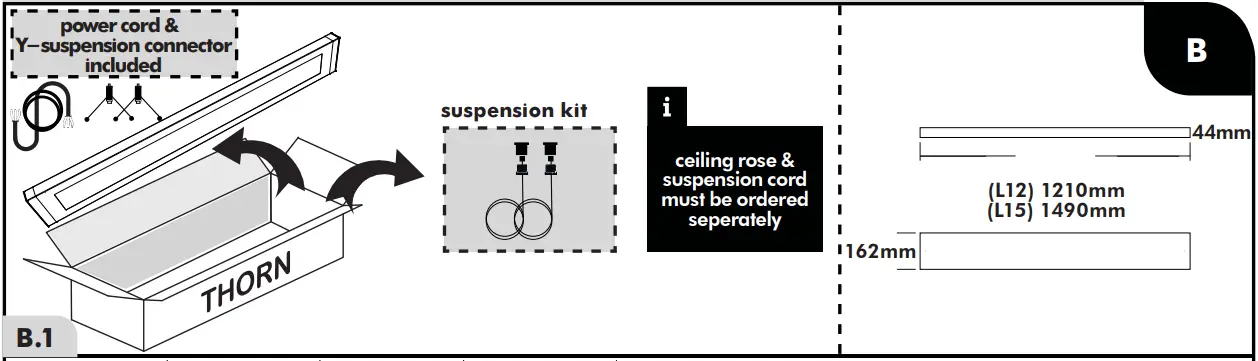

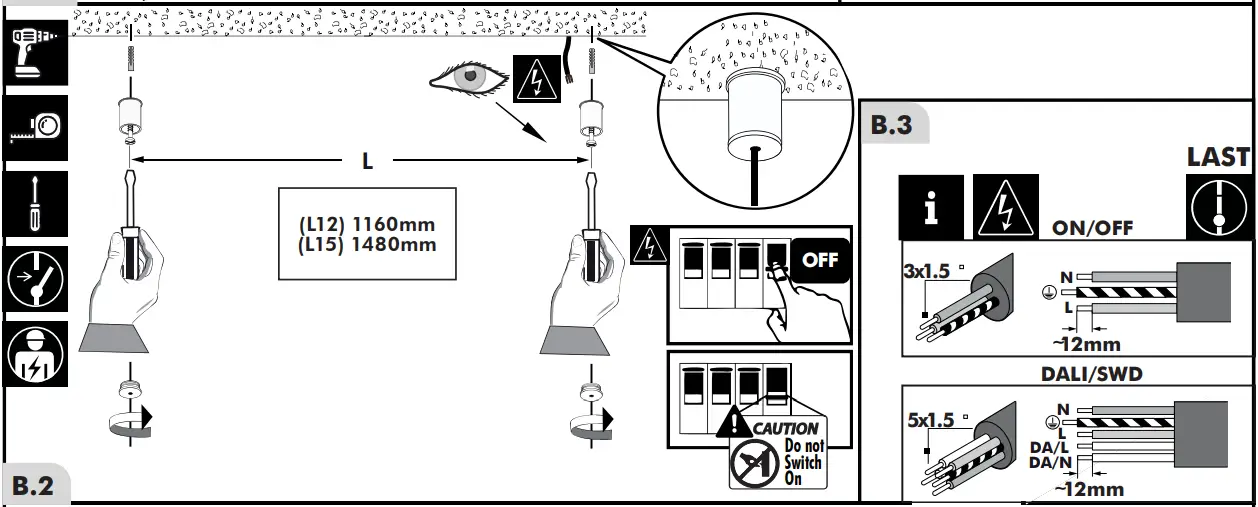

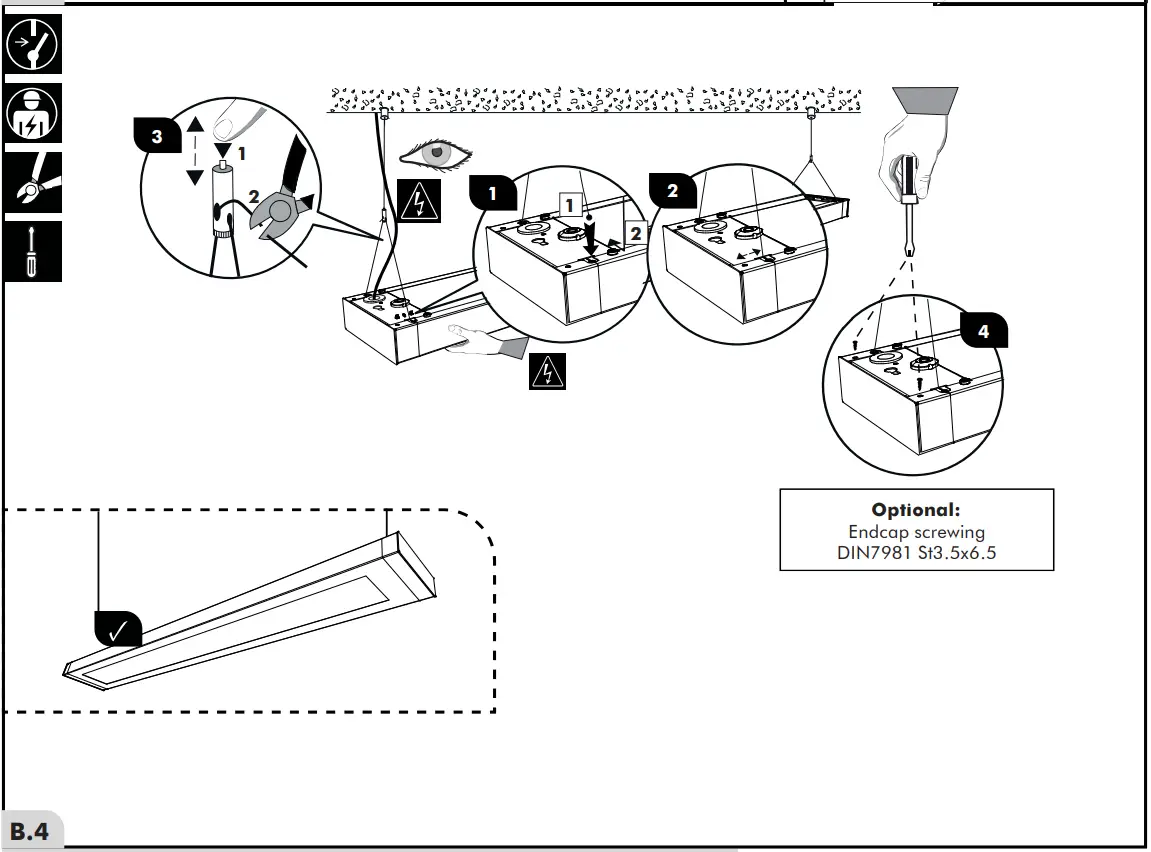

Punch 3 LRO (MSP) “Suspended”

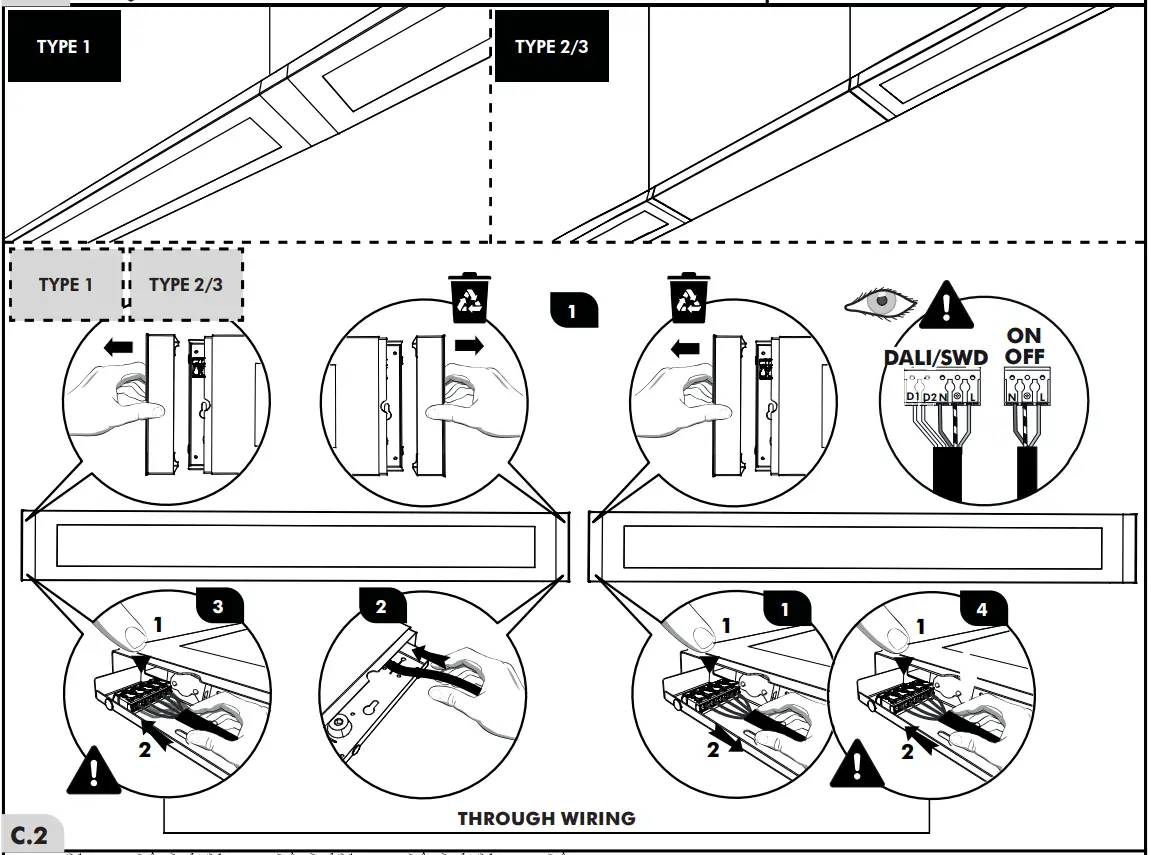

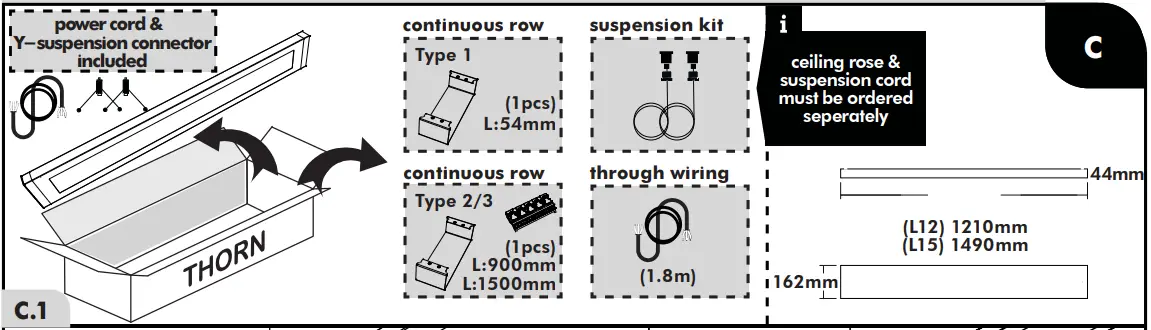

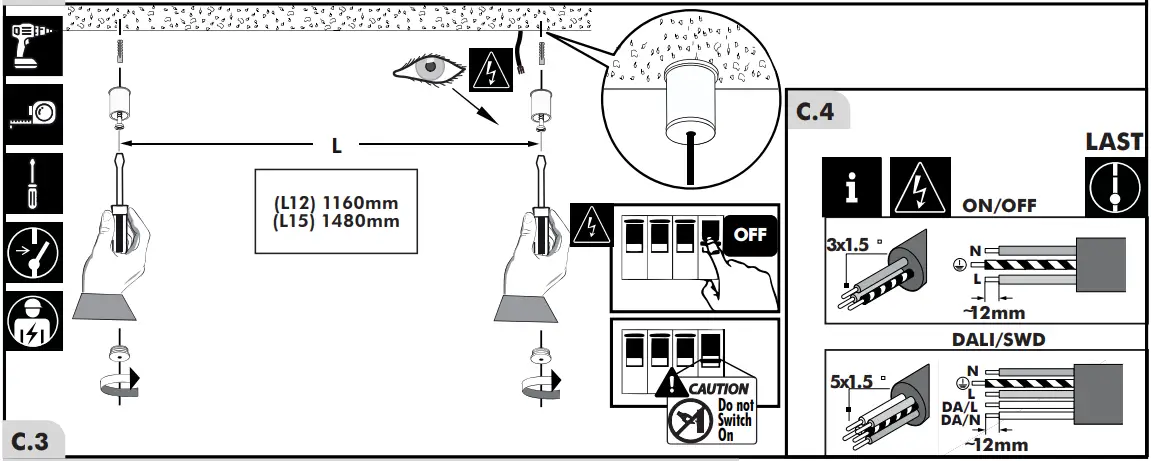

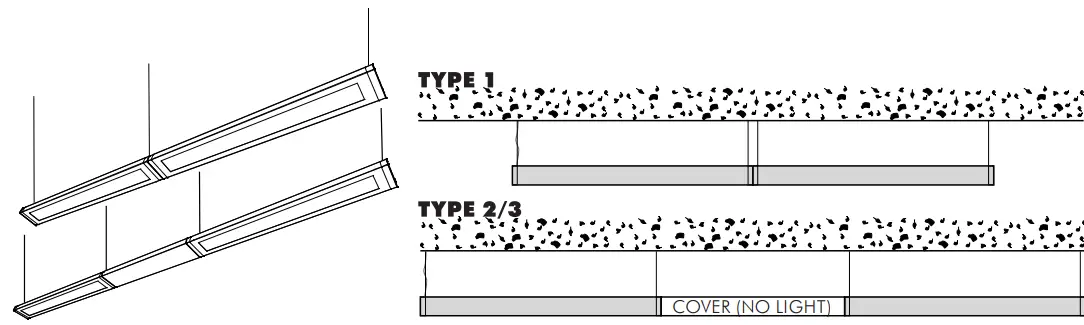

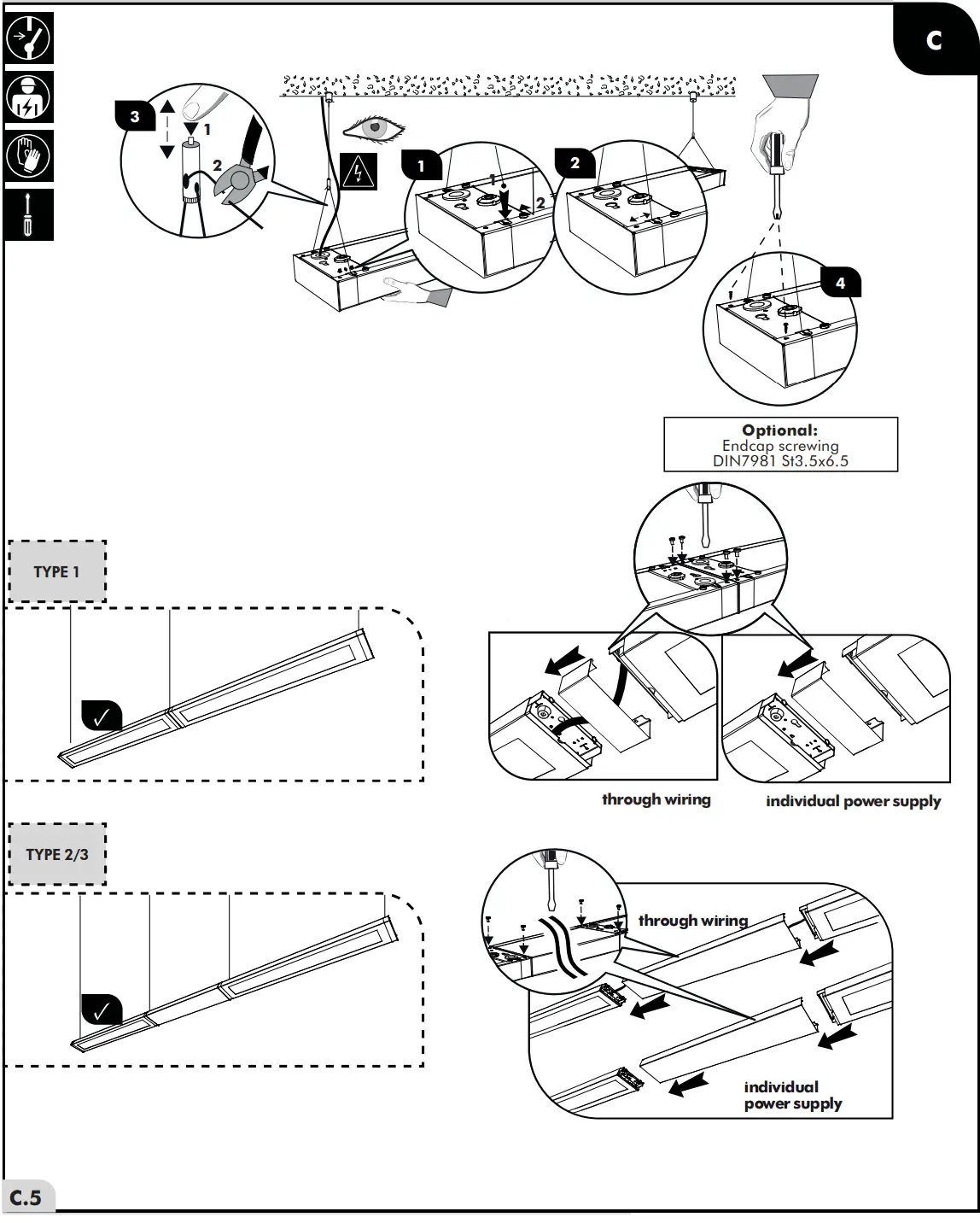

Punch 3 LRO (MSP) “Suspended continuous row”

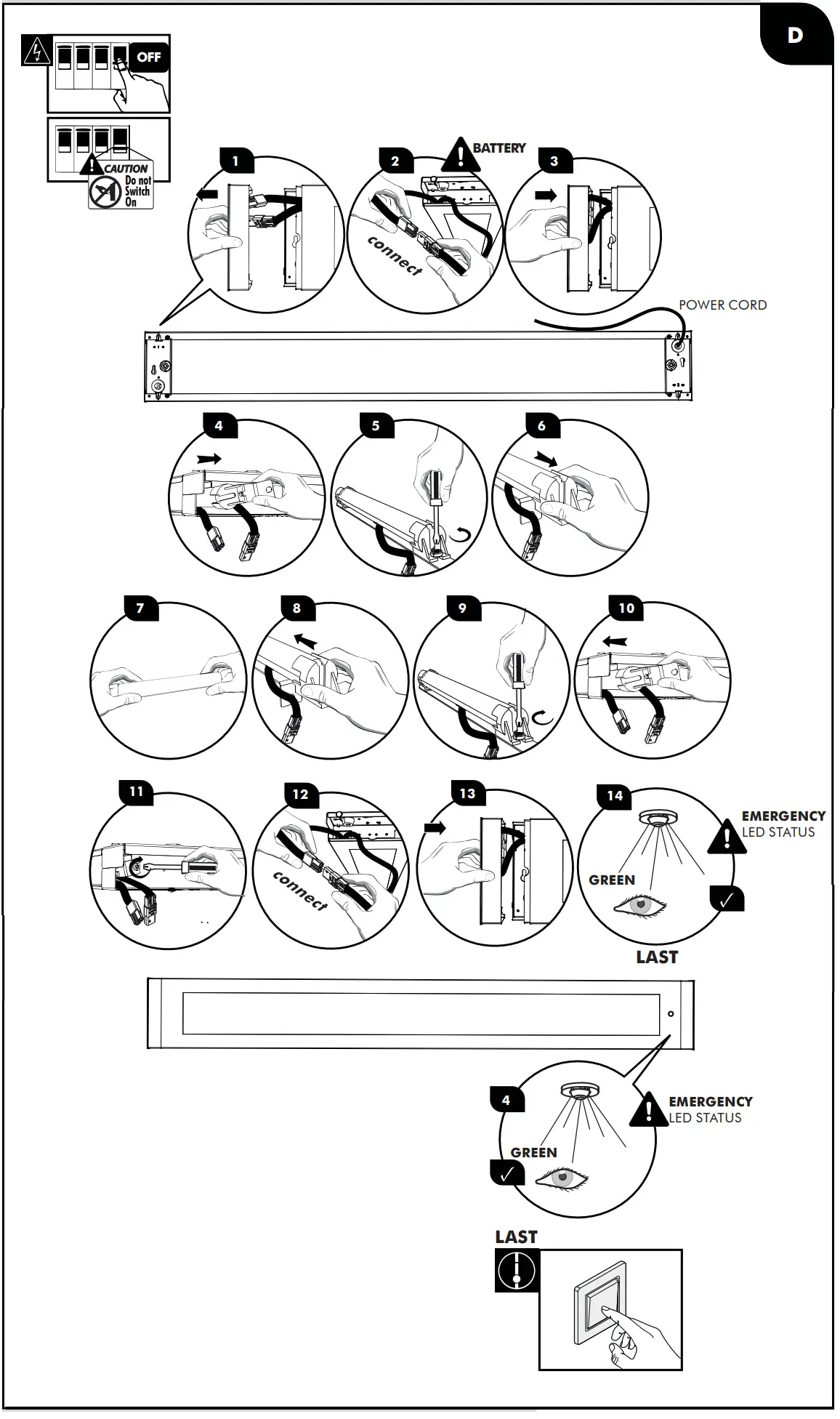

Punch 3 LRO (MSC & MSP) “Emergency version”
After the installation steps and commissioning of the luminaire according your mounting type (MSC) or (MSP), the steps below are only for version with Emergency kit
Please indicate the Commissioned Date on the label
Status LED
- Intermittent green: battery regeneration after commissioning as well as after each battery replacement
- Permanent green: battery correctly connected, battery charged or self-test operation
- Flashing red: defective battery charge, battery not connected or battery capacity too low
- Flashing intermittent red: defective or unconnected LED luminaire unit
- Off: battery totally flat, defective emergency lighting unit or in emergency operation

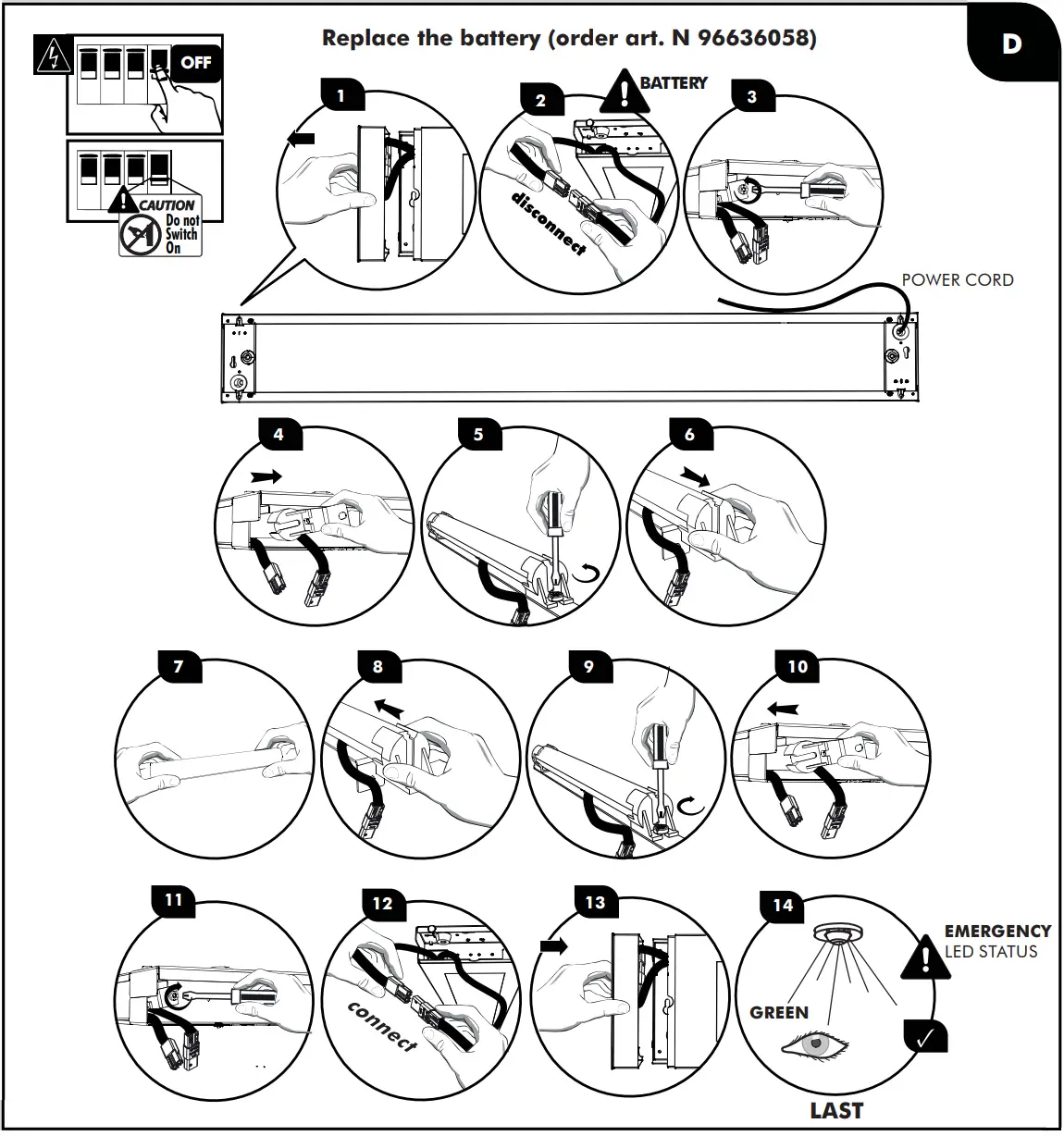

Replace the battery (order art. N 96636058)
This manual contains important information regarding the proper replacement of battery pack of this luminaire.
Before installing and use of the luminaire, read and understand all instructions, cautions, notes and warnings, as well as all of the labels affixed to the luminaire.
Please indicate the Commissioned Date on the label
