Item no. 018362
GARDEN LIGHTING
018362 Garden Lighting
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions)
Jula reserves the right to make changes.
For latest version of operating instructions, see www.jula.com
SAFETY INSTRUCTIONS
- For outdoor use.
- Do not attempt to modify the light.
- The power point must be protected by a residual current device.
- Do not use the product if the power cord or plug are damaged in any way.
- Do not attempt to repair the product yourself if it has been damaged in anyway. Contact an authorised service centre.
- Never use the product if the protective cover is damaged. Replace the cover assoon as possible.
- Switch off the power supply before installation, dismantling, or any otherinterventions.
- Never use light sources with a higher output than specified in the technical data.
- Disconnect the power supply and allow the light source to cool before replacing.
- Do not look directly into the light source.
SYMBOLS
| Read the instructions. |
 | Approved in accordance with the relevant directives. |
 | Recycle discarded product in accordance with local regulations. |
TECHNICAL DATA
| Rated voltage | 230/12 V |
| Rated output | Max 10 W |
| Safety class | III |
| Socket | G4 |
| Protection rating | IP44 |
| Cord length | 15 m |
| Size | H485 x Ø90 mm |
INSTALLATION

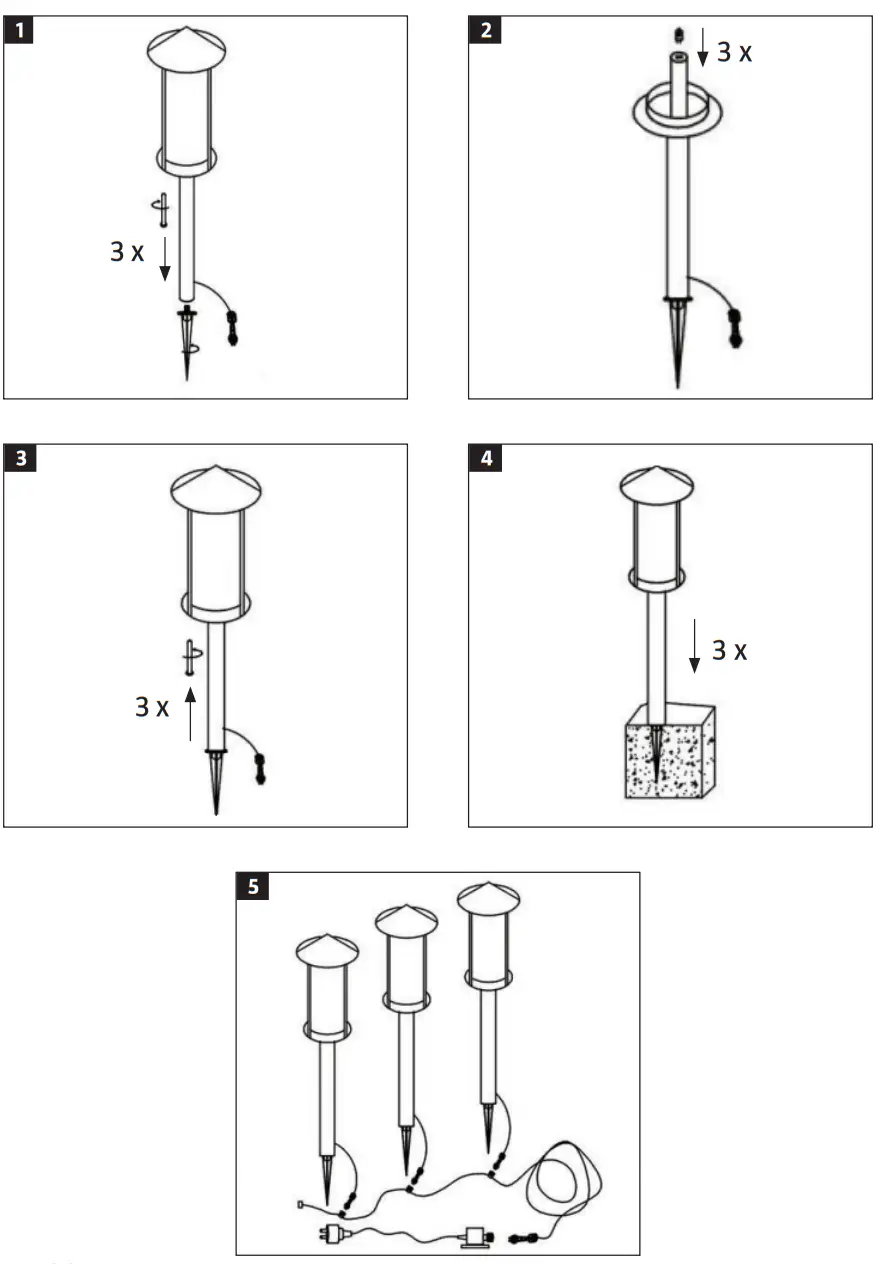

Install the garden lighting as shown in the figures.
| FIG. 1 |
| FIG. 2 |
| FIG. 3 |
| FIG. 4 |
| FIG. 5 |
