DAX

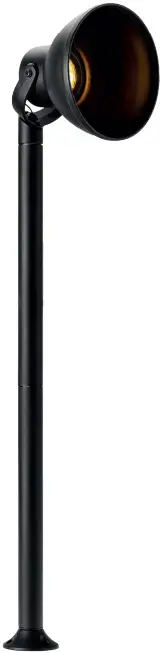

3210011

12 volt
Do it yourself!

PLUG & PLAY

MI8102-20220128

SMD LED 1.8W AC/DC 12V
1.8 Watt
3.000 Kelvin
150 Lumen
25.000 Hours
On/Off 10.000
Non-Dimmable
Instant full light
Power factor > 0,5
Failure < 5% after 1000h
Failure < 10% after 6000h
Flux > 80% after 6000h
CRI > 65
Replaceable Lightsource

Art. NR.: 1380001

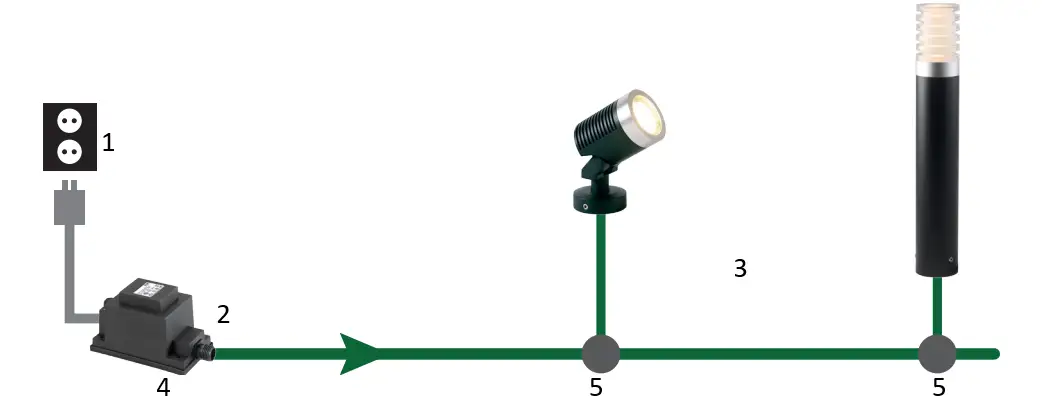

230 VOLT
12 VOLT
Kabel
Transformer
Connector

Scan QR code for explanation

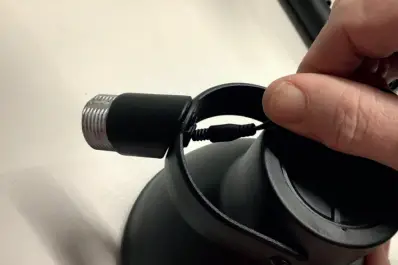

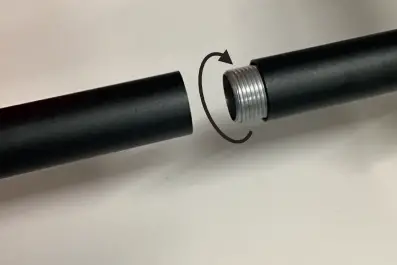

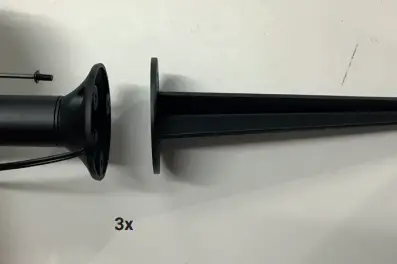

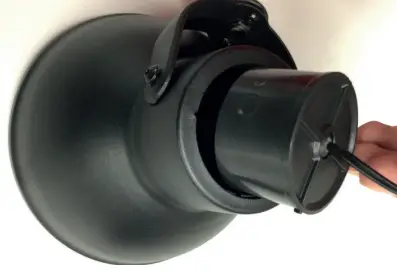

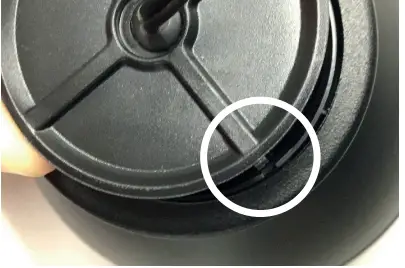

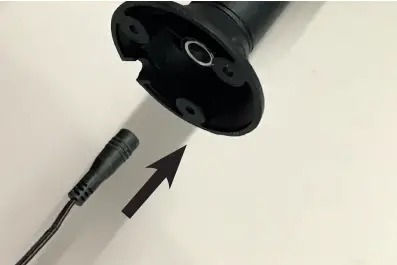

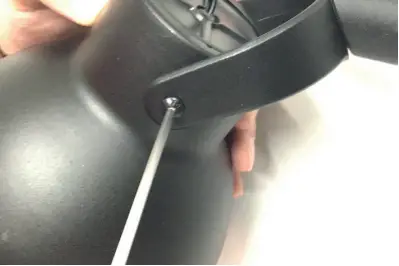

Assembly

For questions about parts, service, any complaints or other matters, you can contact us at any time. E-mail: [email protected].

This product meets the EU standards for health, safety and environmental protection.

The product meets the requirements of the applicable UK guidelines.

This product answers to the safety requirements specified in the regulations of the EAEU.

The packaging and product must be sorted separately for recycling.

Discarded electrical equipment must not be put in the household waste. If possible, take it to a recycling company. For details of recycling, contact a municipal waste processing company or your dealer.

INSTALLATION OF THE LIGHTS

Install the products in the desired position and lay the cables so they can be comfortably connected to the transformer or main cable.
If products are provided with a drain hole for water, this hole must be pointing downwards.

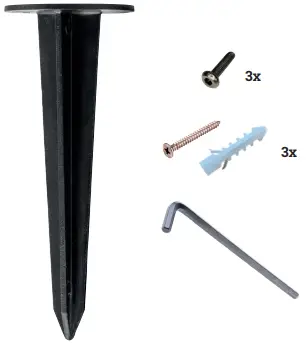

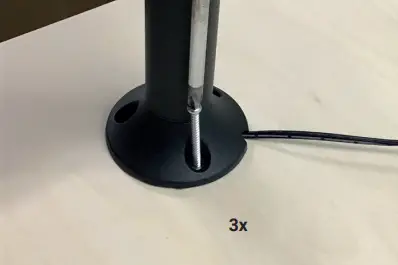

Use non-corrosive fixing materials (supplied as standard) if you want to bolt the products down.

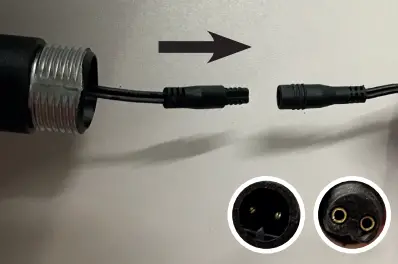

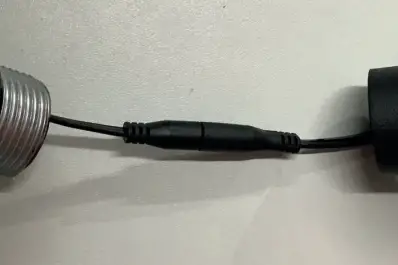

Connect the lights to the main cable by using the connector as shown in figure on page 5.
Consult the manual of your transformer for more information.

SAFETY

Always fit this product so that it can still be accessed for servicing or maintenance. This product must not be permanently embedded or bricked in.
Turn off the system by pulling the plug of the transformer from the socket for maintenance.
Regularly clean the product with a soft, clean cloth. Avoid abrasives that can damage the surface.
Clean products with stainless steel parts with a stainless steel cleaning agent once per six months.
Do not use aggressive chemical cleaning agents when cleaning the product. This can cause irreparable damage.
Protection class III: this product may only be connected to safety extra-low voltage up to a maximum of 12 Volt.
This product is suitable for outside temperatures of: -20 to 50°C.
Do not use this product in areas where combustible gases, fumes or liquids may be stored.
