Punch 3 LV Slim Suspended Luminaire
Instruction Manual
Punch 3 LV Slim Suspended Luminaire
GET IN TOUCH
http://www.thornlighting.com/PNC3
 |  |
 |  |
After the installation steps and commissioning of the luminaire according your mounting type (MSC) or (MSP), the steps below are only for version with Emergency kit
Status LED
- Intermittent green: battery regeneration after commissioning as well as after each battery replacement
- Permanent green: battery correctly connected, battery charged or self-test operation
- Flashing red: defective battery charge, battery not connected or battery capacity too low
- Flashing intermittent red: defective or unconnected LED luminaire unit
- Off: battery totally flat, defective emergency lighting unit or in emergency operation

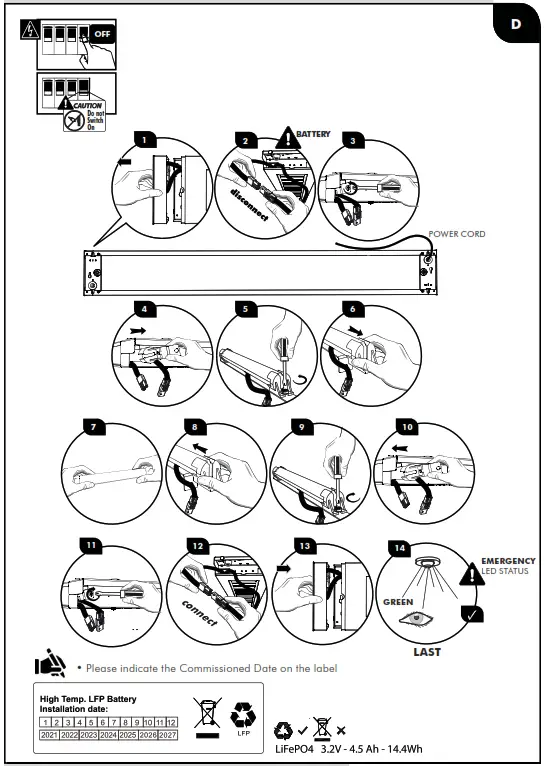

Replace the battery (order art. N 96636058)
This manual contains important information regarding the proper replacement of battery pack of this luminaire. Before installing and use of the luminaire, read and understand all instructions, cautions, notes and warnings, as well as all of the labels affixed to the luminaire.
Main Office
Thorn Lighting
Durhamgate
Spennymoor
County Durham
DL16 6HL
United Kingdom
T +44 0 191 365 2222
[email protected]

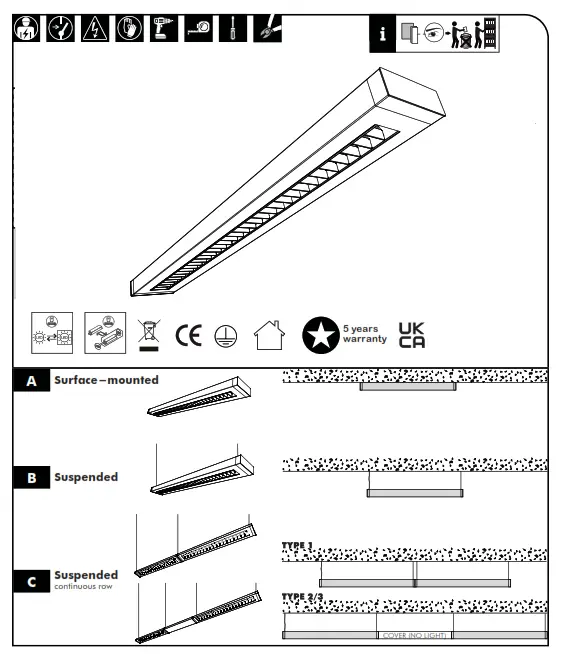

Punch 3 LV

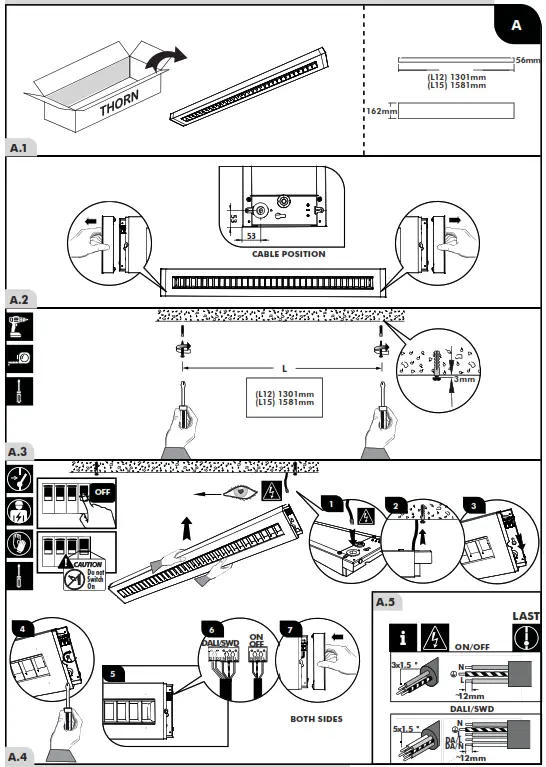

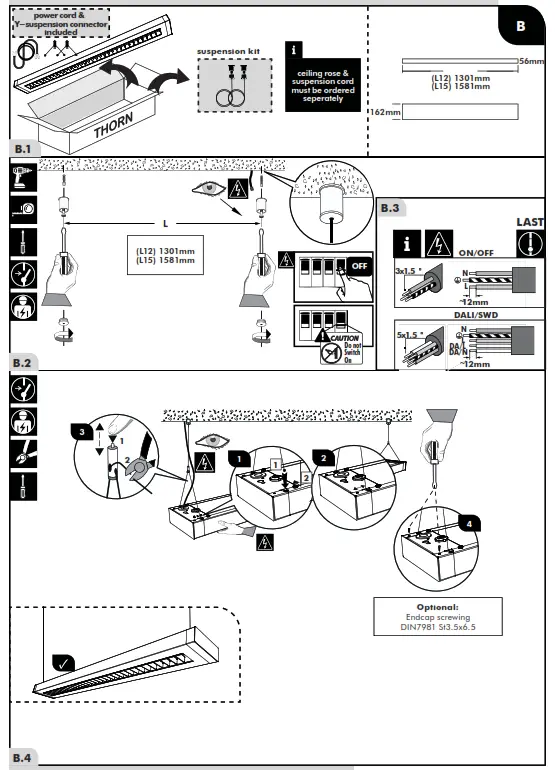

Surface / Suspended

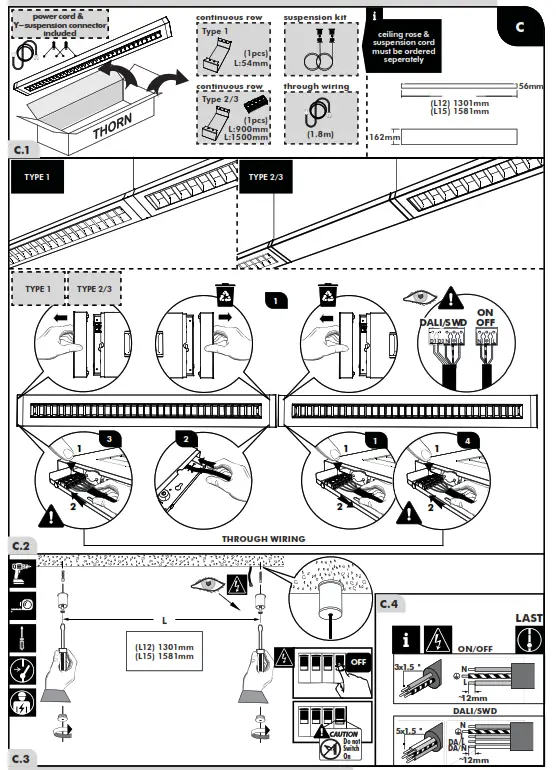

Continuous row
Punch — English
