TR B S 10L35 LED Bollard Slim
Instruction Manual
TR B S 10L35 LED Bollard Slim

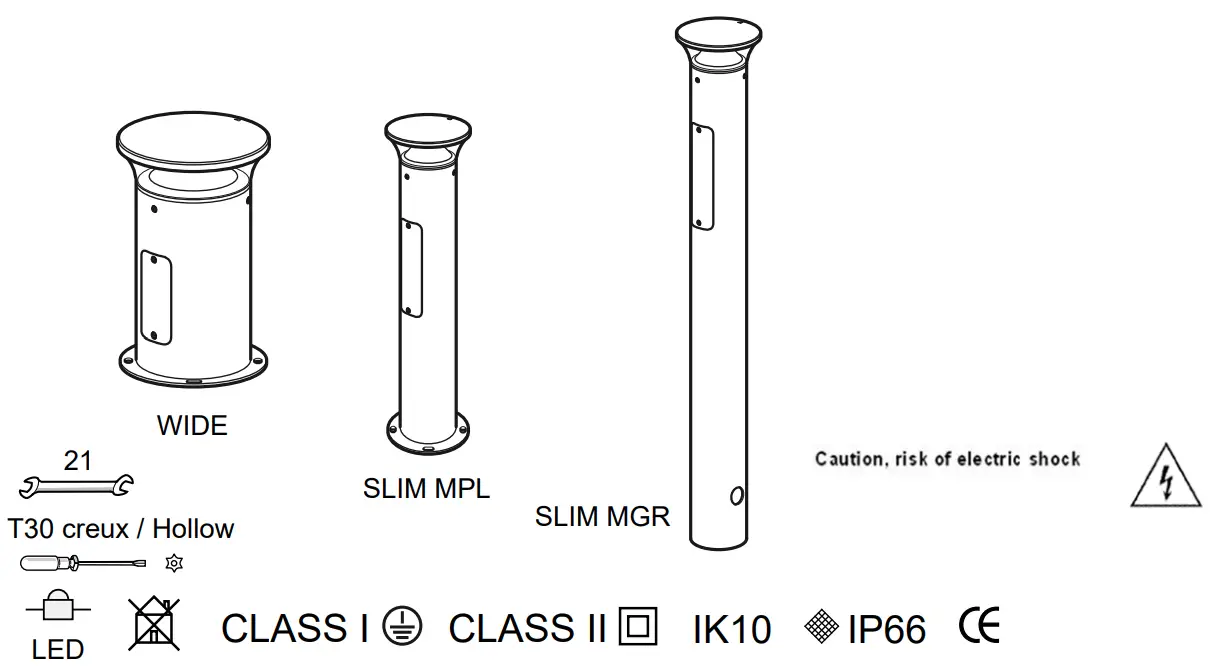

TYPE : THOR BOLLARD WIDE
THOR BOLLARD SLIM MPL
THOR BOLLARD SLIM MGR
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person
| THOR BOLLARD | |
| kg | |
| WIDE | 9.0 |
| SLIM MPL | 7.7 |
| SLIM MGR | 9.3 |
SLIM MPL
SLIM MGR

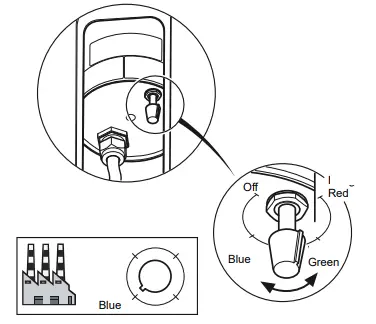

RGB

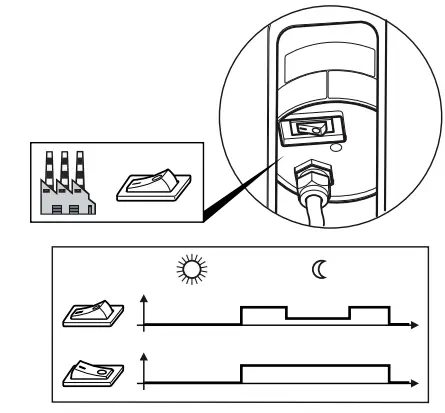

BI POWER SWITCH / DIMMING
MAS
MAS

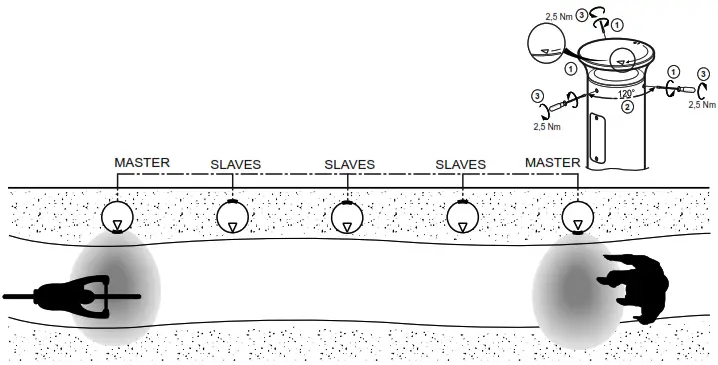

| Number of bollards | Including number of Masters | Installation | Relay |
| Max. 3 | 1 to 3 | Pilot Wire | NO |
| >3 | 1 to 3 | Pilot Wire | YES |

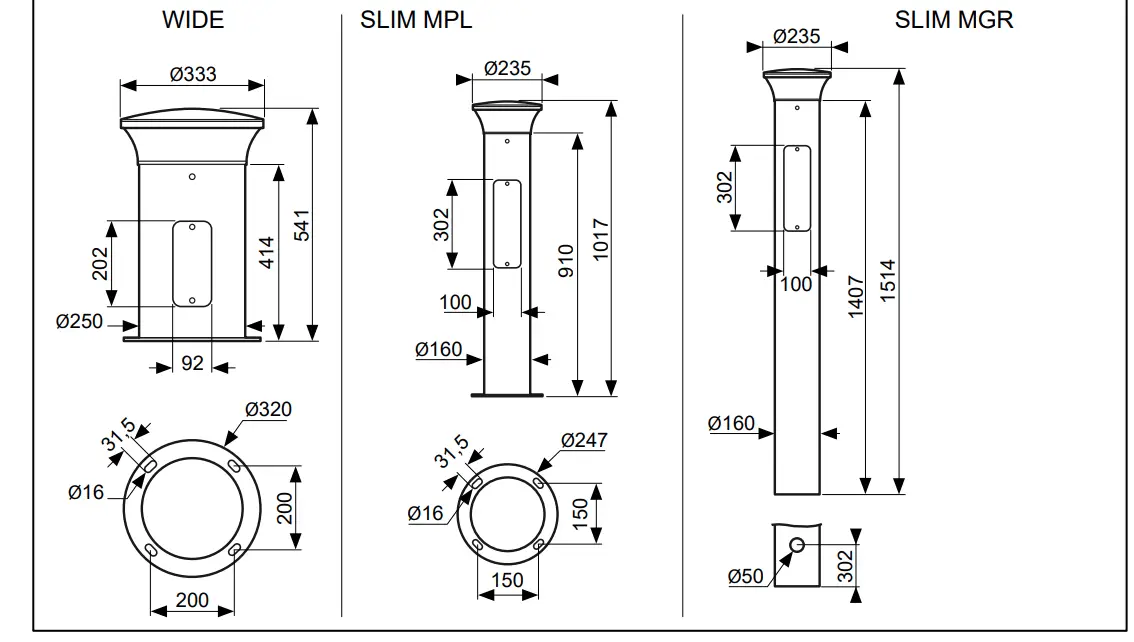

WIDE / SLIM MPL / SLIM MGR
96275465 – 01
