SLV 1006383 Luminaire Head

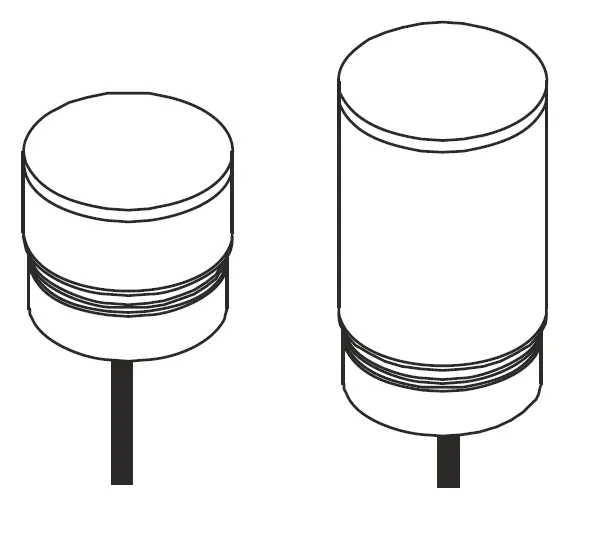

Size

1006383	11W	360 lm / 390 lm	2700K/3000K	CRI> 90	Ø 12,1 x 15,9 cm	0,99 kg
1006384		540 lm / 600 lm			Ø 12,3 x 25,9 cm	1,23 kg
1006385		100 lm / 120 lm			Ø 12,1 x 15,9 cm	1,17 kg
1006386		190 lm / 210 lm			Ø 12,3 x 25,9 cm	1,65 kg
1006387		230 lm / 250 lm			Ø 12,1 x 15,9 cm	1,05 kg
1006388		360 lm / 400 lm			Ø 12,3 x 25,9 cm	1,36 kg

Installation instruction

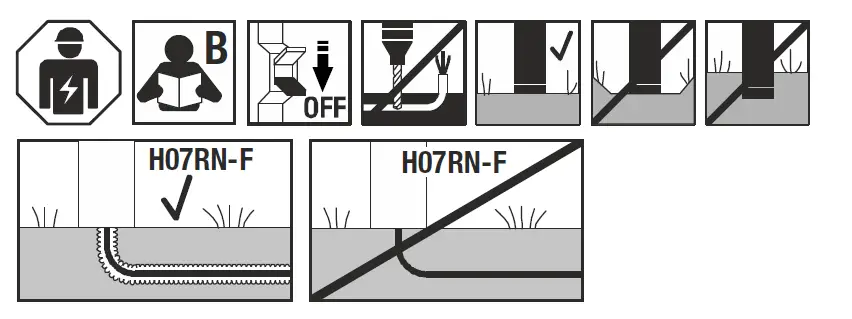

The installation requires expert knowledge and may be carried out only by an approved electrician under consideration of local and national regulations

Read manual carefully and keep for further use
Safety advices for installation and operation. Disregard may lead to danger of life, burning or fire! Any works on the electrical connection only by electrician.

Do not alter or modify the product.
Do not fasten anything on the product.
Do not cover the product.
Operate only with intact protection glass.
The supply cord may not be covered with soil.
If the external flexible cable or cord of this luminaire is damaged, it
shall be exclusively replaced by the manufacturer or a qualified electrician to avoid hazard.
Take out of service when suspecting a defect or malfunction and
contact your dealer or a qualified electrician.
Take measures that children get not harmed by the product.
Do not stare into the active light source.

Use as directed

This product must only be used in connection with a light bollard with one of the following product numbers:1006379, 1006380, 1006381.

Safety class I (1) – Connection with protective conductor. Do not strain mechanically or expose to strong dirt contamination. IP65: Protection against dust (dust-tight) – Protection against jetted water from all directions. Admissible ambient temperature(ta): -20°C …+35°C.

Light Source

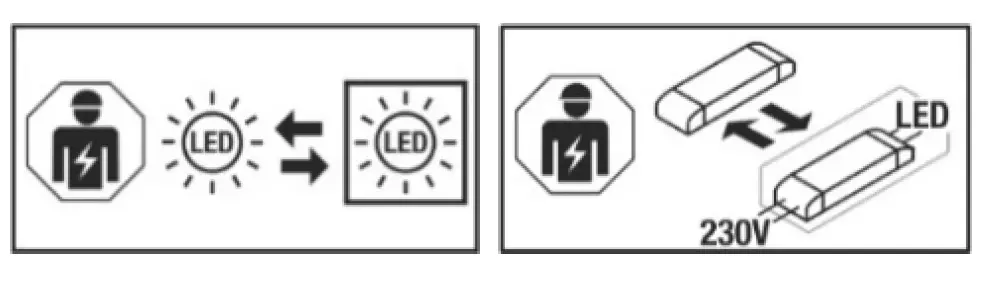

The light source of this luminaire may only be replaced by the manufacturer, an authorized service technician or a comparable qualified person. This product contains a light source of the energy efficiency class F.

Care / Storage

Disconnect product from mains and let it cool down. Clean external surfaces regularly with a slightly moistened (water) cloth. Do not clean with pressure washer. Openings providing aeration or drainage must be kept free. The following influences may have unwanted effects on the product: acidic surrounding, high salt content in the air, cleaning agents, fertilizer, thawing salt, chemicals. Store dry and clean.

Installation

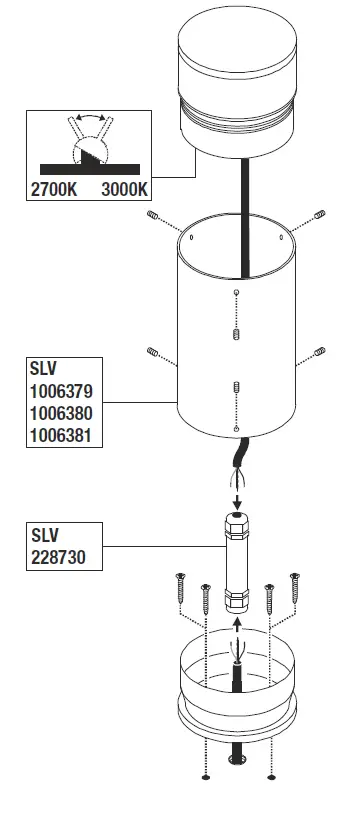

Follow local regulations for outdoor installations. Do not seal the product yourself (e.g. with silicone). Install according to declared IP type. Install as shown in the figure.
