RAA L 1L50-827 Raze Archi Large
Instruction Manual
RAA L 1L50-827 Raze Archi Large

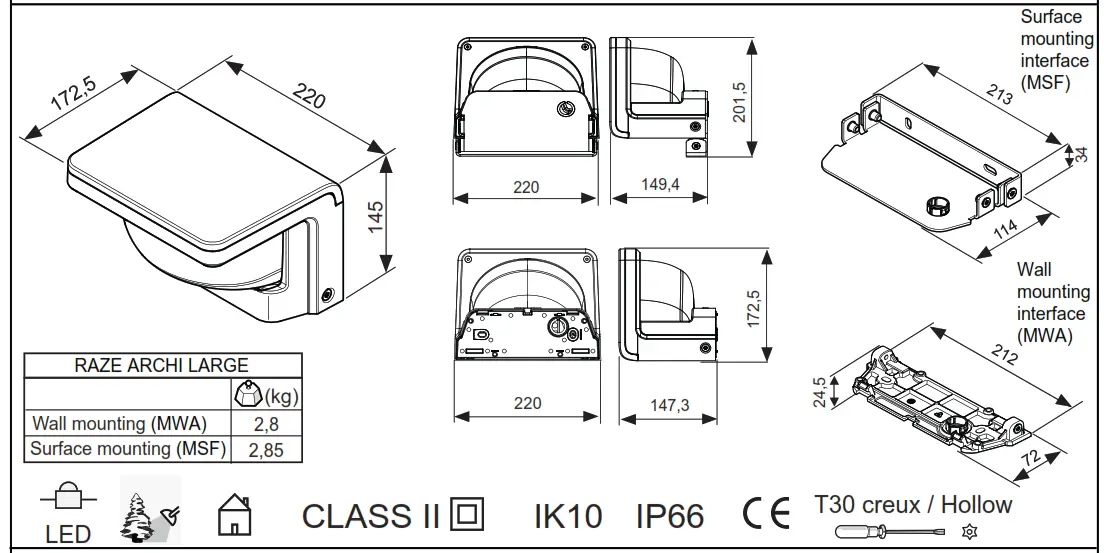

TYPE : RAZE ARCHI LARGE
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid any hazard.

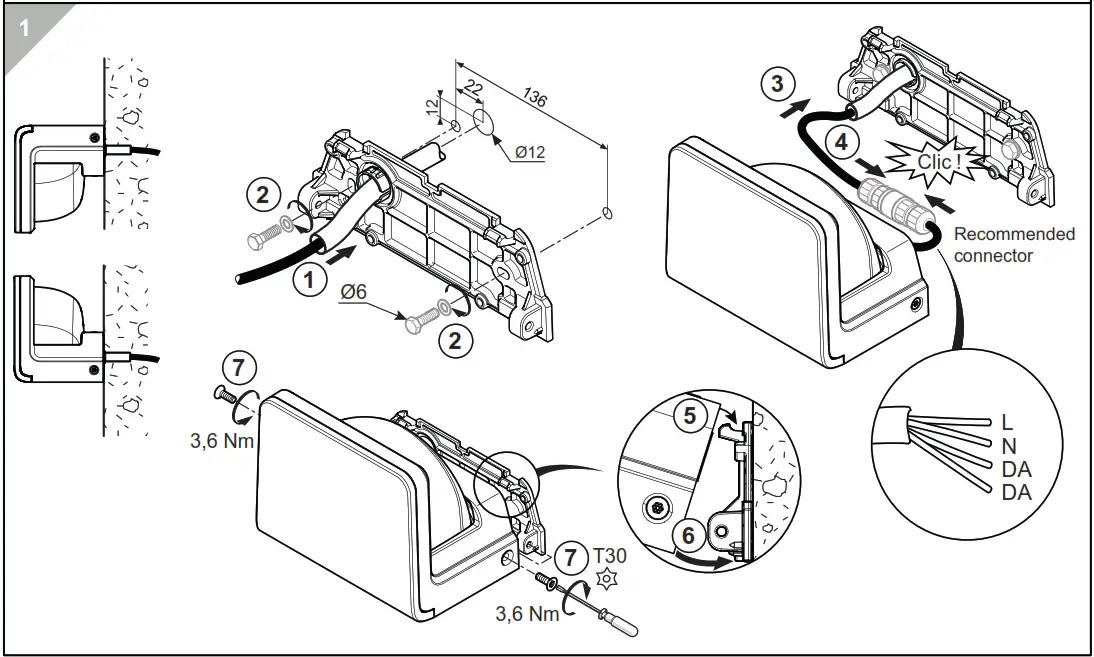

WALL MOUNTING (MWA)

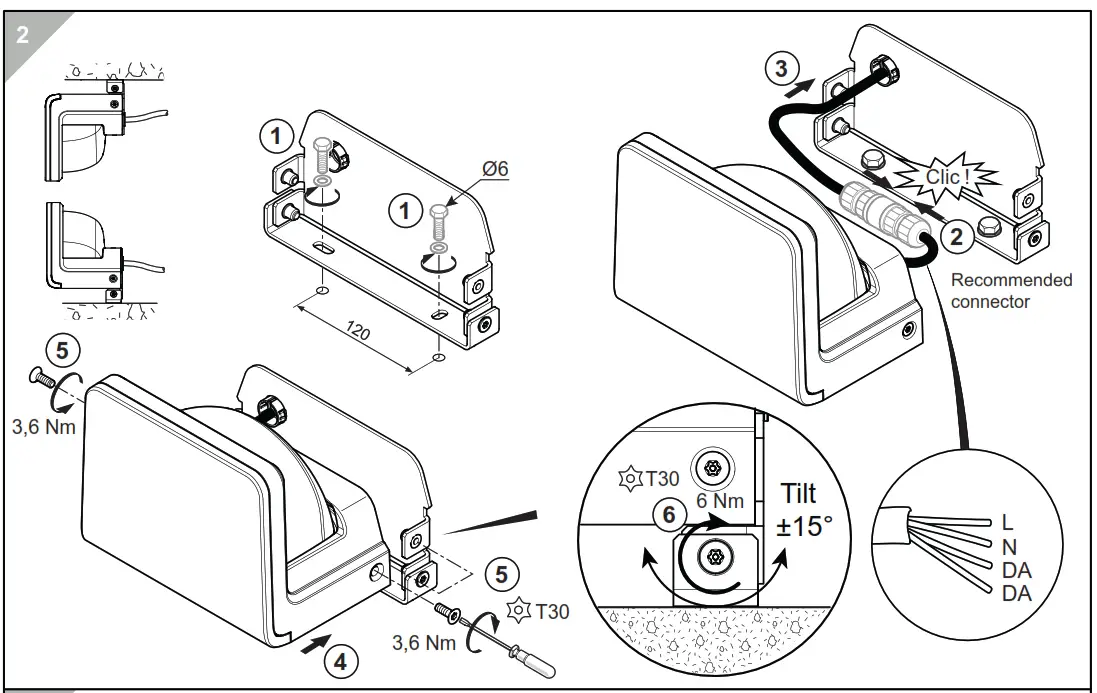

SURFACE MOUNTING (MSF)

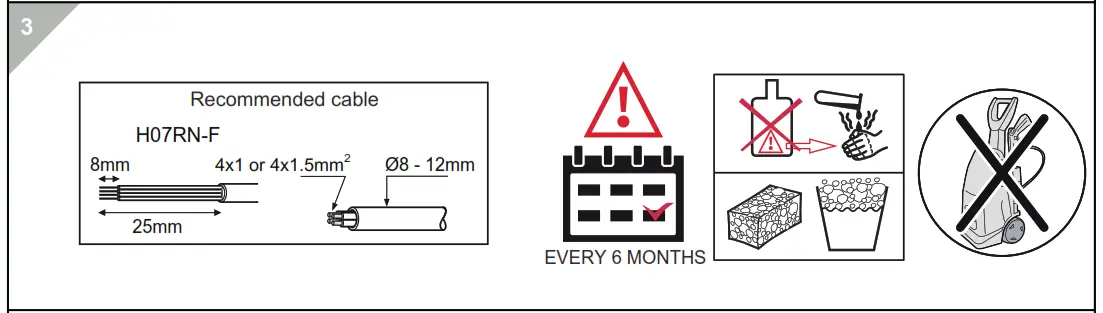

| Recommended connector | ||
| H07RN-F 4x1mm² or 4×1,5mm² | Male | TECHNO:THB.387.A4A |
| Female | TECHNO:THB.387.B4A | |
| Kit | TECHNO:THB.387.A4A.R | |
- Replace any cracked protective shield.
- Class II luminaires must be installed so that exposed metal work of the luminaire is not in contact with any part of the electrical installation connected to a protective conductor.
WARNING:Class I luminaires must be earthed. - This luminaire operates at mains voltage which must be switched off before intervention in control gear.
- Any modification to this luminaire is forbidden.
- Lighted objects nearer than the minimal distance in the is forbidden.
63400303 00
