Installation instructions
TYPE : RAZE ARCHI SMALL

RAA S 1L35-830 HFX-RB 6K MSF ANT Wall Mounting Interface

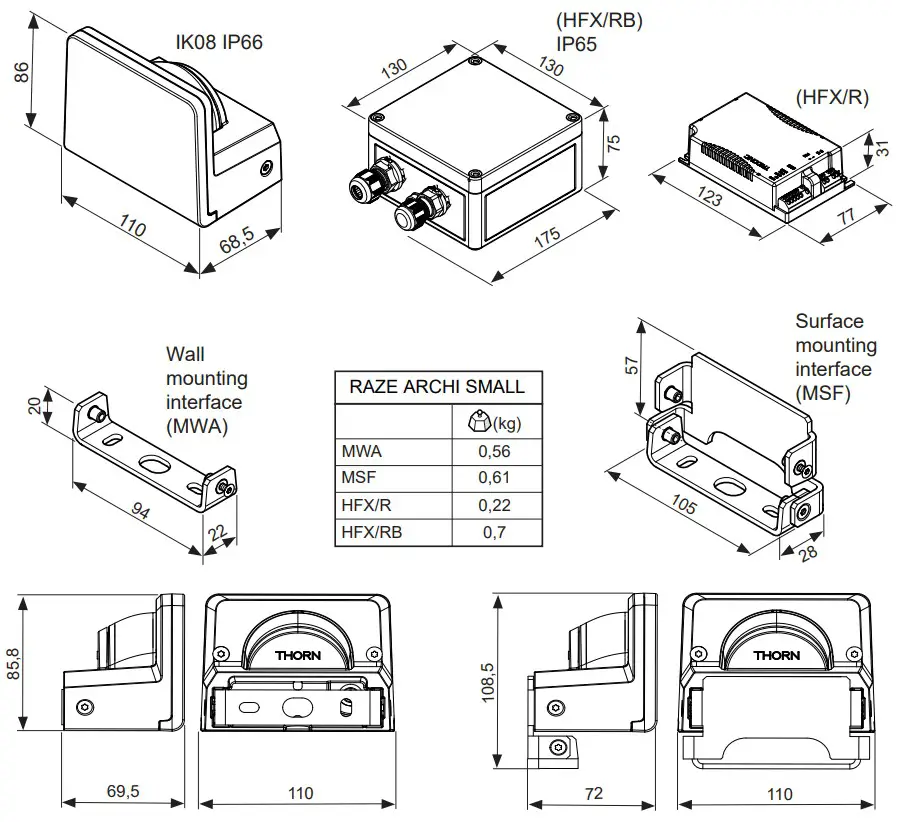

THORN RAA S 1L35 830 HFX RB 6K MSF ANT Wall Mounting Interface - FIGURE 1

If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid any hazard.

THORN RAA S 1L35 830 HFX RB 6K MSF ANT Wall Mounting Interface - FIGURE 2

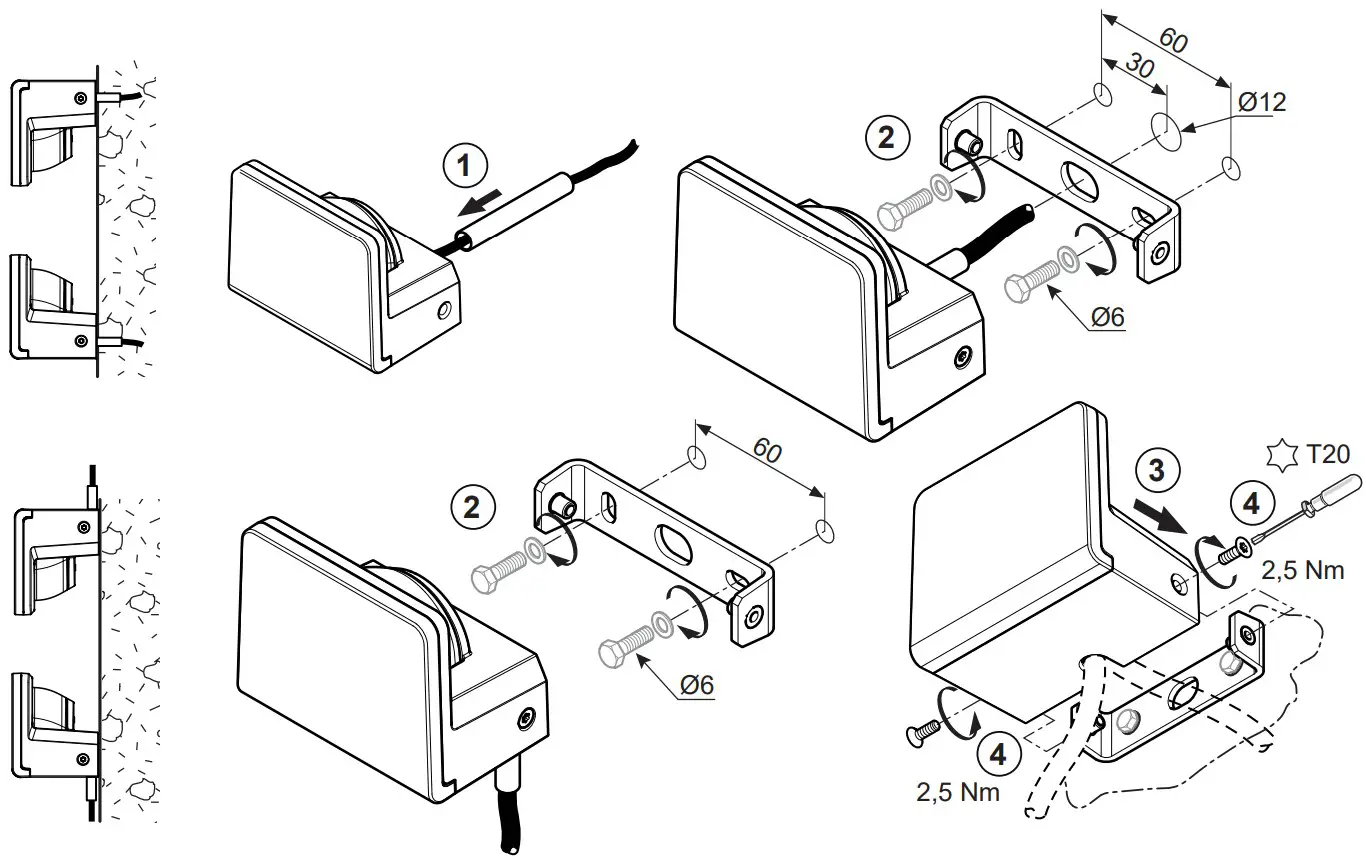

  1. WALL MOUNTING (MWA)THORN RAA S 1L35 830 HFX RB 6K MSF ANT Wall Mounting Interface - FIGURE 3

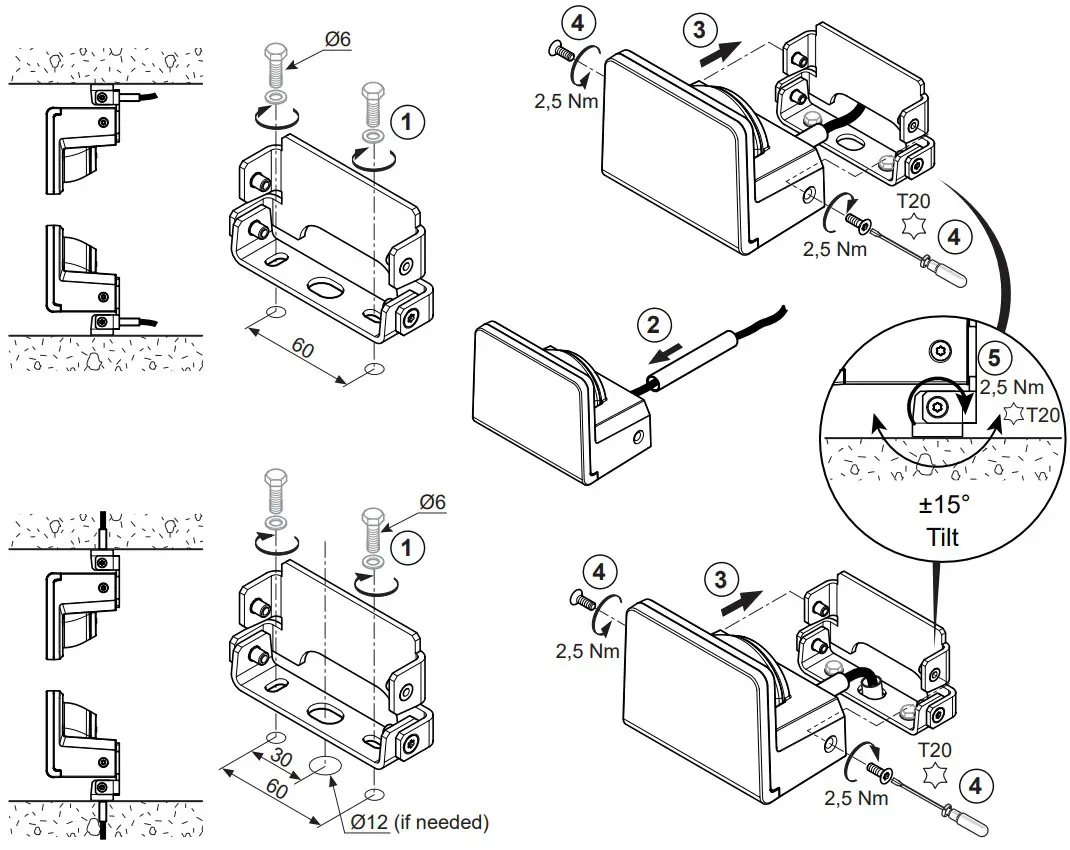

  2. SURFACE MOUNTING (MSF)THORN RAA S 1L35 830 HFX RB 6K MSF ANT Wall Mounting Interface - FIGURE 4
  3. HFX/RBTHORN RAA S 1L35 830 HFX RB 6K MSF ANT Wall Mounting Interface - FIGURE 5

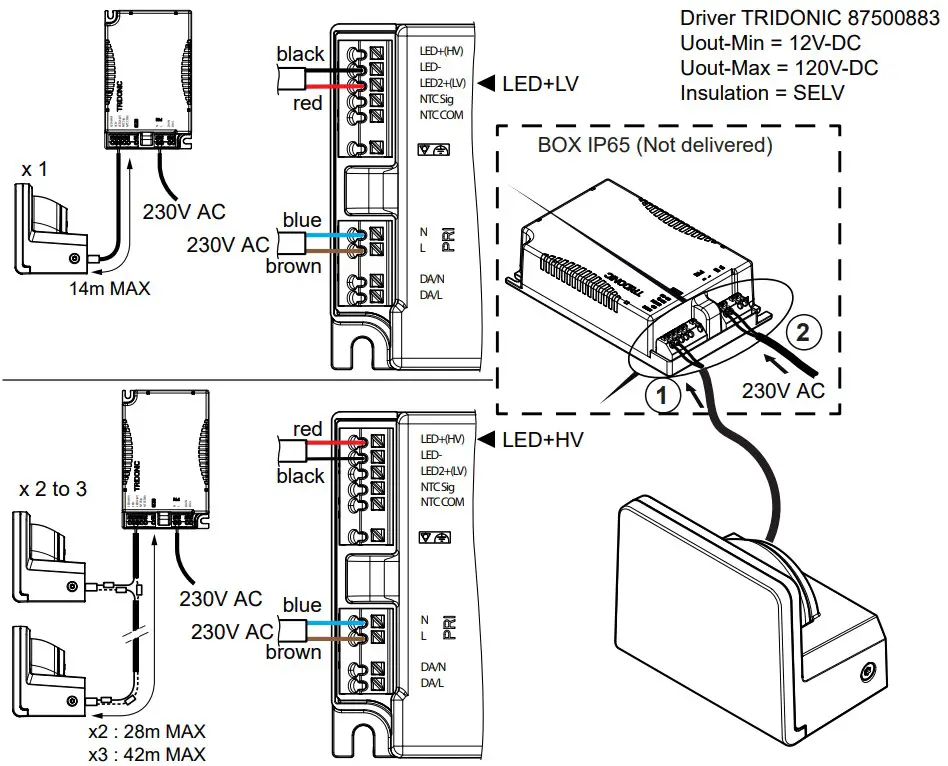

  4. HFX/RTHORN RAA S 1L35 830 HFX RB 6K MSF ANT Wall Mounting Interface - FIGURE 6

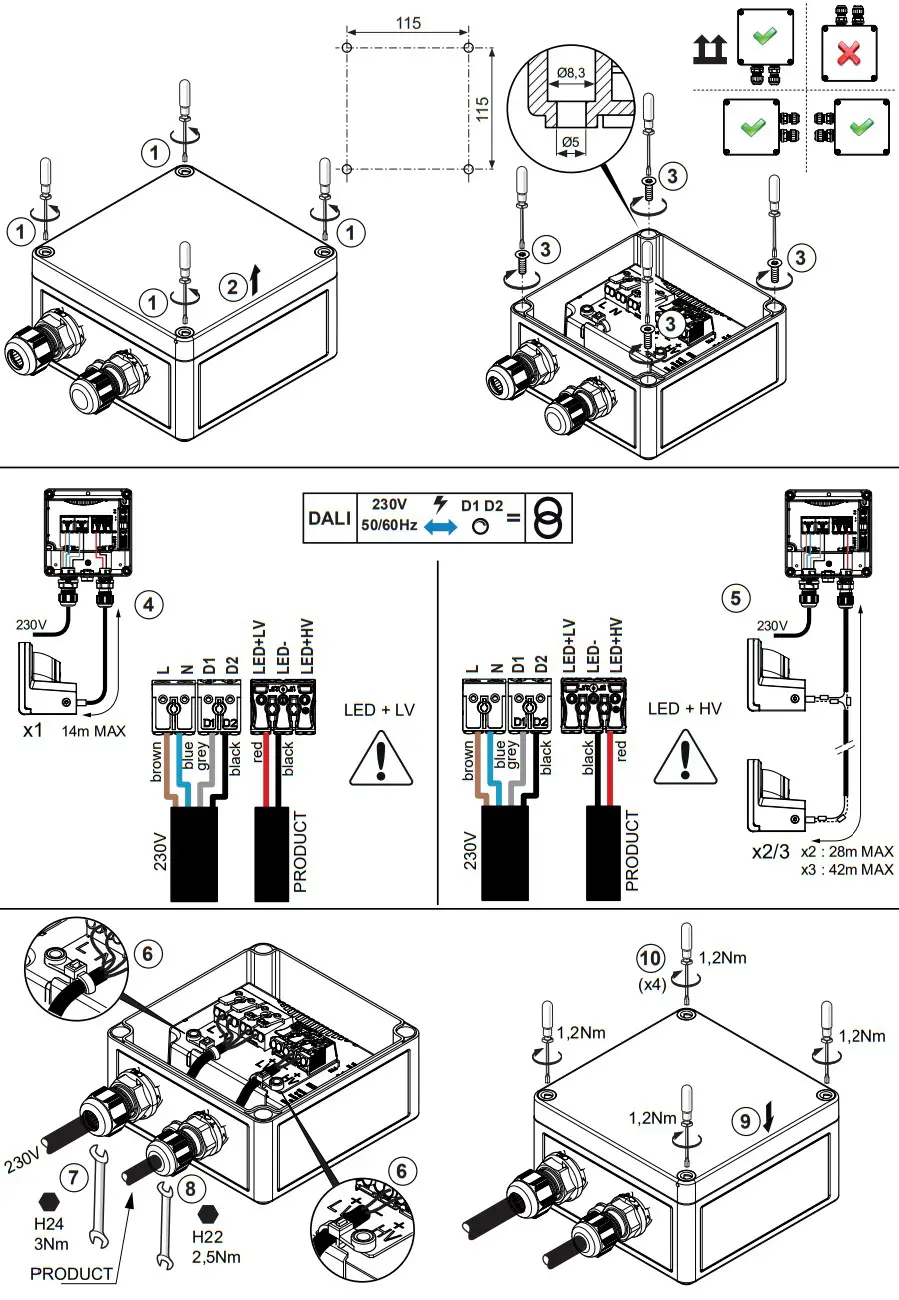

  5. THORN RAA S 1L35 830 HFX RB 6K MSF ANT Wall Mounting Interface - FIGURE 7
  • Replace any cracked protective shield.
  • Class II luminaires must be installed so that exposed metal work of the luminaire is not in contact with any part of the electrical installation connected to a protective conductor.
    WARNING: Class I luminaires must be earthed.
  • This luminaire operates at mains voltage which must be switched off before intervention in control gear.
  • Any modification to this luminaire is forbidden.
  • Lighted objects nearer than the minimal distance in the is forbidden.

63400302 00
