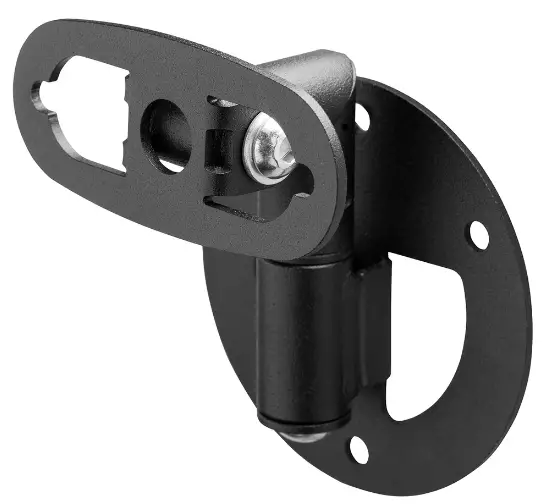

GENELEC 6010A Wall Mount Instruction Manual

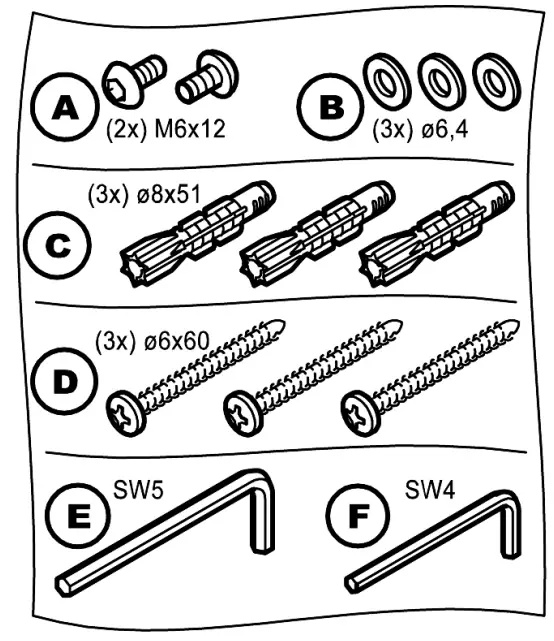

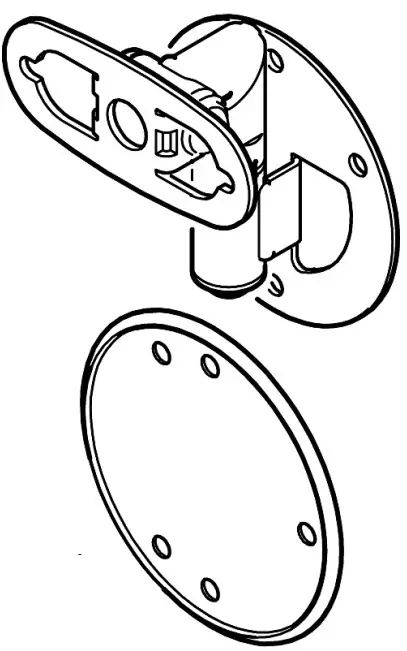

Equipment

• speaker holder with wall plate
• decorative plate

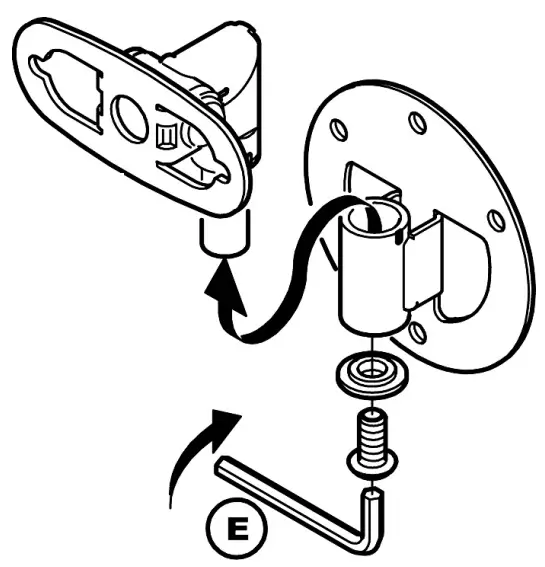

Separate speaker holder from wall plate

1. Loosen lower bolted assembly
2. Remove speaker holder from wall plate


Wall mount preparation

1. Determine wall fastening
   1. Provided screw/dowel set is suitable for: concrete, full brick, perforated brick & drywall
   2. For other walls like wood, adobe etc. use adequate anchors

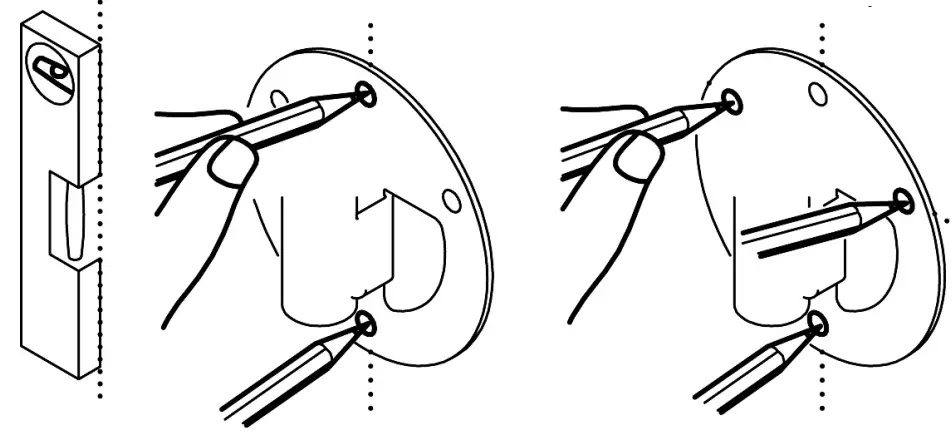

2. Adjust wall plate vertically and mark drilling holes (two options)
   1. Two-hole-pattern
   2. Three-hole-pattern

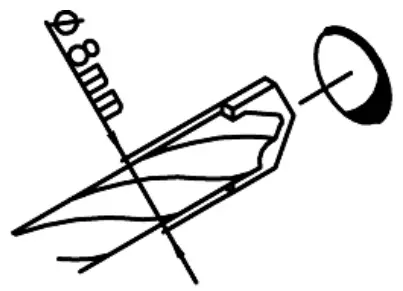

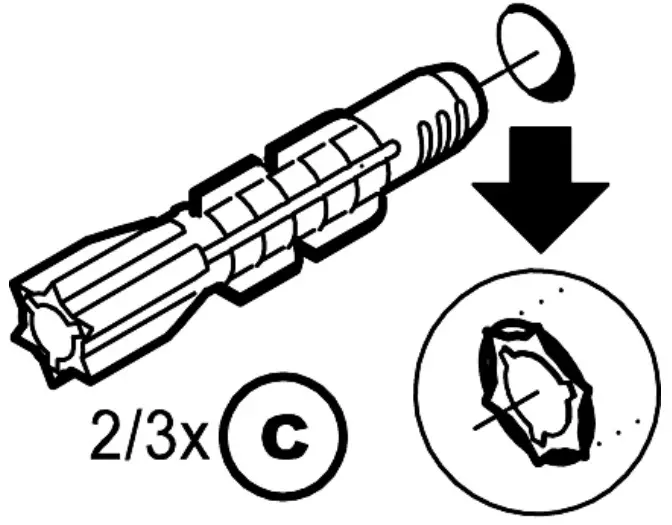

3. c Anchor holes drilling for two or three hole pattern: – dia. 8 mm

4. Blow out holes and place anchors

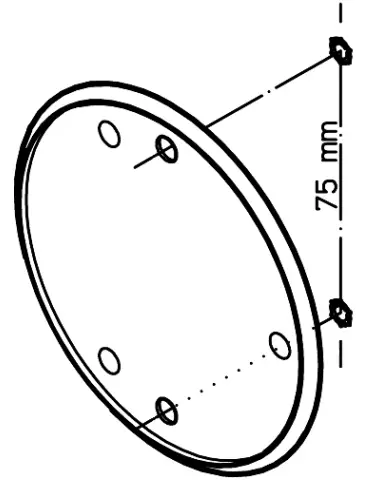

Wall mount fastening

1. Adjust decorative plate according to the drilled two-or-three-hole-pattern
   1. Two-hole-pattern

   2. Three-hole-pattern

2. Bolt down the wall plate along with the decorative plate onto the wall Use two or three screws depending on the prepared hole pattern


Speaker installation

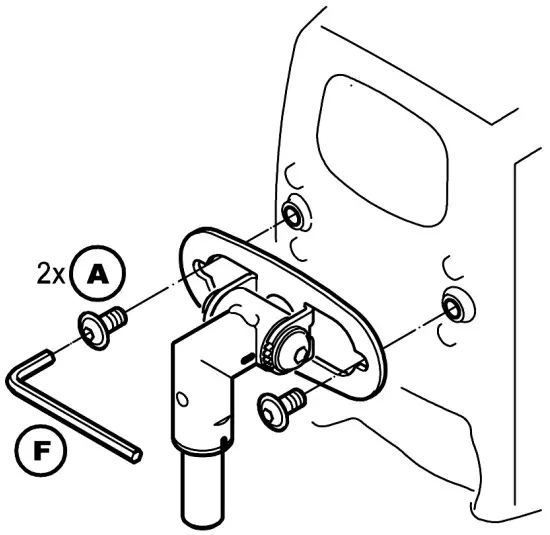

1. Bolt speaker plate to GENELEC speaker

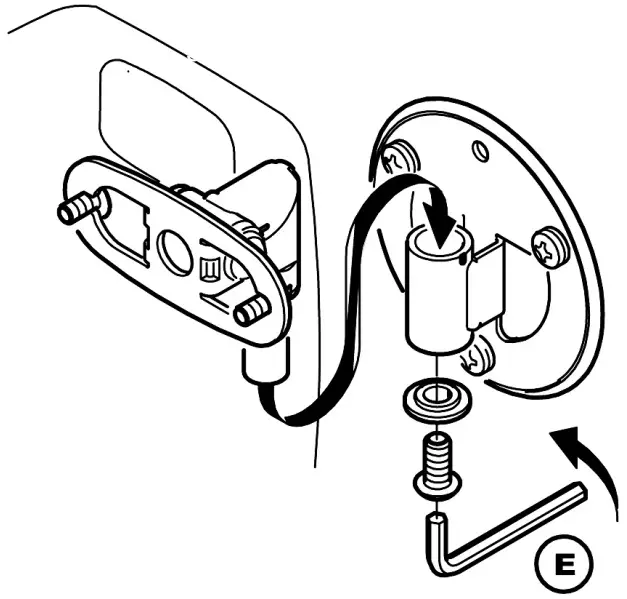

2. Replace the bolt of the speaker plate (with mounted GENELEC) into wall bracket
3. Fix wall plate and speaker bracket by tightening lower bolted assembly

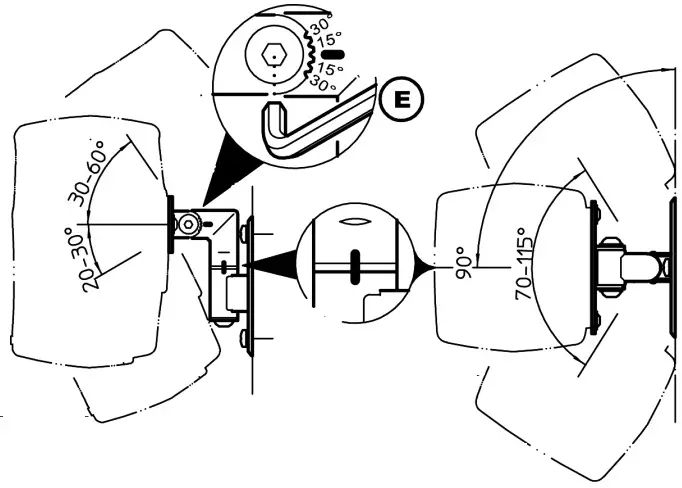

Settings (speaker-based)

1. TILT ANGLE Continuously adjustable tilting angles: -up to 30-60° -down to 20-30°, Fix both lateral allen screws (AF5 mm)
   1. tilting marks (no latching)
2. DIRECTION Pivoting attachment around vertical axis
   1. pivoting mark centric adjustment 90° (no latching)

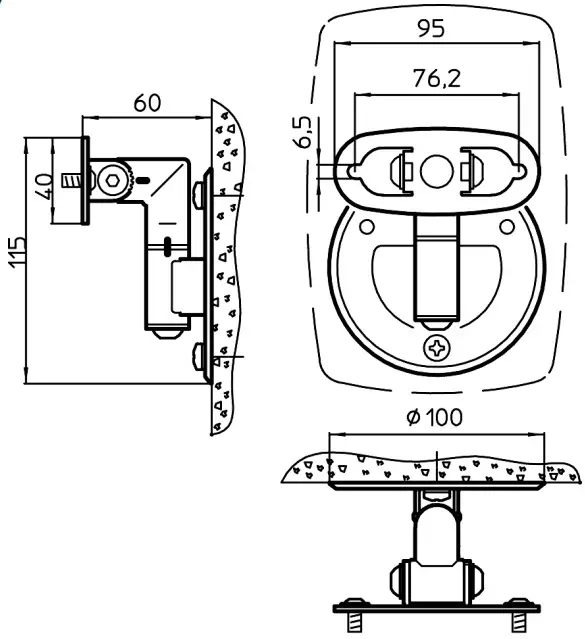

Dimensions (in mm)

Weight: 0,5 kg

Safety Instructions

Choose a position and mounting method compliant with local

• building codes and regulations
• For use only by trained installers
• For use only at proper walls with adequate anchors
• Not suitable are fragile walls. Beware of power supply lines and water conduits. In case ask an expert.
• Inspect bolted assemblies periodly
• For indoor use only
