THORN logoSensor Settings MWS
Instruction ManualTHORN Sensor Settings MWSSensor Settings MWS
COR MWS, COZ MWS

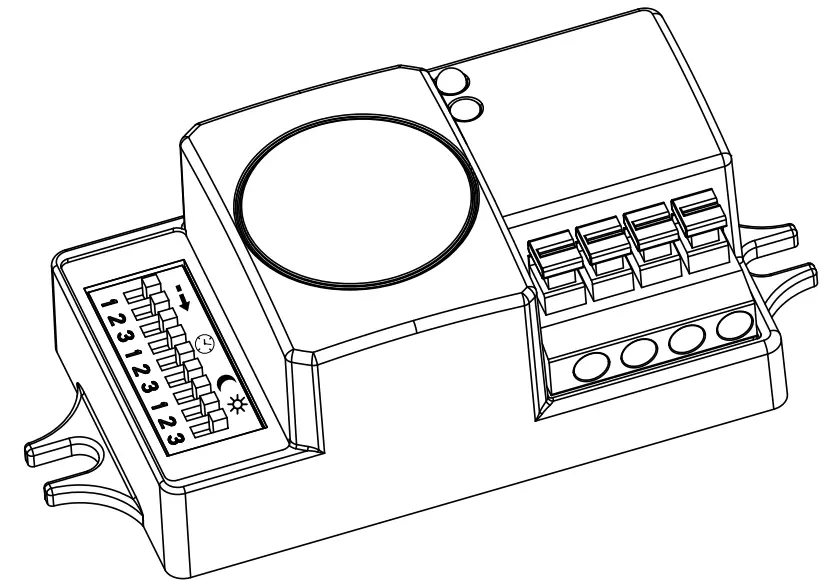

Sensor Settings MWS

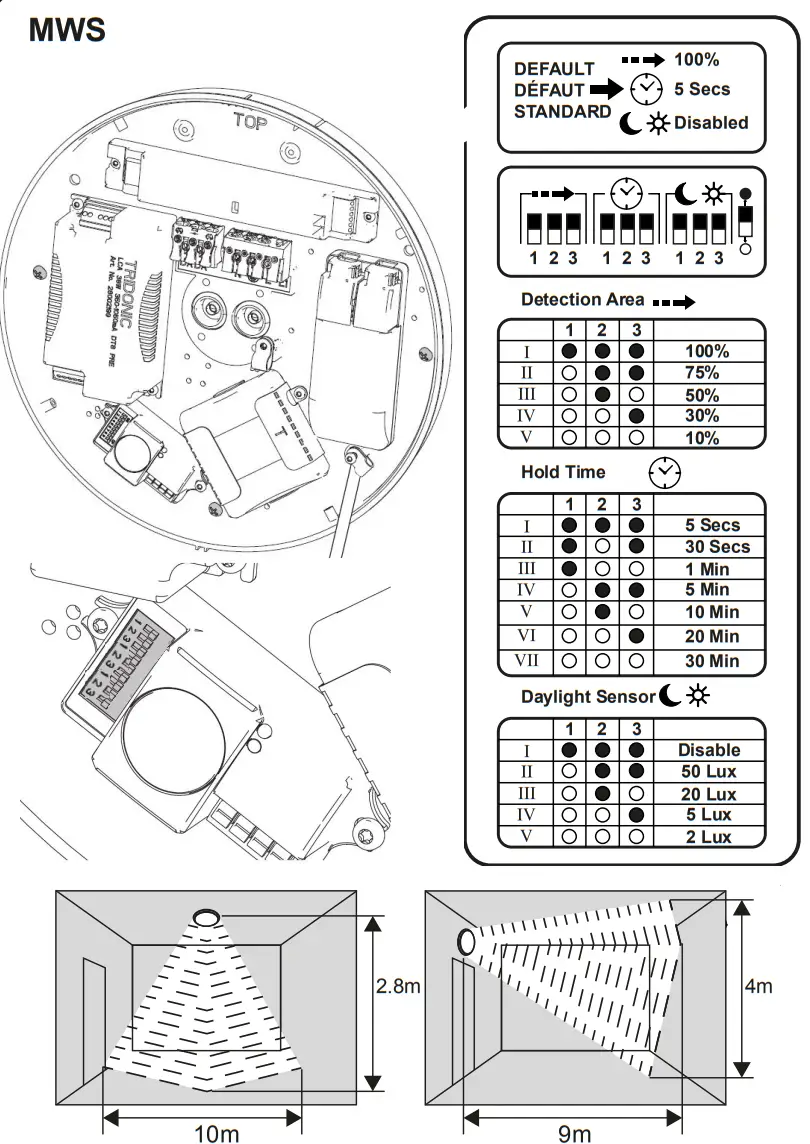

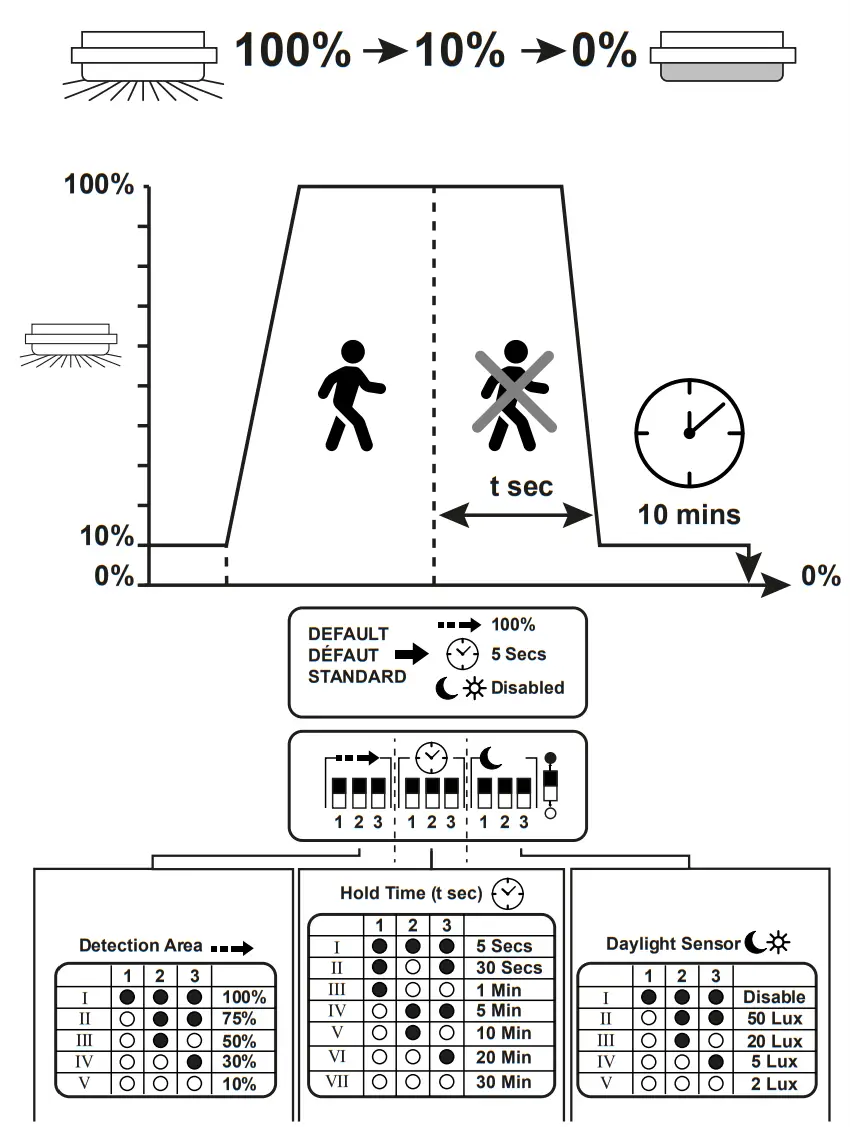

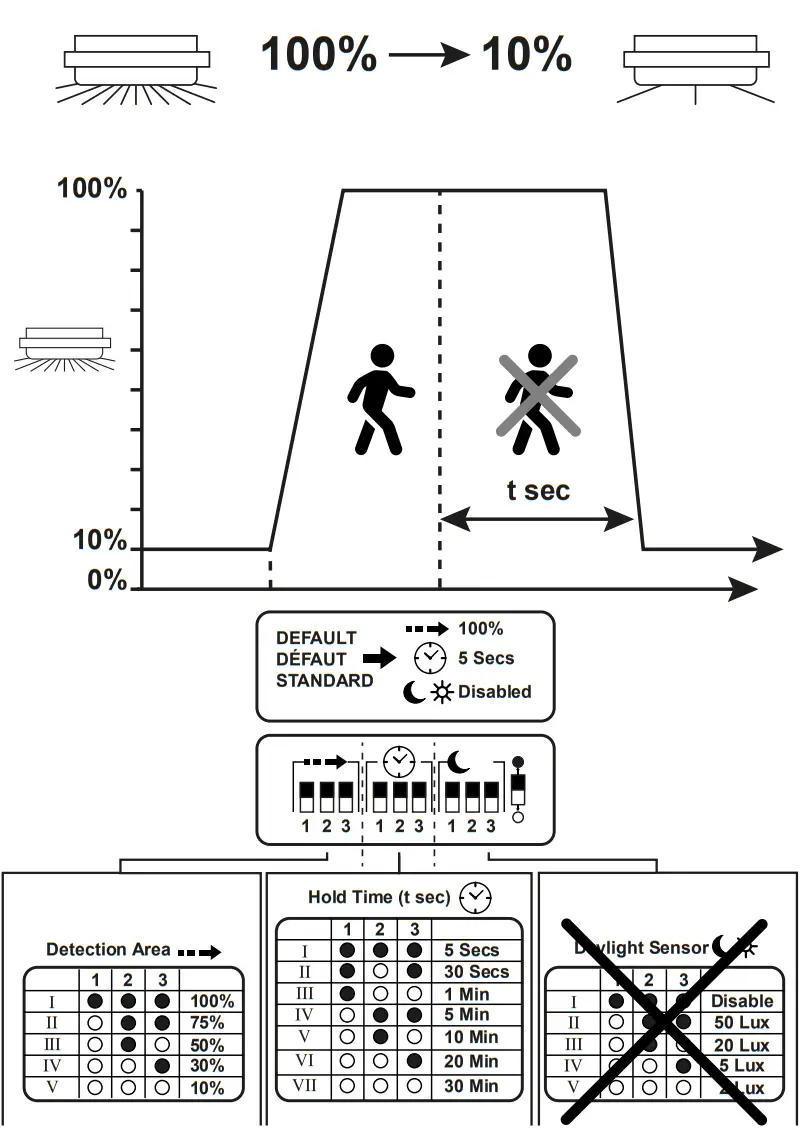

THORN Sensor Settings MWS - fig 3THORN Sensor Settings MWS - fig 2THORN Sensor Settings MWS - fig 1

Reflected HF waves (e.g. from walls, floors, ceilings or furnitiure) or from other transmitters can affect motion detection. Luminaire not suitable for mounting on metal surfaces as it can cause false triggering of the sensor.THORN logoTHORN Sensor Settings MWS - bar code
