Thorn Gtled Pro Tunnel Light Instruction Manual

GTLED PRO

Installation instructions

The luminaire should be positioned so that prolonged staring into the luminaire at a distance <2m is not expected

WARNING :
Warranty is void if housing has been opened

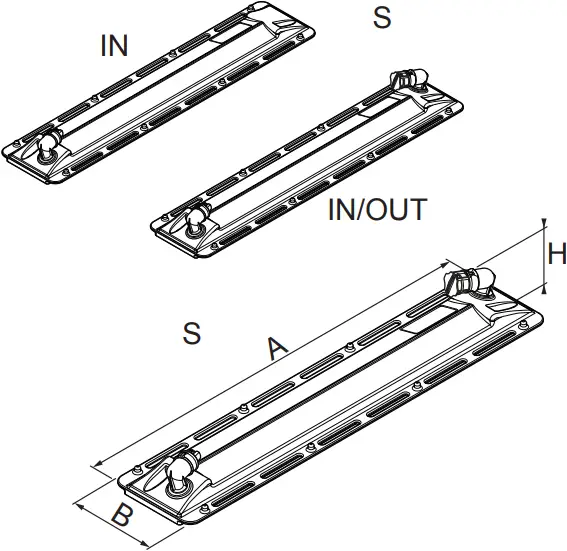

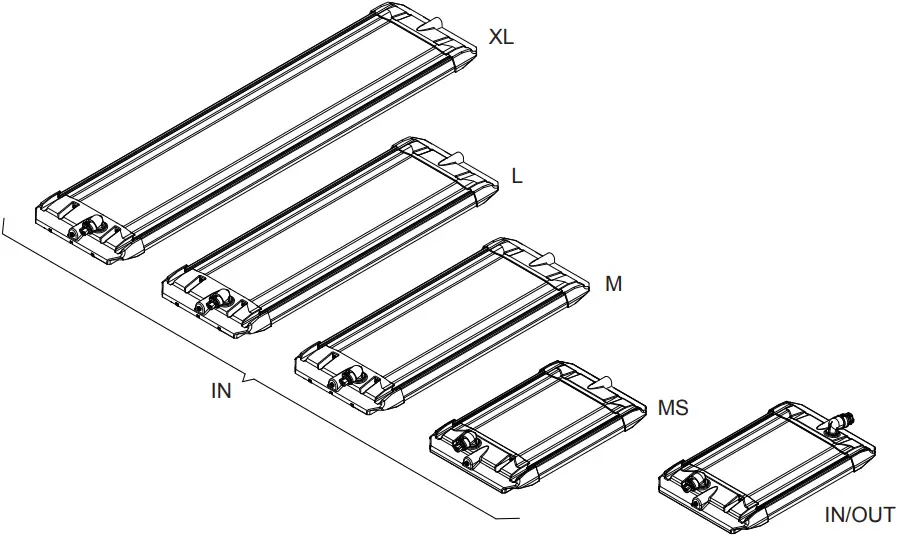

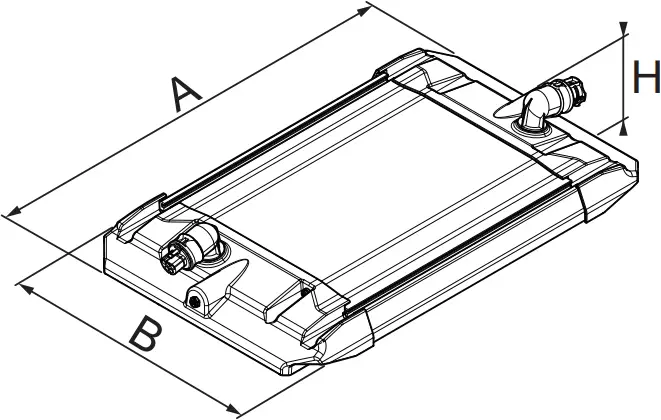

TYPE : GP AL

MS-M-L-XL XL

GP AL	A (mm)	B (mm)	C (mm)
S	773	168	84	12-48	3,4 kg
MS	520	313	90	12-48	6,5 kg
M	800			72-108	10,3 kg
L	952			144	12,4 kg
XL	1320			216	17,5 kg

LED    CLASS I     CLASS II    IK08  IP66

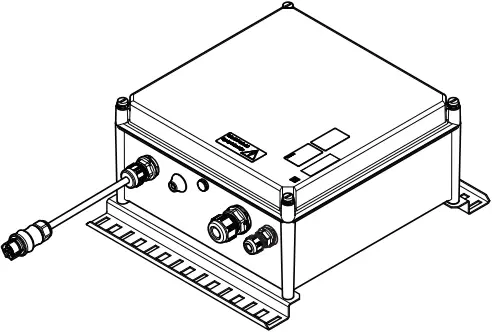

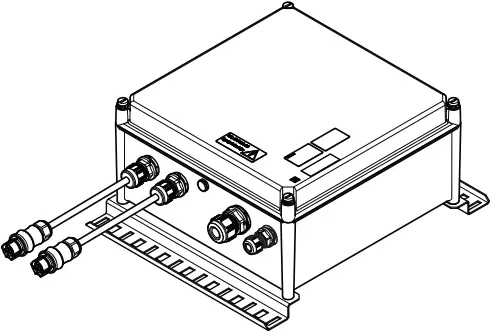

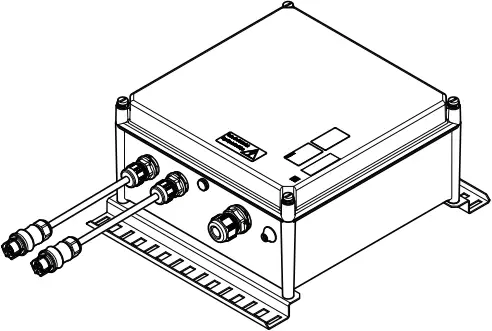

TYPE : GP PB

Caution, risk of electric shock

OUT1 DALI                             OUT2 DALI

OUT1 BPL                              OUT2 BPL

24, 36

GP PB		L(m)
1x200W	OUT1	1,5 <-> 8	6,6 <->7,6kg
2x135W	OUT1	1,5 <-> 8	7,6 <->9,1kg
2x200W	OUT1	1,5 <-> 8	8,1 <->9,6kg
2x135W	OUT2	1,5 <-> 8	7,8 <->9,7kg
2x200W	OUT2	1,5 <-> 8	8,2 <->10,1kg
3x200W	OUT1	1,5 <-> 8	9,5 <->11,7kg
4x135W	OUT2	1,5 <-> 8	10,1 <->13,1kg
4x200W	OUT2	1,5 <-> 8	11 <->14kg

CLASS I     CLASS II    IK08  IP66

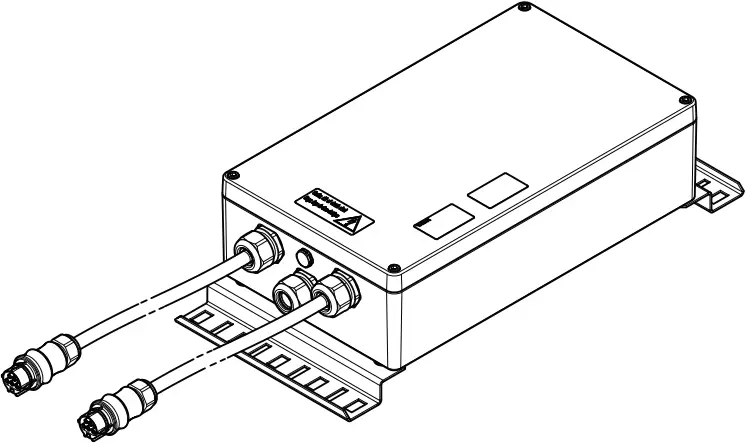

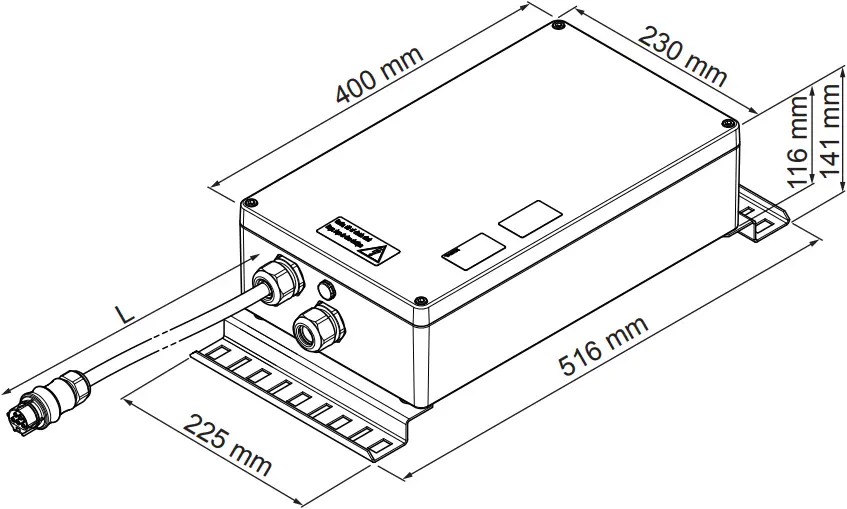

TYPE : GP AB

Caution, risk of electric shock

OUT1 DALI                                    OUT2 DALI
OUT1 BPL                                      OUT2 BPL


33

5

GP AB		L(m)
1x200W	OUT1	1,5 <-> 8	6,9<->7,9kg
2x135W	OUT1	1,5 <-> 8	7,8<->9,2 kg
2x200W	OUT1	1,5 <-> 8	8,2<->9,7kg
2x135W	OUT2	1,5 <-> 8	8 <->9,8 kg
2x200W	OUT2	1,5 <-> 8	8,4<->10,3 kg
3x200W	OUT1	1,5 <-> 8	9,6<->11,7 kg
4x135W	OUT2	1,5 <-> 8	10,1 <->13 kg
4x200W	OUT2	1,5 <-> 8	11<->13,9 kg

CLASS I     CLASS II    IK08  IP66

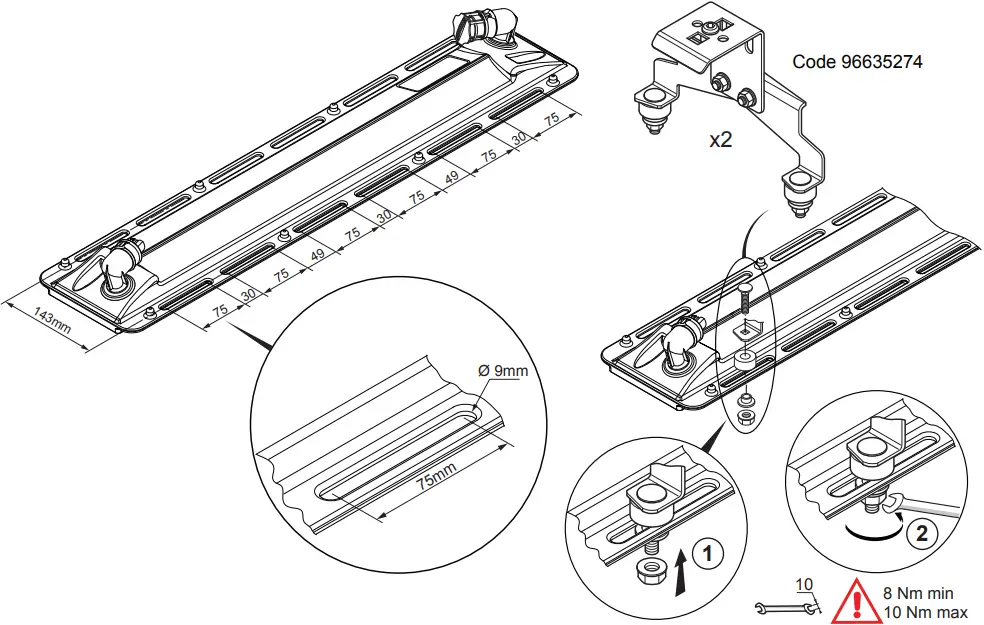

1 GP AL S – IN
GP AL S – IN/OUT

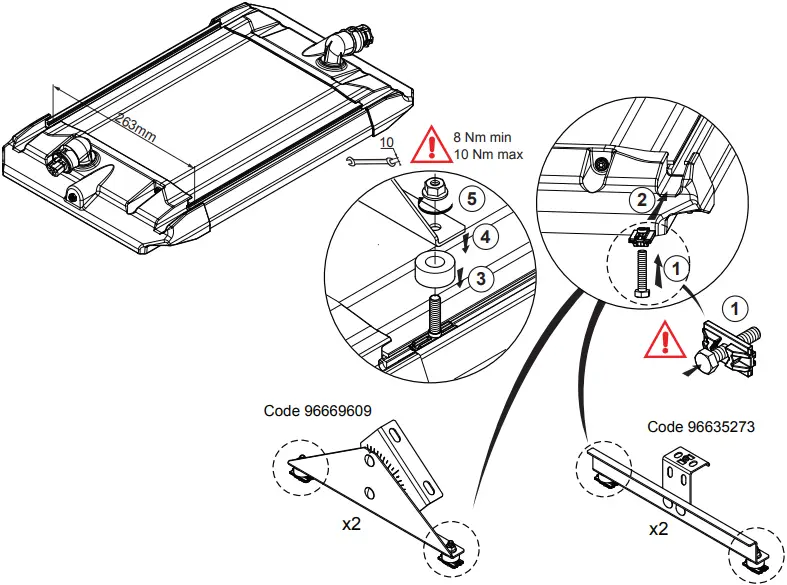

2 GP AL MS/M/L/XL – IN
GP AL MS – IN/OUT

SWITCH OFF POWER BEFORE CONNECTING LUMINAIRE

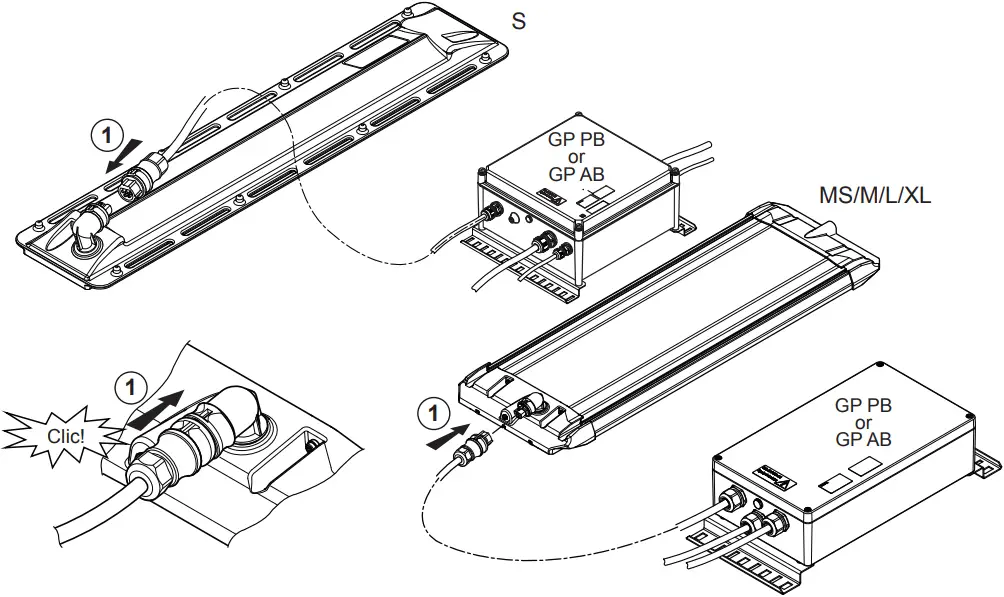

3 GP AL S – IN
GP AL MS/M/L/XL – IN

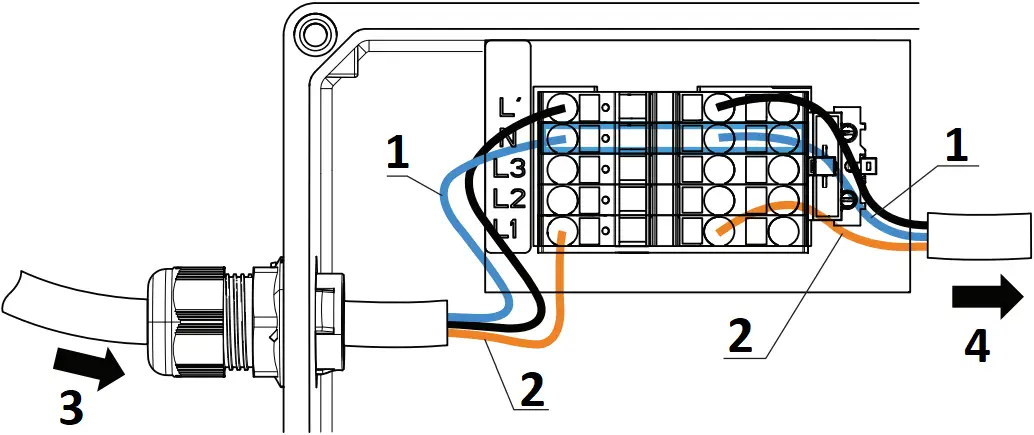

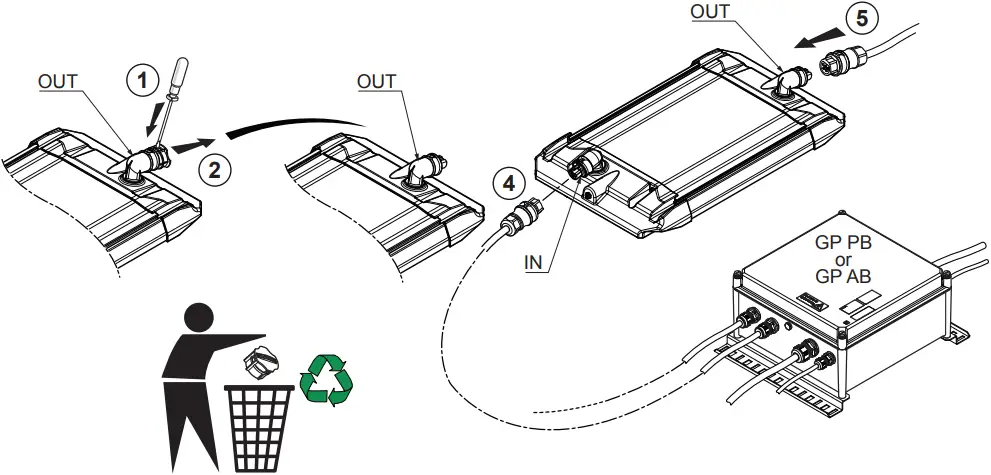

4 GP AL S – IN/OUT
GP AL MS – IN/OUT

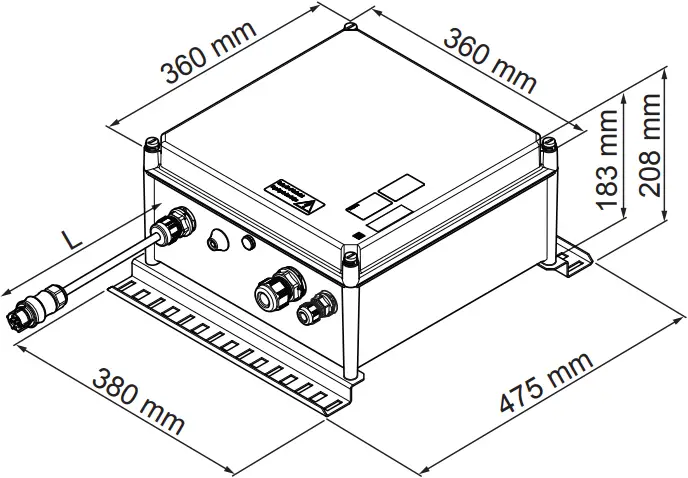

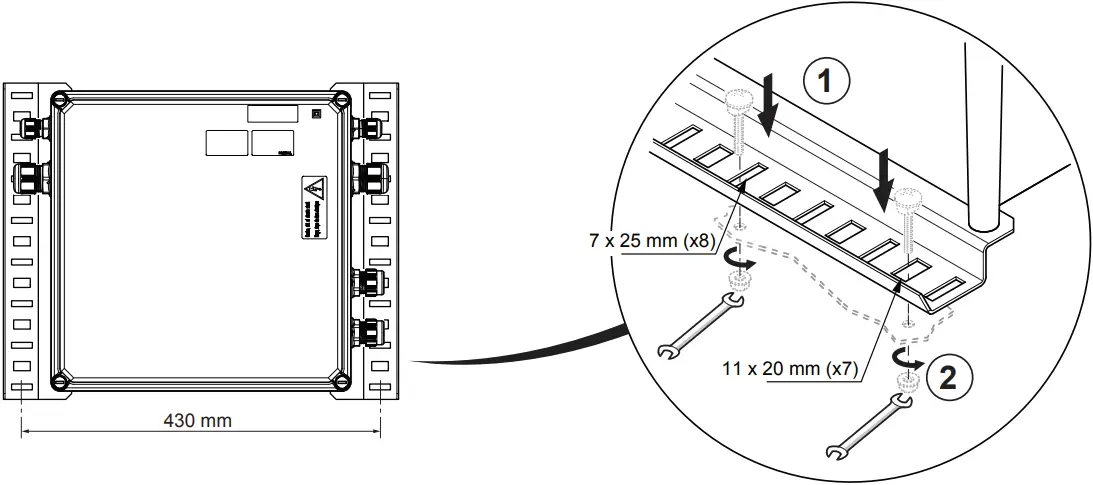

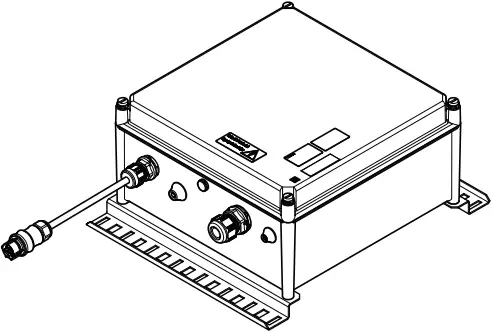

5 GP PB

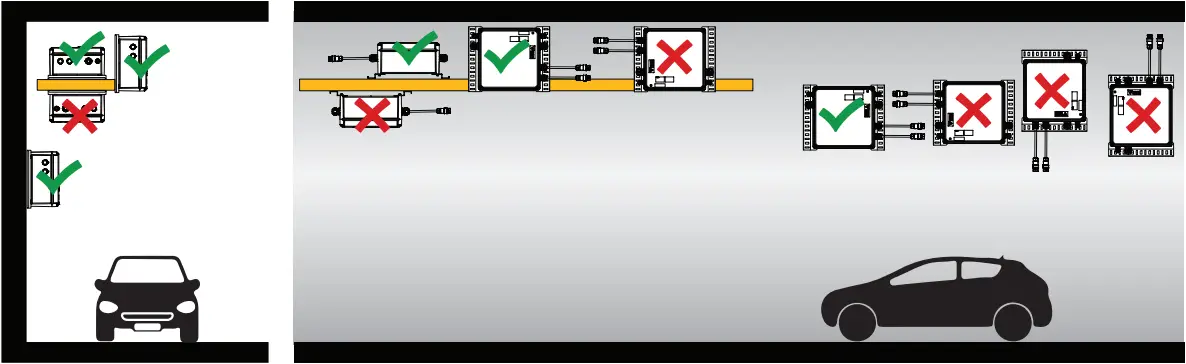

6

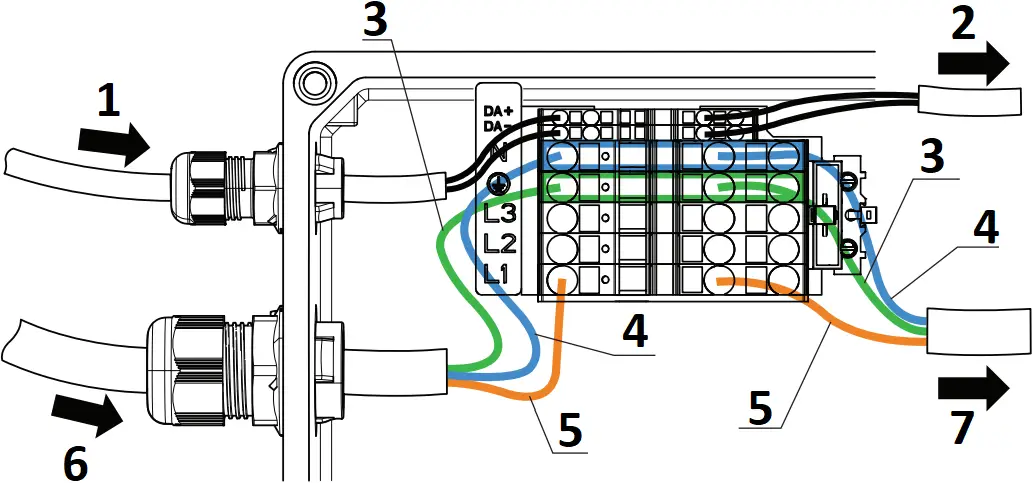

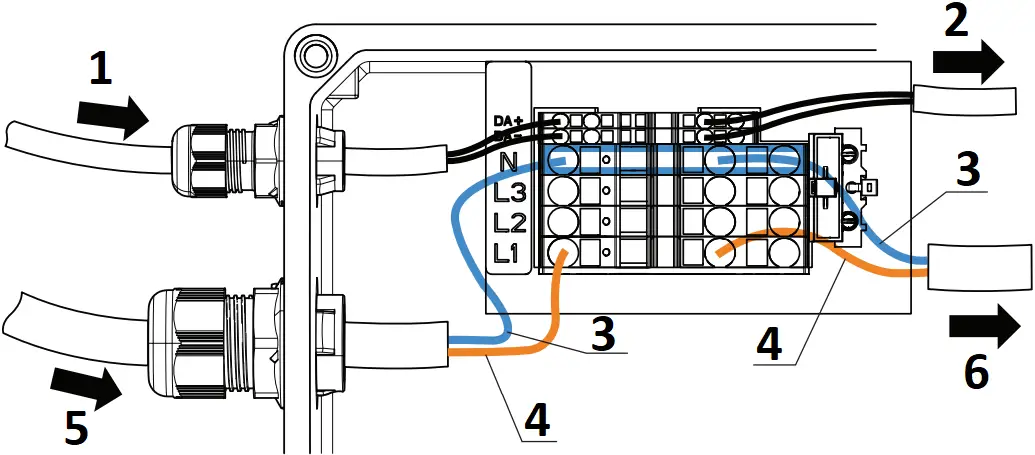

7

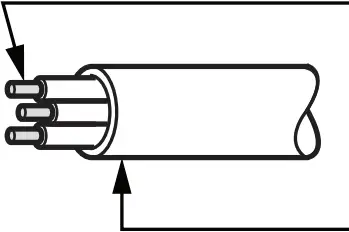

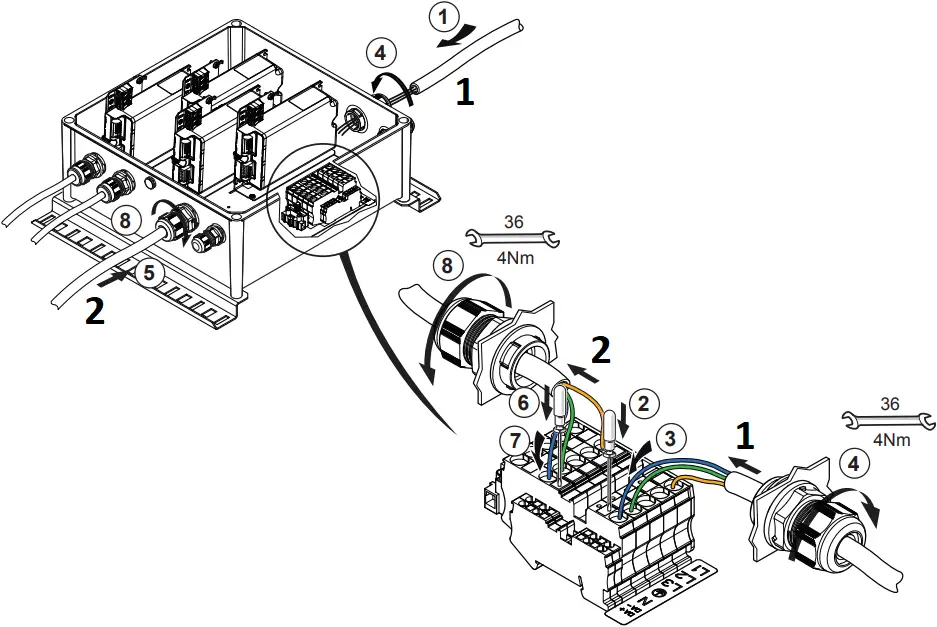

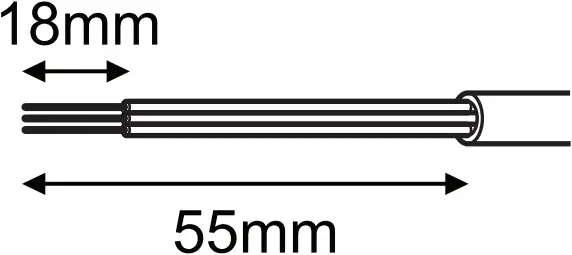

8 GP PB

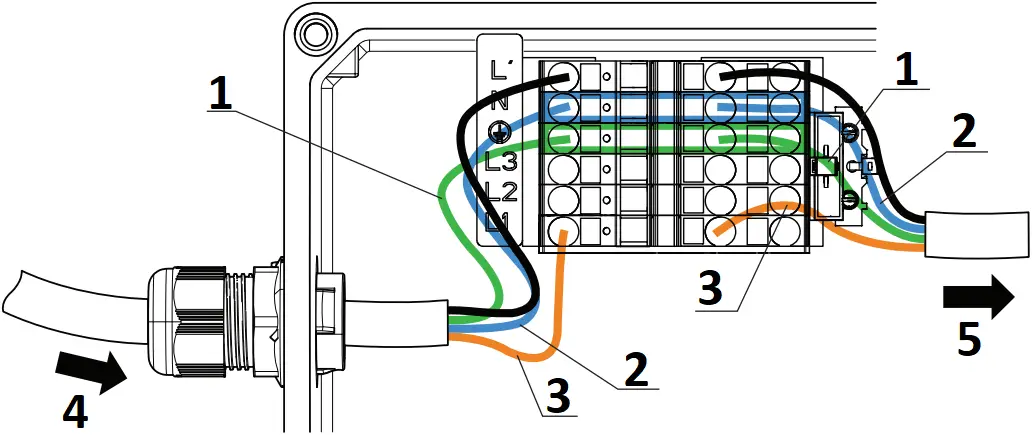

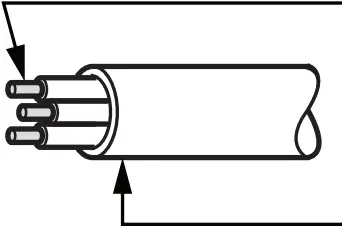

Power Supply

1. IN Power Supply
2. OUT Power Supply

CLASS 1	CLASS 2
5G4mm² – 3G6mm² Ø15 – 21mm	4x6mm² – 2x10mm² Ø15 – 21mm

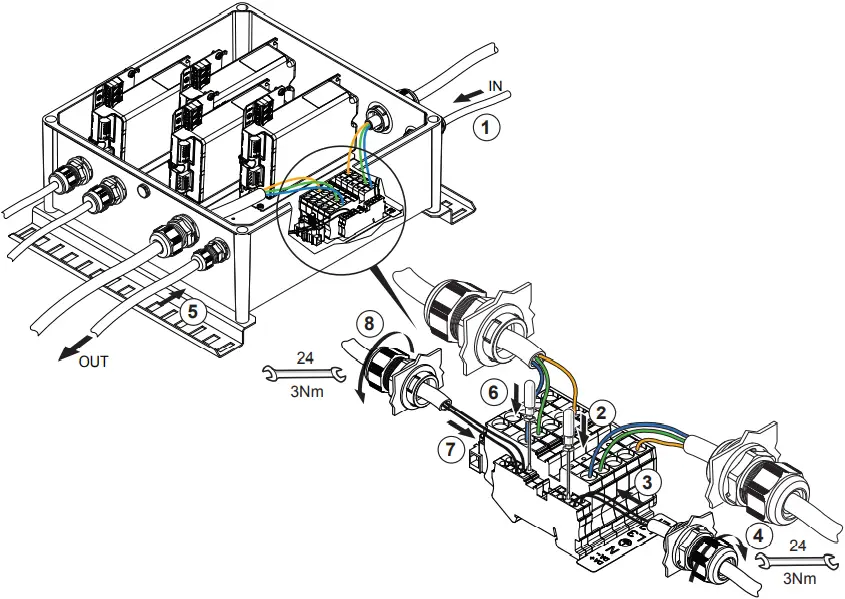

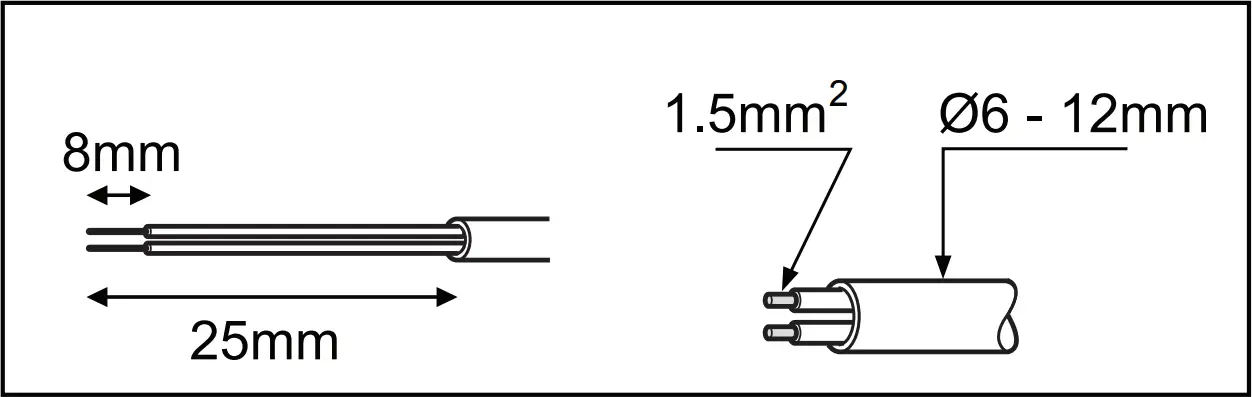

9 GP PB

DALI

230V   D1 D2 = 50/60Hz

Maximum DALI units per DALI line: 60
Maximum length of DALI line: 300m with 1,5mm² cable
Number of repeater: 1 (extension to 600m)

DALI

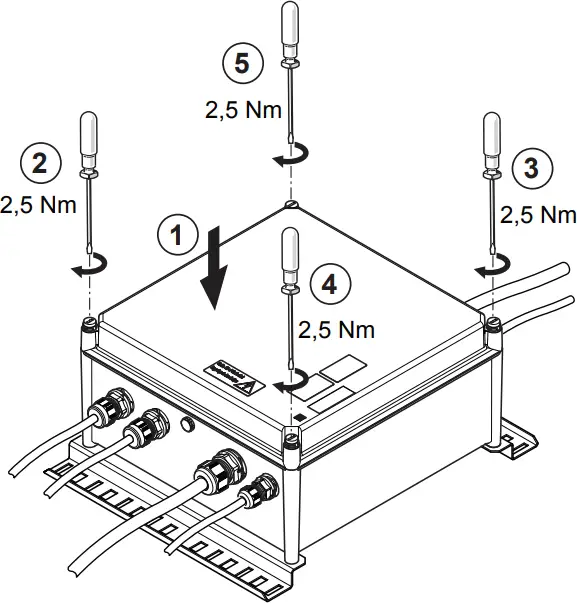

10 GP PB

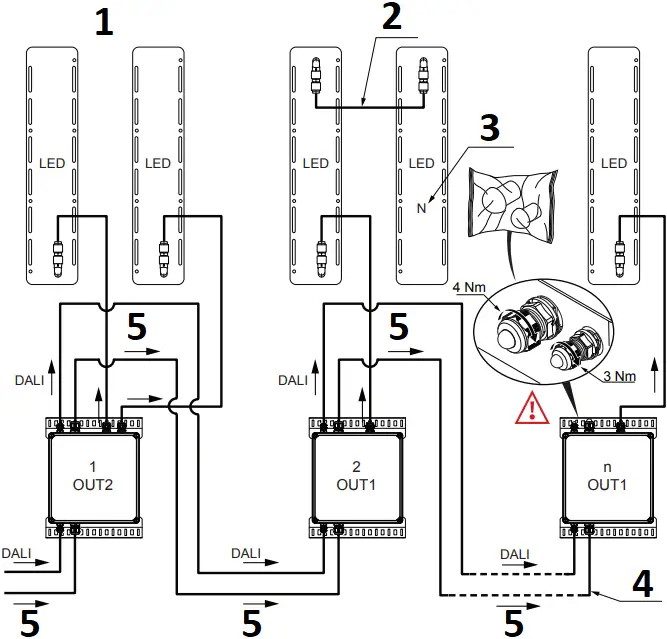

11 INSTALLATION GP PB

1. THROUGH WIRING with DALI (example)
2. Accessory
   GP IO 2xSOCKETS JUNCTION CABLE W…
3. N product in line
   =>Quantity of
   luminaire / GP PB
4. Imax = 20A
5. Power Supply

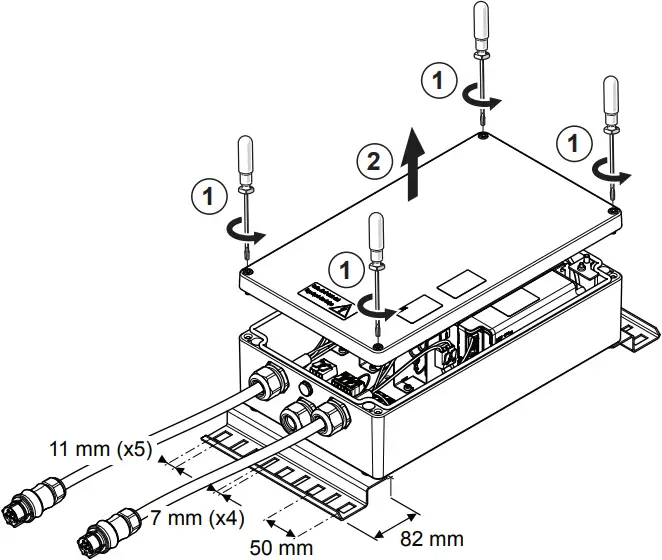

12 GP AB

5

13 GP AB

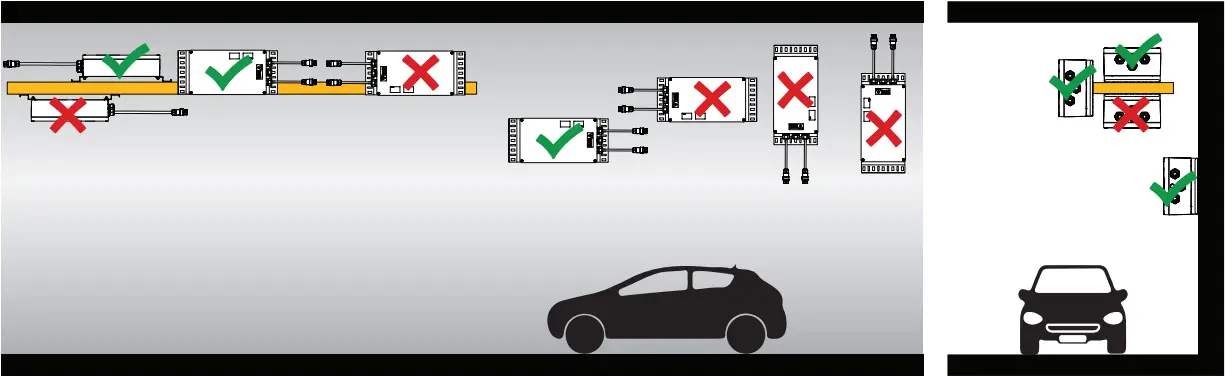

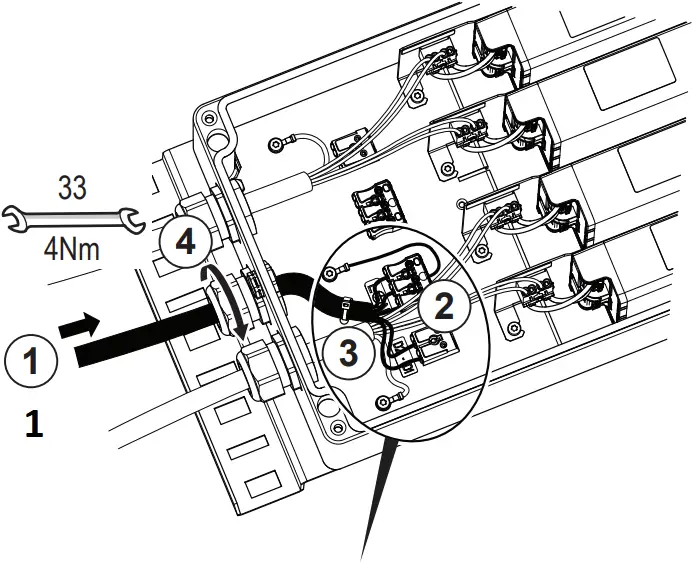

14 Installation GP AB

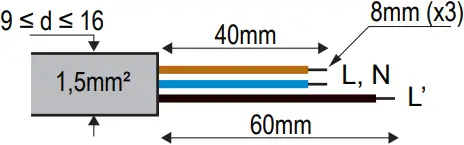

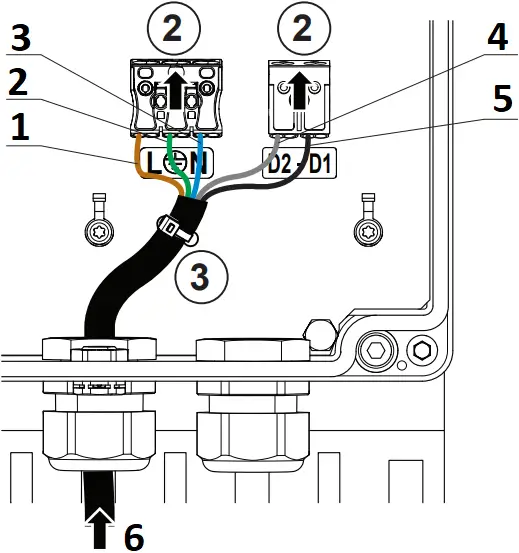

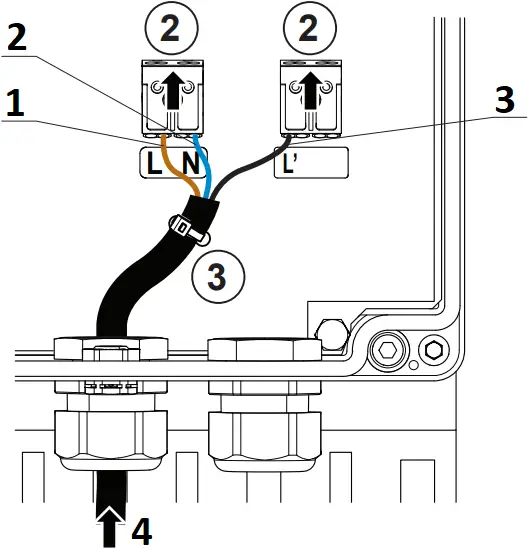

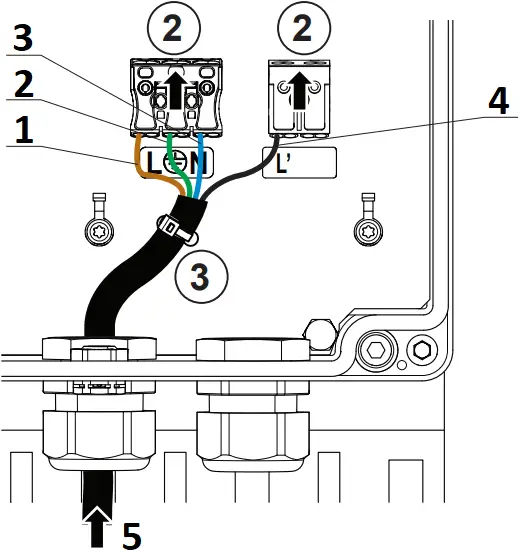

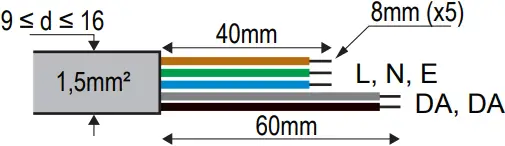

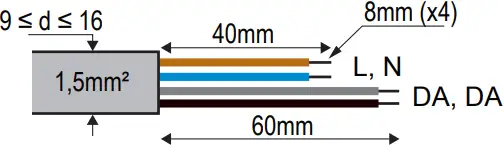

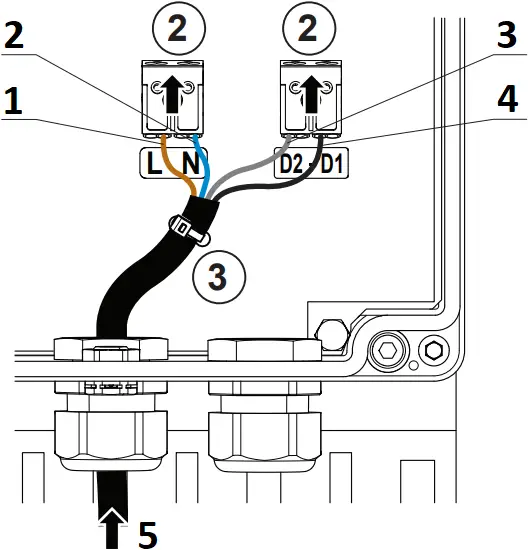

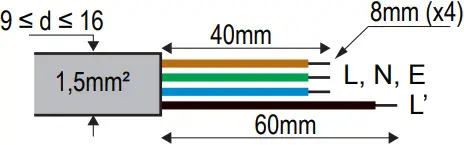

15 Connection GP AB

DALI

230V   D1 D2 = 50/60Hz

Maximum DALI units per DALI line: 60
Maximum length of DALI line: 300m with 1,5mm² cable
Number of repeater: 1 (extension to 600m)

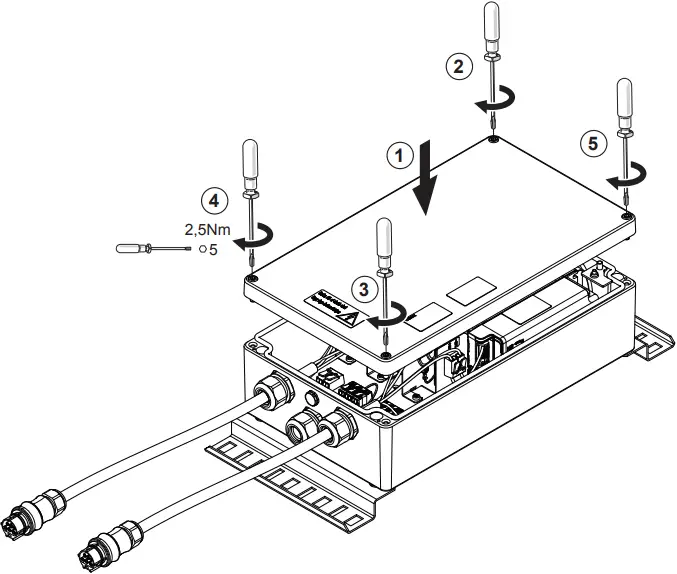

16

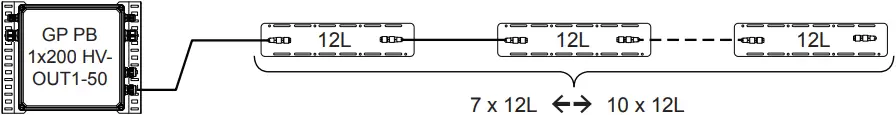

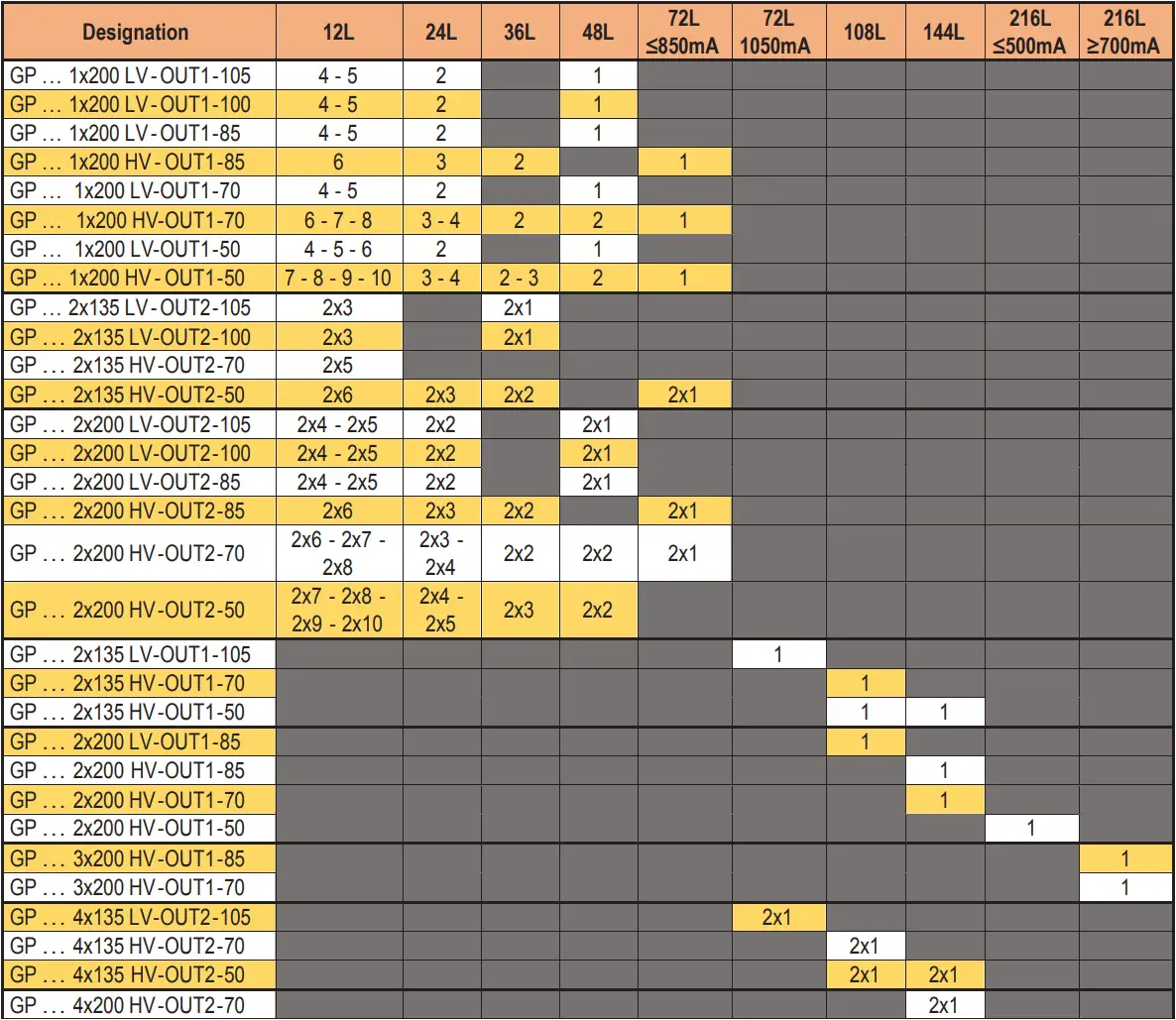

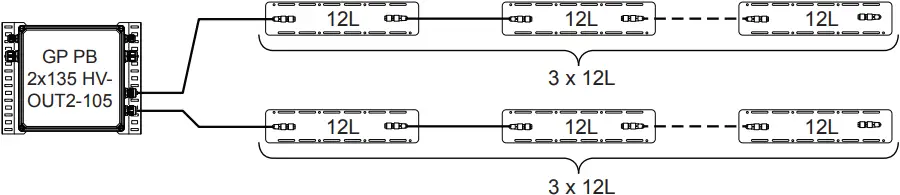

17 Quantity of luminaire / GP PB / GP AB

Example

1 OUTPUT of 7 luminaires 12L
to
1 OUTPUT of 10 luminaires 12L

2 OUTPUTS of 3 luminaires 12L

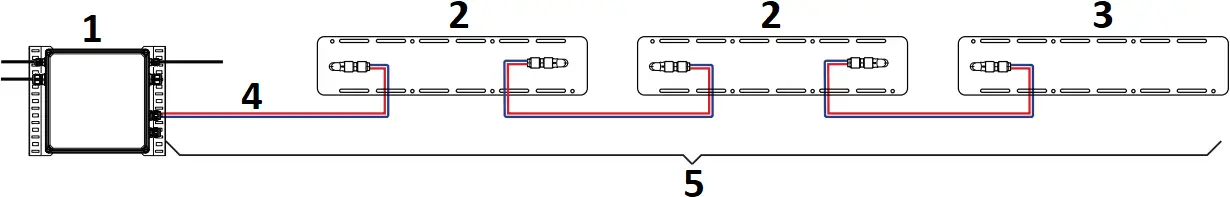

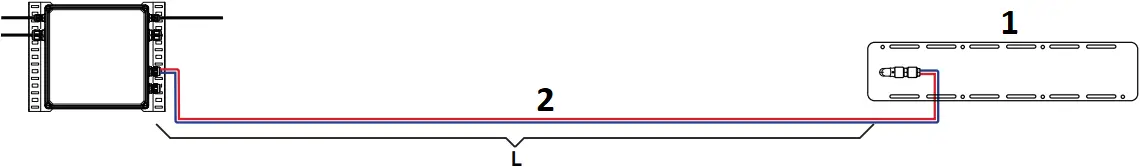

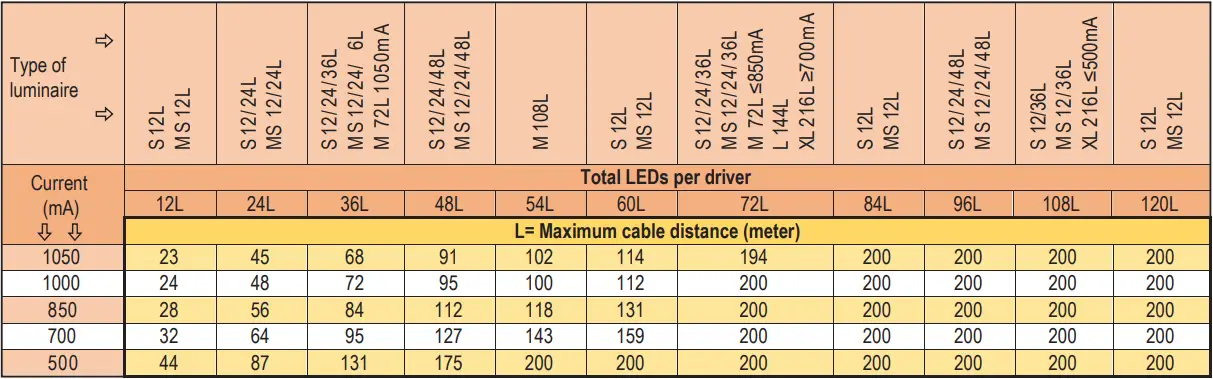

18 INSTALLATION

Maximum cable distance

GP PB 1×200 DA LV-OUT1-70

1. #LED = X
2. 1,5mm² copper

GP PB 1×200 DA LV-OUT1-70

Maximum cable voltage loss: 2% of total led output voltage (typ. @25°C)
Cable 1,5mm² copper (0,023ohm.mm²/m)

1. #LED = 3 X
2. 1,5mm² copper

Example for the same operating point

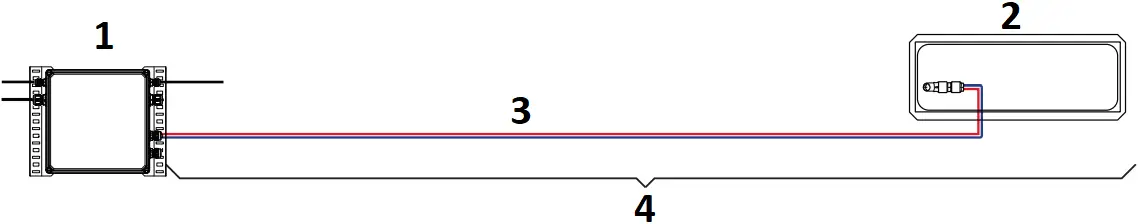

1. GP PB 1×200 DA LV-OUT1-70
2. GP AL M 72L IN ≤850mA
3. 1,5mm² copper
4. L < 200m

1*72 LED 3*24 LED

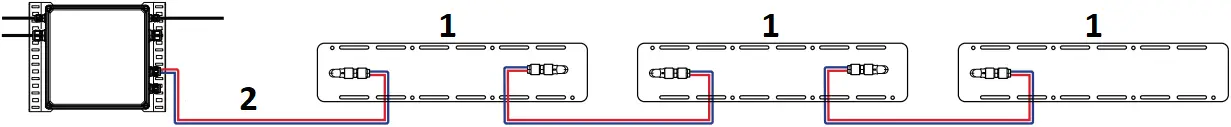

1. GP PB 1×200 DA LV-OUT1-70
2. GP AL S 24L IO
3. GP AL S 24L IN
4. 1,5mm² copper
5. L < 200m

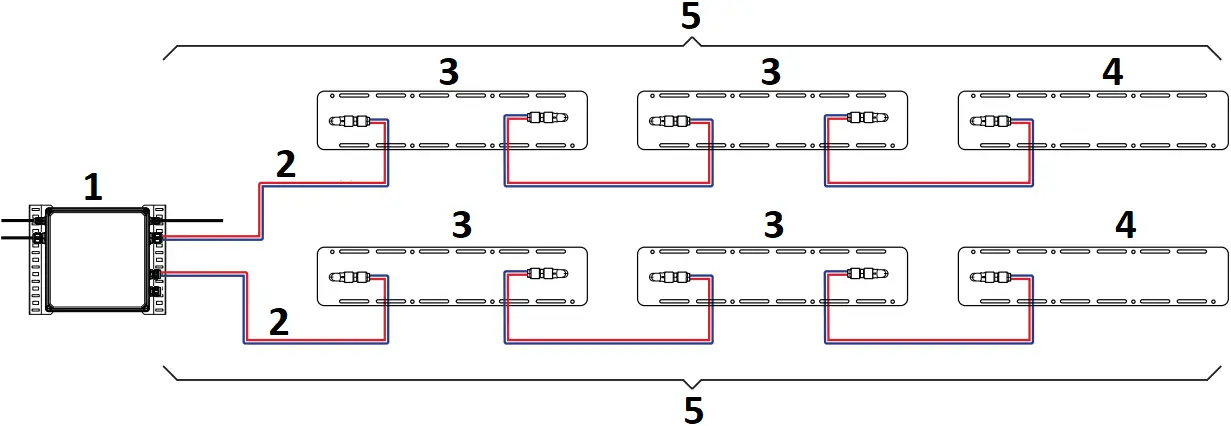

1. GP PB 2×200 DA LV-OUT2-70
2. 1,5mm² copper
3. GP AL S 24L IO
4. GP AL S 24L IN
5. L < 200m

19 Maximum Circuit Breaker 135W & 200W

135W
Maximum loading of automatic circuit breaker

Calculation uses typical values from ABB series S200 as a reference.
Actual values may differ due to used circuit breaker types and installation environement.

200W
Maximum loading of automatic circuit breaker

Calculation uses typical values from ABB series S200 as a reference.
Actual values may differ due to used circuit breaker types and installation environement.

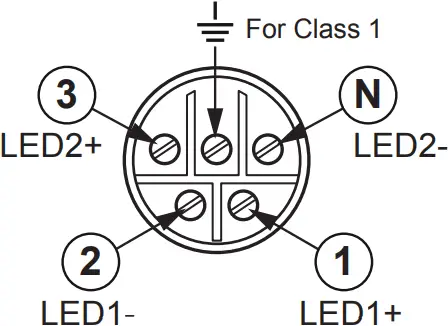

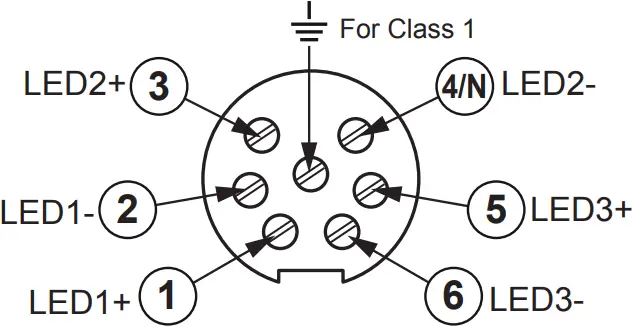

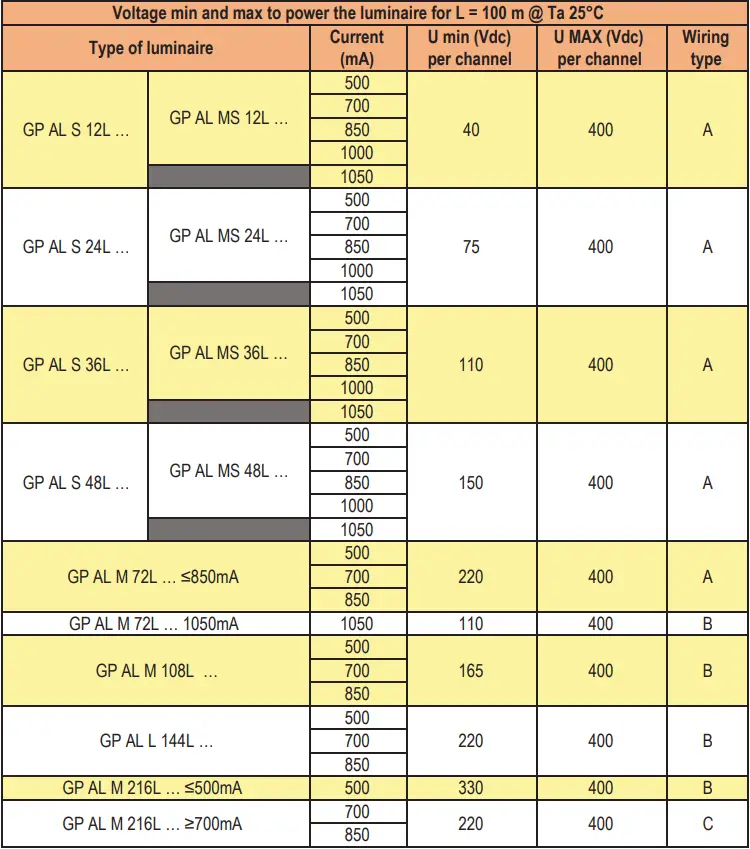

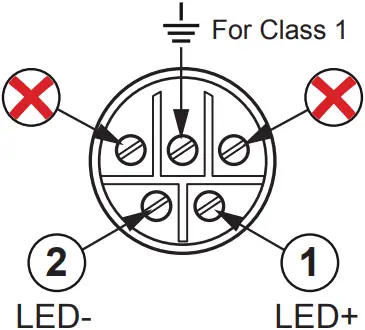

20 Luminaire functional data

Wiring type A
luminaire with 1 channel

Wiring type B
luminaire with 2 channels

Wiring type C
luminaire with 3 channels

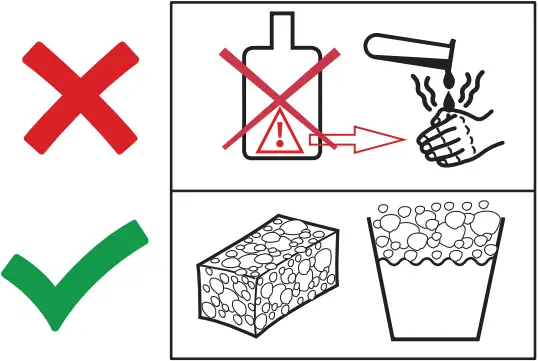

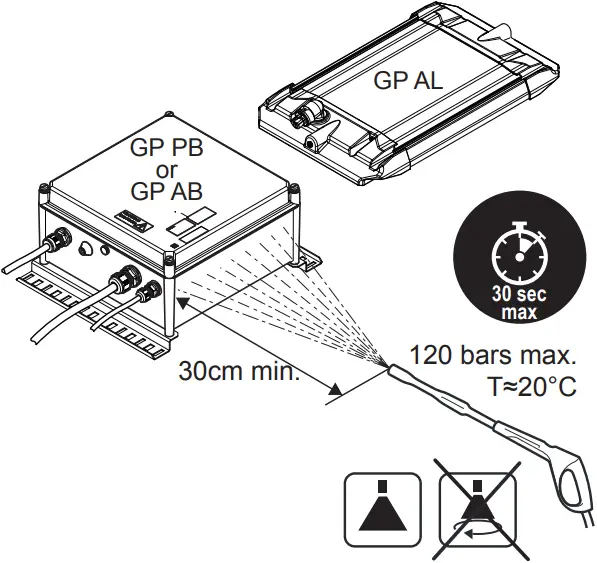

21 CLEANING

EVERY 6 MONTHS

-Replace any cracked protective shield.
-Class II luminaires must be installed so that exposed metal work of the luminaire is not in contact with any part of the electrical installation connected to a protective conductor.
WARNING: Class I luminaires must be earthed.
-This luminaire operates at mains voltage which must be switched off before intervention in control gear.
-Any modification to this luminaire is forbidden.
-Lighted objects nearer than the minimal distance in the is forbidden.

Thorn Lighting is constantly developing and improving its products. The right is reserved to change specifications without prior notification or public announcement.
© Thorn Lighting

96670083 02                                                                              01/2022
