Qazqa Cova Wl Black 46 Instruction Manual

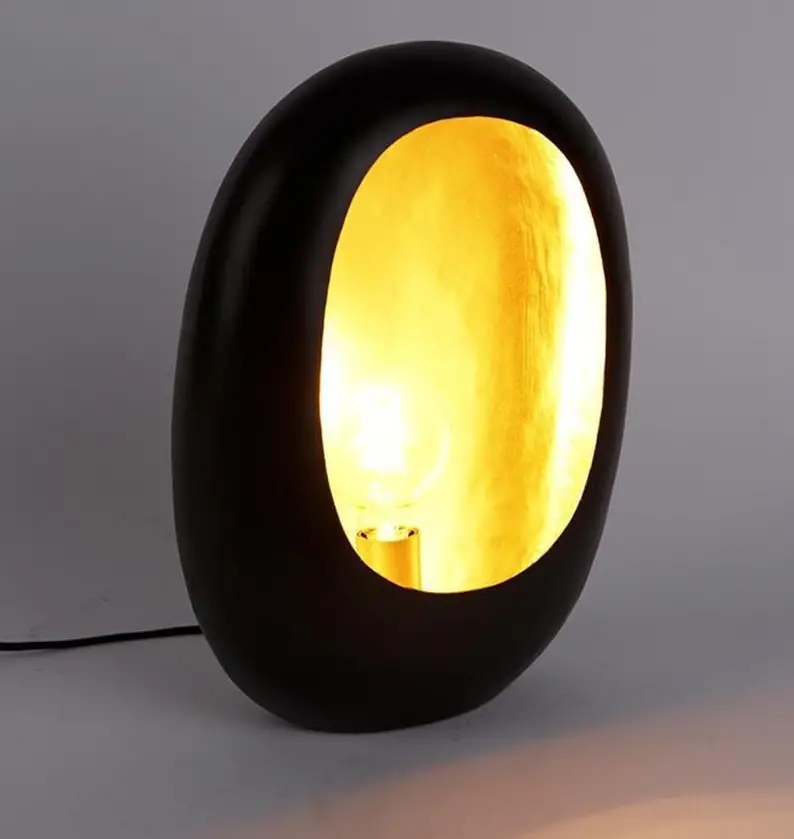

QAZQA Cova WL Black 46

INSTRUCTION MANUAL

Cova WL Black 46 E27 Max.40W 103083

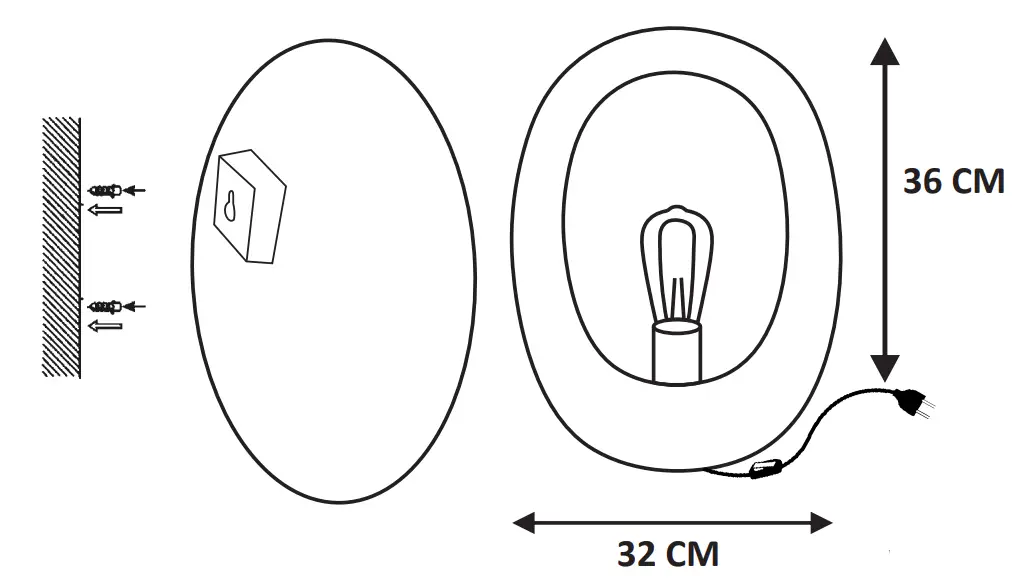

STEP 1

STEP 2

STEP 3

STEP 4

SAFETY INSTRUCTION

Please study the i instruction ma Nua I and the below information carefully before installing Ii ng or using this product. Please keep this user manual for further reference

1. The luminaires may only be installed by authorized and qualified technicians according to the valid regulations for electrical I ins ta I lotion.
2. Maintenance of the luminaires is limited to their surfaces. During maintenance, no moisture can come into contact with any areas of the terminal connections or voltage control parts.
3. The electrical supply must be switched off at the outset, preferably by means of o switch in the distribution box, before any i install lotion, ma intent nee or repair work is undertaken.
4. Exterior lighting must not be installed during rain.
5. Take account of the minimum separation distance from other objects and the room required around the fitting.
6. If in any doubt, consult a professional, taking local installation requirements into account. Some countries stipulate that lighting may be installed only by registered installers.
7. Clamping screws in electrical connections must be adequately tightened. This is particularly the case with 12V low voltage conductors.
8. Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on all electrical components
9. Take account of all available technical information.
10. Meaning of symbols:

• For indoor use only, where direct contact with water is impossible
• This icon indicates the level of water-proof and dust-proof
• Protection Closs I: the fitting must be earthed
• Protection Closs II: the fitting is doubled insulated and does not require earthing
• Protection Closs Ill: the fitting is low voltage

• Minimum distance from lighted objects (meters)
• The type of lump and maximum size ond wattage indicated in each lighting unit must not be exceeded; different items require different kinds of light sources with different bulb icons
• The armature is designed to work only with the indicated voltage. Different items require different working vol toge.
• The luminaire can be used in combination with o dimmer
• The reference light angle and light space of the luminaire
• This luminaire can not be disposed of together with normal domestic waste in standard rubbish con, but you hove to bring it to o staging oreo for electrical waste

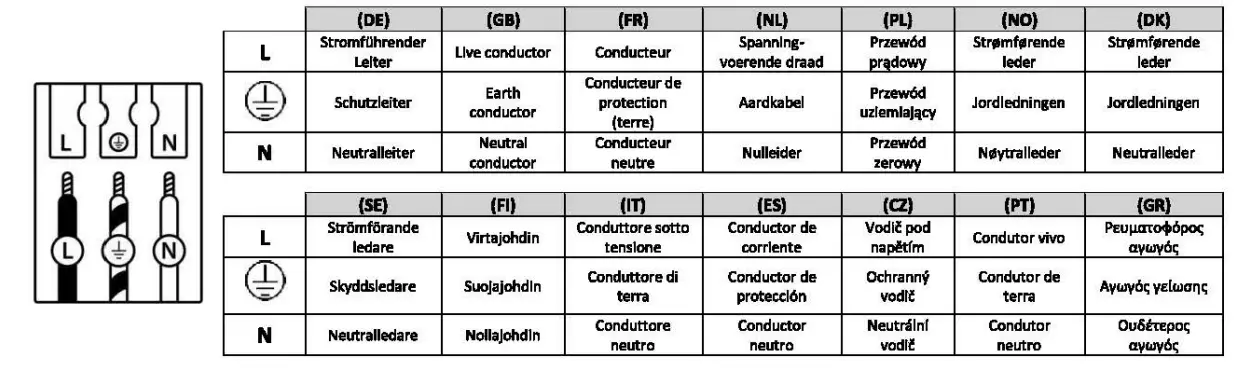

• Take note of the symbols when connecting wires:

fitting B.V.
Smaragdweg 52, 5527 LB Hapert, The Netherlands www.aazaa.nl
