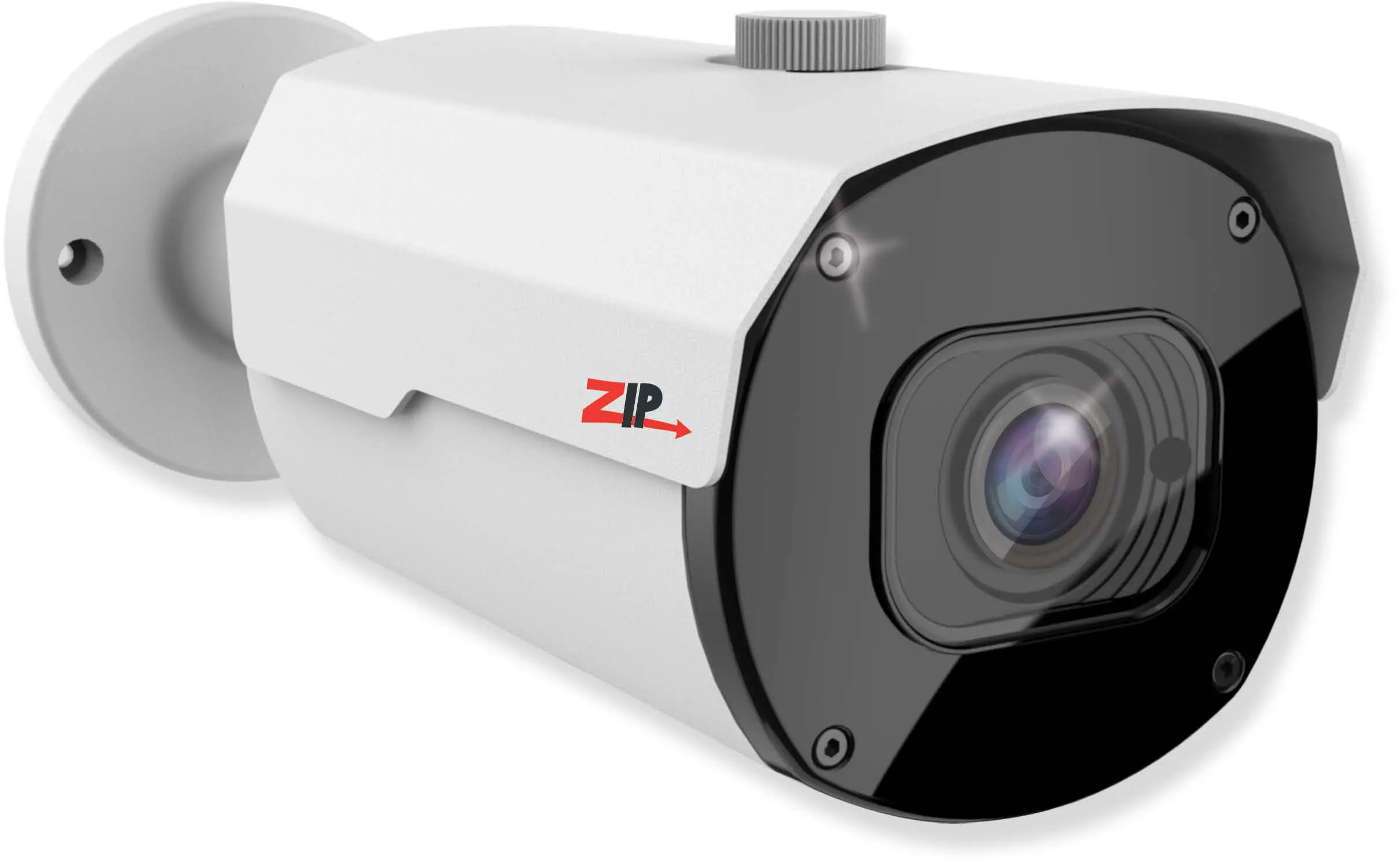

SystemQ IPCAI905 5MP AI ZIP IP Varifocal Bullet 2.8-12mm
The IPCAI905 is a bullet-style camera with onboard face detection features plus iSENSE compatibility for Face Recognition when used with the latest Zip NVR firmware. Up to 40m IR range (true day/night filter), 5MP resolution, built-in PoE, H265, and H264 codec.

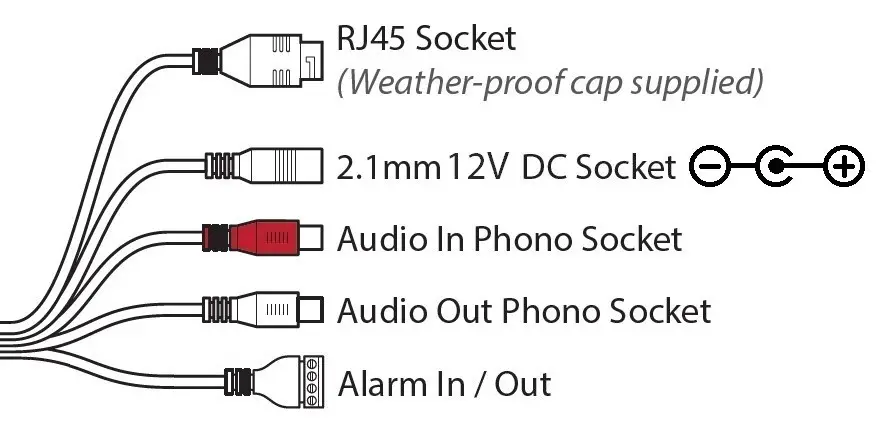

Powering the camera
Option 1
Power the camera from 12V DC (via the 2.1mm DC Socket), the current consumption is 750mA. The camera is polarity sensitive so connections must be correctly made.
Option 2

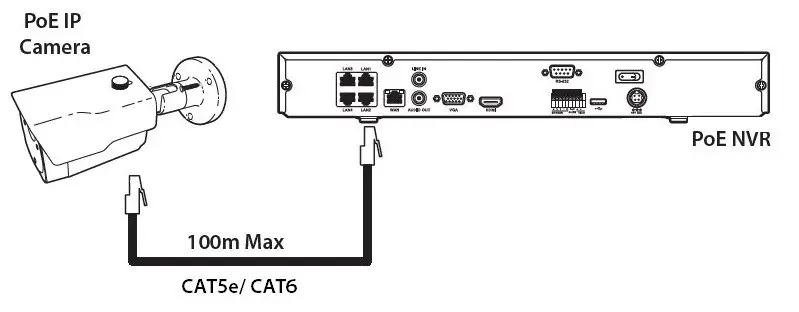

Power the camera using a PoE 48V RJ45 Socket When connecting to a ZIP PoE NVR plug the camera directly into the NVRs built in PoE switch. The camera should automatically become visible after being connected for approximately 1 minute. If using a separate PoE switch or an IPmitter (wireless bridge), the camera needs to be manually configured, scan the QR code to the left for the “how to guide”
www.zipdvr.com/howto/TIP459 -How-To-Add-IP-Cameras.html Use the ZipFinder tool to search for ZIP IP cameras on a network via a Windows PC. www.softcctv.com/store/Item/Zip-Finder-IP-CCTV-Security-Camera-Discovery-Tool.
Default login details are:
| Default IP 192.168.10.1 | |
| User Name | admin |
| Password 777777 | |
| Image Sensor 1/ 2.7” Progressive CMOS | |
| Resolution | 5MP 2592(H)×1944(V) |
| Lens Type | 2.8-12mm Motorised |
| Shutter | 1/5 ~ 1/20000s |
| Day/Night | Mechanical (True Day-Night) |
| Min. Illumination | 0 (With IR On) |
| IR Range | Up to 40m |
| Digital Noise Reduction | 3D DNR |
| Video Compression | H.264 / H.265 |
| Video Bitrate | 8Kbps ~ 8Mbps |
| Stream Options | Mainstream, SubStream & MobileStream |
| Smart Feature | Perimeter Intrusion, Line Crossing, Pedestrian and Vehicle Detection, Facial Detection, Facial Recognition |
| System Compatibility | ONVIF (Profile S, Profile G, Profile T) |
| Connection | RJ45 10M / 100M Ethernet PoE |
| SD Card | Micro SD Card Slot (up to 128GB) |
| Alarm | 1 Input / 1 Output |
| Audio (RCA) | 1 Input / 1 Output |
| Input Voltage | PoE or 12V DC 750mA (PSU Required) |
| Consumption | 8W Max |
| Operating Temperature | From -30 to 60 deg°C |
| Backlight Control | BLC / D-WDR |
| Use | IP66 For External Use |
All specifications are approximate. System Q Ltd reserves the right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment referred to.
