5MP AI ZIP IP Mini Dome 3.6mm Camera
User Guide
www.systemq.com/PDF/manual/xIPCAI505.pdf

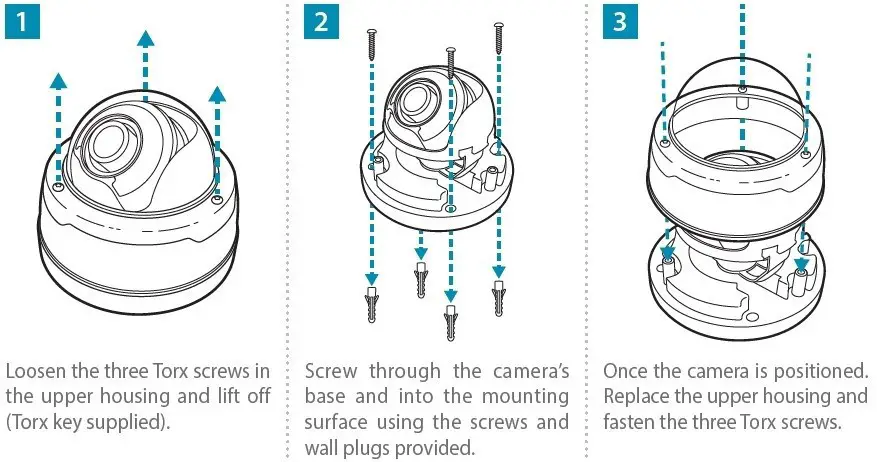

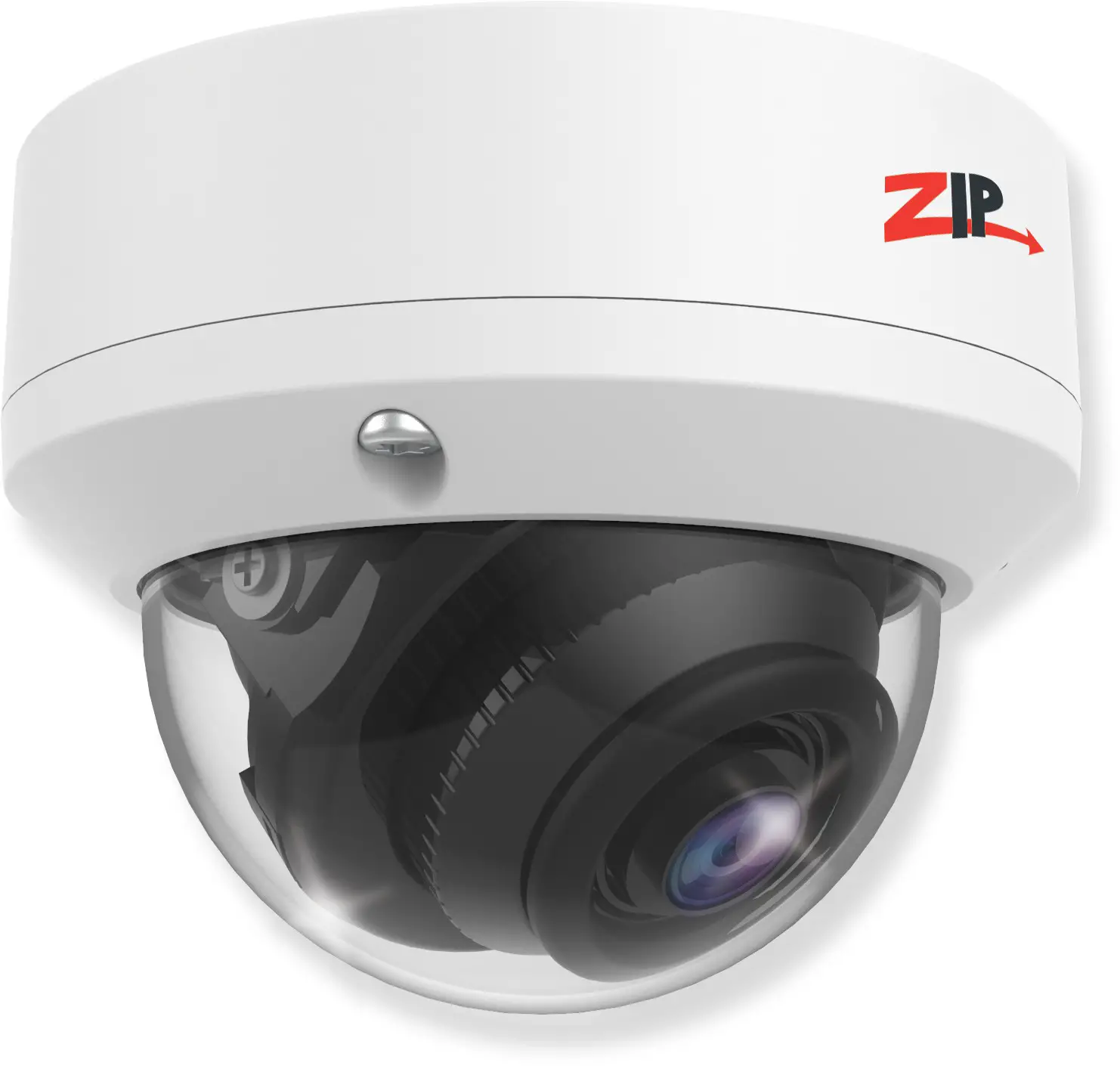

The IPCAI505 Mini Vandal Dome has a tough metal exterior is ideal for both outdoor and indoor uses.
With onboard face detection features plus iSENSE compatibility for Face Recognition when used with the latest Zip NVR firmware. Up to 30m IR range (true day/night filter), 5MP resolution, built-in PoE, H265, and H264 codec.
Powering the camera

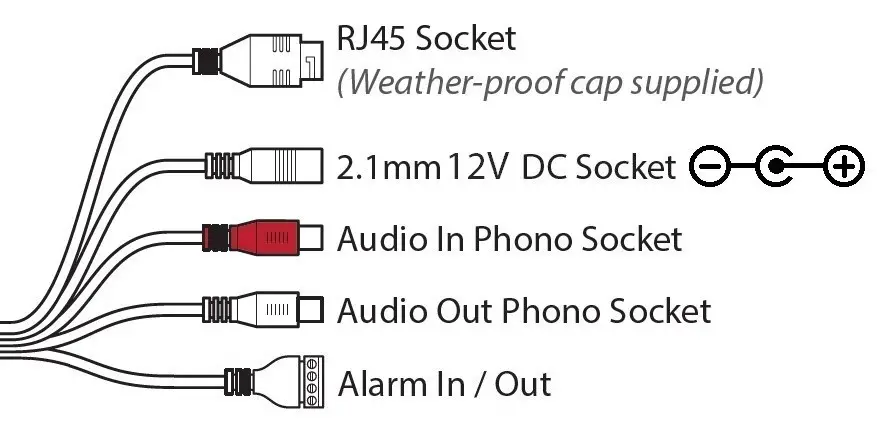

Option 1 – Power the camera from 12V DC (via the 2.1mm DC Socket), the current consumption is 300mA.
The camera is polarity sensitive so connections must be correctly made.
Option 2 – Power the camera using a PoE 48V RJ45 Socket

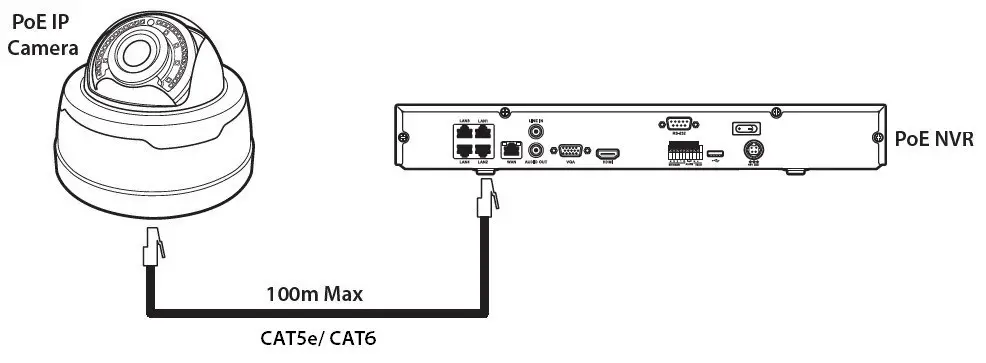

When connecting ZIP PoE NVR plug the camera directly into the NVRs built-in PoE switch.
The camera should automatically become visible after being connected for approximately 1 minute.
If using a separate PoE switch or an IPmitter (wireless bridge), the camera needs to be manually configured, scan the QR code to the left for the “how to guide”
www.zipdvr.com/howto/TIP459-How-To-Add-IP-Cameras.html
Use the ZipFinder tool to search for ZIP IP cameras on a network via a Windows PC.
www.softcctv.com/store/Item/Zip-Finder-IPCCTV-Security-Camera-Discovery-Tool
Default login details are:-
| Image Sensor | 1/ 2.7” Progressive CMOS |
| Resolution | 5MP 2592(H)×1944(V) |
| Lens Type | 3.6mm Fixed |
| Shutter | 1/5 ~ 1/20000s |
| Day/Night | Mechanical (True Day-Night) |
| Min. Illumination | 0 (With IR On) |
| IR Range | Up to 30m |
| Digital Noise Reduction | 3D DNR |
| Video Compression | H.264 / H.265 |
| Video Bitrate | 8Kbps ~ 8Mbps |
| Stream Options | Mainstream, SubStream & MobileStream |
| Smart Feature | Perimeter Intrusion, Line Crossing, Pedestrian and Vehicle Detection, Facial Detection, Facial Recognition |
| System Compatibility | ONVIF (Profile S, Profile G, Profile T) |
| Connection | RJ45 10M / 100M Ethernet PoE |
| SD Card | Micro SD Card Slot (up to 128GB) |
| Alarm | 1 Input / 1 Output |
| Audio (RCA) | 1 Input / 1 Output |
| Input Voltage | PoE or 12V DC 300mA (PSU Required) |
| Consumption | 8W Max |
| Operating Temperature | From -30 to 60 deg°C |
| Backlight Control | BLC / D-WDR |
| Use | IP66 For External Use |
All specifications are approximate. System Q Ltd reserves the right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or nonperformance of the equipment refered to.
