SEE505W 5MP Internal Dome 2.8-12mm 4PC IR Camera
User Guide
Specifically designed for retail and commercial use. This attractive dome is feature packed for optimum results regardless of the lighting conditions.
A mechanical IR filter gives accurate color reproduction during daylight or in brightly lit environments such as shops whilst the built-in IR LEDs offer extra illumination when darkness or ambient light levels fall.
http://www.systemq.com/PDF/manual/xSEE505W.pdf

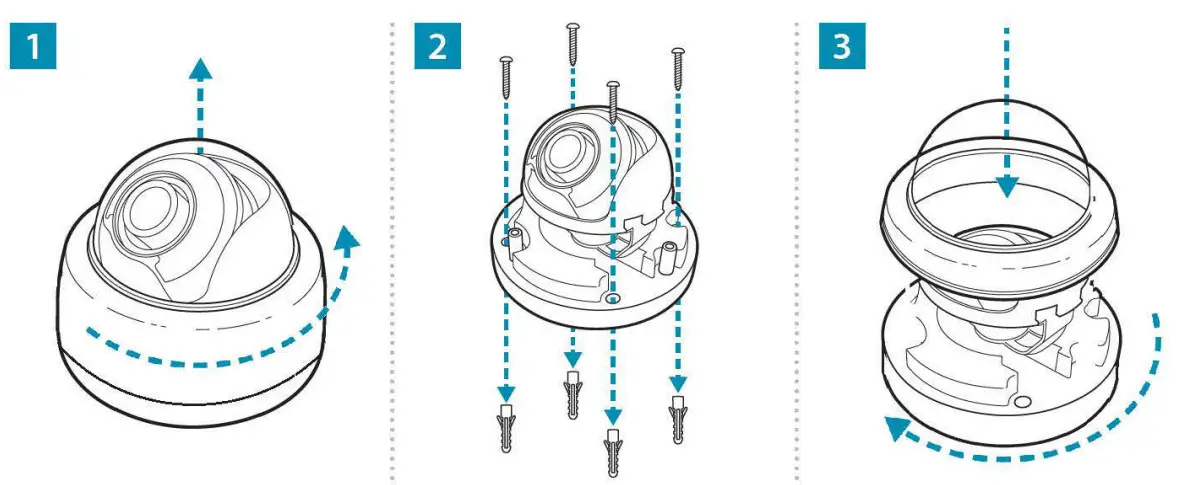

Powering the camera

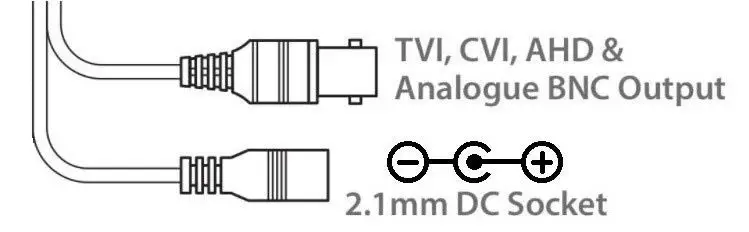

The camera has a 2.1mm socket which requires 12V DC and the current consumption is 300mA, so use a regulated power supply rated at 500mA or above.
The camera is polarity sensitive so connections must be correctly made.
The camera has a standard BNC connector for the 4-in-1 video output. By default the output is set to HD-TVI 5MP which will work with the ZipSupa and ZipXtreme DVRs, however, the output can be changed to AHD, CVI or CVBS if required.

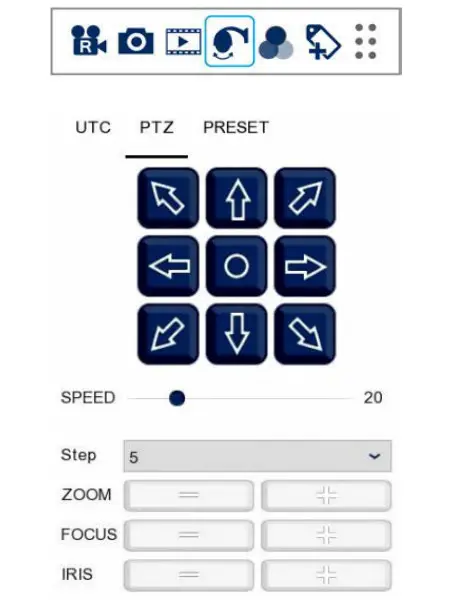

Via a DVR with a monitor & mouse direct to access the Cameras menu via coalition:-
- Click on the image in Live view
- Click on the PTZ button at the bottom of the screen
- Click on the IRIS +/center button to display the menu
Use the directional arrows to move up and down through the menu.
Use the directional arrows left and right to change the option.
Use IRIS + to select and enter that menu option.
| Resolution | 5MP |
| Lens Type | 2.8-12mm Varifocal Lens |
| Image Output | 1 Volt Peak-Peak 75 ohm |
| Min. Illumination | 0 Lux IR On |
| Day/Night | Mechanical (True Day-Night) |
| IR Range | 30M |
| Input Voltage | 12V DC |
| Current Consumption | 300mA (IR On) |
| Video Connection | BNC Socket |
| Power Connection | 2.1mm DC Socket |
| Finish | White |
| Build | Plastic |
| Dimensions | 146mm (Diameter) x 110 mm (Height) |
All specifications are approximate. System Q Ltd reserves the right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or nonperformance of the equipment referred to.
This symbol indicates that equipment must not be mixed with general household waste. For treatment, recovery, and recycling please return to your local designated WEE/CG0783SS collection point as defined by your local council.
Document ref: qSEE505
