Suzuki DL650 V-Strom Crash Protection Sliders
Instruction Manual
Kit Contents PRN015152

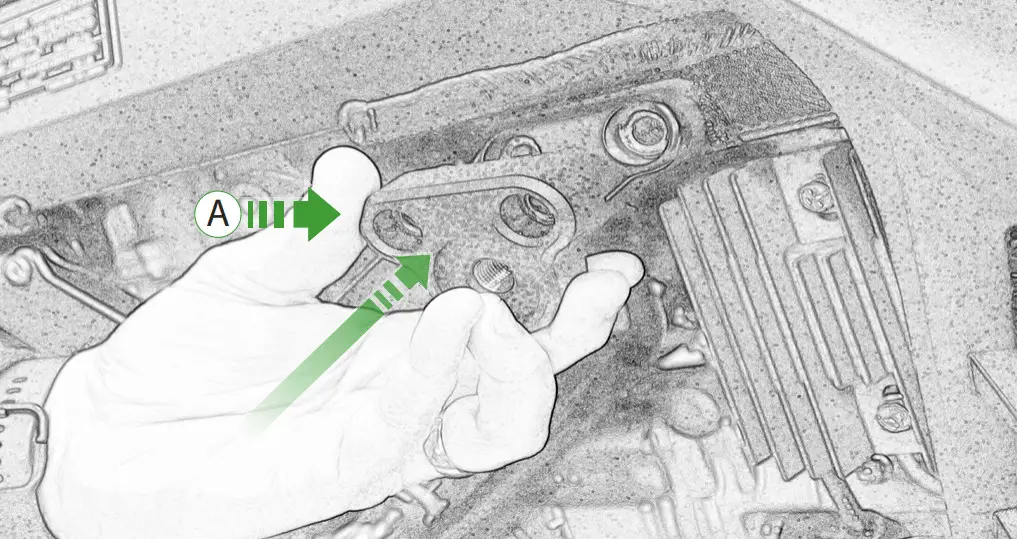

A 2 x Mounting Brackets

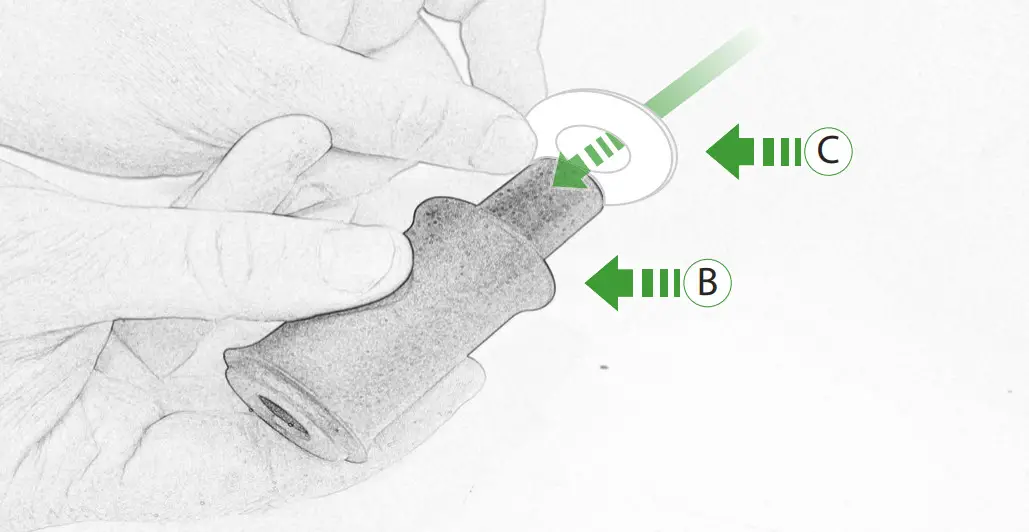

B 2 x Bobbin Spacer
C 2 x Poly Washer

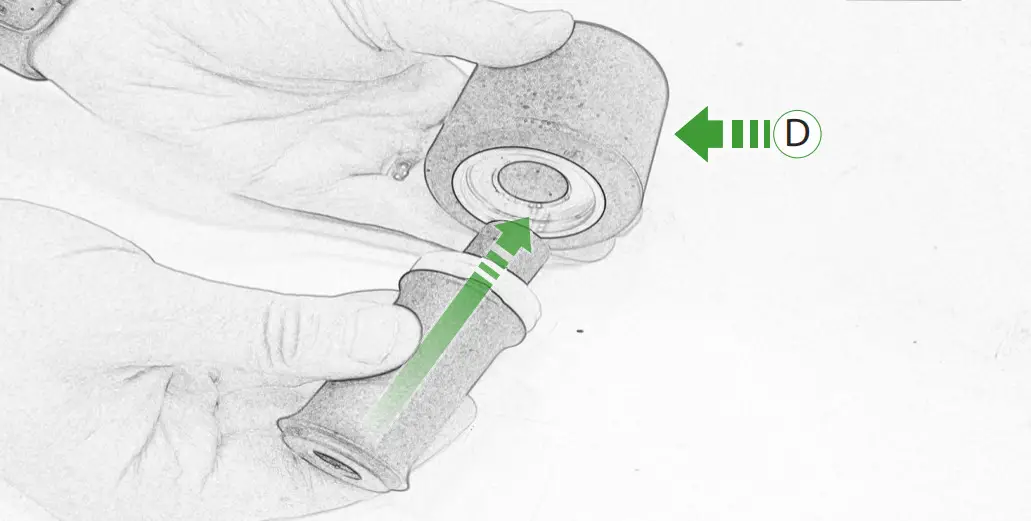

D 2 x Bobbin Head

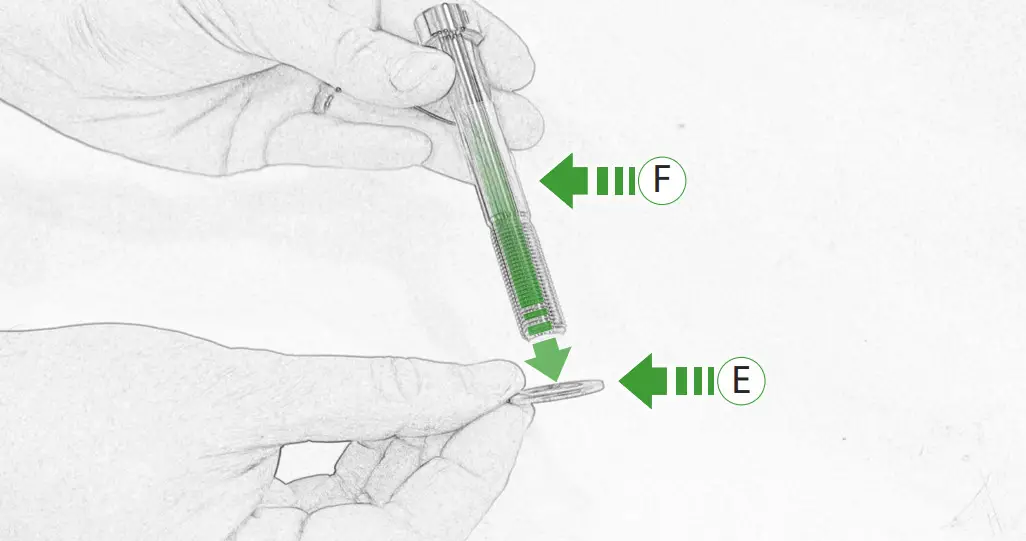

E 2 x M12 Washer
F 2 x M12 x 105mm Caphead Bolt

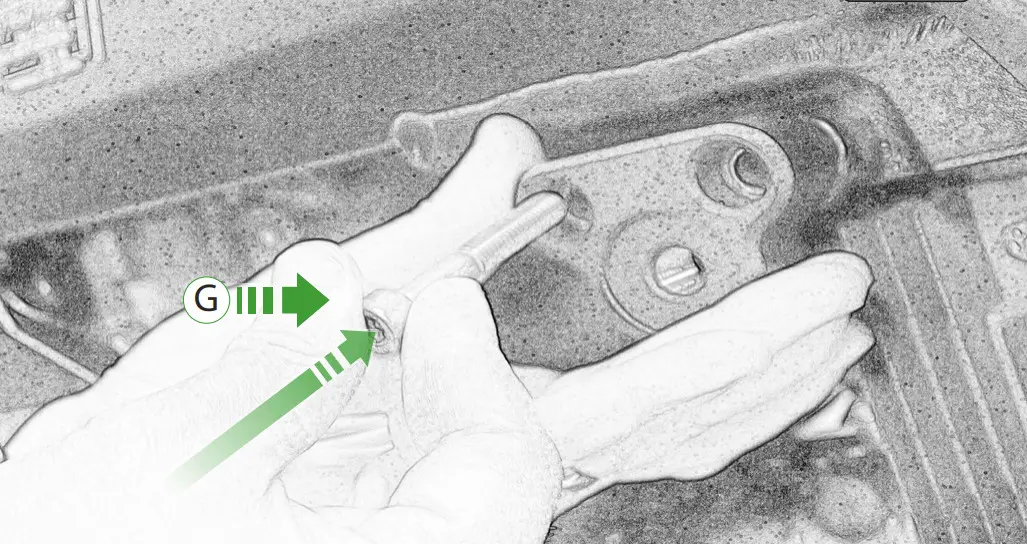

G 4 x M8 x 50mm Caphead Bolt

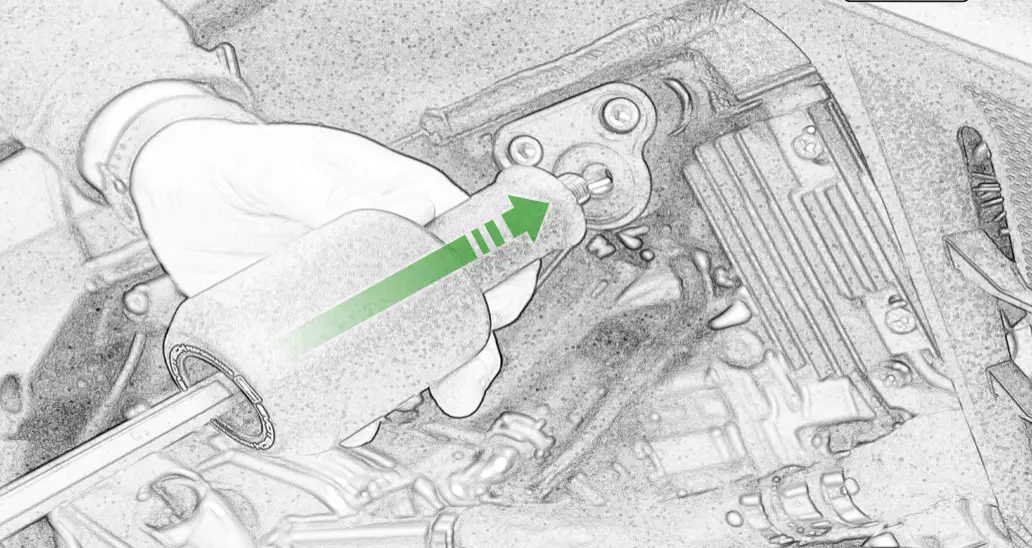

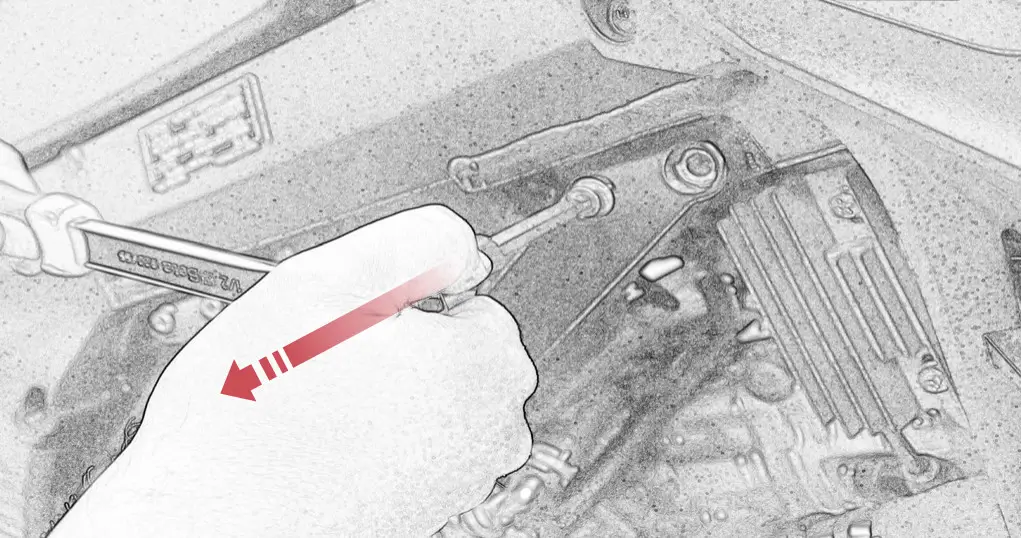

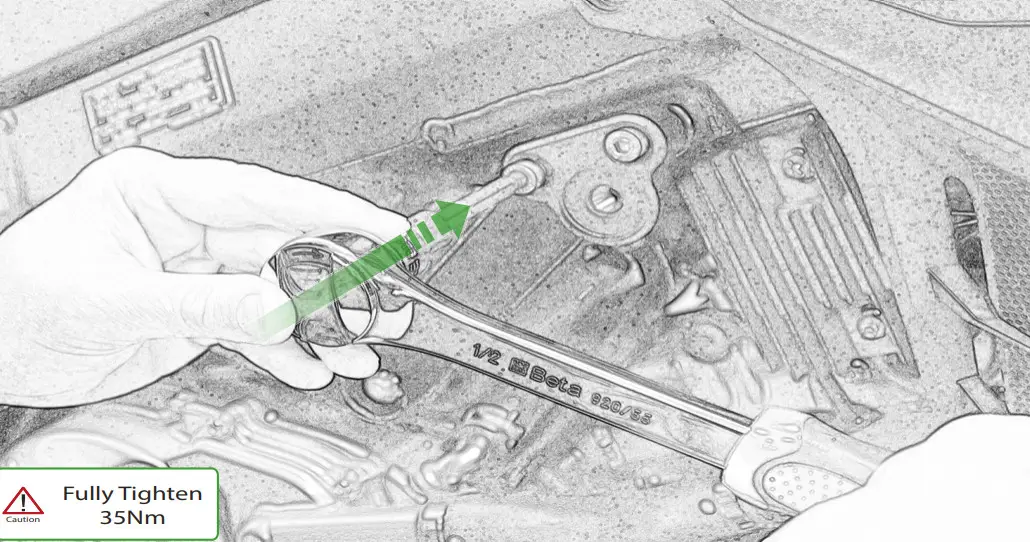

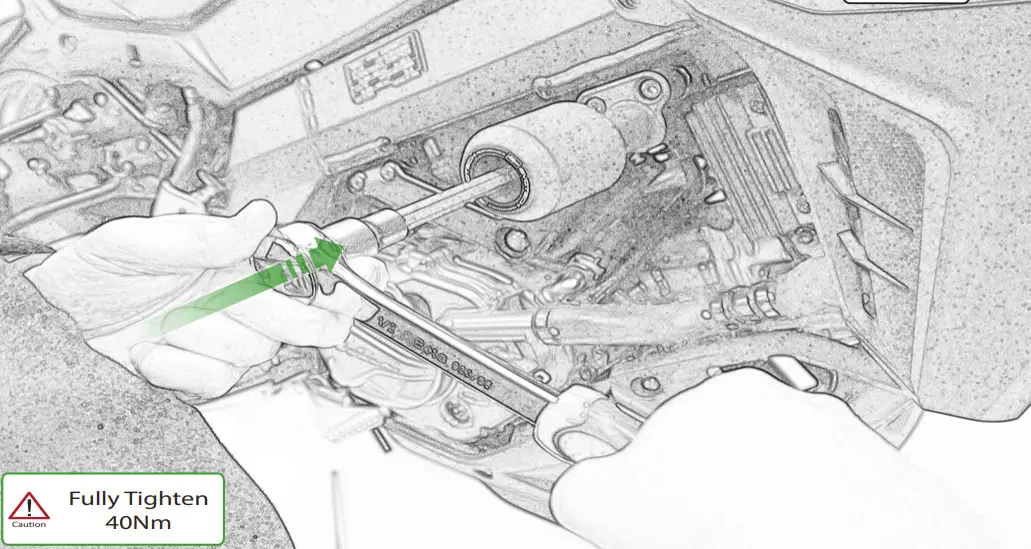

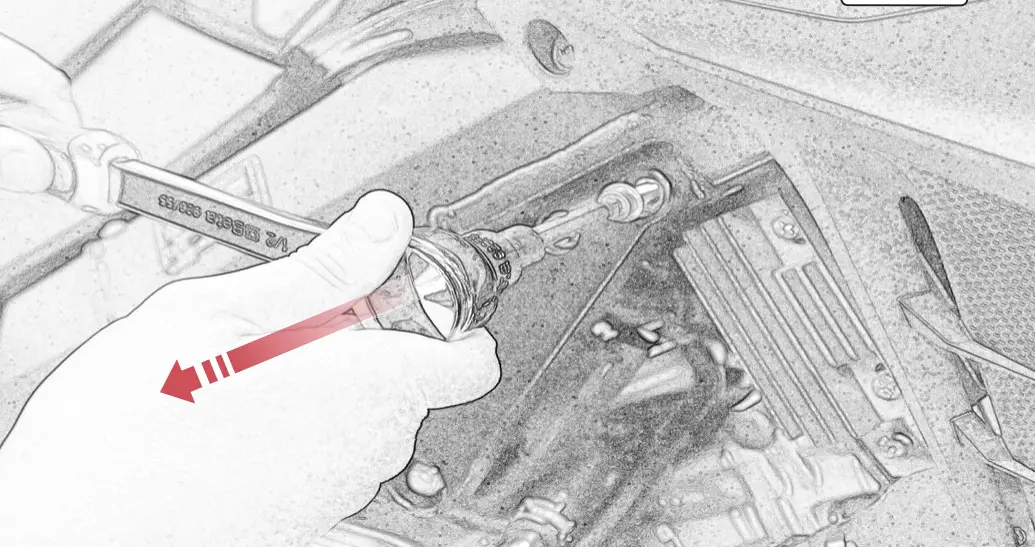

Installation Instructions
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 | |
Repeat Stages 1 – 13 For Left Hand Side
ESSENTIAL CHECKS
It is recommended that periodic inspections are made to ensure that all bolts are tightened to the specified torque settings.
Should the bike be involved in an accident a thorough inspection should be made and any components that have taken an impact, no matter how small, be replaced
