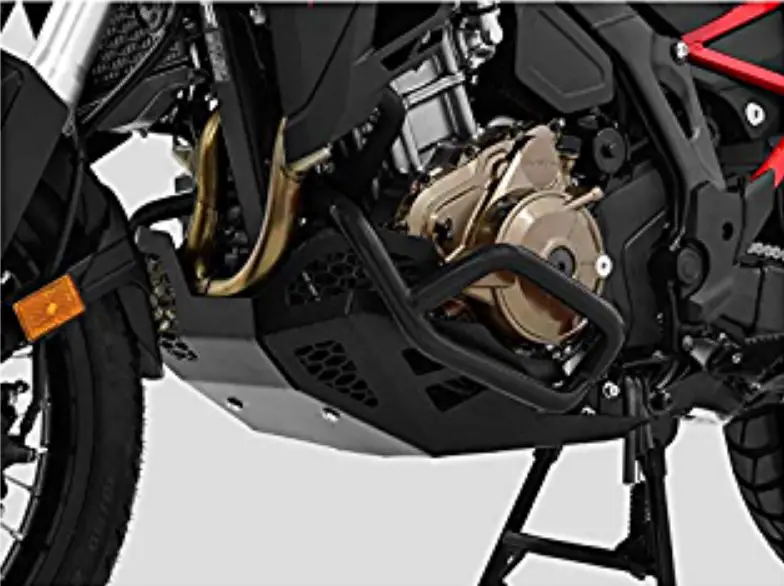

ZIEGER 10006926 Crash Bar kit Instruction Manual
| RAL Farbton:Color: | Artikelnummer: | ||
| Item No.: | |||
| 9005(tiefschwarz / jet black) | 10006926 | ||
| 3002(kaminrot / carmine red) | 10006927 | ||
| Rev.:./. | Ausgabedatum:Date of issue:20.05.2020 | |||
Attention
For your own safty we recommend having installation and/ or servicing carried out by a specialist workshop. We assumes no liability for damage caused by improper installation and/ or maintenance work.
No torque specifications: Use the torque defined by vehicle manufacturer! The standard torque in this table can be used as long as it is within the vehicle manufacturer´s specifications.
Max load
kg
Max Speed
km/h

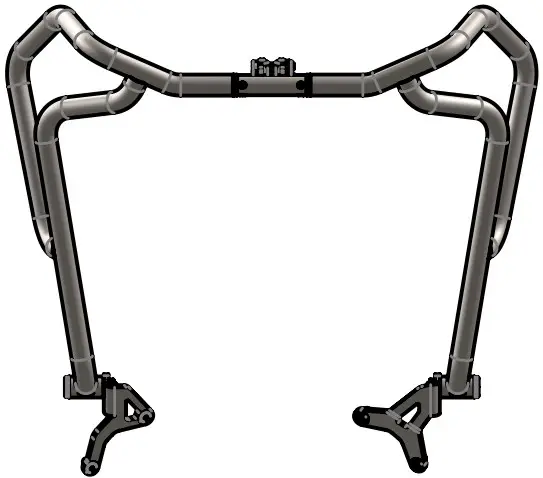

Overview
Thank you for choosing this quality product from IBEX!
The assembly and/or maintenance of this product requires a good technical understanding. For your own safety, we recommend that the assembly and/or maintenance is carried out by a specialist workshop. Our company assumes no liability for any damage caused by improper assembly or maintenance. Be sure to keep in mind all the notes provided in the assembly instructions. Please also note all the instructions relevant to the assembly in the vehicle manual. Nonobservance can cause damage to the vehicle or danger to the driver! Please keep the assembly instructions as a reference.
General Notes:
Observe any country-specific regulations by the legislature or homologation regulations.
Preparation:
Read the assembly instructions carefully and make sure all parts of the list are available. Make sure that your vehicle stands safely and can´t fall over. Turn off the engine and pull the ignition key. If necessary, allow the engine/exhaust to cool down. When working on the electrics disconnect the vehicle battery. Be sure to use only suitable tools. If necessary get help with the assembly work by a second person.
Assembling:
According to vehicle manufacturers specification all demounted parts and connections must be reassembled or replaced by the parts and connections supplied by our company. If not stated different secure all threads with a medium-strong liquid screw protection. If not stated different by the vehicle manufacturer or our company, all bolts and nuts must be tightened according to A4/ISO. After assembly, make sure that all previously demounted parts and connections have been properly remounted.
Funktion Check:
After assembly, pay attention to the absolute freedom of movement and proper function of all vehicle parts. Cables, trains and hoses must not scrub or be clamped. Do a comprehensive functional check before the start of your journey. After 100 km please check the proper tightness of all parts and connections demounted during assembly.
Legend
(left side)
(right side)
(position number and torque)
use screw lock
| RAL Farbton: | Artikelnummer |
| 9005 | 10006926 |
| (kaminrot / carmine red) | 10006927 |

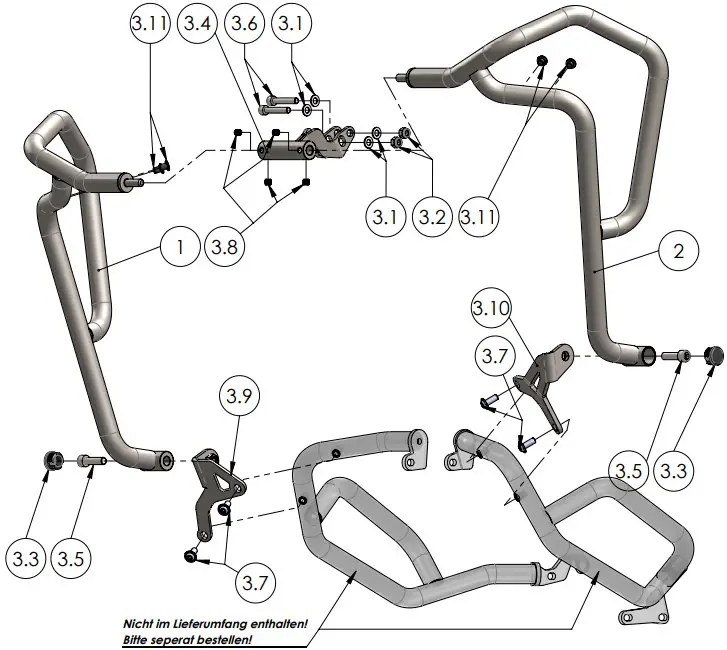

| (Pos.No. | (drawing number) | description | description | quantity | Nm | (special features) |
| 1 | 1823_1_21 | Sturzbügel kompl. | right side) | 1 | ||
| 2 | 1823_2_22 | Sturzbügel kompl. | (left side | 1 | ||
| 3 | 1823_0_23 | Montageset | mountingkit | 1 | ||
| 3.1 | DIN 125 – A 8.4 | Scheibe; d 8.4 | washer | 4 | ||
| 3.2 | DIN EN ISO 985 – M8 | Sechskantmutter selbstsichernd | lock nut | 2 | ||
| 3.3 | SR1530 | Rundeinsatz 26×16.5 (1.0-3.0) | stopper | 2 | ||
| 3.4 | 1823_0_12 | Verbinder kompl. | connector compl | 1 | ||
| 3.5 | DIN ISO 912 M10 x 35 | Zylinderschraube mit Innensechskant | hexagon socket screw | 2 | 46 | |
| 3.6 | DIN ISO 912 – M8 x 45 10.9 | Zylinderschraube mit Innensechskan | hexagon socket screw | 2 | 23 | |
| 3.7 D | DIN ISO 7380 F – M8 x 20 | nnensechskantschraube | 4 | 23 | ||
| 3.8 | DIN 913 – M8 x 8 | Gewindestift m. Innensechskant | pin screw | 4 | 19 | |
| 3.9 | 1823_1_24 | Halter kompl. | bracket compl | 1 | ||
| 3.10 | 1823_2_25 | Halter kompl. | bracket compl | 1 | ||
| 3.11 | SR1014 | Stopfen TPG (Gummi) 14x8x12 | stopper | 4 |
pos.no in parked
