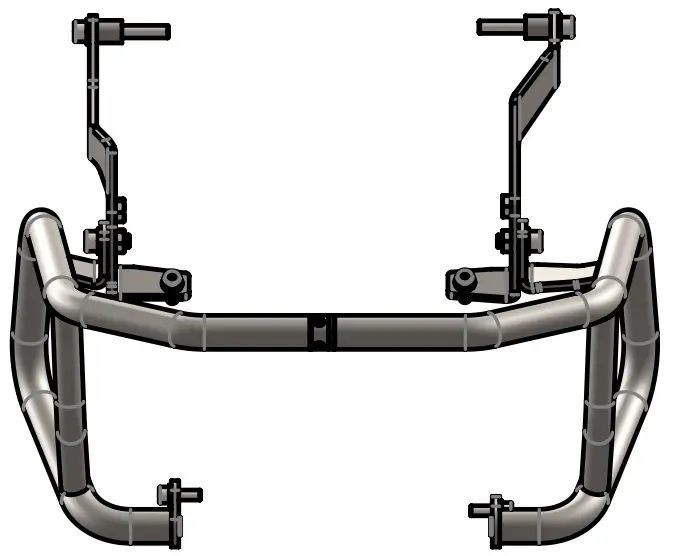

ZIEGER 10008142 Crash BAR Tiger
WARNING
For your own safety we recommend having installation and/ or servicing carried out by a specialist workshop. We assumes no liability for damage caused by improper installation and/ or maintenance work.
No torque specifications: Use the torque defined by vehicle manufacturer! The standard torque in this table can be used as long as it is within the vehicle manufacturer´s specifications.
max. load k.E. kg (n.R. ibs)
max speed k.E. km/h (n.R. mp/h)
INTRODUCTION
Thank you for choosing this quality product from IBEX!
The assembly and/or maintenance of this product requires a good technical understanding. For your own safety, we recommend that the assembly and/or maintenance is carried out by a specialist workshop. Our company assumes no liability for any damage caused by improper assembly or maintenance. Be sure to keep in mind all the notes provided in the assembly instructions. Please also note all the instructions relevant to the assembly in the vehicle manual. Nonobservance can cause damage to the vehicle or danger to the driver! Please
keep the assembly instructions as a reference.
legend

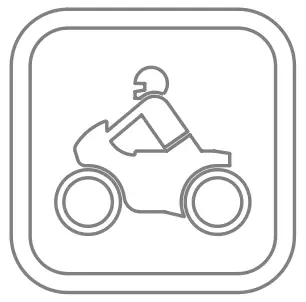

- View from left in driving direction (left side)
- View from right in driving direction (right side)

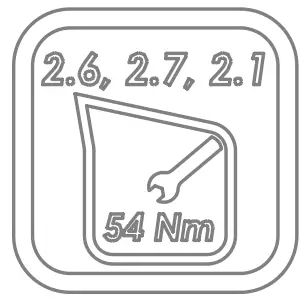

- Position number & tightening torque (position number and torque)

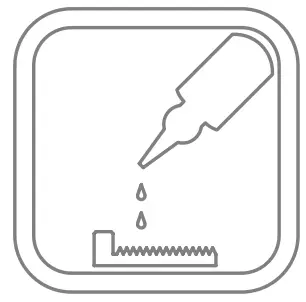

- screw lock use (use screw lock)

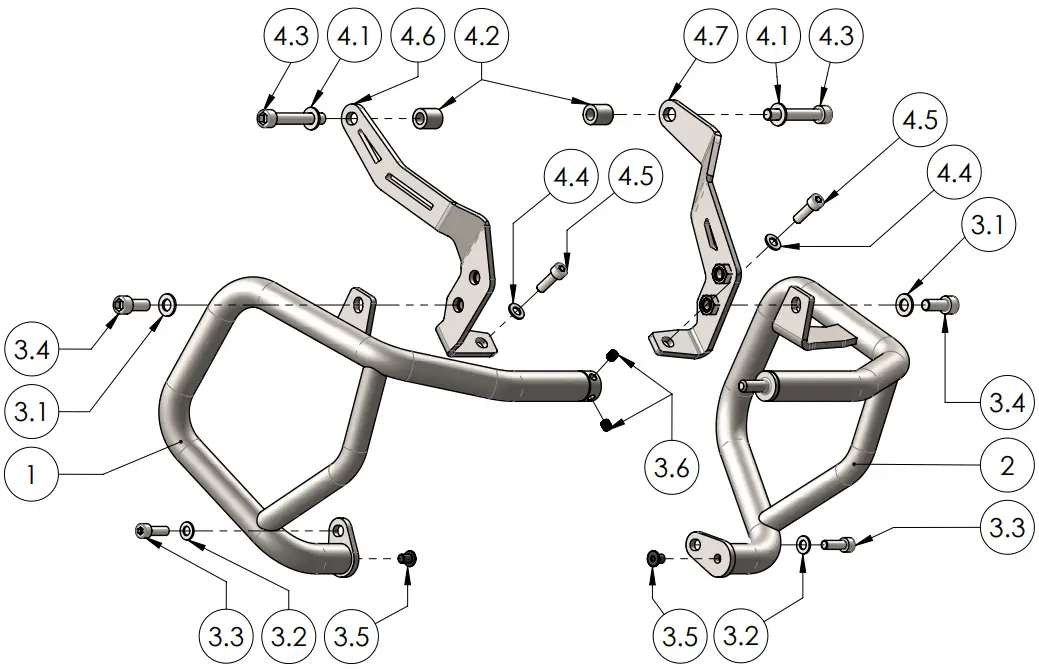

engine crashbar kit
| (Pos.No.) | (drawing number) | (description) | (quantity) | [Nm] | (special features) | |
| 1 | 2004_1_22 | crashbar compl. | 1 | |||
| 2 | 2004_2_21 | crashbar compl. | 1 | |||
| 3 | 2004_0_25 | mounting kit | 1 | |||
| 3.1 | DIN 125 – A 10.5 | washer | 2 | |||
| 3.2 | DIN 125 – A 8.4 | washer | 2 | |||
| 3.3 | DIN ISO 912 – M8 x 25 | hexagon socket screw | 2 | 23 | ||
| 3.4 | DIN ISO 912 M10 x 25 | hexagon socket screw | 2 | 46 | ||
| 3.5 | SR1014 | stopper | 2 | |||
| 3.6 | DIN 913 – M8 x 8 | pin screw | 2 | 19 | ||
| 4 | 2004_0_26 | bracket kit | 1 | |||
| 4.1 | DIN 125 – A 10.5 | washer | 2 | |||
| 4.2 | 824_0_11 | spacer | 2 | |||
| 4.3 | DIN ISO 912 M10x1.25 x 65 | hexagon socket screw | 2 | 46 | Metrisches Feingewinde | |
| 4.4 | DIN 125 – A 8.4 | washer | 2 | |||
| 4.5 | DIN ISO 912 – M8 x 25 | hexagon socket screw | 2 | 23 | ||
| 4.6 | 2004_1_23 | bracket compl. | 1 | |||
| 4.7 | 2004_2_24 | bracket compl. | 1 | |||
pos.no in parked
