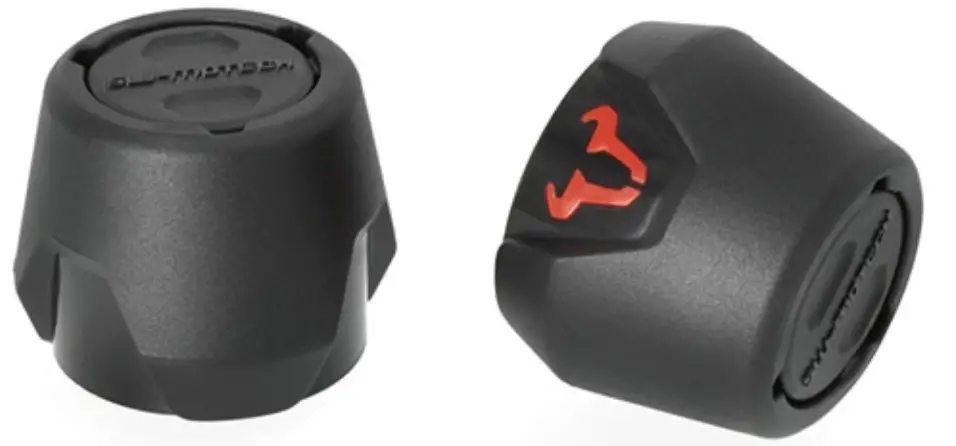

SW-MOTECH STP-29-176-10000-B Crash Pad Instruction Manual
Thank you for choosing this premium product from SW-MOTECH. Please carefully read and understand all instructions, safety messages and warnings in this mounting instructions prior to installation and use of this product to avoid injury.
This product was developed for vehicles in their factory setting. Compatibility with original accessory parts or other manufacturers’ accessory parts is not guaranteed. Visit our webshop for additional information, such as application charts and PDF mounting instructions. Any other documents that may be required (e.g. ABE certifications), are also available for download at our webshop. Keep these mounting instructions as reference.
SW-MOTECH assumes no liability for damage caused by improper installation and/or maintenance work!
SAFETY ALERT SYMBOL
This safety alert symbol is used throughout these mounting instructions to warn of the possibility of death, bodily injury or other warnings. The words DANGER, WARNING and CAUTION are used with this safety alert symbol to convey important safety messages and information related to the installation and use of this product. These words along with the safety alert symbol mean:
DANGER: Indicates a hazardous situation that, if not avoided, will result in death or serious injury!
WARNING: Indicates a hazardous situation that, if not avoided, could result in death or serious injury!
CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury
NOTICE: Important information, but not death or injury related (property damage only)!
WARNING: The installation and/or maintenance of this product requires advanced mechanical skills, the proper tools, and a thorough understanding of tool use and torque specifications. For your own safety, SW-MOTECH recommends having installation and/or maintenance carried out by a qualified and certified motorcycle mechanic.
WARNING: Should you choose to self-install this product, carefully and completely read all installation and safety instructions before installation and use, and follow all the directions and safety precautions given in the mounting instructions to avoid serious injury or death. Also pay attention to all relevant information in the vehicle manual during installation and use.
IF YOU DO NOT UNDERSTAND ANY PART OF THESE INSTRUCTIONS, OR NEED CLARIFICATION OF ANY INSTRUCTION, DO NOT ATTEMT TO MOUNT THIS PRODUCT WITHOUT CONTACTING SW-MOTECH FOR ASSISTANCE.
PREPARATION
Read the mounting instructions carefully and make sure that all items of the parts list are included.
CAUTION: Make sure that your vehicle is parked safely and cannot fall over. Turn off the engine and remove the ignition key. Let the engine/exhaust cool off if necessary. Disconnect the vehicle battery when working on the electrical system. Use appropriate tools and wear always safety glasses and hand protection. Have another person help you.
MOUNTING
All parts and connections removed from the vehicle must be reinstalled in accordance with the vehicle manufacturer specifications or replaced by parts and hardware delivered by SW-MOTECH.
WARNING: Secure all threads, unless otherwise specified, with medium-strong strength liquid thread locker. Torque specifications undefined by SW-MOTECH must be obtained from the vehicle manufacturer or by a certified motorcycle workshop!
FUNCTION CHECK
After installation also make sure that no moving parts are obstructed, and function of the vehicle is not hindered in any way. Cables and hoses must not rub and/or be pinched.
WARNING: Before starting to ride, perform a comprehensive check of all functions. After the first 50 km and then at regular intervals, check the tightening torque of all connections and the proper fit of the product. Installed accessories can change driving behavior/stability of the vehicle.

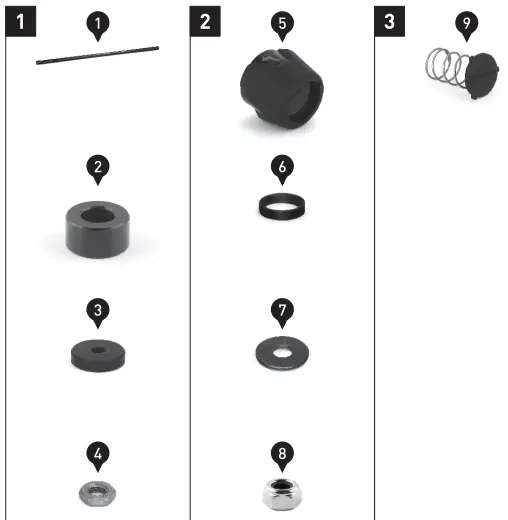

PART LIST
Note:
- All measurements in millimeters.
- The second number indicates the total quantity of the part in the delivery.
- No torque specifications: Use the torque defined by vehicle manufacturer! The standard torque in this table can be used as long as it is within the vehicle manufacturer’s specifications.
| Step | No. | Item No./ Description, | Part | Quantity a | N-m |
| 1 | (1) | GST.ST.08.405 | Threaded Rod; length 405 mm | 1/1 | |
| (2) | STP.00.176.016 | Spacer, stepped; left; height 18 mm | 1/1 | ||
| (3) | STP.00.176.014 | Spacer, stepped; right; height 8 mm | 1/1 | ||
| (4) | M8; DIN 439 | Nut, low form | 2/2 | 18 | |
| 2 | (5) | STP.00.176.004 | Slider | 2/2 | |
| (6) | 0 19 / 0 15,2 / h 4,4 | Support Spacer; black | 2/2 | ||
| lin | 0 8,4; DIN 9021 | Washer; black | 2/2 | ||
| (8) | M8; DIN 985 | Lock Nut | 2/2 | 18 | |
| 3 | (9) | STP.00.176.005 / …006 | Cover Cap with Spring | 2/2 |
Mounting
Example Vehicle shown
WARNING: Always wear eye and hand protection!

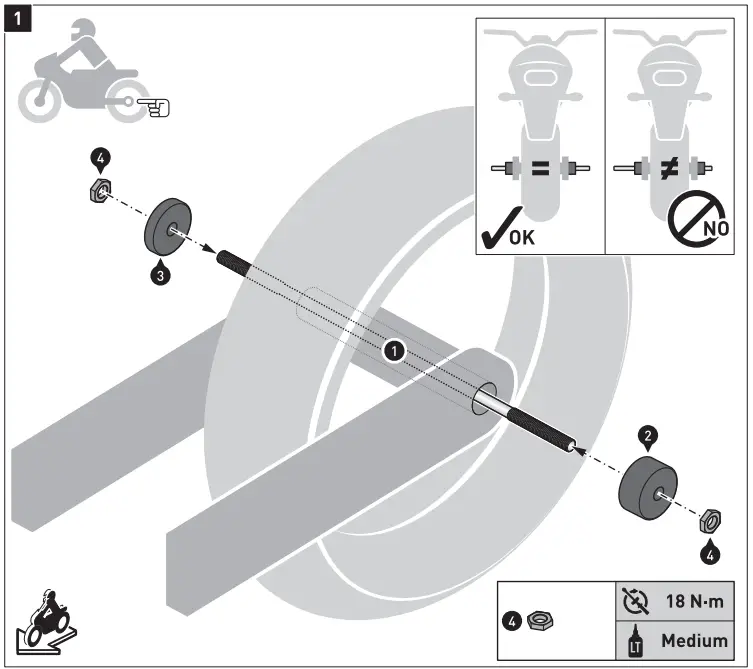

WARNING: Always use appropriate tools! Guide the threaded rod (1) through the rear axle mount of your vehicle. Then plug the spacers (2) and (3) onto the threaded rod (1), as shown in the drawing.
WARNING: Pay attention to the centered alignment of the threaded rod (1)! Then mount the shown components with the nuts (4) to the vehicle.
WARNING: Use liquid thread locker! Tighten the nuts (4) as specified.
The Vehicle and the mounted spacers are examples.

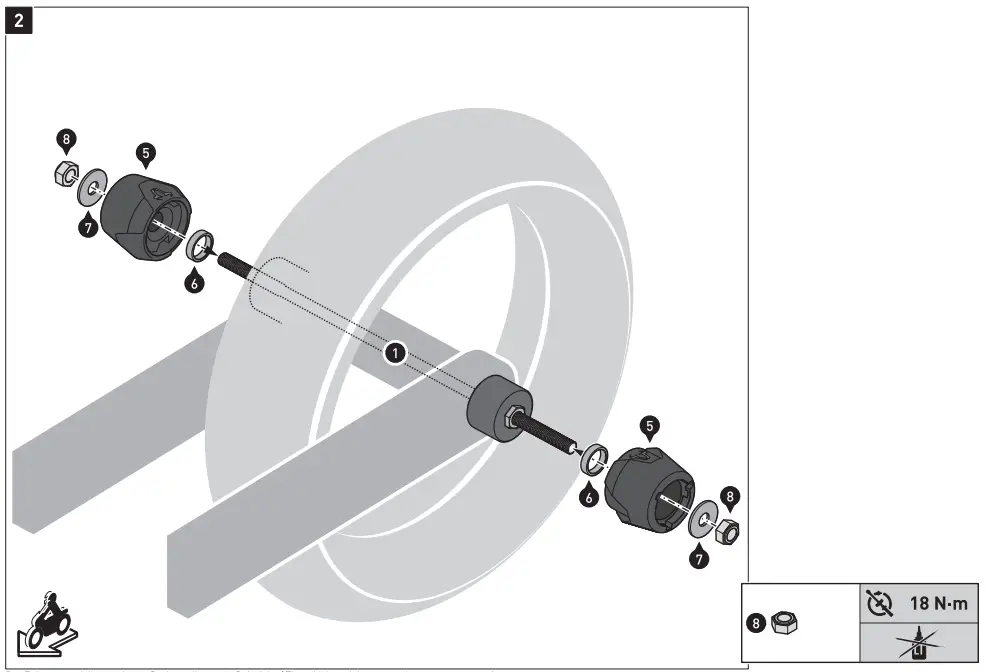

Mount the sliders (5) with the nuts (8) on both sides to the threaded rod (1). Tighten the nuts (8) as specified.
The Vehicle and the mounted spacers are examples.

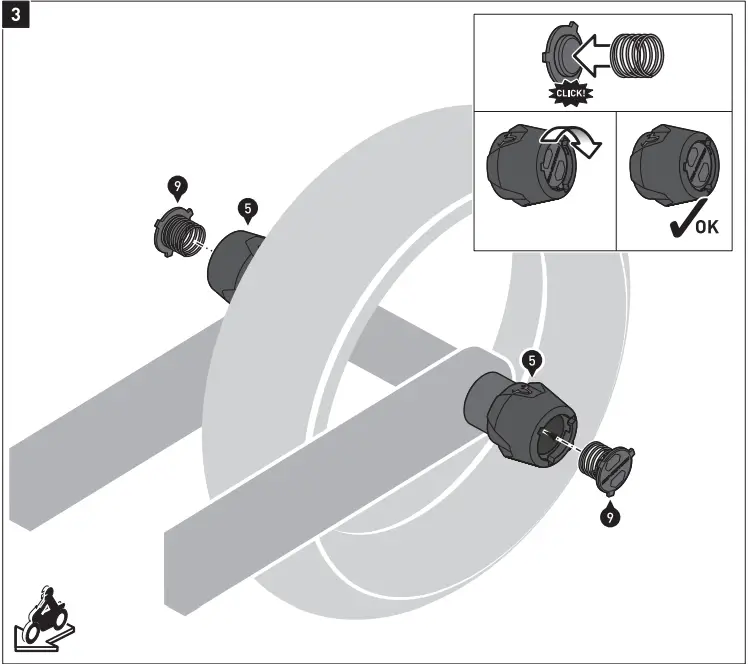

Insert the cover caps (9) on both sides into the openings of the mounted sliders (5) and turn them to their end position.
WARNING Make sure that the cover caps (9) fit firmly.
PRODUCT SPECIFIC INFORMATION
NOTICE: Observe the country-specific regulations concerning vehicle registration/operation as well as TUV regulations if applicable. If required, register installed parts in the vehicle documents through an appropriate inspection authority.
