Puig GSX -logoSUZUKI GSX-R600 ’11-’16
www.puig.tv
www.puigusa.com
[email protected]
[email protected]Puig GSX R600 Pro 2 0 Frame Sliders Suzuki- qrhttps://puig.tv/es/tuning-motos/protectores-de-motor/protectores-de-motor-pro?bike=12208
REF 21239N PROTECTOR MOTOR PRO 2.0 / PRO 2.0 CRASH PAD / PRO 2.0 STURZPADS

INSTRUCTIONS TO ASSEMBLE

Remove the fasteners that subject the chassis to the engine. Mount the protectors on each own side as the figure below shows. Tight the set, and place the caps.
All the screws replaced, should be tightened to the torque specified in the oem maintenance manual for your motorcycle. if no torque specifications are provided in the oem maintenance manual, may be used 54Nm for all M10 screws.
Medium strength liquid thread-locker (i.e. “Loctite”) should be used to secure all screws, bolts and nuts. All screws, bolts and nuts should be checked after driving the first 50 km to ensure that all are tightened to the proper torque.
FOR TO ASSEMBLE THE CRASH PADS, IF YOU ARE NOT A TRAINED MECHANIC, PLEASE CONTACT A SPECIALIST. MOTOPLASTIC, S.A. TAKES NO
RESPONSIBILITY FOR DAMAGES CAUSED BY IMPROPER INSTALLATION. THE USE OF CRASH PADS DO NOT GUARANTEE A FULL PROTECTION IN CASE OF ACCIDENT. MOTOPLASTIC-PUIG DECLINE ANY RESPONSIBILITY IN CASE OF MOTORCYCLE DAMAGE.

ID.DESCRIPTIONQTY.
1Covers set1
2M10/150×50 DIN912 screw1
3M10/150×80 DIN912 screw1
420outer 10inner x2 washer DIN125/A2
5PRO 2.0 Protector2
6Right aluminium spacer1
7Left aluminium spacer1
8Metallic right platen1
9Metallic left platen1
10M10/125×60 DIN912 screw2

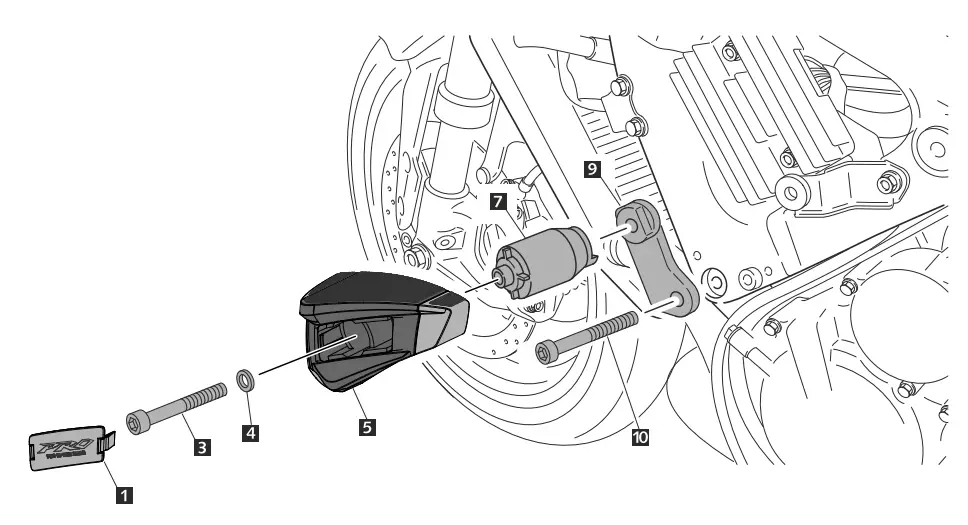

LEFT SIDE

  1. ASSEMBLY MONTAJE
    Puig GSX R600 Pro 2 0 Frame Sliders Suzuki-

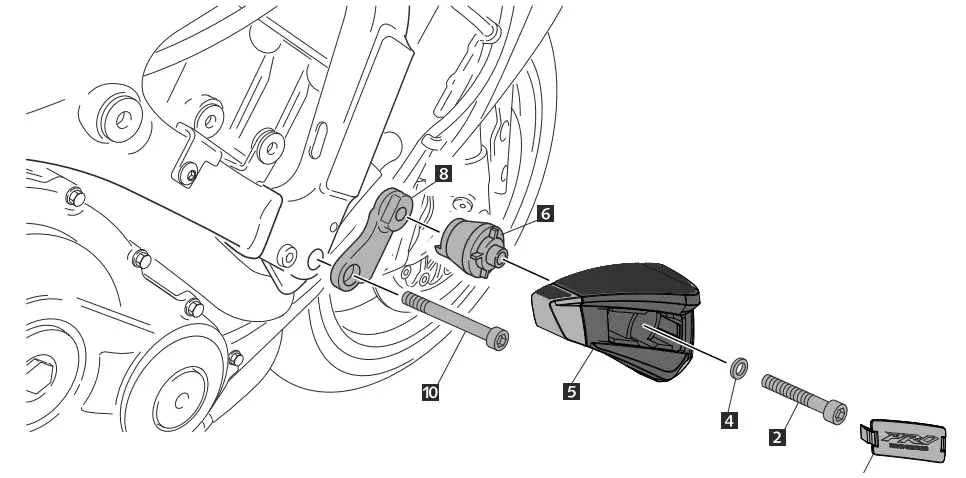

2 RIGHT SIDE

Puig GSX R600 Pro 2 0 Frame Sliders Suzuki-fig1



Created by: www.rrdisseny.cat
REF 21239N
