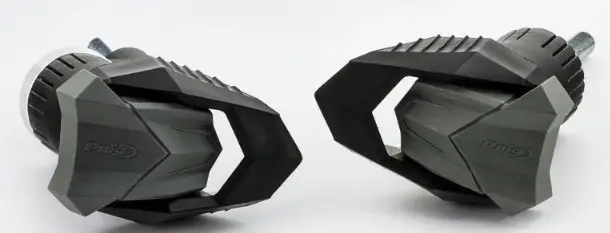

Puig 21131N R19 Frame Sliders Triumph Speed Triple 1200
INSTRUCTIONS TO ASSEMBLE
Remove the fasteners that subject the chassis to the engine. Mount the protectors on each own side as the figure below shows. Tight the set, and place the caps. All the screws replaced, should be tightened to the torque specified in the oem maintenance manual for your motorcycle. if no torque specifications are provided in the oem maintenance manual, may be used 54Nm for all M10 screws. Medium strength liquid thread-locker (i.e. “Loctite”) should be used to secure all screws, bolts and nuts. All screws, bolts and nuts should be checked after driving the first 50 km to ensure that all are tightened to the proper torque.
FOR TO ASSEMBLE THE CRASH PADS, IF YOU ARE NOT A TRAINED MECHANIC, PLEASE CONTACT A SPECIALIST. MOTOPLASTIC, S.A. TAKES NO
RESPONSIBILITY FOR DAMAGES CAUSED BY IMPROPER INSTALLATION. THE USE OF CRASH PADS DO NOT GUARANTEE A FULL PROTECTION IN CASE OF ACCIDENT. MOTOPLASTIC-PUIG DECLINE ANY RESPONSIBILITY IN CASE OF MOTORCYCLE DAMAGE.
DESCRIPTION
| DESCRIPTION | QTY. | REF.: |
| Covers set | 2 | TAPAPROTECR19-D (I) |
| M10/150x 55 DIN912 screw | 2 | M2TM10150055A9B |
| M10/150 x 100 DIN912 screw | 2 | TORNIAD912-0355 |
| M10 DIN125/A washer | 4 | M2AM10DIN125AZB |
| Nylon Protector 85mm | 2 | PROTECNLR19-145 |
| Aluminum right spacer (20mm) | 1 | CASQUI21-1-1321 |
| Aluminum left spacer (57mm) | 1 | CASQU161-0-1461 |
| Metallic right platen (Black) | 1 | PLATI407-1-0407 |
| Metallic left platen (Black) | 1 | PLATI408-1-0408 |
| M10/150×130 DIN912 screw | 1 | M2TM10150130A9B |
| M10/125×60 DIN912 screw | 1 | M2TM10150060A9B |
| Aluminum spacer Ø22×46 (Black) | 1 | CASQU112-0-1412 |
| Aluminum spacer Ø24×27.5 (Black) | 1 | CASQU149-0-1449 |
| M10 DIN6923 nut | 2 | TUERCAD6923M10Z |
| M10 plastic cap | 4 | TAPA—CHC10800E |
MOUNTING INSTRUCTIONS

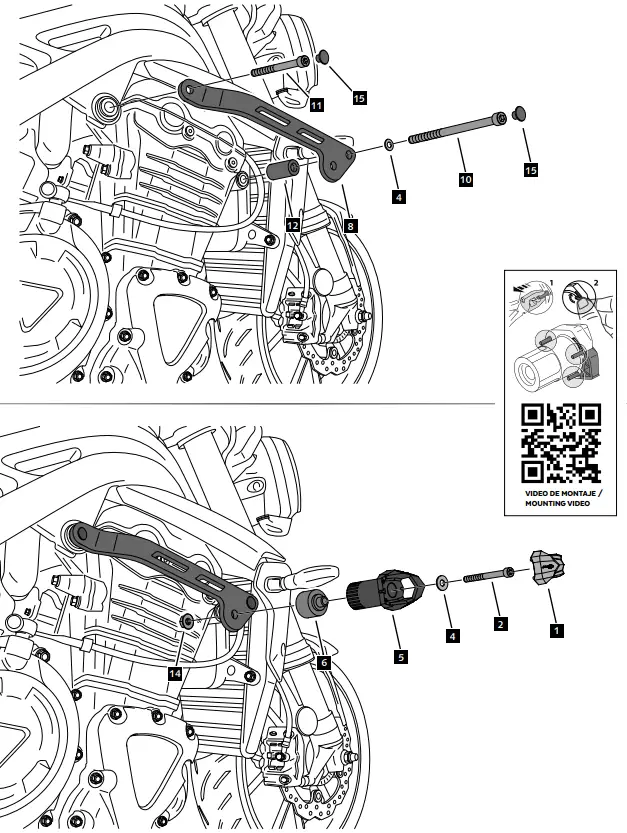

RIGHT SIDE

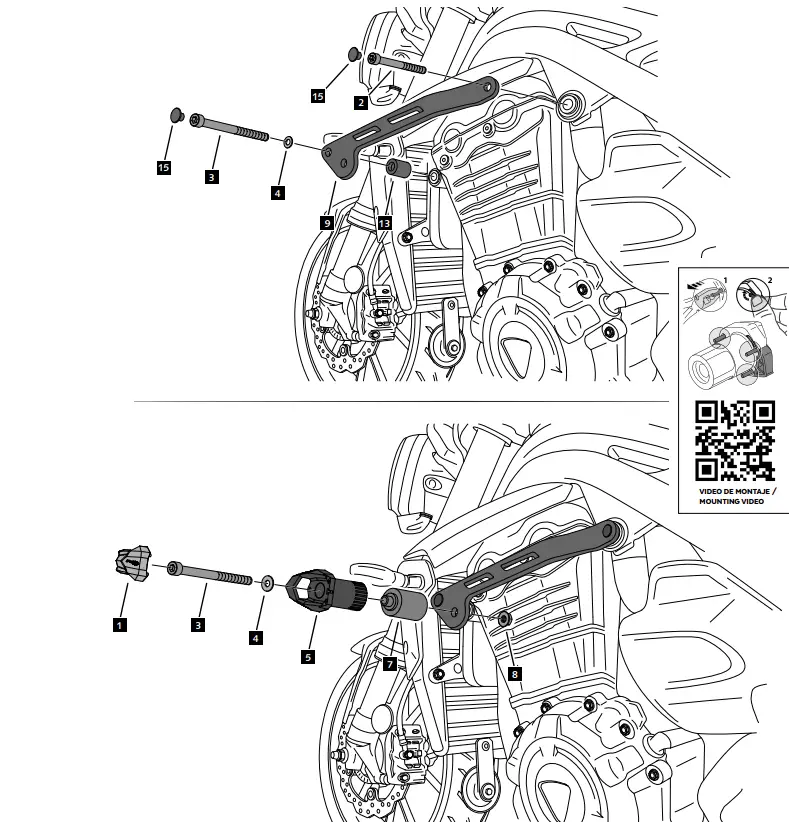

LEFT SIDE
