Puig R19 Frame Sliders
CONSULTAR EN NUESTRA PAGINA WEB LA DISPONIBILIDAD DEL VIDEO DE MONTAJE DE ESTA REFERENCIA.
CONSULT OUR WEBSITE THE VIDEO MOUNT AVAILABILITY OF THIS REFERENCE.
CRASH PAD SFOR
ID. | PART | DESCRIPTION | QTY. | REF.: |
1 |  | Covers set | 1 | CONGOMANPROR12 |

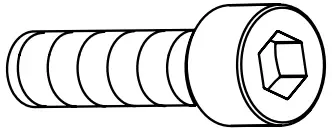

2 |  | M10/150×30 DIN912 screw | 2 | M2TM10150030A9B |
| 3 |  | M10 DIN6798/A washer | 2 | M2AM10DIN6798ZB |
4 |  | M10 DIN125/A washer | 4 | M2AM10DIN125AZB |

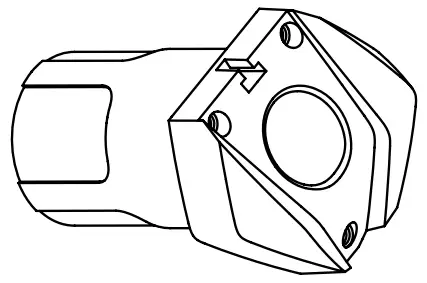

| 5 |  | Nylon protector 85mm | 2 | PROTECNLR12-145 |
6 |  | Right steel plate | 2 | CASQUI13-2-1313 |

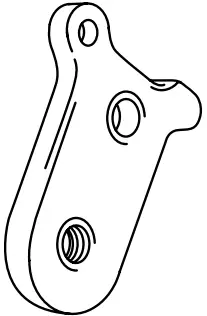

| 7 |  | Steel plate | 2 | PLATI373-0-0373 |
8 |  | Black aluminium spacer (Ø22×46) | 1 | CASQU112-0-1412 |

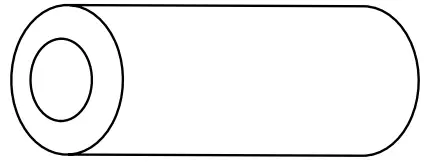

| 9 |  | Black aluminium spacer (Ø22×82) | 1 | CASQU437-0-1737 |
10 |  | M6x20 DIN912 black screw | 2 | TORNI-AD912-489 |
| 11 |  | Aluminium spacer (Ø10×40) | 2 | CASQU438-0-1738 |
12 |  | M10/125×100 DIN912 screw | 1 | TORNIAD912-0329 |

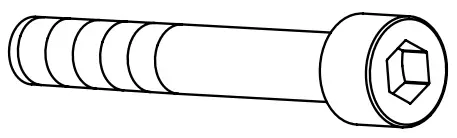

13 |  | M10/125×130 DIN912 screw | 1 | M2TM10125130A9B |

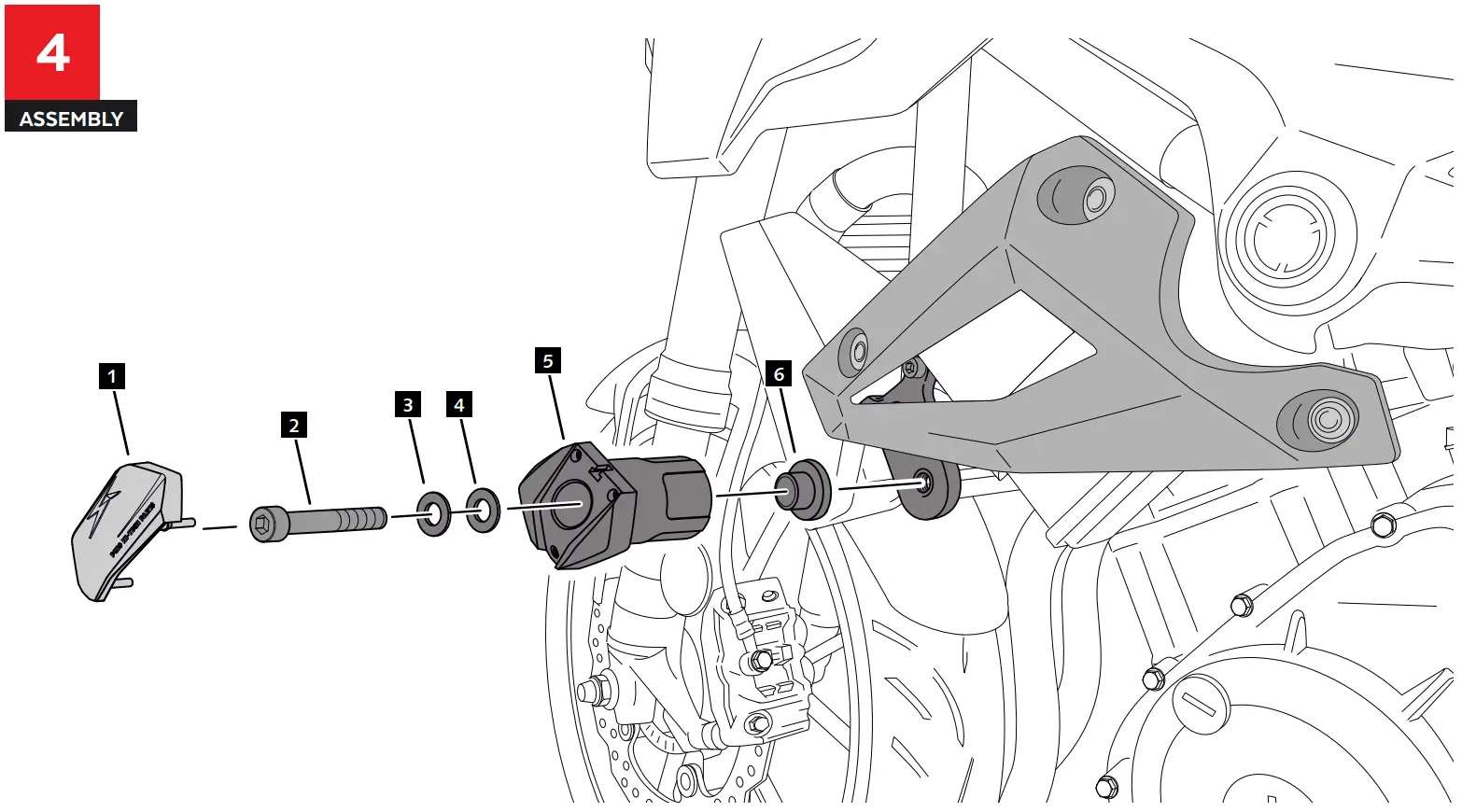

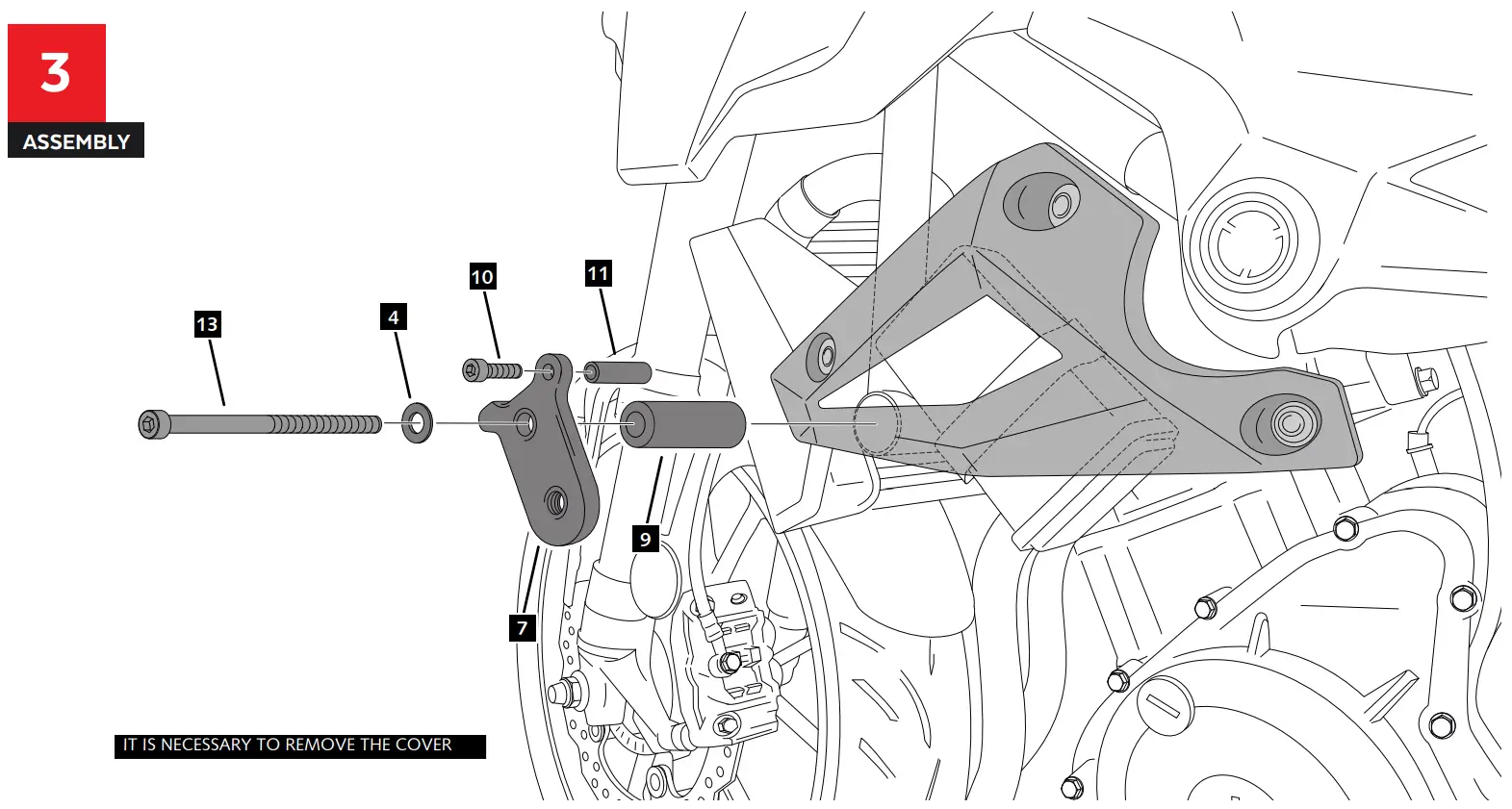

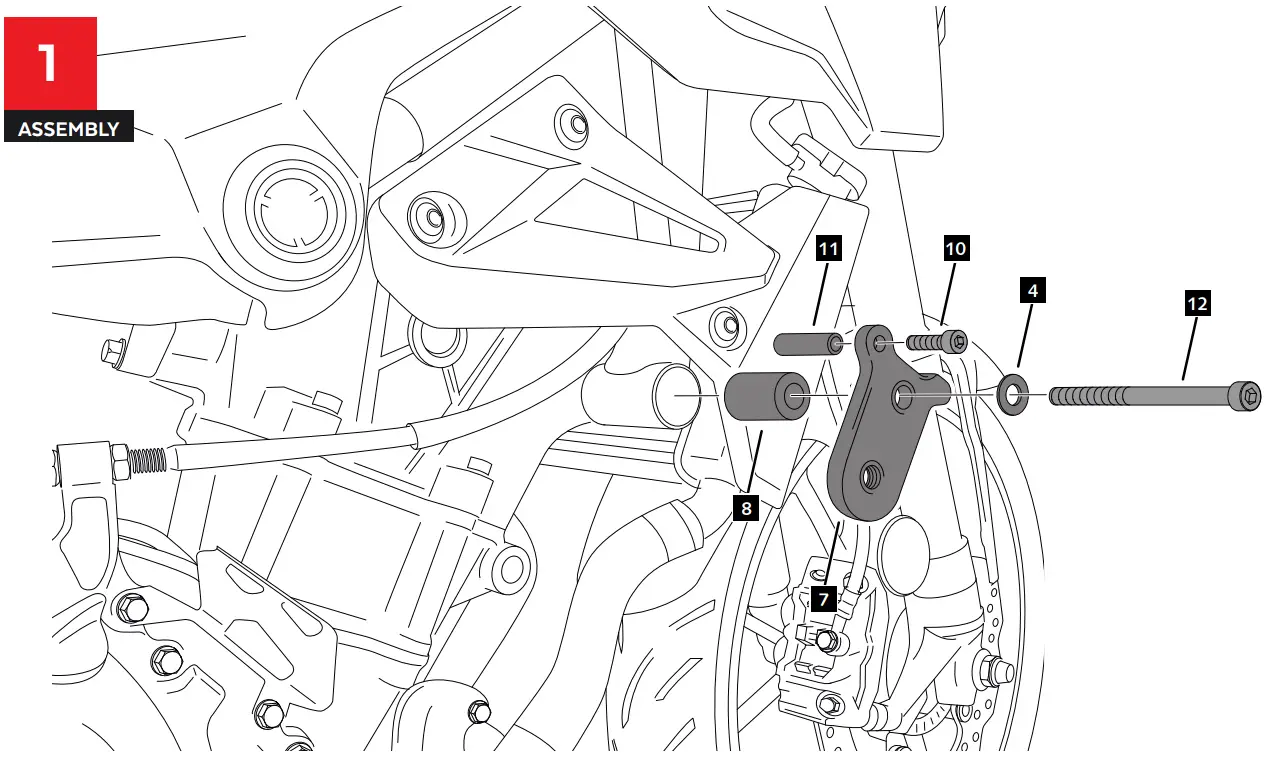

MOUNTING INSTRUCTIONS
RIGHT SIDE
MOUNTING VIDEO
LEFT SIDE
