RS 660 Axle Sliders Front Aprilia
APRILIA RS 660 ’21
APRILIA TUONO 660 ’21-
MOUNTING INSTRUCTIONS
REF 20607N PROTECTOR HORQUILLA PHB19 / PHB19 PROTECTOR FRONT-AXLE
| ID | PIEZA / PART | QTY. | REF.: |
| 1 |  | 1 | PROFOR84-0-0084 |
| 2 |  | 1 | PROFOR83-0-0083 |
| 3 |  | 1 | ARIFO19-0-0019 |
| 4 |  | 2 | TUZBM6000000024 |
| 5 |  | 2 | ARANDEPD125-054 |
| 6 |  | 2 | FORTAPS 17-18 |

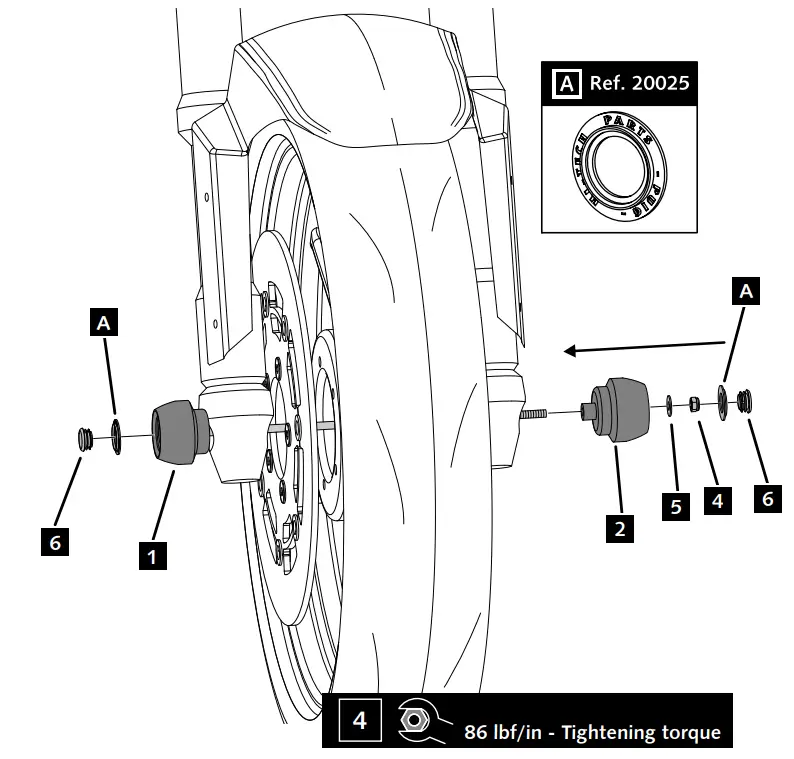

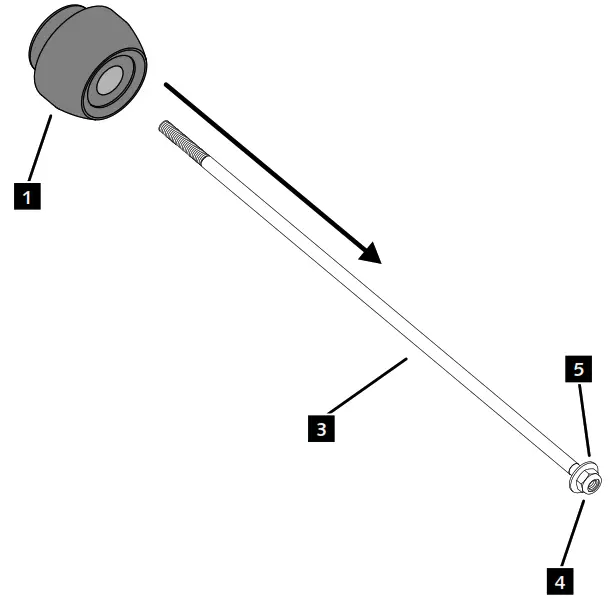

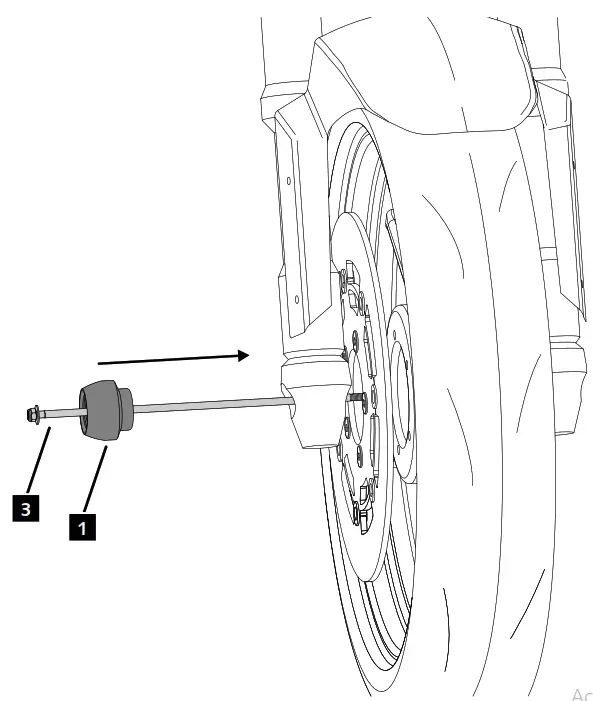

ASSEMBLY MONTAJE
CONSULT OUR WEBSITE FOR THE VIDEO MOUNT AVAILABILITY OF THIS REFERENCE.
