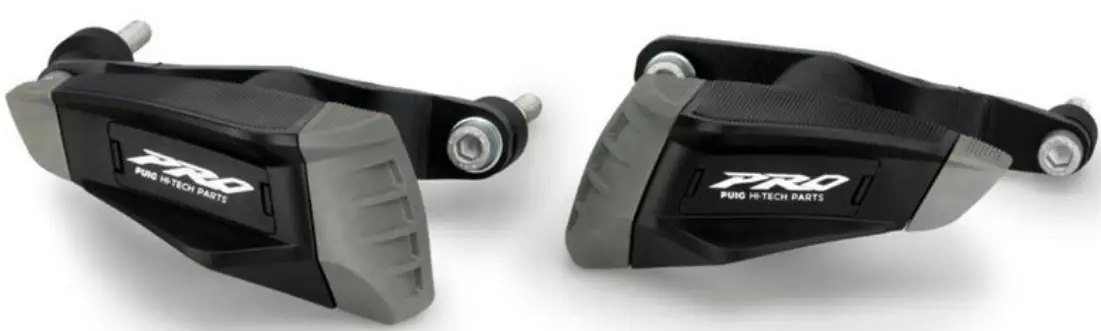

Puig 21217N Frame Sliders PRO 2.0 Instruction Manual
NSTRUCTIONS TO ASSEMBLE
Remove the fasteners that subject the chassis to the engine. Mount the protectors on each own side as the figure below shows. Tight the set, and place the caps. All the screws replaced, should be tightened to the torque specified in the oem maintenance manual for your motorcycle. if no torque specifications are provided in the oem maintenance manual, may be used 54Nm for all M10 screws. Medium strength liquid thread-locker (i.e. “Loctite”) should be used to secure all screws, bolts and nuts. All screws, bolts and nuts should be checked after driving the first 50 km to ensure that all are tightened to the proper torque
FOR TO ASSEMBLE THE CRASH PADS, IF YOU ARE NOT A TRAINED MECHANIC, PLEASE CONTACT A SPECIALIST. MOTOPLASTIC, S.A. TAKES NO RESPONSIBILITY FOR DAMAGES CAUSED BY IMPROPER INSTALLATION. THE USE OF CRASH PADS DO NOT GUARANTEE A FULL PROTECTION IN CASE OF ACCIDENT. MOTOPLASTIC-PUIG DECLINE AN RESPONSIBILITY IN CASE OF MOTORCYCLE DAMAGE.
| ID | DESCRIPTION | QTY |
| 1 | Covers set | 2 |
| 2 | M10/150×65 DIN912 screw | 2 |
| 3 | M10 DIN6798/A washer | 2 |
| 4 | 20outer10inner x2 washer DIN125/A | 2 |
| 5 | PRO 2.0 Protector | 2 |
| 6 | Aluminium spacer | 2 |
| 7 | Metallic right platen | 1 |
| 8 | Metallic left platen | 1 |
| 9 | M10/125×70 DIN912 screw | 1 |
| 10 | M10/125×80 DIN912 screw | 1 |
REF 21217N
NSTRUCCIONES DE MONTAJE – MOUNTING INSTRUCTIONS – MONTAGEANLEITUNGwww.puig.tv

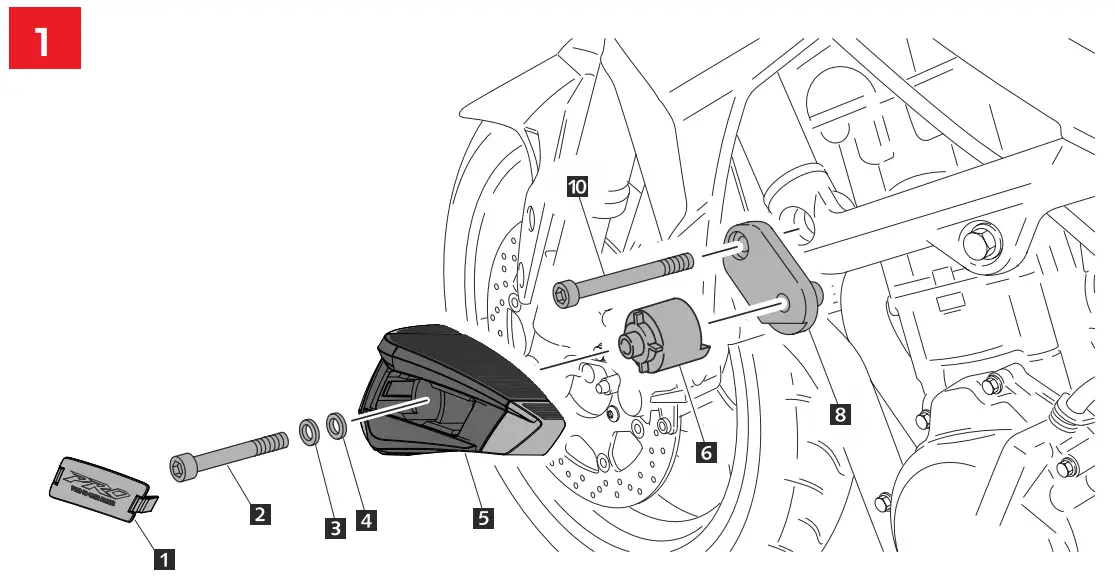

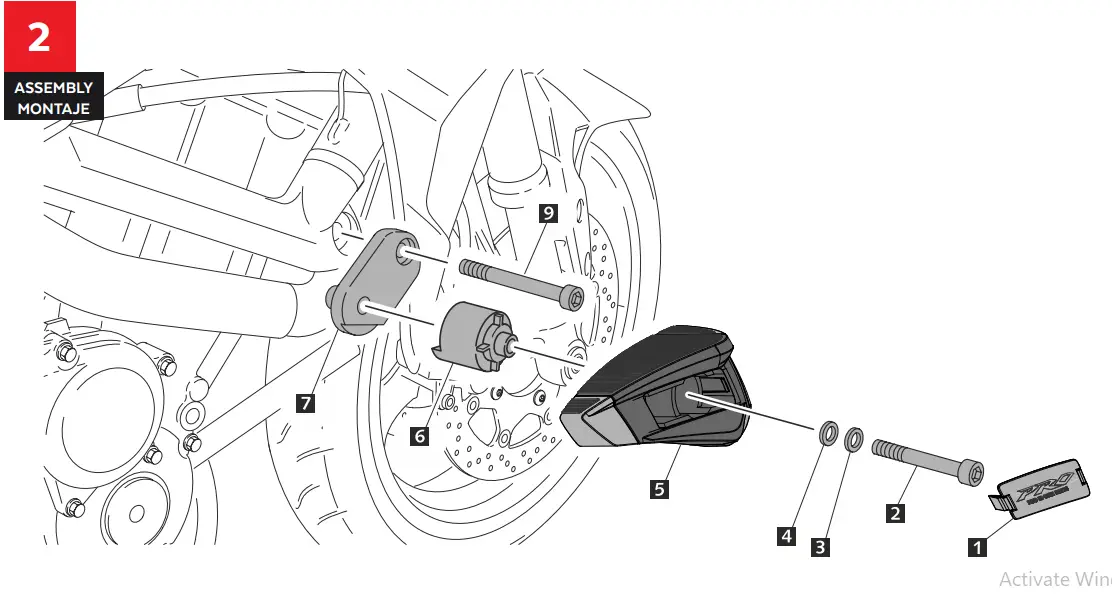

ASSEMBLY MONTAJE
LADO IZQUIERDO LEFT SIDE LINKE SEITE
LADO DERECHO RIGHT SIDE RECHTE SEITE
