STP.08.590.11401-B Reliable Frame Sliders
STP.08.590.81401/B
STP.00.590.10001/B
Instruction Manual
MOUNTING INSTRUCTIONS
Mounting kit for frame slider
Thank you for choosing this premium product from SW-MOTECH. Please visit our webshop for additional information, such as application charts and PDF mounting instructions. Any other documents that may be required (e.g. ABE certifications), are also available for download at our webshop. Installation and/or maintenance of this product require good technical understanding! For your own safety SW-MOTECH recommends having installation and/or servicing carried out by a specialist workshop!
SW-MOTECH assumes no liability for damage caused by improper installation and/or maintenance work!
Carefully follow all the directions given in the mounting instructions and pay attention to all relevant information in the vehicle manual during assembly. Nonconformance can lead to vehicle damage or even endanger the driver! These mounting instructions are written based on our current state of knowledge. Legal requirements for accuracy do not exist.
This product was developed for vehicles in their factory setting. Compatibility with original accessory parts or other manufacturers’ accessory parts is not guaranteed. Furthermore, BEFORE installing this product, make sure that all moving parts (e.g. the chain) are in the original state of maintenance. Installed accessories can change the driving behaviour and/or stability of your vehicle.
GENERAL INFORMATION
Observe the country-specific regulations concerning vehicle registration/ operation as well as T~V regulations if applicable. If required, register installed parts in the vehicle documents through an appropriate inspection authority.
PREPARATION: Read the mounting instructions carefully and make sure that all items of the parts list are included. Make sure that your vehicle is parked safely and cannot fall over. Turn off the engine and remove the ignition key. Let the motor/exhaust cool off if necessary. Disconnect the vehicle battery when working on the electrical system. Use appropriate tools. Have another person to help you.
MOUNTING: All parts and connections removed from the vehicle must be reinstalled in accordance with the vehicle manufacturers· specifications or replaced by parts delivered by SW-MOTECH. Secure all threads, unless otherwise specified, with medium-strength liquid thread locker. Torque specifications undefined by SW-MOTECH must be obtained from the vehicle manufacturer or by a specialist workshop!
FUNCTION CHECK: After installation make sure that all parts and connections previously removed are properly replaced. Also make sure that no moving parts are obstructed and no function of the vehicle is hindered in any way. Cables and hoses must not rub and/or be pinched. Before starting to ride, perform a comprehensive check of all functions. After the first 50 km and then at regular intervals, check the tightening torque of all screw connections and the proper fit of the product.

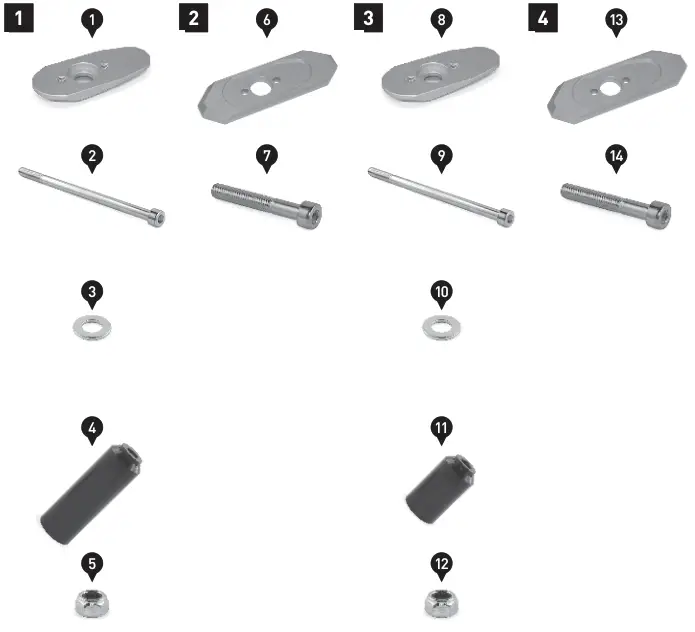

PARTS LIST
| Step | No. | Item No. / Description | Part | Quantity | N-m |
| 1 | (1) | STP.00.590.003 | Mounting Plate | 1 /2 | |
| (2) | M10 x 190; DIN 912 | Hexagon Socket Screw | 1 /2 | 40 | |
| (3) | 0 10,5; DIN 125 | Washer | 1 /2 | ||
| (4) | STP.08.590.028 | Stepped Spacer; height 92 mm | 1 /1 | ||
| (5) | M10; DIN 985 | Lock Nut | 1 /2 | ||
| 2 | (6) | STP.00.590.002 | Adapter Plate | 1 /2 | |
| (7) | M6 x 40; DIN 912 | Hexagon Socket Screw | 2 /4 | 6 | |
| 3 | (8) | STP.00.590.003 | Mounting Plate | 1 /2 | |
| (9) | M10 x 190; DIN 912 | Hexagon Socket Screw | 1 /2 | 40 | |
| (10) | 0 10,5; DIN 125 | Washer | 1 /2 | ||
| (11) | STP.08.590.029 | Stepped Spacer; height 49,5 mm | 1 /1 | ||
| (12) | M10; DIN 985 | Lock Nut | 1 /2 | ||
| 4 | (13) | STP.00.590.002 | Adapter Plate | 1 /2 | |
| (14) | M6 x 40; DIN 912 | Hexagon Socket Screw | 2 /4 | 6 |
| 8.8 | Coarse Thread ∅ | M4 | M5 | M6 | M8 | M10 | M12 |
| Steel. CL 8.8 N-m | 2,8 | 5,5 | 9,6 | 23 | 46 | 79 | |
| 10.9 | Coarse Thread ∅ | M4 | M5 | M6 | M8 | M10 | M12 |
| Stahl FK 10.9 / Steel CL 10.9 N-m | 4,1 | 18,1 | 14 | 34 | 67 | 115 |
A\measurements in millimeters 1he$gond number indicates the total quantity0f the patin the delivery
No torquspecifications Use the torque defined by vehicle manufacturer!The standard torque in this table can be4seal0gag itis within the vehicle mufacturerg Specfications
MOUNTING

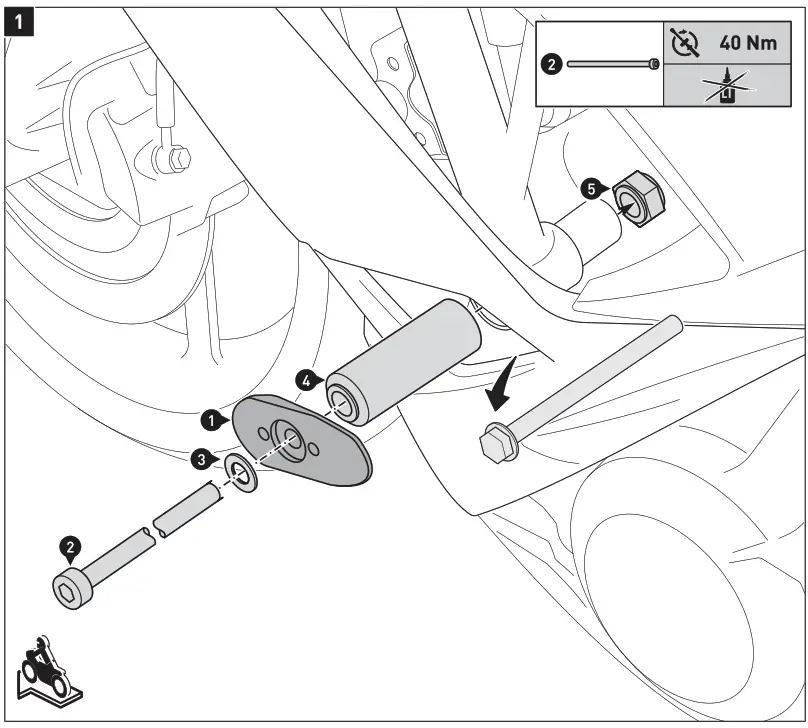

Remove the original engine bolt and nut on the left side of the vehicle.
Attach the mounting plate [1) to the vehicle, as shown in the drawing.
ATTENTION: Use liquid thread locker!
Before tightening the screw [2], adjust the mounting plate [1] according to the alignment of the vehicle.
Tighten screw [2] as specified in the parts list.

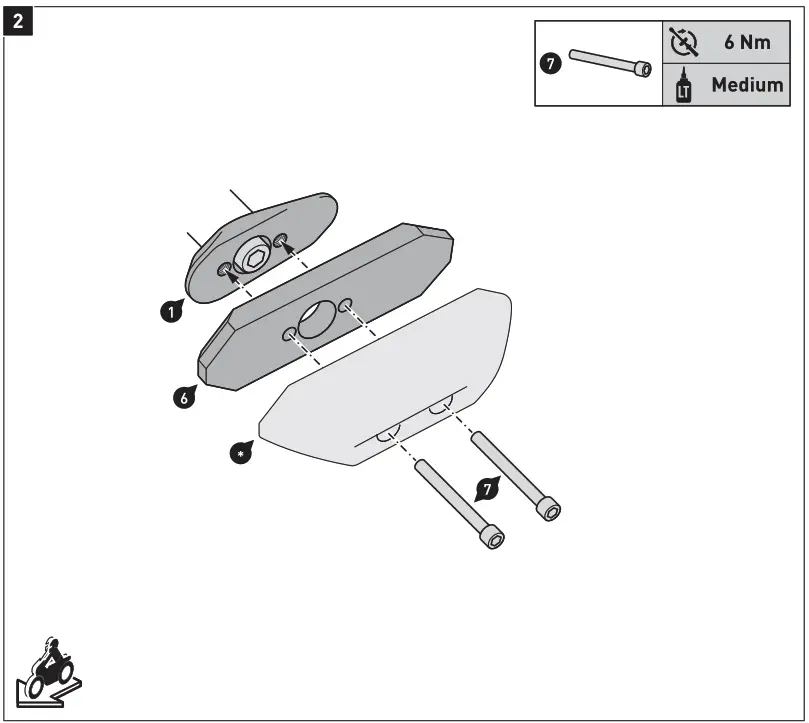

Attach the shown parts to the mounting plate (1).
NOTE: Also refer to the mounting instructions of the frame slider set [+].
ATTENTION: Secure the screws (7) with liquid thread locker!
Tighten the screws [7] as specified in the parts list.

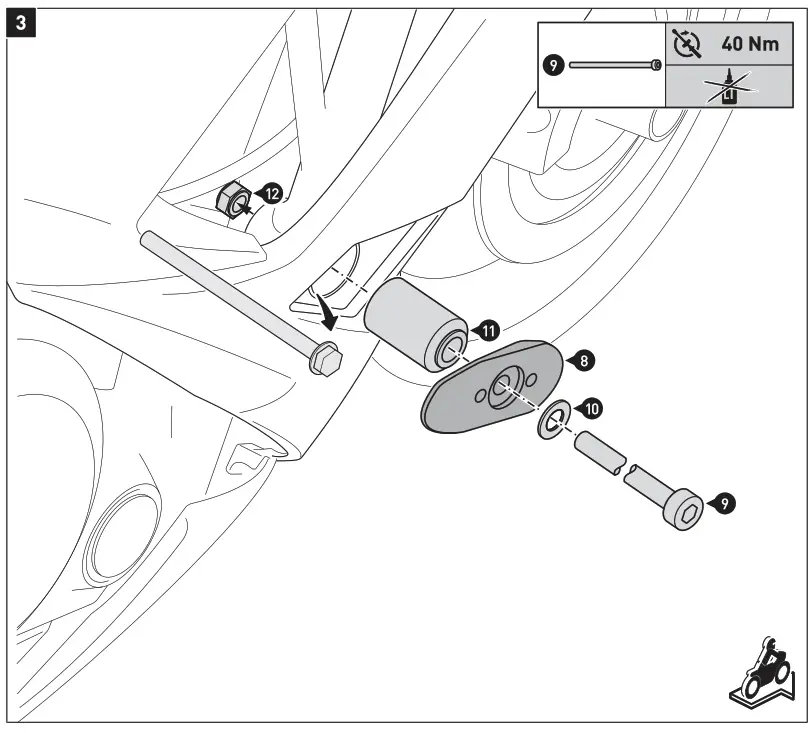

Remove the original engine bolt and nut on the left side of the vehicle.
Attach the mounting plate (8] to the vehicle, as shown in the drawing.
ATTENTION: Use liquid thread locker!
Before tightening the screw [9), adjust the mounting plate (8] according to the alignment of the vehicle.
Tighten screw as specified in the parts list.

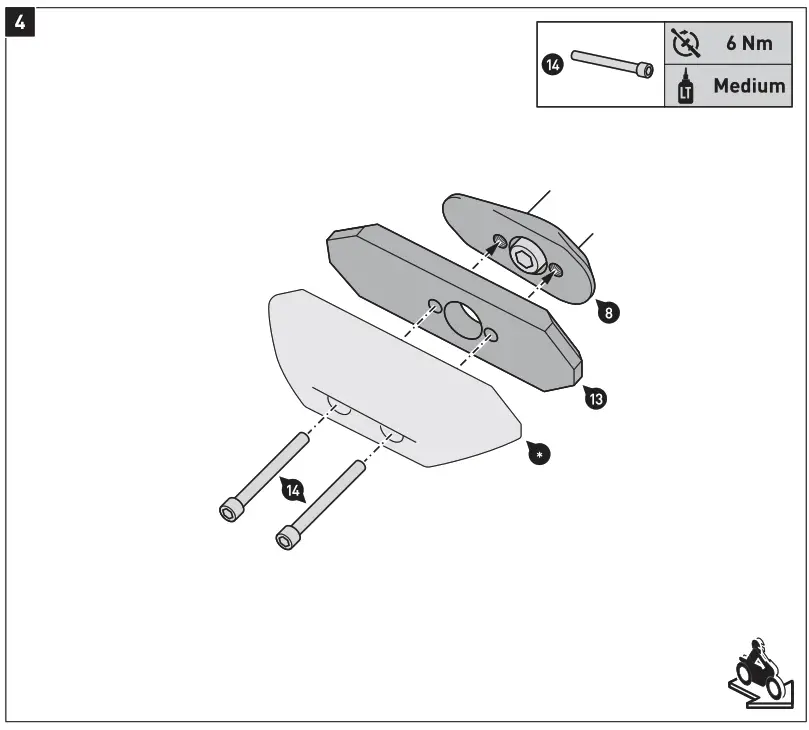

Attach the shown parts to the mounting plate (8).
NOTE: Also refer to the mounting instructions of the frame slider set (+).
ATTENTION: Use liquid thread locker for the screws (141!
Tighten the screws (14] as specified in the parts list.
Crash pad set
Thank you for choosing this premium product from SW-MOTECH. Please visit our webshop for additional information, such as application charts and PDF mounting instructions. Any other documents that may be required (e.g. ABE certifications), are also available for download at our webshop. Installation and/or maintenance of this product require good technical understanding! For your own safety SW-MOTECH recommends having installation and/or servicing carried out by a specialist workshop! SW-MOTECH assumes no liability for damage caused by improper installation and/or maintenance work!
Carefully follow all the directions given in the mounting instructions and pay attention to all relevant information in the vehicle manual during assembly. Nonconformance can lead to vehicle damage or even endanger the driver! These mounting instructions are written based on our current state of knowledge. Legal requirements for accuracy do not exist.
This product was developed for vehicles in their factory setting. Compatibility with original accessory parts or other manufacturers’ accessory parts is not guaranteed. Furthermore, BEFORE installing this product, make sure that all moving parts (e.g. the chain) are in the original state of maintenance. Installed accessories can change the driving behaviour and/or stability of your vehicle.
GENERAL INFORMATION
Observe the country-specific regulations concerning vehicle registration/operation as well as TUV regulations if applicable. If required, register installed parts in the vehicle documents through an appropriate inspection authority.
PREPARATION: Read the mounting instructions carefully and make sure that all items of the parts list are included. Make sure that your vehicle is parked safely and cannot fall over. Turn off the engine and remove the ignition key. Let the motor/exhaust cool off if necessary. Disconnect the vehicle battery when working on the electrical system. Use appropriate tools. Have another person to help you.
MOUNTING: All parts and connections removed from the vehicle must be reinstalled in accordance with the vehicle manufacturers· specifications or replaced by parts delivered by SW-MOTECH. Secure all threads, unless otherwise specified, with medium-strength liquid thread locker.
Torque specifications undefined by SW-MOTECH must be obtained from the vehicle manufacturer or by a specialist workshop!
FUNCTION CHECK: After installation make sure that all parts and connections previously removed are properly replaced. Also make sure that no moving parts are obstructed and no function of the vehicle is hindered in any way. Cables and hoses must not rub and/or be pinched. Before starting to ride, perform a comprehensive check of all functions. After the first 50 km and then at regular intervals, check the tightening torque of all screw connections and the proper fit of the product.

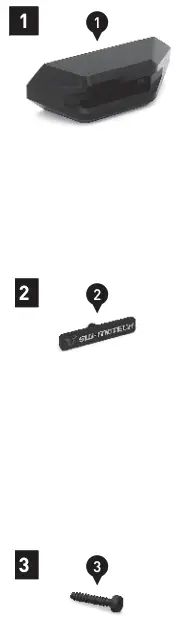

PARTS LIST
| Step | No. | Item No. / Description | Part | Quantity | N-m |
| 1 | (1) | STP.00.590.020L / R | Crash Pad; left / right | 2 /2 | |
| 2 | (2) | STP.00.590.021 | Logo Insert | 2 /2 | |
| 3 | (3) | 3,0 x 16 | Lenshead Screw, self-tapping | 2 /2 | _ max. 1,2 |
| 8.8 | Coarse Thread ∅ | M4 | M5 | M6 | M8 | M10 | M12 |
| Steel. CL 8.8 N-m | 2,8 | 5,5 | 9,6 | 23 | 46 | 79 | |
| 10.9 | Coarse Thread ∅ | M4 | M5 | M6 | M8 | M10 | M12 |
| Stahl FK 10.9 / Steel CL 10.9 N-m | 4,1 | 18,1 | 14 | 34 | 67 | 115 |
A\measurements in millimeters 1he gond number indicates the total quantity0f the patin the delivery.
No torquspecifications Use the torque defined by vehicle manufacturer!The standard torque in this table can be4seal0gag itis within the vehicle mufacturerg Sp0ifiati$
MOUNTING

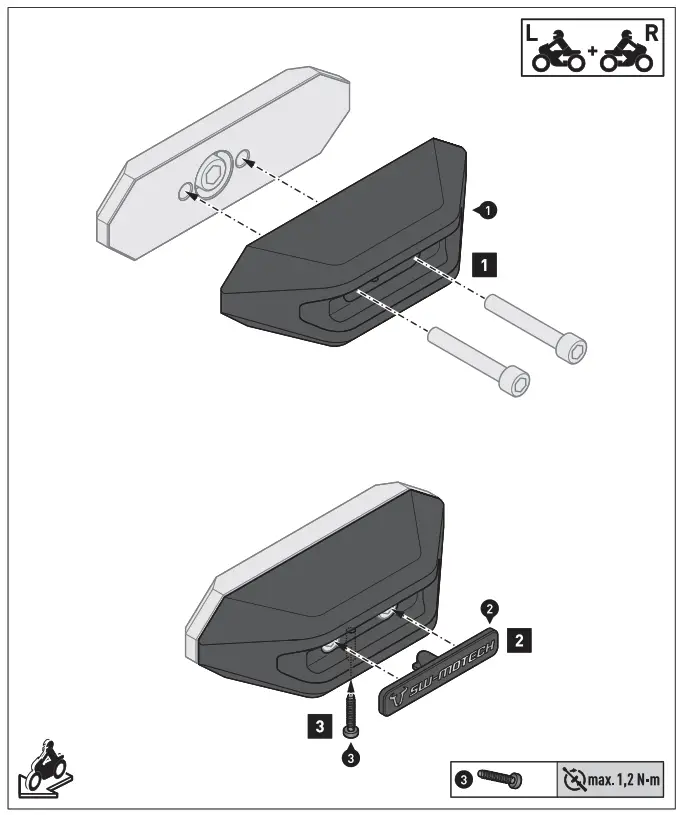

Step [h]: Attach the crash pads (1) on both sides to the adapter plates of your SW-MOTECH slider set for frame, as described in the mounting instructions of the slider set for frame
Step [2l Place the logo inserts (2l on both sides into the crash pads
Step [3] and attach them with the screws [3]
Tighten the screws (3) CAREFULLY by hand (max. 1,2 Nm!
