921930650
POLARIS 2018 RZR 4-Door Rock Slider
921930650 Polaris RZR Rock Slider Kit
Thank you for choosing Rough Country for all your vehicle needs.
Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be sure you have all needed parts and know where they go.
If question exist, please call us @1-800-222-7023. We will be happy to answer any questions concerning this product.
Check all fasteners for proper torque. Check to ensure for adequate clearance between all components.
Periodically check all hardware for tightness.
| Kit Contents: L-Bolts x8 Spacers x6 Driver Rock Slider x1 Pass Rock Slider x1 Allen Wrench x1 | Tools Needed: T30 Torx Bit 18mm Socket/Wrench | Hardware Included: 12MM Flat Washers x8 12MM Lock Washers x8 12MM Lock Nuts x8 6MMx30MM Button Head Bolt x8 6MM Flat Washer x8 6MM Lock Washer x8 |
Torque Specs:
| Size 5/16” 3/8” 7/16” 1/2” 9/16” 5/8” 3/4” | Grade 5 15 ft/lbs 30 ft/lbs 45 ft/lbs 65 ft/lbs 95 ft/lbs 135ft/lbs 185ft/lbs | Grade 8 20ft/lbs 35ft/lbs 60ft/lbs 90ft/lbs 130ft/lbs 175ft/lbs 280ft/lbs | Size 6MM 8MM 10MM 12MM 14MM 16MM 18MM | Class 8.8 5ft/lbs 18ft/lbs 32ft/lbs 55ft/lbs 85ft/lbs 130ft/lbs 170ft/lbs | Class 10.9 9ft/lbs 23ft/lbs 45ft/lbs 75ft/lbs 120ft/lbs 165ft/lbs 240ft/lbs |
INSTALLATION INSTRUCTONS

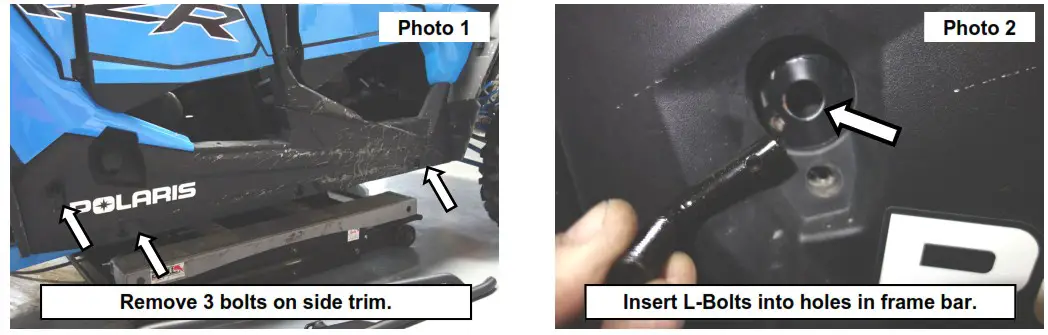

- Remove the 3 bolts on the side trim using a T30 Torx bit. See Photo 1.
- Insert the L-Bolts into the holes in the frame bar. See Photo 2.

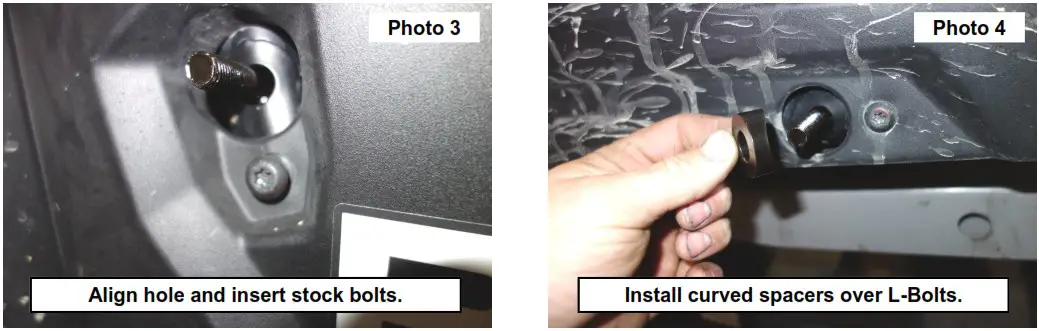

- Align the holes and insert the stock bolts using a T30 Torx bit. See Photo 3.
- Install the curved spacers over the L-Bolts. See Photo 4.

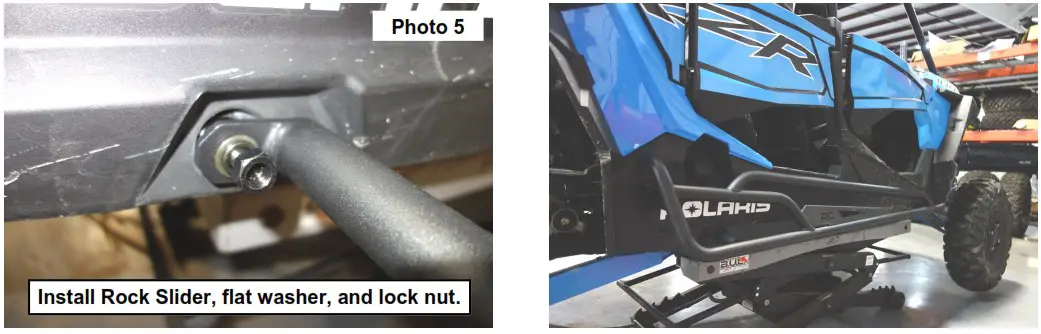

- Install the Rock Slider, flat washer, and lock nut in that order. Tighten using an 18mm socket/wrench. See Photo 5.
By purchasing any item sold by Rough Country, LLC, the buyer expressly warrants that he/she is in compliance with all applicable, State, and Local laws and regulations regarding the purchase, ownership, and use of the item. It shall be the buyers responsibility to comply with all Federal, State and Local laws governing the sales of any items listed, illustrated or sold. The buyer expressly agrees to indemnify and hold harmless Rough Country,
LLC for all claims resulting directly or indirectly from the purchase, ownership, or use of the items.
