ROUGH COUNTRY 921931040 POLARIS 2014 22 RZR 2 Door Rock Slider
Thank you for choosing Rough Country for all your vehicle needs.
Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be sure you have all needed parts and know where they go.
If question exist, please call us @1-800-222-7023. We will be happy to answer any questions concerning this product. Check all fasteners for proper torque. Check to ensure for adequate clearance between all components.
Periodically check all hardware for tightness.

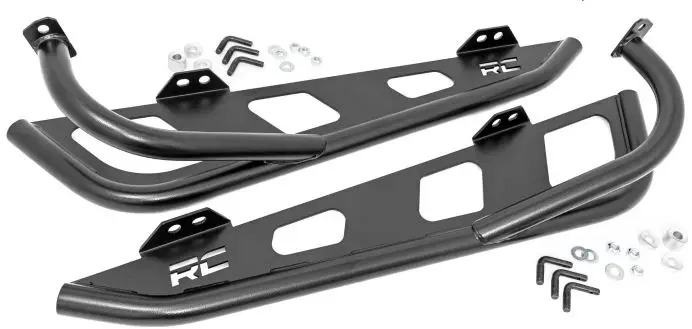

- Kit Contents:

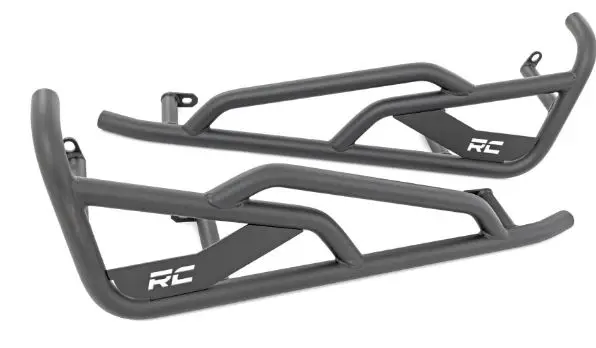

Driver Rock Slider x1 Pass Rock Slider x1 - Tools Needed:
T30 Torx Bit 18mm Socket/Wrench - Hardware Included:
12MM Flat Washers x6 12MM Lock Nuts x6
L-Bolts x6
13mm Spacers x6
Torque Specs
| Size | Grade 5 | Grade 8 | Size | Class 8.8 | Class 10.9 |
| 5/16” | 15 ft/lbs | 20ft/lbs | 6MM | 5ft/lbs | 9ft/lbs |
| 3/8” | 30 ft/lbs | 35ft/lbs | 8MM | 18ft/lbs | 23ft/lbs |
| 7/16” | 45 ft/lbs | 60ft/lbs | 10MM | 32ft/lbs | 45ft/lbs |
| 1/2” | 65 ft/lbs | 90ft/lbs | 12MM | 55ft/lbs | 75ft/lbs |
| 9/16” | 95 ft/lbs | 130ft/lbs | 14MM | 85ft/lbs | 120ft/lbs |
| 5/8” | 135ft/lbs | 175ft/lbs | 16MM | 130ft/lbs | 165ft/lbs |
| 3/4” | 185ft/lbs | 280ft/lbs | 18MM | 170ft/lbs | 240ft/lbs |
INSTALLATION INSTRUCTONS
- Remove the 3 bolts on the side trim using a T30 Torx bit. See Photo 1.
- Insert the L-Bolts into the holes in the frame bar. See Photo 2.

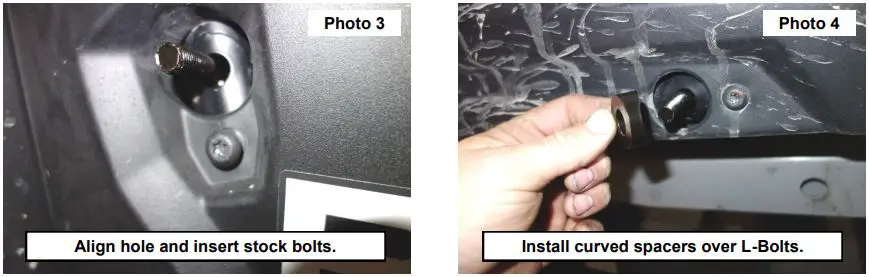

- Align the holes and insert the stock bolts using a T30 Torx bit. See Photo 3.
- Install the curved spacers over the L-Bolts. See Photo 4.

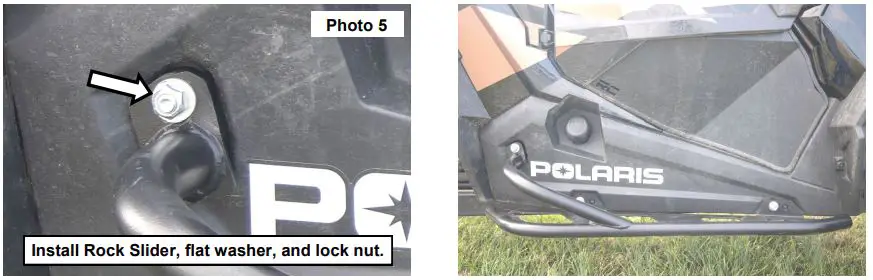

- Install the Rock Slider, flat washer, and lock nut in that order. Tighten using an 18mm socket/wrench. See Photo 5.
