ADVANTECH PCA-6135 Single Board Computer
SPECIFICATION
- Device Type: Single Board Computer
- Processor: 80386SX
- Processor Speed: 40MHz
- Chip Set: ALI
- Video Chip Set: Chips and Technology
- Maximum Onboard Memory: 32MB
- Maximum Video Memory: 1MB
- BIOS: AMI
- Dimensions: 185mm x 122mm
- I/O Options: Floppy drive interface, IDE interface, parallel interface, serial ports (3), VGA interface, PC/104 connector (16-bit)
- Data Bus: 16-bit ISA

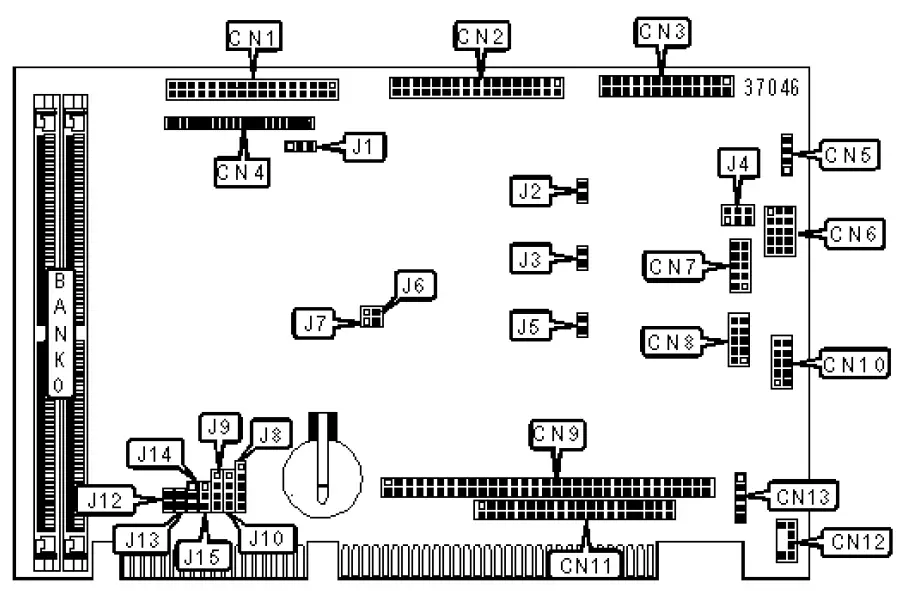

CONNECTIONS
| Purpose | Location | Purpose | Location |
| IDE interface | CN1 | Serial interface 1 | CN10 |
| Floppy drive interface | CN2 | PC/104 connector (16-bit) | CN11 |
| Parallel interface | CN3 | Keyboard connector | CN12 |
| LCD connector | CN4 | PS/2 keyboard interface | CN13 |
| Power connector | CN5 | Keyboard lock connector | J8 |
| VGA interface | CN6 | Speaker | J10 |
| Serial interface 2 (RS-422/485) | CN7 | IDE interface LED | J12 |
| Serial interface 3 (RS-232) | CN8 | Reset switch | J13 |
| PC/104 connector (8-bit) | CN9 |
USER CONFIGURABLE SETTINGS
| Function | Label | Position | |
| LCD selected | J1 | Pins 1 & 2 closed | |
| EL selected | J1 | Pins 2 & 3 closed | |
| Internal battery selected | J9 | Pins 2 & 3 closed | |
| External battery selected | J9 | Pins 1 & 4 closed | |
| » | CMOS memory normal operation | J14 | Pins 1 & 2 closed |
| CMOS memory clear | J14 | Pins 2 & 3 closed | |
| » | Watchdog timer generates system reset | J15 | Pins 1 & 2 closed |
| Watchdog timer generates through IRQ15 | J15 | Pins 2 & 3 closed | |
SIMM CONFIGURATION
| Size | Bank 0 |
| 8MB | (2) 1M x 36 |
| 16MB | (2) 2M x 36 |
| 32MB | (2) 4M x 36 |
SSD BATTERY BACKUP SELECTION
| Function | J2 | J3 | J5 | |
| SRAM | Closed | Closed | Closed | |
| Flash/EPROM | Open | Open | Open | |
SSD I/O ADDRESS SELECTION
| Size | J6 | J7 | |
| » | Disable | Closed | Closed |
| 210H | Open | Closed | |
| 220H | Closed | Open | |
| 230H | Open | Open | |
SERIAL SETTINGS
| Size | J4 | |
| » | RS-232 | Pins 1 & 2 closed |
| RS-422 | Pins 3 & 4 closed | |
| RS-485 | Pins 5 & 6 closed | |
