Adantech Pce-5131 User Guide

Adantech PCE-5131 User Guide

LGA1151 8th and 9th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron System Host Board with DDR4, SATA 3.0, USB
3.1, M.2, Dual GbE, and Triple Displays

Features

• Intel® Core™ i7/i5/i3 LGA1151 processor with Q370 chipset
• Up to 64 GB of dual-channel (non-ECC) DDR4 2400/2666 MHz
• PCIe 3.0, M.2, USB 3.0, SATA 3.0, and SW Raid 0, 1, 5, 10
• Supports out-of-band remote management with AMT
• Supports Advantech’s LPC modules, SUSIAccess, and embedded software APIs
  Note 1: Intel 8th and 9th generation processors only support Windows 10 (64-bit) (RS5 version).

Specifications

Processor System	CPU Speed L3 Cache Cores TDP Socket Chipset BIOS	i
Bus	PCI-Express PCI	1 x PCIe x16 and 1 x PCIe x4 to backplane 4 x PCI master to backplane, 32-bit, 33 MHz
Memory	echnology Max. Capacity Socket	Dual-channel (non-ECC) U-DIMM DDR4 2400/2666 MHz (supports x8      DDR4 1024 M) up to 64GB (based on CPU) 2 x DDR4 288-pin DIMM
Graphics	Controller VRAM DVI-D Display Port Triple Display	Chipset integrated with Intel® HD Graphics Shared system memory is subject to OS Supports resolutions of up to 1920 x 1200 pixel @ 60 MHz Supports resolutions of up to 1920 x 1200 pixel @ 60 MHz Supports resolutions of up to 1920 x 1080 pixel @ 60 Hz CRT+DP/DVI-D+DP/DVI-D
Ethernet	Interface Controller Connector with LED	10/100/1000 Mbps LAN 1: Intel® I219-LM LAN 2: Intel® I210AT 2 x RJ45
Rear I/O	USB 3.1(Gen2) Ethernet VGA PS/2	1 2 1 1 (PS/2 Y cable supports 1 x keyboard and 1 x mouse)
Internal Connector	USB SATA (SW Raid 0,1,5,10) M.2 (2280 Type M) DP/DVI-D COM Parallel IrDA GPIO	7 x USB 2.0 (pin header*2 + USB Type A*1 + 4 on backplane) 6 x USB 3.1(Gen1) (pin header) 5 1 (supports SATA 3.0) 2 (Pin header) 2 1 1 8bit
Watchdog Timer	Output Interval	System reset Programmable 1-255 sec
Miscellaneous	Audio	Intel® High Definition audio interface (requires audio extension module     PCA-AUDIOHDB1E)
Power Requirement	Test Environment Voltage Current	i7-8700, 3.4 GHz, 65 W, with 2 x 8-GB DDR4 2133 +12V                            +5V                +3.3V 4.30A                            2.15A                0.69A
Environment	temperature Humidity	Operating                                                                         Non-Operating 0 ~ 60 °C (dependent on CPU and cooler solution)        -40 ~ 85 °C 40 °C @ 85% relative humidity (non-condensing)              60 °C @ 95% relative humidity (non-condensing)
Physical	Dimensions (L x H)	338 x 122 mm (13.3″ x 4.8″)

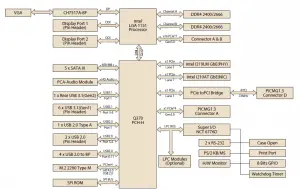

Block Diagram

Ordering Information

Packing List

Optional Accessories

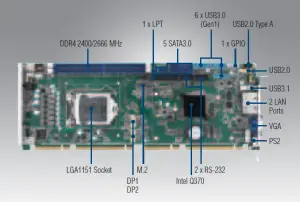

I/O View

                    PCE-5131G2-00A1E
