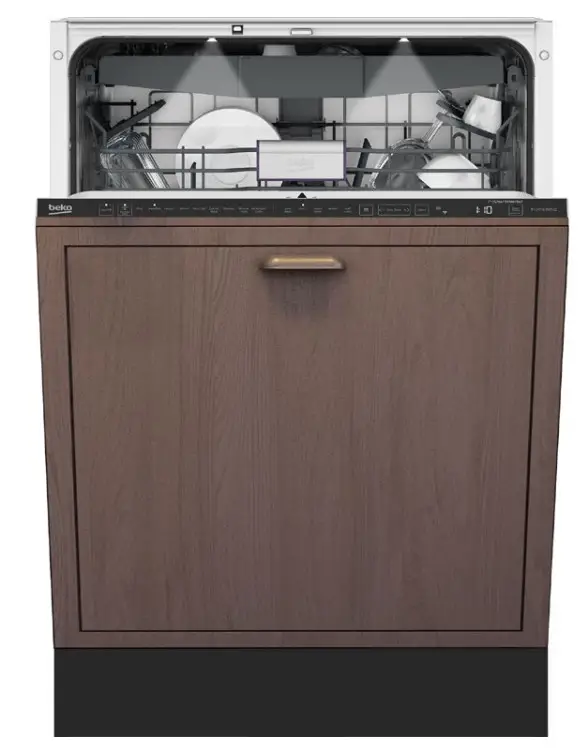

DIT39434 Tall Tub Dishwasher
User Manual
Top Control, Panel Ready Dishwasher, 9 Programs, 39 dBA
GENERAL PROPERTIES
| Style | Top Control |
| Finish | Panel Ready |
| Handle | — |
| Connectivity | WiFi thru HomeWhiz |
| Tub Type | Tall Tub |
| Tub and Door Liner | Stainless Steel |
| Control Type | Electronic Touch Control |
| Toe Kick | Black Plastic |
| Leveling System | 4 Leveling Legs |
EFFICIENCY
| Energy Efficiency Class | Tier 1 |
| ENERGY STAR® Certified | Most Efficient |
| Total Annual Energy Consumption (kWh) | 230 kWh/year |
| Total Annual Water Consumption (g) | 2.38 – 5.55 g/cycle |

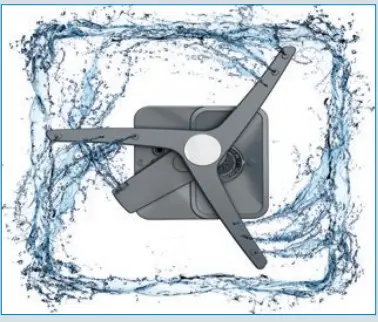

CORNERINTENSE®
The specially designed spray arm rotates on a movable axis instead of a fixed axis. Jets of water continually move in more than just one fixed pattern, to completely cover every part of the dishwasher. It cleans dishes like never before while using half the water and two-thirds the energy.*

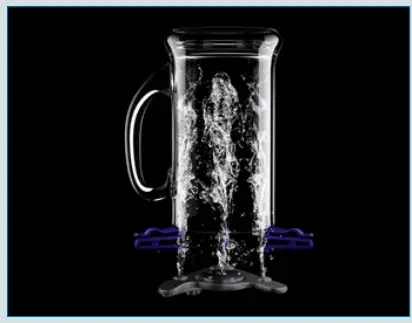

DEEPWASH™
Extra-dirty, meet extra-powerful. Three water-adjustable jets deliver increased water pressure to a dedicated wash zone. It easily handles several tall bottles or jars with narrow openings or a larger item.

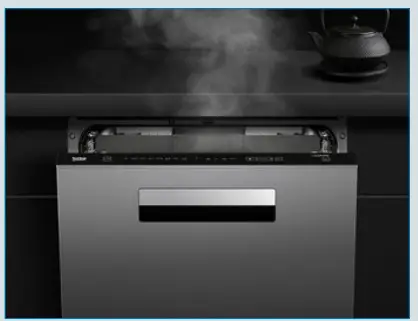

SELFDRY™
SelfDry™ is a new auto door-opening system that unseals and opens the door of the dishwasher after the program has finished, letting ambient air in and drying dishes naturally without the use of additional energy.
Learn More
https://www.beko.com/us-en/new-dishwashers?utm_source=dealer&utm_medium=spec-sheet
Top Control, Panel Ready Dishwasher, 9 Programs, 39 dBA
FEATURES
| Number of Wash Cycles | 9 |
| SilentTech'” | 39 dBA |
| CornerIntense’ | Yes |
| Deep Wash | Yes |
| EverClean’s” Filter | Yes |
| Self Dry | Yes |
| guard | Yes |
| Drying System | Closed Fan |
| Interior Illumination | Yes |
| DMSF Overflow Protection | Yes |
| Turbidity Sensor | Yes |
| Delay Timer | Yes |
| Detergent & Rinse Aid Dispenser (with Indicator) | Yes |
| Flood Protection | Yes |
| Overflow Safety | Yes |
| Water Softener | – |
| Water tap Indicator | Yes |
| LED Spot (Light Indicator on Floor) | Yes |
| Interior High Loop with Air Gap | Yes |
| All-In-1 Tablet | Yes |
| ProSmart Inverter Motor | Yes |
| NSF’-Certified-Sanitize Option | Yes |
RACK SYSTEM
| Full Size Third Rack | Yes, with Cutlery Tray |
| Easy Fold Lower Rack Tines | 8 |
| Cutlery Basket | Standard, Full-Size |
| Upper Rack | Full Extension with Ball Bearing Design, 4 Inset Shelves |
| Easy Fold Upper Rack Tines | 6 |
| Height-Adjustable Upper Rack | Yes, 3 Positions, when Loaded |
| Nylon Coated Racks | Yes |
CAPACITY
| Number of Place Settings | 16 |
TECHNICAL INFORMATION
| Total Power (W) | 1,400 W |
| Current (A) | 12:00 AM |
| Volts (A) | 120 V |
| Frequency (Hz) | 60 Hz |
| Power Cord Full Length | Yes |
| Power Cord Install Length from Edge of Unit when Facing the Door | 4 ft. |
| Minimum Water Pressure (psi) | 4.35 – 145 |
| Length Discharge Hose | 6 ft. |
DIMENSIONS & WEIGHT
| Product (H x W x D) (in) | 33 7/8 x 23 9/16 x 21 5/8 |
| Required Cutout Dimensions (H x W x D) (in) | 34 x 24 x 24 |
| Net Weight (lbs) | 93.7 |
ACCESSORIES (INCLUDED)
| Installation Accessory Pack | 1784430063 |
| Toe Kick | 1765810101 |
WARRANTY
| All Products | 2-Year Full Warranty |
| ProSmart Inverter Motor | 10-Year Warranty — Parts Only |
Top Control, Panel Ready Dishwasher, 9 Programs, 39 dBA
NOTE TO THE INSTALLER: All height, width, and depth dimensions are shown in inches (as well as a metric). Beko U.S., Inc. reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Please visit our website, www.BekoAppliances.com, or call 888.352.2356 to verify the latest specifications with final dimensional data and other details prior to installation and making a cutout. Applicable product limited warranty information may be found in accompanying product materials, or you may contact your account manager for further details. Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the Limited Warranty.
888.352.BEKO(2356) | beko.com/en-us
© 2022 Beko U.S., Inc. 3/22
