Beko Ddt38532x Tall Tub Dishwasher User Manual

Beko Ddt38532x Tall Tub Dishwasher User Manual

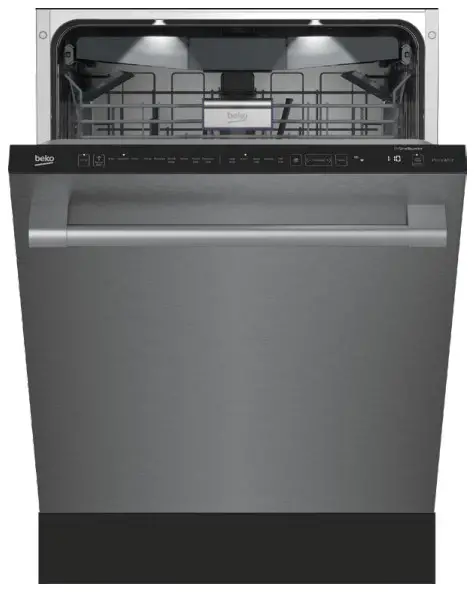

beko logoDDT38532X
Top Control, Pro Handle Dishwasher, 8 Programs, 45 dBA beko DDT38532X Tall Tub Dishwasherbeko DDT38532X Tall Tub Dishwasher - Sab logo

GENERAL PROPERTIES

StyleTop Control
FinishFingerprint-Free Stainless Steel
HandlePro Handle – Rounded Stainless Steel
Connectivity
Tub TypeTall Tub
Tub and Door LinerStainless Steel
Control TypeElectronic Touch Control
Toe KickBlack Plastic
Leveling System4 Leveling Legs

EFFICIENCY

Energy Efficiency ClassTier 1
ENERGY STAR®CertifiedMost Efficient
Total Annual Energy Consumption (kWh)230 kWh/year
Total Annual Water Consumption (g)2.38 – 5.60 g/cycle

PREMIUM TECHNOLOGY

beko DDT38532X Tall Tub Dishwasher - Fig

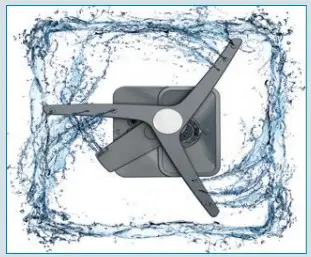

CORNERINTENSE®
The specially designed spray arm rotates on a movable axis instead of a fixed axis. Jets of water continually move in more than just one fixed pattern, to completely cover every part of the dishwasher. It cleans dishes like never before, while using half the water and two-thirds the energy.*beko DDT38532X Tall Tub Dishwasher Fig

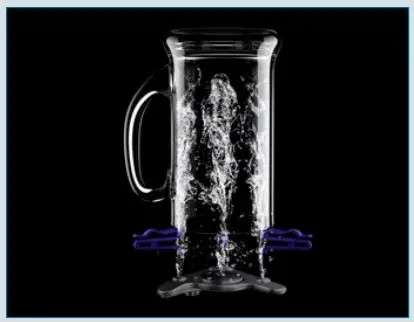

DEEPWASH™
Extra-dirty, meet extra-powerful. Three water-adjustable jets deliver increased water pressure to a dedicated wash zone. It easily handles several tall bottles or jars with narrow  openings, or a larger item. beko DDT38532X Tall Tub Dishwasher - Fig 1

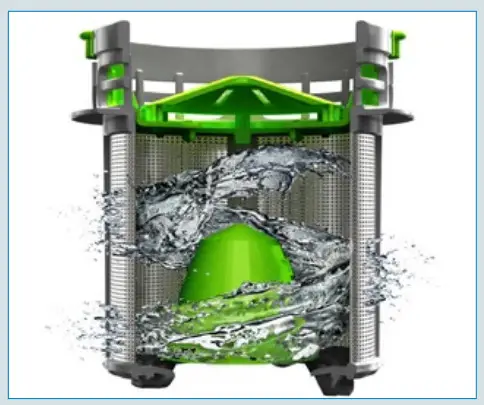

EVERCLEAN™FILTER
EverClean™ filter technology keeps your dishwasher’s filter cleaned up to four times longer to help maintain the quality of each cycle’s wash. A special sprinkler system is built inside the filter which moves in a circular motion to clean the filter’s interior.
*As compared to US Federal Standards for dishwasher water and energy usage.

beko DDT38532X Tall Tub Dishwasher - QR CODE

https://www.beko.com/us-en/new-dishwashersutm_source=dealer&utm_medium=spec-sheet

DDT38532X

Top Control, Pro Handle Dishwasher, 8 Programs, 45 dBA

Number of Wash Cycles8
SilentTech-45 dBA
Cornerintense°Yes
Deep WashYes
EverClean- FilterYes
SelfDry
IonGuard
Drying SystemActive Ventilation
Interior IlluminationYes
DMSF Overflow ProtectionYes
Turbidity SensorYes
Delay TimerYes
Detergent & Rinse Aid Dispenser (with Indicator)Yes
Flood ProtectionYes
Overflow SafetyYes
Water Softener
Water tap IndicatorYes
LED Spot (Light Indicator on Floor)Yes
Interior High Loop with Air GapYes
All-In-1 TabletYes
ProSmart Inverter MotorYes
NSP-Certified – Sanitize OptionYes

RACK SYSTEM

Full Size Third RackYes, with Cutlery Tray
Easy Fold Lower Rack Tines4
Cutlery BasketStandard, Full-Size
Upper RackFull Extension Telescopic Rail
Easy Fold Upper Rack Tines3
Height-Adjustable Upper RackYes, 3 Positions, when Loaded
Nylon Coated RacksYes

CAPACITY

Number of Place Settings16

TECHNICAL INFORMATION

Total Power (W)1,400 W
Current (A)12 A
Volts (A)120 V
Frequency (Hz)60 Hz
Power Cord Full LengthYes
Power Cord Install Length from Edge of Unit when Facing the Door4 ft.
Minimum Water Pressure (psi)4.35 -145
Length Discharge Hose6 ft.

DIMENSIONS & WEIGHT

Product (H x W x D) (in)337/8 x 239/16 x 227/16
Required Cutout Dimensions (H x W x D) (in)34 x 24 x 24
Net Weight (lbs)93.26

ACCESSORIES (INCLUDED)

Installation Accessory Pack1.78E+09
Toe Kick1.77E+09

WARRANTY

All Products2-Year Full Warranty
ProSmart Inverter Motor10-Year Warranty — Parts Only

DDT38532X

Top Control, Pro Handle Dishwasher, 8 Programs, 45 dBA

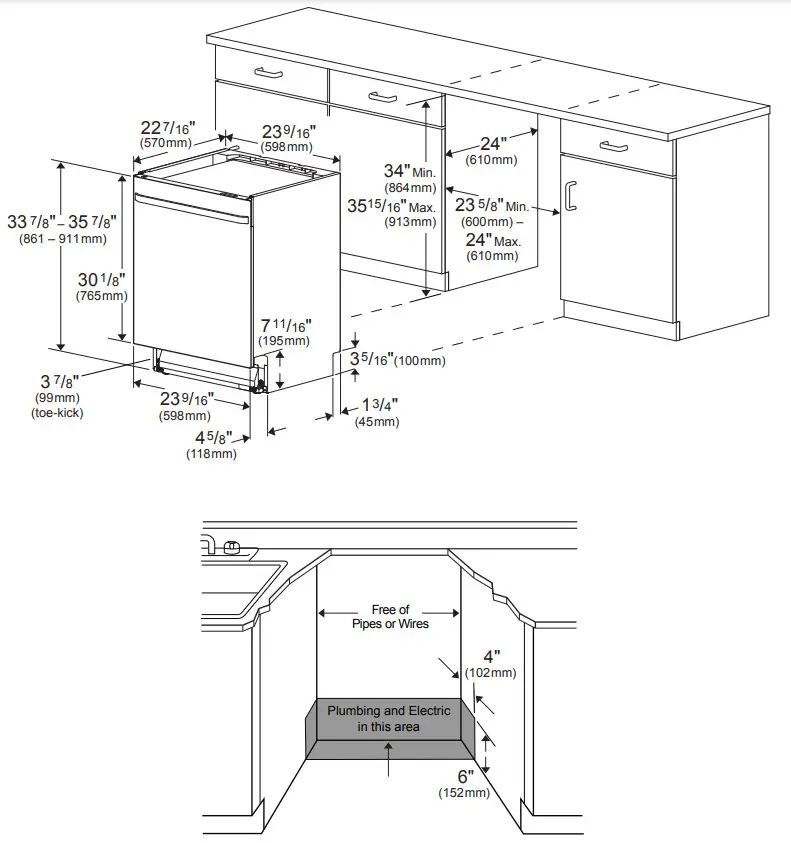

beko DDT38532X Tall Tub Dishwasher Fig 1

NOTE TO THE INSTALLER: All height, width, and depth dimensions are shown in inches (as well as metric). Beko U.S., Inc. reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Please visit our website, www.BekoAppliances.com, or call 888.352.2356 to verify the latest specifications with final dimensional data and other details prior to installation and making a cutout. Applicable product limited warranty information may be found in  accompanying product materials, or you may contact your account manager for further details. Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the Limited Warranty.
