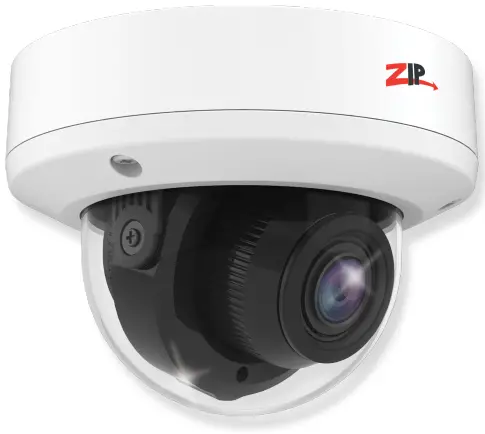

IPCAI538 8MP AI ZIP IP Vandal Dome 2.8-12mm User Guide
www.systemq.com/PDF/manual/xIPCAI538.pdf
The IPCAI538 Vandal Dome has a tough metal exterior isideal for both outdoor and indoor uses. With on board face detection features plusiSENSE compatibility for Face Recognition when used with the latest Zip NVR firmware. Up to 40m IR range (true day/night filter), 8MP resolution, built in PoE, H265 and H264 codec.
Powering the camera

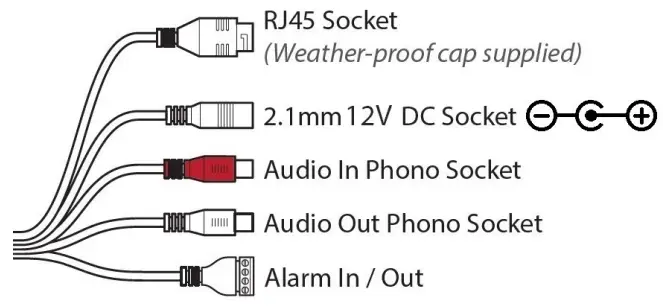

Option 1 – Power the camera from 12V DC (via the 2.1mm DC Socket), the current consumption is 400mA.
The camera is polarity sensitive so connections must be correctly made.

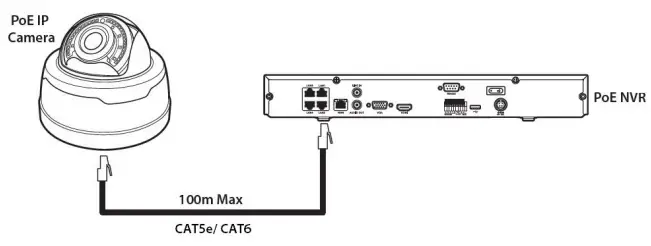

Option 2 – Power the camera using a PoE 48V RJ45 Socket
When connecting ZIP PoE NVR plug the camera directly into the NVRs built in PoE switch.
The camera should automatically become visible after being connected for approximately 1 minute.
If using a separate PoE switch or an IPmitter (wireless bridge), the camera needsto be manually configured, scan the QR code to the left for the “how to guide”
www.zipdvr.com/howto/TIP459-How-To-Add-IP-Cameras.html
Use the ZipFinder tool to search for ZIP IP cameras on a network via a Windows PC.
www.softcctv.com/store/Item/Zip-Finder-IPCCTV-Security-Camera-Discovery-Tool
Default login details are:-
Default IP: 192.168.10.1
User Name: admin
Password: 777777
| Image Sensor 1/2.8″ Progressive CMOS | |
| Resolution | 8MP 2592(H)×1944(V) |
| Lens Type | 2.8-12mm Motorised |
| Shutter | 1/5 ~ 1/20000s |
| Day/Night | Mechanical (True Day-Night) |
| Min. Illumination | 0 (With IR On) |
| IR Range | Up to 40m |
| Digital Noise Reduction | 3D DNR |
| Video Compression | H.264 / H.265 |
| Video Bitrate | 8Kbps ~ 16Mbps |
| Stream Options | Mainstream, SubStream & MobileStream |
| Smart Feature | Perimeter Intrusion, Line Crossing, Pedestrian and Vehicle Detection, Facial Detection, Facial Recognition |
| System Compatibility | ONVIF (Profile S, Profile G ) |
| Connection | RJ45 10M / 100M Ethernet PoE |
| SD Card | Micro SD Card Slot (up to 128GB) |
| Alarm | 1 Input / 1 Output |
| Audio (RCA) | 1 Input / 1 Output |
| Input Voltage | PoE or 12V DC 400mA (PSU Required) |
| Consumption | 8W Max |
| Operating Temperature | From -30 to 60 deg°C |
| Backlight Control | BLC / D-WDR |
| Use | IP66 For External Use |
All specifications are approximate. System Q Ltd reservesthe right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible for any losses, no matter how they arise, from errors or omissionsin these instructions, or the performance or non-performance ofthe equipment refered to
Quick Start Guide – qIPCAI538
Copyright 2021 System Q Ltd
