Zip See372 2mp Anti-vandal Dome 2.8-12mm Motorised Lens User Guide

ZIP SEE372 2MP Anti-Vandal Dome 2.8-12mm Motorised Lens

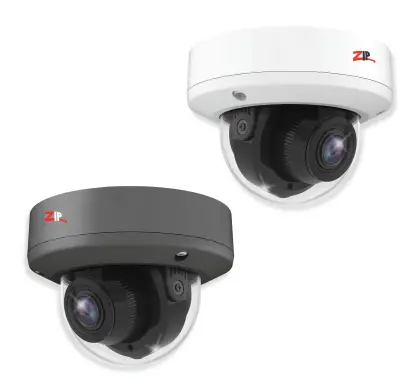

The SEE372 Anti-Vandal style camera has a tough metal body and plastic dome, ideal for both outdoor and indoor uses with multi format output modes including; TVI, AHD, CVI and CVBS. IR range up to 40m (true day/night filter).

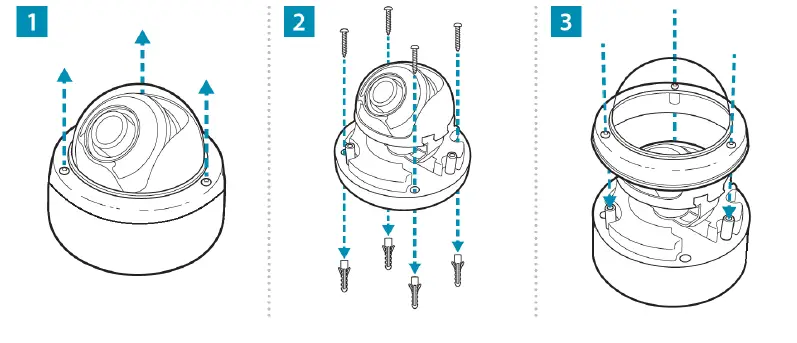

Powering the camera

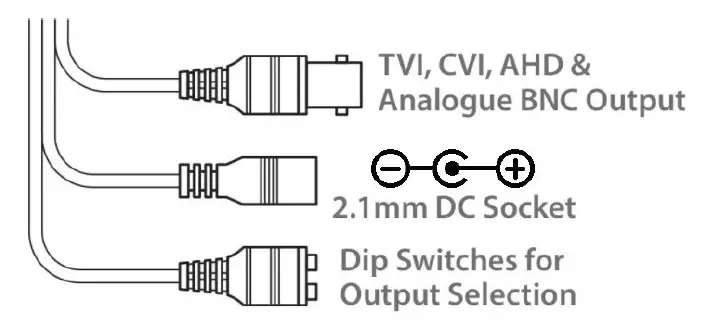

The camera has a 2.1mm socket which requires 12V DC and the current consumption is 500mA, so use a regulated power supply rated at 750mA or above. The camera is polarity sensitive so connections must be correctly made.

The camera has a standard BNC connector for the 4-in-1 video output. As default the output is set to HD-TVI 2MP which will work with the, ZipLite, ZipSupa and ZipXtreme DVRs, however the output can be changed to AHD, CVI or CVBS if required.

OSD Camera Menu

Via an DVR with a monitor & mouse direct to access the Cameras menu via coaxitron:-

•  Click on the image in Live view

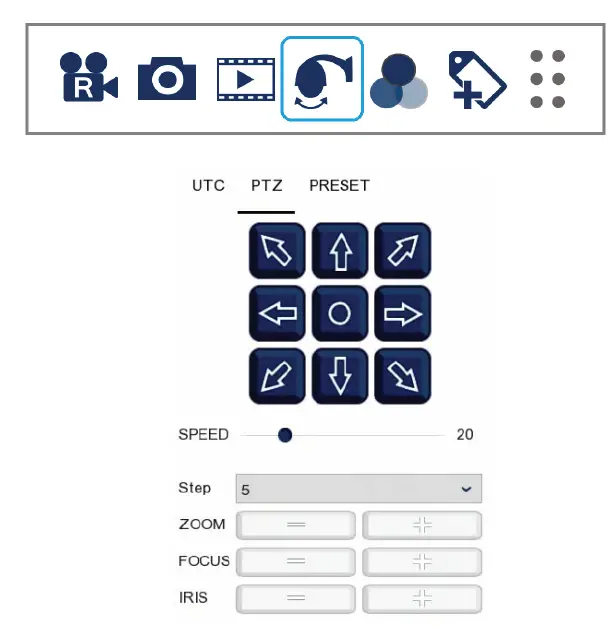

• Click on the PTZ button at the bottom of the screen
•  Click on the IRIS + button to display the menu

1. Use the directional arrows to move up and down through the menu.
2. Use the directional arrows left and right to change the option.
3. Use IRIS + to select and enter that menu option.

Motorised Lens Control

1. Use Zoom + and – to zoom in and out
2. The camera should automatically focus when Zoom+/- is released

All specifications are approximate. System Q Ltd reserves the right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment refered to.
