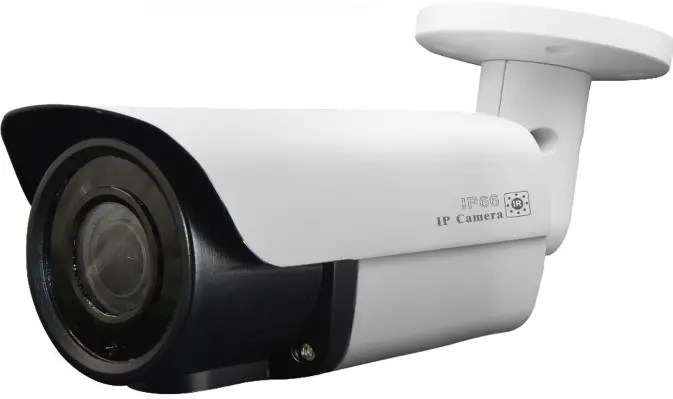

ZIP SEE602 2MP Bullet 2.8-12mm Varifocal Lens Camera
SEE602-Quick Start Guide
The SEE602 bullet style camera has a tough metal exterior, ideal for both outdoor and indoor uses with multi format output modes including; TVI, AHD, CVI and CVBS. IR range up to 40m (true day/night filter).

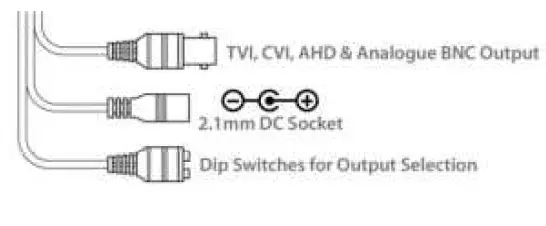

Powering the camera
Powering the cameraThe camera has a 2.1mm socket which requires 12V DC and the current consumption is 500mA, so usea regulated power supply rated at 750mA or above.
The camera is polarity sensitive so connections must be correctly made.
www.systemq.com/PDF/manual/xSEE602.pdf

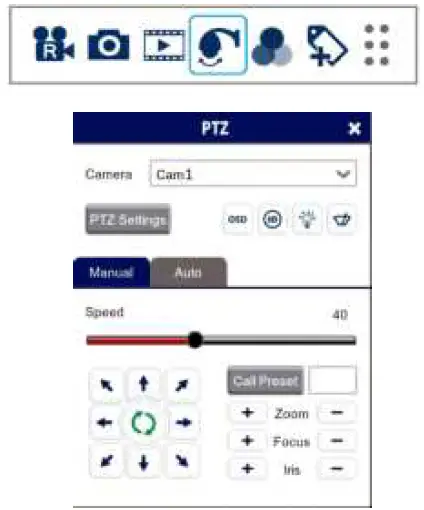

Via an DVR with a monitor & mouse direct to access the Cameras menu via coalition:
- Click on the image in Live view
- Click on the PTZ button at the bottom of the screen
- Click on the IRIS+ button to display the menu Use the directional arrows to move up and down through the menu.
Use the directional arrows left and right to change the option. Use IRIS+ to select and enter that menu option.
| Resolution | 2MP |
| lens Type | 2.8-12mm Varifocal |
| Image Output | 1 Volt Peak-Peak 7S ohm |
| Min. Illumination | 0 lux IR On |
| Day/Night | Mechanical (True Day-Night) |
| InfraRed lEDs | 2 High Powered lEDs |
| IR Range | 60M |
| Input Voltage | 12V DC |
| Current Consumption | S00mA (IR On) |
| IP Rating | IP66 |
| Video Connection | BNC Socket |
| Power Connection | 2.1mm DC Socket |
| WDR | Yes |
| Bracket | Wall & Ceiling Available |
| Finish | White/ Black |
| Build | Metal |
| Dimensions | (H)88.Smm x (W)88mm x (D)141mm (ex bracket) |
All specifications are approximate. SystemQ Ltd reserves the right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, systemQLtd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment referred to.
Document ref: qSEES02
2022 System Q Ltd
This symbol indicates that equipment must not be mixed with general household waste. For tre atment, recovery and recycling please return to your local designated WEE/CGO783SS collection point as defined by your local council.
