Zip See895 5mp Eyeball 2.8-12mm Motorised Lens Camera User Guide

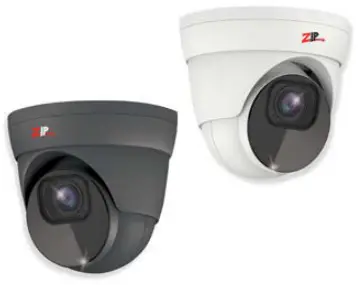

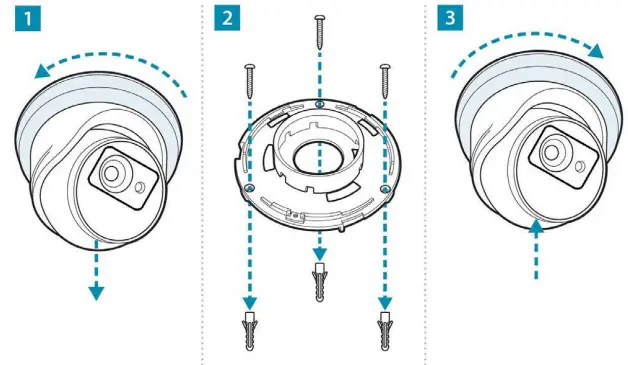

ZIP SEE895 5MP Eyeball 2.8-12mm Motorised Lens Camera

FOR MORE INFO

The SEE895 eyeball has a tough metal exterior, ideal for both outdoor and indoor uses with multi format output modes including; TVI, AHD, CVI and CVBS. IR range up to 40m (true day/night filter).

Powering the camera

• The camera has a 2.1mm socket which requires 12V DC and the current consumption is 400mA, so use a regulated power supply rated at 500mA or above.
• The camera is polarity sensitive so connections must be correctly made.

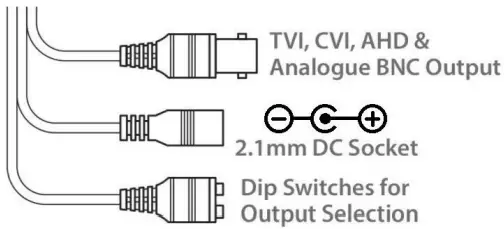

• The camera has a standard BNC connector for the 4-in-1 video output. As default the output is set to HD-TVI 5MP which will work with the, Zip Supa and Zip Xtreme DVRs, however the output can be changed to AHD, CVI or CVBS if required.

OSD Camera Menu

• Via an DVR with a monitor & mouse direct to access the Cameras menu via coaxitron:-
  • Click on the image in Live view

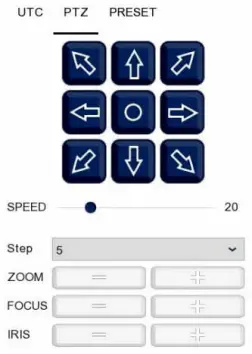

  • Click on the PTZ button at the bottom of the screen
  • Click on the IRIS + button to display the menu



• Use the directional arrows to move up and down through the menu.
• Use the directional arrows left and right to change the option.
• Use IRIS + to select and enter that menu option.

Motorised Lens Control

• Use Zoom + and – to zoom in and out
• The camera should automatically focus when Zoom+/- is released




All specifications are approximate. System Q Ltd reserves the right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment refered to.
