2MP Eyeball 2.8-12mm Varifocal Lens Camera
Zip is a registered trademark of System Q Ltd
SEE862 – Quick Start Guide
www.systemq.com/PDF /manual/xSEE862.pdf

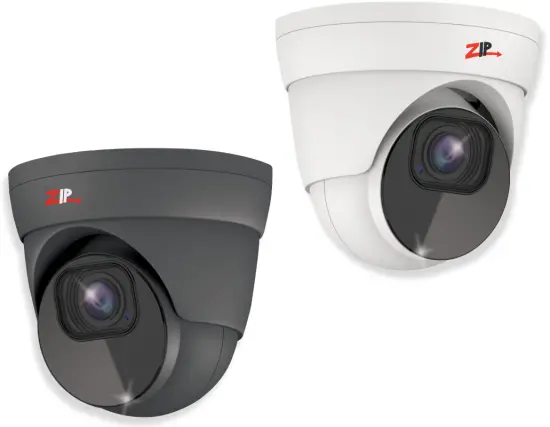

The SEE862 eyeball has a tough metal exterior, ideal for both outdoor and indoor uses with multi format output modes including; TVI, AHD, CVI and CVBS. IR range up to 40m (true day/night filter).

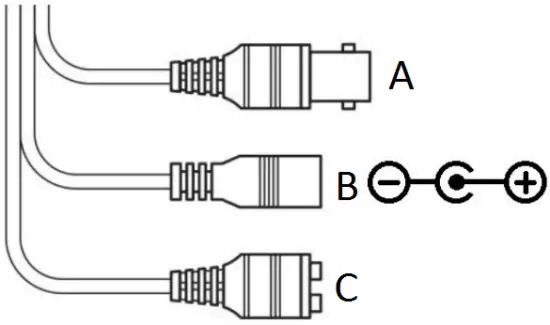

A TVI, CVI, AHD & Analogue BNC Output
B 2.1mm DC Socket
C Dip Switches for Output Selection

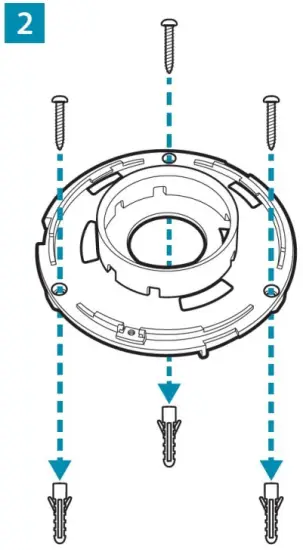

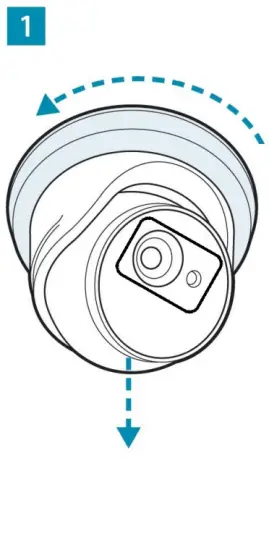

Powering the camera
The camera has a 2.1mm socket which requires 12V DC and the current consumption is 400mA, so use a regulated power supply rated at 500mA or above.
The camera is polarity sensitive so connections must be correctly made.
The camera has a standard BNC connector for the 4-in-1 video output. As default the output is set to HD-TVI 2MP which will work with the, ZipLite, ZipSupa and ZipXtreme DVRs, however the output can be changed to AHD, CVI or CVBS if required.
OSD Camera Menu
Via an DVR with a monitor & mouse direct to access the Cameras menu via coaxitron:

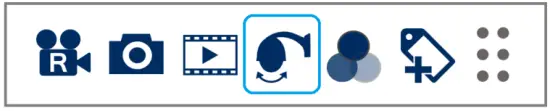

- Click on the image in Live view

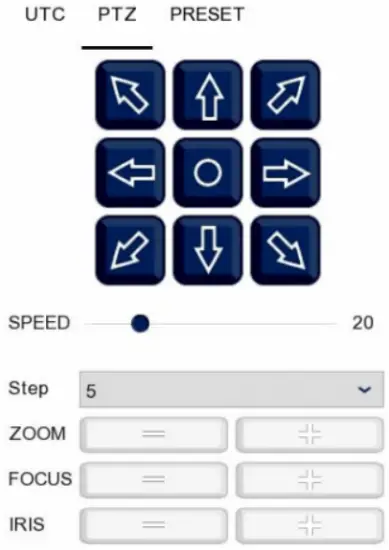

- Click on the PTZ button at the bottom of the screen
- Click on the IRIS + button to display the menu
Use the directional arrows to move up and down through the menu.
Use the directional arrows left and right to change the option.
Use IRIS + to select and enter that menu option.
| Resolution | 2MP |
| Lens Type | 2.8-12mm Varifocal |
| Image Output | 1 Volt Peak-Peak 75 ohm |
| Min.Illumination | 0 Lux IR On |
| Day/Night | Mechanical (True Day-Night) |
| IR Range | 40m |
| Input Voltage | 12V DC |
| Current Consumption | 400mA (IR On) |
| IP Rating | IP66 |
| Video Connection | BNC Socket |
| Power Connection | 2.1mm DC Socket |
| Finish | White/Grey |
| Build | Metal |
| Dimensions | 135mm (Diameter) x127mm (Height) |
