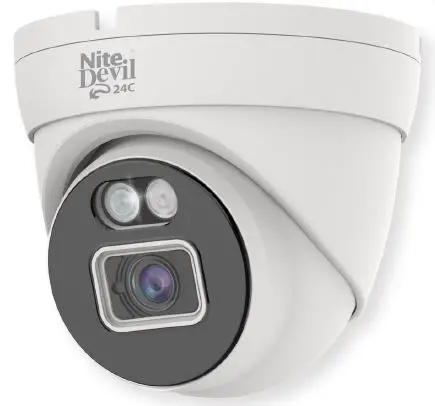

SystemQ IPCND702 ZIP 3.6mm IP NiteDevil 24C Mini Eyeball – 2MP
The all new NiteDevil 24C can stay in full colour around the clock using the minimal amount of natural light to produce superb full colour images. Up to 30m IR range (true day/night filter) and up to 25m white light range, 2MP resolution, built in PoE, H265 and H264 codec.

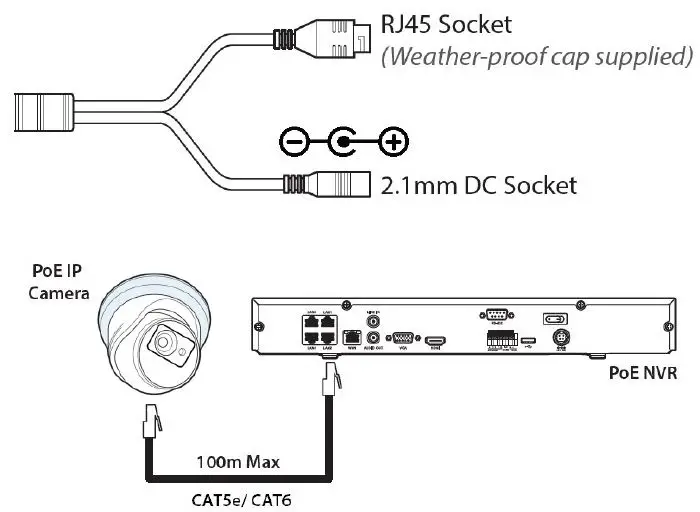

Powering the camera
Option 1 – Power the camera from 12V DC (via the 2.1mm DC Socket), the current consumption is 400mA. The camera is polarity sensitive so connections must be correctly made.
Option 2 – Power the camera using a PoE 48V RJ45 Socket When connecting ZIP PoE NVR plug the camera directly into the NVRs built in PoE switch. The camera should automatically become visible after being connected for approximately 1 minute. If using a separate PoE switch or an IPmitter (wireless bridge), the camera needs to be manually configured, scan the QR code to the left for the “how to guide” Use the ZipFinder tool to search for ZIP IP cameras on a network via a Windows PC. www.softcctv.com/store/Item/Zip-Finder-IP-CCTV-Security-Camera-Discovery-Tool
Default login details are:-
| Default IP 192.168.10.1 |
| User Name admin |
| Password 777777 |
| Resolution | 2MP (1920 x 1080) |
| Lens Type | Wide Angle 3.6mm Fixed |
| Video Compression | H264 / H265 |
| Bit Rate | 128Kbps ~ 4Mbps |
| Shutter | 1/5 ~ 1/20000s |
| Min. Illumination | Colour 24/7 |
| Day/Night Function | Auto or Scheduled |
| Microphone | Built-in |
| IR LEDs | 2x High Power |
| IR Range | Up to 30m |
| White Light | 2x High Power |
| White Light Range | Up to 25m |
| Gain Control | Auto |
| Video Connection | RJ45 Socket |
| Onvif | Yes |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP |
| Other Protocols | SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| White Balance | Auto / Manual |
| Input Voltage | 12V DC (400mA) / PoE 48V |
| Consumption | 5W Max |
| Power Connection | 12V – 2.1mm DC Socket / PoE – RJ45 |
| IP Rating | IP66 |
| Build | Metal |
| Dimensions | 100mm x (H) 90mm |
All specifications are approximate. System Q Ltd reserves the right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment refered to. This symbol indicates that equipment must not be mixed with general household waste. For treatment, recovery and recycling please return to your local designated WEE/CG0783SS collection point as defined by your local council.
