Zip 8MP 360 Degree IP Camera
Zip is a registered trademark of System Q Ltd
IP-CAM360 – Quick Start Guide
www.systemq.com/PDF/manual/xIP-CAM350.pdf

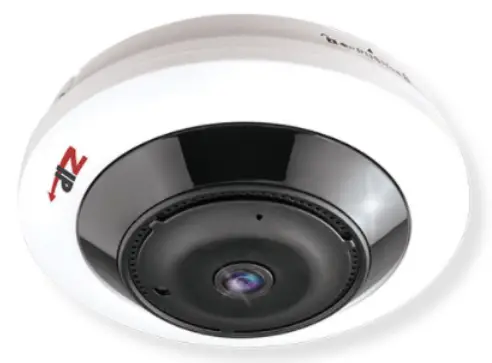

The IP-CAM350 is a 360° 5MP IP Camera designed for indoor use. The camera has built in PoE, H265 and H264 codec, speaker and microphone.

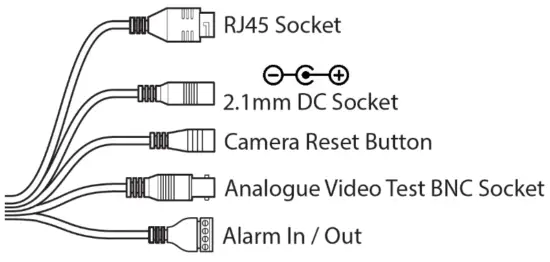

Powering the camera
Option 1 – Power the camera from 12V DC (via the 2.1mm DC Socket), the current consumption is 290mA. The camera is polarity sensitive so connections must be made correctly.
Option 2 – Power the camera using a PoE 48V RJ45 Socket

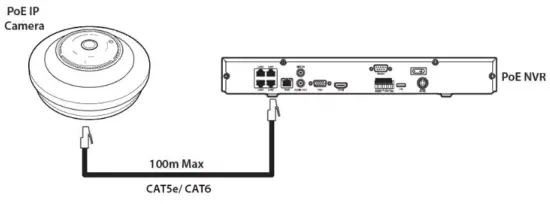

When connecting to a ZIP PoE NVR plug the camera directly into the NVRs built in PoE switch.
The camera should automatically become visible after being connected for approximately 1 minute.
www.zipdvr.com/howto/TIP459-How-To-Add-IP-Cameras.html
Use the ZipFinder tool to search for ZIP IP cameras
on a network via a Windows PC.
www.softcctv.com/store/Item/Zip-Finder-IPCCTV-Security-Camera-Discovery-Tool
If using a separate PoE switch or an IPmitter (wireless bridge), the camera needs to be manually configured, scan the QR code to the left for the “how to guide”
Default login details are:
| Default IP | 192.168.10.1 |
| User Name | admin |
| Password | 777777 |
| Video Compression | H.264 / H.265 |
| Resolution | 5MP |
| Output Resolution | 2160 x 2160px |
| Lens Type | 1.1mm 360deg Lens |
| Min. Illumination | 0 Lux with LEDs on |
| Audio | Built-in Speaker & Mic |
| Alarm Inputs | 1 |
| Alarm Output | 1 |
| InfraRed LEDs | 3 |
| IR Range | 5m |
| Input Voltage | 12V DC or PoE |
| Current Consumption | 290mA (IR On) |
| IP Rating | Internal Use |
| Video Connection | RJ45 |
| Power Connection | 2.1mm DC Socket or RJ45 |
| Onvif | 2.6 |
| Finish | White |
| Dimensions | Dia120mm x (H)56mm |
All specifications are approximate. System Q Ltd reserves the right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment refered to.
Document ref: qIP-CAM350
© 2022 Enter your company name
This symbol indicates that equipment must not be mixed with general household waste. For treatment, recovery and recycling please return to your local designated WEE/CG0783SS collection point as defined by your local council.
