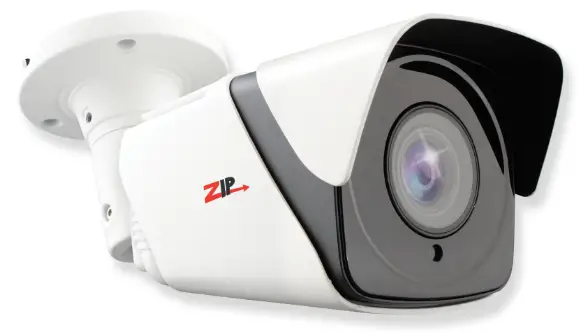

IP-CAM555W 5-50mm IP Bullet 4K Camera
Instruction Manual

Introduction

1.1 Key Features – IP-CAM555W
The FacePLATE PowerZOOM with Built-In Auto Number Plate Recognition and Built-In Facial Detection & Recognition

• PowerZOOM 5-50mm Lens
• Audio In & Out
• Privacy Mask
• Superb 4K Resolution
• Smart Crowd Mapping
• Alarm In & Out
• Motion Detect
• Built-in ANPR
• Smart Intruder Detection
• Micro SD Slot
• IR Range up to 70M
• RS485 Output

1.2 Essential Tools and ZipFinder
To install this product you will need:

• Laptop/Windows PC
• Screwdriver
• Drill
• Hammer
• ZIP NVR or DVR
• PoE Switch / 12V DC power supply
• Ethernet CAT5/5e/6 Cable

ZipFinder – IP Camera Configuration Tool

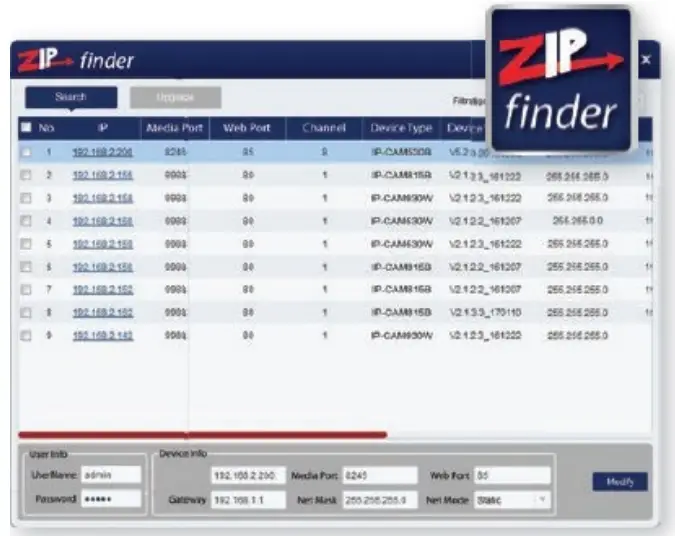

ZipFinder is a Windows PC software for discovering and configuring IP cameras a network.
Use ZipFinder on non-PoE installs, to help problem solving issues such as forgotten or unknown IP Addresses.
To download visit ZipNVR.com

Connections and Dimensions

2.1 IP-CAM555W

Powering the camera

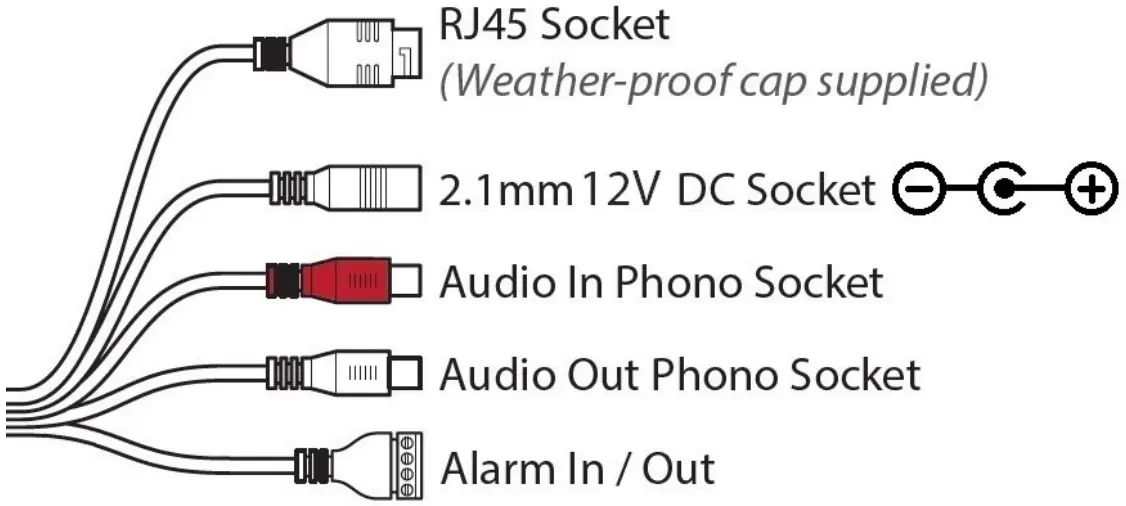

Option 1 – Power the camera from 12V DC (via the 2.1mm DC Socket), the current consumption is 420mA.
The camera is polarity sensitive so connections must be correctly made.

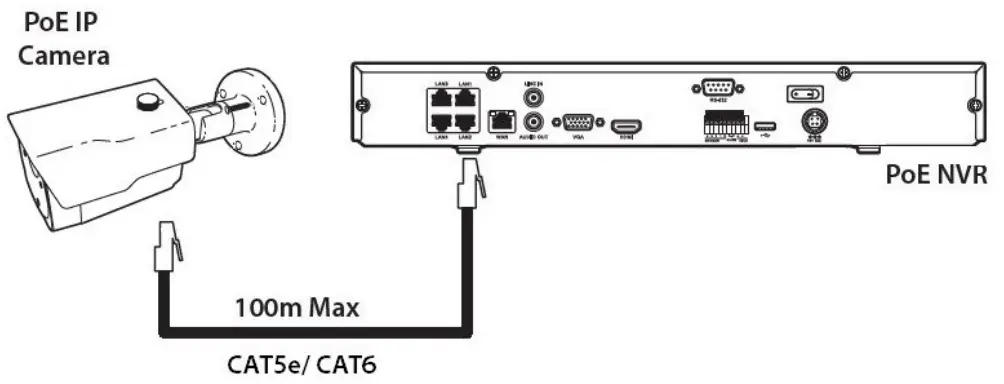

Option 2 – Power the camera using a PoE 48V RJ45 Socket
When connecting ZIP PoE NVR plug the camera directly into the NVRs built in PoE switch.
The camera should automatically become visible after being connected for approximately 1 minute.

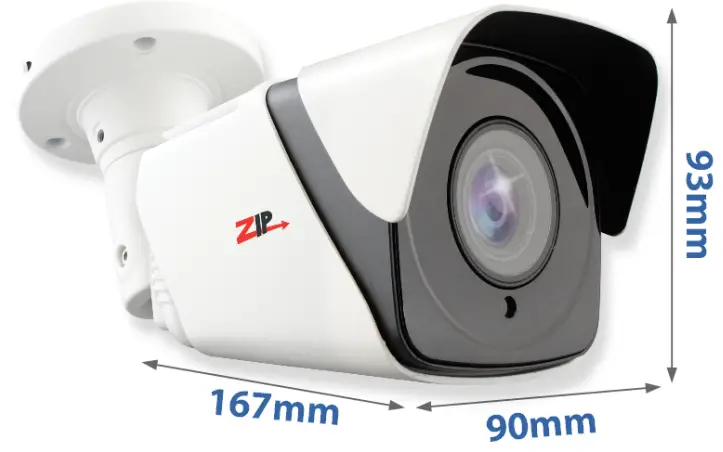

Dimensions

*Dimensions Exclude Bracket

Mounting and SD Card Installation

For local recording on the camera itself an SD card must be installed.
Recording time will vary dependent upon: SD card size and encoding settings
32GB SD Card 31 hours
64GB SD Card 62 hours
128GB SD Card (MAX) 124 hours
256GB SD Card (MAX) 248 hours
The camera can be set to only record when triggered via motion detection, alarm input or AI smart, this maximizes the recording time achievable.
Remove power from the camera when inserting/removing the SD card.
3.1 Bullet

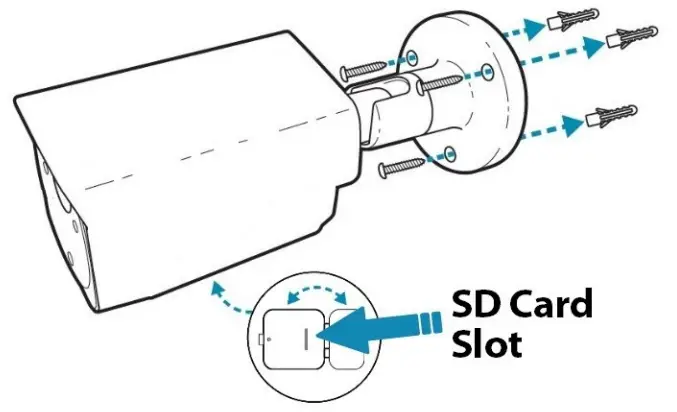

A template is provided in the box for marking the hole positions for the fixing screws.

Setup Options

4.1 PoE ZIP NVR

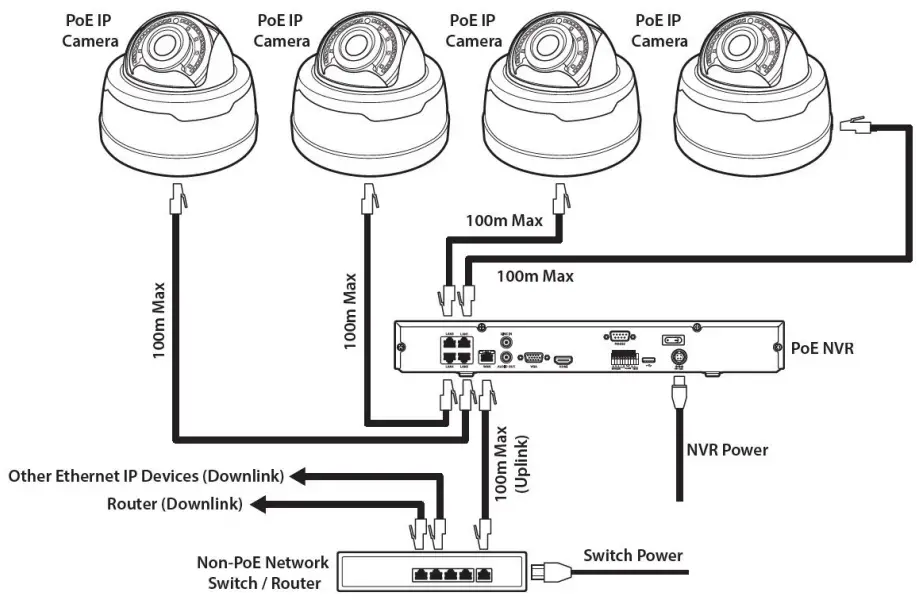

When connecting to a ZIP PoE NVR plug the camera directly into the NVR’s built in PoE switch.
The camera should automatically become visible after being connected for approximately 1 minute.
The 100m distance for a camera can be increased when the PoE Mode is set to EPoE.
In the menu on a ZIP PoE NVR go to:-
Video > IP Channels > PoE Mode

4.2 Non-PoE ZIP NVR

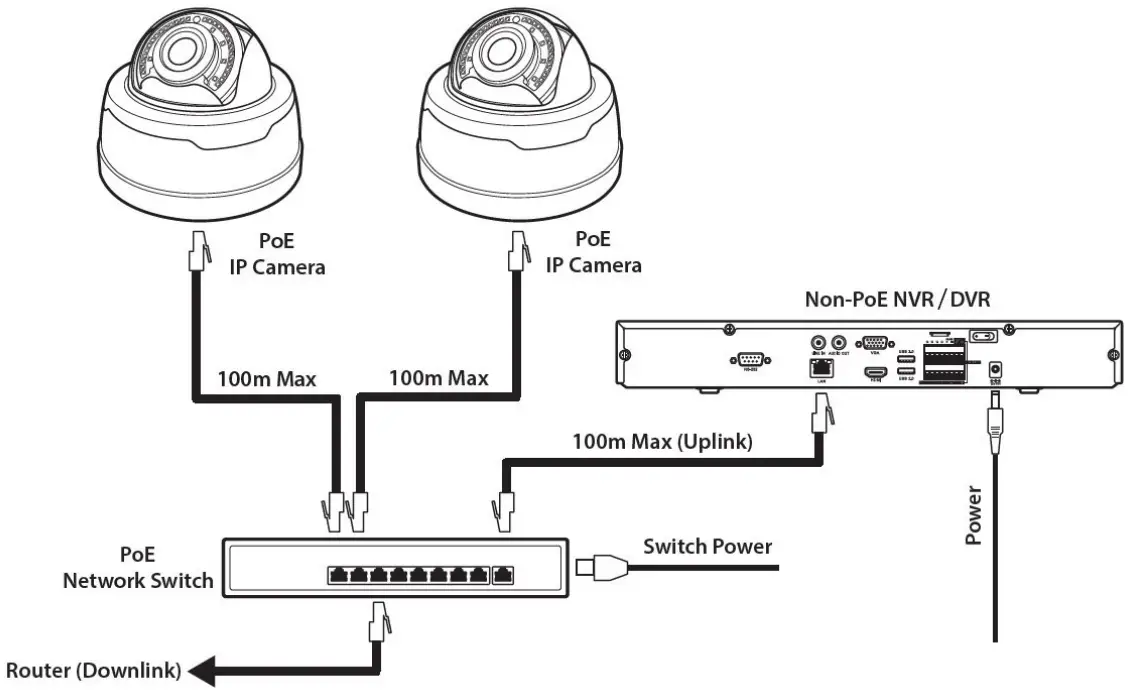

When connecting cameras to a Non-PoE NVR, they are first connected to an external network switch which is in-turn connected to the NVR as shown below.

See Extra Resources for more information on Adding IP Cameras manually to a ZIP Recorder.

How to Login via Browser

The AI smart features can be configured in a ZIP recorder or directly in the browser interface of the camera (standalone)
Only one smart detection feature can be enabled at any given time.
See the NVR or DVR manual for information on configuring these features with a ZIP recorder.
Follow the steps below for configuring the settings directly in the camera via a browser for standalone setup.
You will need…

• Windows Based PC/Laptop connected to router/ PoE switch
• ZipVision Pro App on Mobile Device
• PoE Switch connected to Network/ Router
• Ethernet network cable
• ZipFinder software, available via this link below:
  www.softcctv.com/store/Item/Zip-Finder-IP-CCTV-Security-Camera-Discovery-Tool

NOTE If the PC being used is on a different IP range to the PC then add the IP range of the camera to the PC using the below guide:
PDF Version:- http://www.cctvmanuals.com/pdf/tips/How_to_add_an_IP_Range.pdf
HTML Version: http://www.cctvmanuals.com/tips/How_to_add_an_IP_Range/index.html

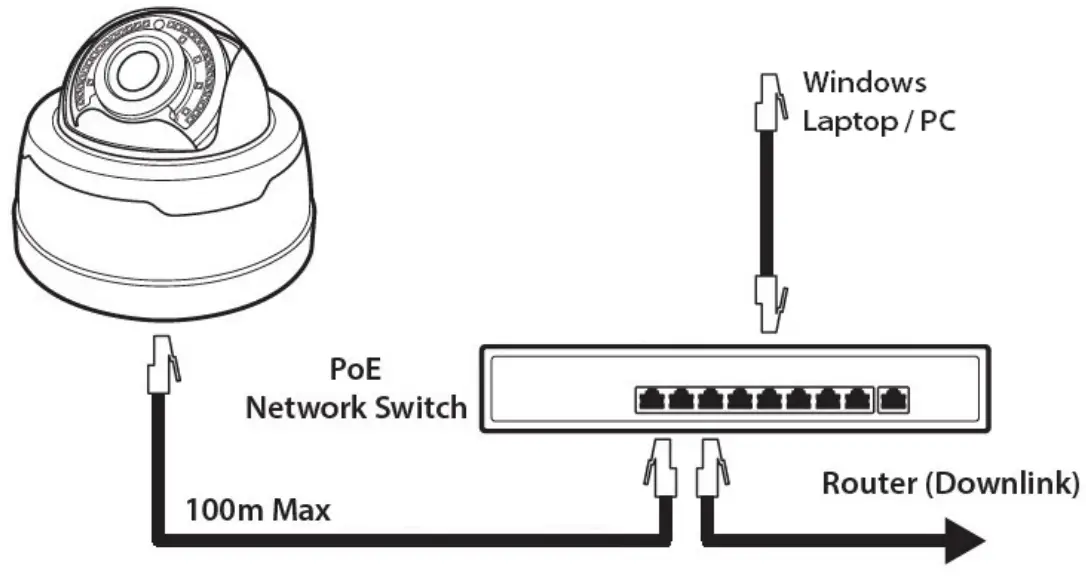

1. Plug the camera’s RJ45 port with a network cable into a PoE switch

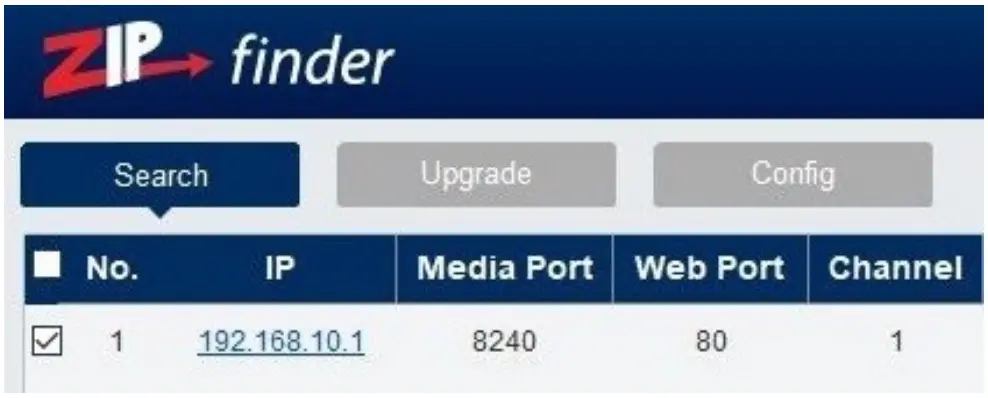

2. Using ZipFinder on a Windows Based PC/Laptop Search and then tick the camera
3. Select Net Mode = DCHP, then click Modify
4. Search again, to get the updated IP address.
5. Select the IP address of the camera, Internet Explorer will pop-up, and ask to download and install the plug-in.
6. Download, install and follow the steps for the plug-in installation, then re-load the browser by selecting the IP address again.
7. Login to the IP Camera, the default login details are:-


   Default IP	192.168.10.1
   DCHP	Off
   User Name	admin
   Password	777777

Browser Menu Settings

6.1 IP-CAM555W
The menu can be configured directly in the browser interface of the camera (standalone), in Remote Setting you will find the menu settings below:-
For AI Settings please see Al Setup

Extra Resources

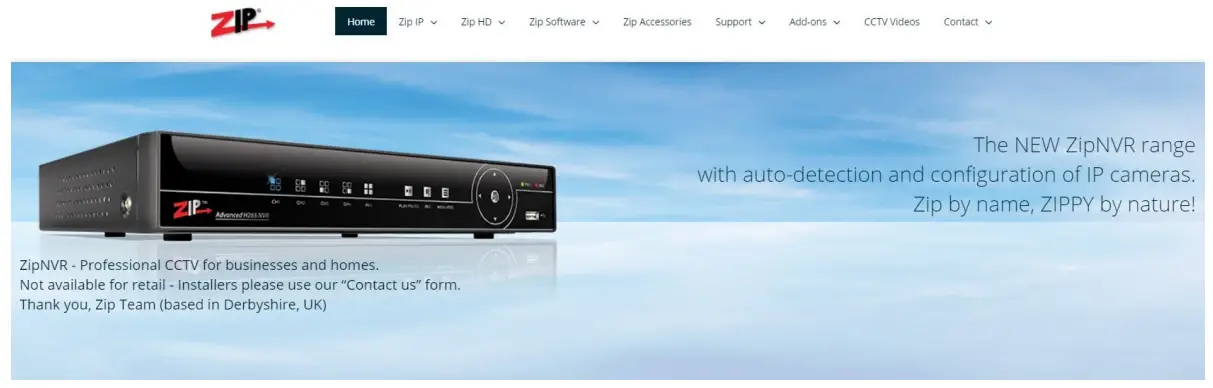

7.1 ZipNVR.com Website
The Zip NVR has a range of information on the cameras and NVRs, manuals, software, tools and support:- www.zipdvr.com

7.2 Adding IP Cameras to a ZIP recorder
How to guide on Adding IP Cameras:- www.zipdvr.com/howto/TIP459-How-To-Add-IP-Cameras.html

7.3 AI Setup
See the ZIP NVR full manual for more information on AI setup; Note: AI Features will vary depending on model
Full Instruction Manual

https://systemq.com/PDF/manual/xZIP4.pdf

7.4 ZIP Firmware
Firmware for the zip products are available online:- www.zipdvr.com/firmware.html
Compare the firmware in the product against that available online.

General Maintenance

• Routinely clean the camera to prevent dust build up as this can effect the performance of the camera. It is recommended to use a damp non-abrasive microfiber cloth.
• Routinely check the connections for power and data to ensure no water ingress and corrosion.
• Check that the cameras are firmly attached to the wall or mounting bracket.
• Check playback in the recorder to ensure the camera is recording and triggering properly.

Specifications

9.1 IP-CAM555W

Conditions

All specifications are approximate. System Q Ltd reserves the right to change any product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible in any way for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment that these instructions refer to.

WEE/CG0783SS

This symbol on the products and/or accompanying documents means that used electronic equipment must not be mixed with general household waste. For treatment, recovery and recycling please return this unit to your trade supplier or local designated WEE/CG0783SS collection point as defined by your local council.

© 2023 System Q Ltd
ZIP and NiteDevil are registered trademarks of System Q Ltd, Chesterfield.
Derbyshire. S40 2WBZipDVR.com
