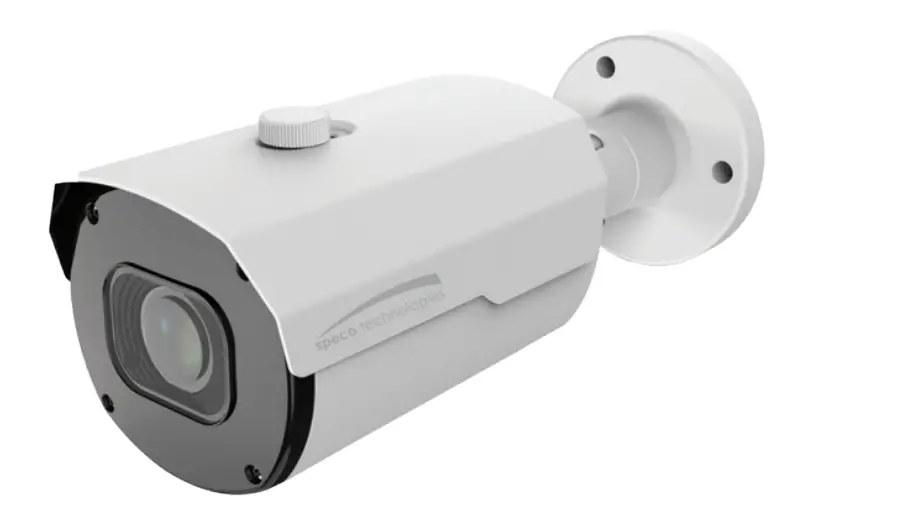

NDAA O8B1MG 8MP (4K) IP Bullet Camera
Features
- Captures up to 8MP @ 30fps
- Up to 4x optical zoom
- Built-in standard PoE (IEEE 802.3af)
- True Day/Night operation (IR cut filter)
- IR range: 147’ (depending on scene reflection)
- True WDR operation
- Micro SD card slot (card not included)
- Two-way audio ready
- ONVIF Profile T Compliant
- IP66 weather resistance
- Face/Human/Vehicle detection*
- Line Crossing/Intrusion Detection*
- 2 year warranty NDAA Compliant**
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.8” CMOS |
| Maximum Resolution | 3840 (H) x 2160 (V) |
| Field of View | Horizontal: 33-111°, Vertical: 18-57°, Diagonal: 37-134° |
| Minimum Illumination | n Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Day/Night | IR cut filter with auto switch |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| DNR | 3D DNR |
| Video Specifications | |
| Main Resolution | 30fps @ 4K/5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA |
| Compression | H.265, H.264 |
| Bitrate Control | VBR, CBR (8Kbps ~ 16Mbps |
| Multiple Streaming | 3 streams |
| Image Settings | Privacy masking, Flip/Rotation |
| Audio Specifications | |
| Audio Codec | G.711 |
| Audio | 1ch input/1ch output |
| Interfaces | |
| Ethernet | 10/100 Mbps |
| Power | DC jack |
| Audio | RCA Female in/RCA Female out |
| Card slot | MicroSD, up to 256GB (not included) |
| Alarm | 1 ch input/ 1 ch output |
| Reset | Yes |
| Other Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion detection, Face Detection, Object abandoned/missing detection, intrusion detection (people/vehicle classification), line crossing detection (people /vehicle classification), people/vehicle counting |
| Alarm Trigger | Analytics, SD card error |
| Alarm Events | FTP upload, email upload |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, Firefox, Safari, Internet Explorer 8 and up. |
| Mobile | Speco Gray |
| Operating & Unit Specifications | |
| Power | PoE, 12VDC (power supply not included) |
| Power Consumption | 6.72W (max) |
| Operating Temperature | -22°F – 140°F |
| Operating Humidity | less than 95% (non-condensing) |
| Unit Dimensions | 9.53(L)” x 3.44”(W) x 3.30”(H) |
| Unit Weight | 1.76 lb |
| Certifications | FCC, ONVIF Profile T |
| Network Specifications | |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| DDNS support | Speco DDNS (free of charge) |
| Security | IP address filter; strong password requirement; Authenticated username and password |
| User Access | Max. 7 simultaneous users Actual number of users may vary depending on bandwidth |
| *With compatible Speco Gray Recorder **Products are in compliance with NDAA Section 889 Part B Guidelines | |

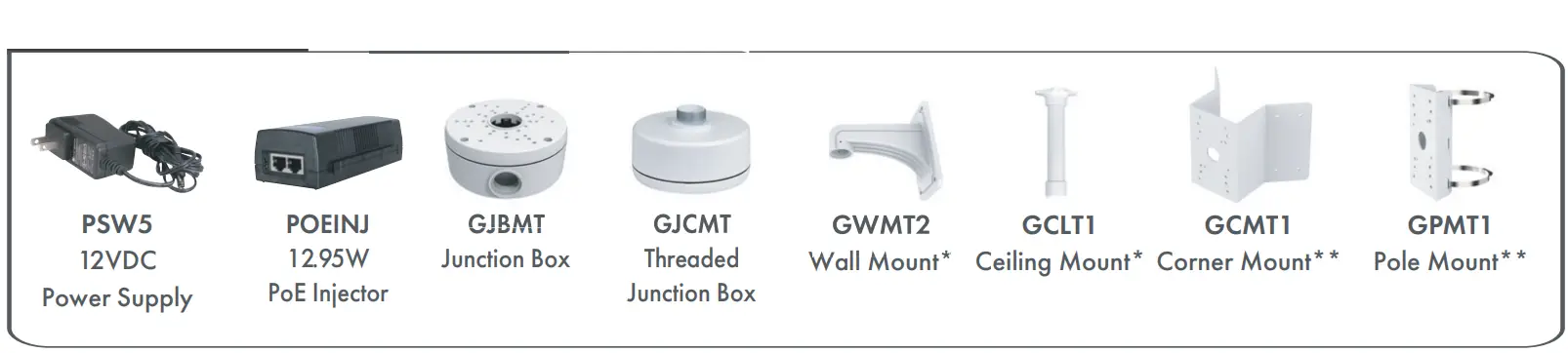

Optional Accessories

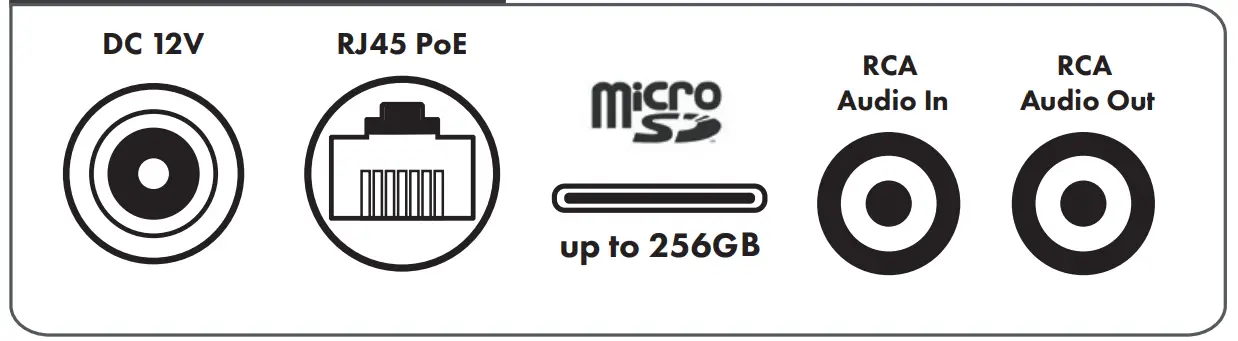

Camera Interfaces
ONVIF is a trademark of Onvif, Inc. Chrome and Firefox use Java which requires an initial internet connection. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.
App Store is a service mark of Apple Inc. Android, Google Play and the Google Play logo are trademarks of Google Inc. Amazon’s trademark is used under license from Amazon.com, Inc. or its affiliates.
Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Spec Rev. 1/10/22
 |
 |
 |
