Altronix Eflow6n Series Power Supply-chargers Installation Guide

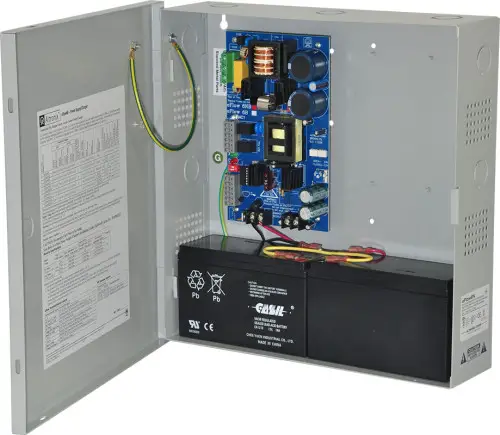

Altronix eFlow6N Series Power Supply-Chargers

Models Include:

• eFlow6N
• eFlow6NX
  • – 6A @ 12VDC or 24VDC
• eFlow6N8/eFlow6NX8
  • 6A @ 12VDC or 24VDC
  • Eight (8) Fused Outputs
• eFlow6N16/eFlow6NX16
  • 6A @ 12VDC or 24VDC
  • Sixteen (16) Fused Outputs
• eFlow6N8D/eFlow6NX8D
  • 6A @ 12VDC or 24VDC
  • Eight (8) PTC Protected Class 2 Power-Limited Outputs
• eFlow6N16D/eFlow6NX16D
  • 6A @ 12VDC or 24VDC
  • Sixteen (16) PTC Protected Class 2 Power-Limited Outputs

Overview

Altronix eFlow6N power supply/chargers convert a 120VAC / 60Hz input to a 12VDC or 24VDC nominal output (see Power Supply Configuration Reference Chart and Specifications).

eFlow6N Series Power Supply Configuration Reference Chart:

The following units provide non power-limited outputs: eFlow6N, eFlow6NX, eFlow6N8, eFlow6NX8, eFlow6N16, and eFlow6NX16. The following units provide Class 2 power-limited outputs: eFlow6N8D, eFlow6NX8D, eFlow6N16D, and eFlow6NX16D.
If a power-limited output is required in the end-product application, the DC output from the power supply must be connected to a separately Listed control unit or accessory board that provides power-limited outputs. The product(s) providing the power-limited output(s) must be listed as appropriate for the particular end-product application (fire alarm, burglar alarm, access control), and wired in accordance with the products installation instructions. Class 1 wiring methods, separation of circuits, and proper fire-rated enclosures all must be considered when connecting the DC output of the power supply to the end-product devices. The auxiliary output of these units are power-limited.

UL Listings for US Installations: Access Control Performance Levels: Destructive Attack – I; Endurance – I; Line Security – I; Stand-by Power: 7AH – I, 12AH – I, 40AH/65AH – IV.UL 294, 7th edition – UL Listed for Access Control System Units.UL 603 – UL Listed for Power Supplies for Use with Burglar-Alarms Systems. UL 1481 – UL Listed for Power Supplies for Fire Protective Signaling Systems.UL Listings for Canadian Installations:
ULC-S318-96 – Power Supplies for Burglar Alarm Systems. Also suitable for Access Control. California State Fire Marshal European Conformity Factory Mutual Approved (eFlow6N and eFlow6NX only).

Stand-by Specifications

Specifications

Input:

• 120VAC, 60Hz.

Output:

1. For output voltage and supply current refer to eFlow6N series Power Supply Configuration Reference Chart, pg. 2.
2. Auxiliary Class 2 power-limited output rated @ 1A (unswitched).
3. Overvoltage protection.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 1.54A.
• Automatic switch over to stand-by battery when AC fails.
  Transfer to stand-by battery power is instantaneous with no interruption.

Fire Alarm Disconnect:

• Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
• AC fail supervision (form “C” contacts).
• Battery fail & presence supervision (form “C” contacts).

Supervision:

• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Fuse/PTC Ratings:

• Refer to eFlow6N Series Power Supply Configuration Reference Chart, pg. 2.

Visual Indicators:

• Green AC Power LED indicates 120VAC present.
• AC input and DC output LED indicators.

Additional Features:

• Short circuit and overload protection.
• Unit is completa e with power supply, enclosure, battery leads, and cam lock.

Enclosure Dimensions (approximate H x W x D):

• eFlow6N, eFlow6N8, eFlow6N48D:
• eFlow6N16, eFlow6N16D:
  • 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.6mm).
• eFlow6NX, eFlow6NX8, eFlow6NX8D,
• eFlow6NX16, eFlow6NX16D:
  • 15.5” x 12” x 4.5” (393.7mm x 304.8mm x 114.3mm).

Installation Instructions

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, The Canadian Electrical Code, Part 1 and with all local codes and authorities having jurisdiction. The product must be located indoors within the protected premises.

1. Mount unit in desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure’s upper keyholes over the two upper screws, level and secure. Mark the position of the lower two holes. Remove the enclosure. Drill the lower holes and install the two fasteners. Place the enclosure’s upper keyholes over the two upper screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pgs. 13-14). Secure enclosure to earth ground.
2. Set desired DC output voltage by setting SW1 to the appropriate position on the power supply board (Fig. 1i, pg. 6).
3. Connect unswitched AC power (120VAC 60Hz) to terminals marked [L, N] (Fig. 1a, pg. 6). Green “AC” the LED on power supply board will turn on. This light can be seen through the LED lens on the door of the enclosure. Use 14 AWG or larger for all power connections. Secure green wire lead to earth ground. Keep power-limited wiring separate from non power-limited wiring (120VAC 60Hz Input, Battery Wires). Minimum 0.25” spacing must be provided.
   CAUTION: Do not touch exposed metal parts. Shut branch circuit power before installing or servicing equipment. There are no user serviceable parts inside. Refer installation and servicing to qualified service personnel.
   For Fire Alarm applications the outputs are “Special Applications” only, see list (refer to Appendix A, ).
4. Measure output voltage before connecting devices. This helps avoiding potential damage.
5. Connect devices to be powered:
   1. For eFlow6N/eFlow6NX connect devices to terminals marked [– DC +] (Fig. 1h, pg. 6).

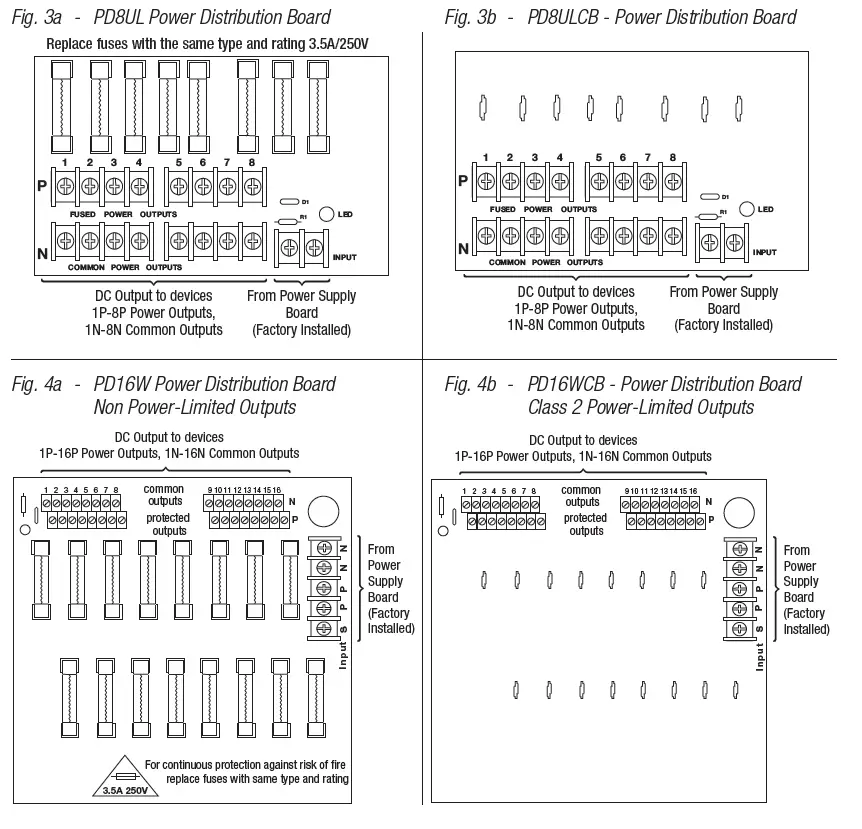

   2. For other Power Distribution Models connect devices to be powered to terminal pairs 1 to 8 marked [1P & 1N] through [8P & 8N] (Fig. 3a & 3b, pg. 6) or 1 to 16 marked [1P & 1N] through [16P & 16N](Fig. 4a & 4b, pg. 6) carefully observing correct polarity. For auxiliary device con,nection this output will not be affected by Low Power Disconnect or Fire Alarm Interface. Cthe onnect device to terminals marked [+ AUX –] (Fig. 1f, ).
6. For Access Control applications batteries are optional. When batteries are not used, a loss of AC will result in the loss of the output voltage. When the use of stand-by batteries is desired, they must be lead acid or gel type. Cthe onnect battery to terminals marked [– BAT +] (Fig. 1g, ). Use two (2) 12VDC batteries connected in series for 24VDC operation (battery leads included). Use batteries – Casil CL1270 (12V/7AH), CL12120 (12V/12AH), CL12400 (12V/40AH), CL12650 (12V/65AH) batteries or UL recognized BAZR2 batteries of an appropriate rating.
7. Connect appropriate signaling notification devices to AC FAIL & BAT FAIL (Fig. 1b,) supervisory
   relay outputs.
8. To delay AC reporting for 2 hrs. set DIP switch [AC Delay] to OFF position (Fig. 1c,
9. To delay AC reporting for 1 min. set DIP switch [AC Delay] to ON position (Fig. 1c,
   Note: Must be set to ON position for Burglar Alarm Applications.
10. To enable Fire Alarm Disconnect set DIP switch [Shutdown] to ON position (Fig. 1c,
    To disable Fire Alarm Disconnect set DIP switch [Shutdown] to OFF position (Fig. 1c,
11. Trigger terminals are end-of-a-line resistor supervised (10k ohms). Opening or shorting trigger terminals will cause [DC] output to shut down (Fig. 1d,
12. Place a jumper for non-latching FACP. A momentary short on these terminals resets FACP latching
    [Trigger EOL Shutdown] (Fig. 1e).
13. For Access Control Applications: mount UL Listed tamper switch (Altronix model TS112 or equivalent) at the top of the enclosure. Slide tamper switch bracket onto the edge of the enclosure approx. 2” from the right side (Fig. 5, or Fig. 7, ). Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed reporting device.

Wiring:

Use 18 AWG or larger for all low voltage power connections.
Note: Take care to keep power-limited circuits separate from non-power-limited wiring (120VAC, Battery).

Maintenance

The unit should be tested at least once a year for the proper operation as follows:

• Output Voltage Test: Under normal load conditions, the DC output voltage should be checked for proper
  voltage level eFlow6N: 12VDC or 24VDC nominal rated @ 6A max.
• Battery Test: Under normal load, conditions check that the battery is fully charged, and check the specified voltage (12VDC @ 13.2 or 24VDC @ 26.4) both at the battery terminal and at the board terminals marked [– BAT +] to ensure that there is no break in the battery connection wires. Note: Maximum charging current under discharges is 1.54A.
  Note: Expected battery life is 5 years, however, it is recommended to change batteries in 4 years or less if needed.

LED Diagnostics

Power Supply/Charger

Power Distribution Module

Terminal Identification

Power Supply/Charger

Power Distribution Module

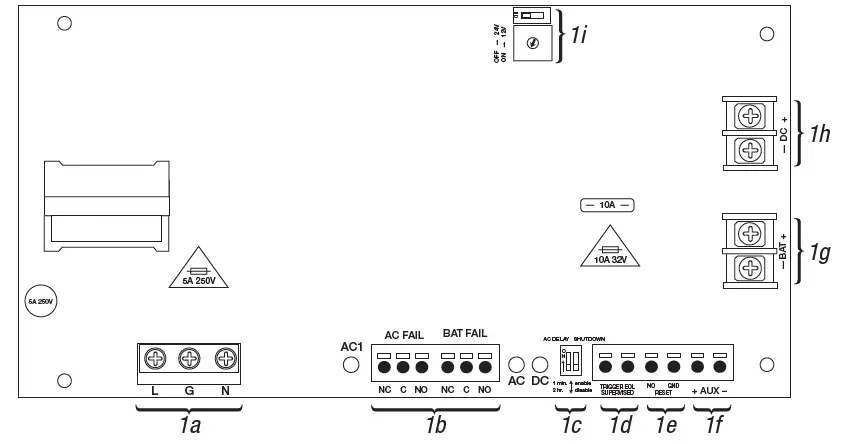

Fig. 1 – eFlow6N Board configuration

Trouble/Time Limited Warning of Stand-by Batteries:
For compliance with ULC S318-96, the Time Limited Warning circuit must be connected for local or remote annun-ciation with an Amber or Red LED to indicate DC Trouble (low battery, loss of battery or when 95% of the stand-by battery has been depleted). Connect the circuit to the Batt Fail relay contacts to an appropriate input of a UL Listed Burglar Alarm or Access Control Panel. The following figure shows the circuitry needed for local annunciation.

Battery trouble indication

• For Canadian use, a red indicating lamp must be visible from the exterior of this enclosure.
• Wire one leg of a UL Listed, power-limited power source to the indicating lamp.

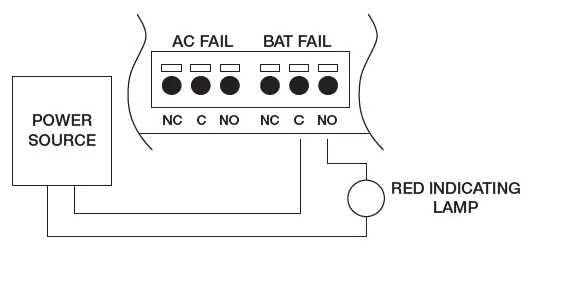

• Wire the second leg of the power source to the indicating lamp in series with the battery fail relay contact terminals marked [BAT FAIL – C, NO] (Fig. 2

Power Distribution Module(s)

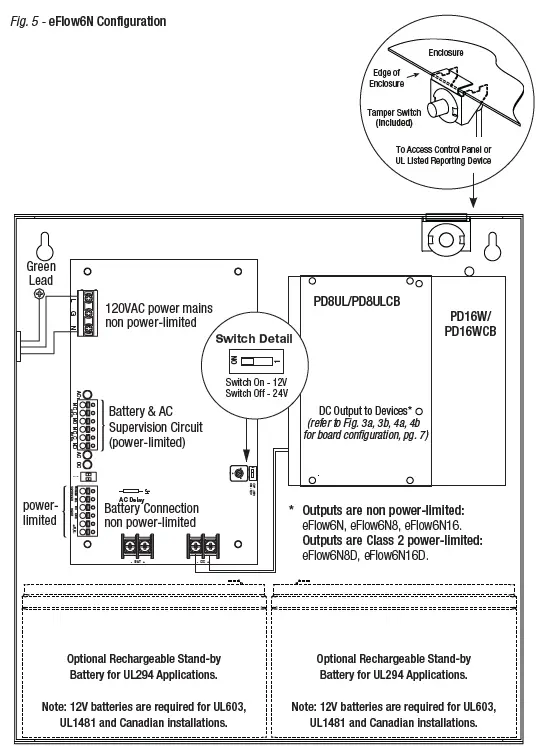

Fig. 5 – eFlow6N Configuration

CAUTION: When the power supply board is set for 12VDC use only one (1) 12VDC stand-by battery. Keep power-limited wiring separate from non-power-limited. Use minimum 0.25″ spacing.

• 7AH Rechargeable batteries are the largest batteries that can fit in this enclosure.
• A UL Listed external battery enclosure must be used if using 12AH, 40AH or 65AH batteries.

NEC Power-Limited Wiring Requirements for eFlow6N Models:

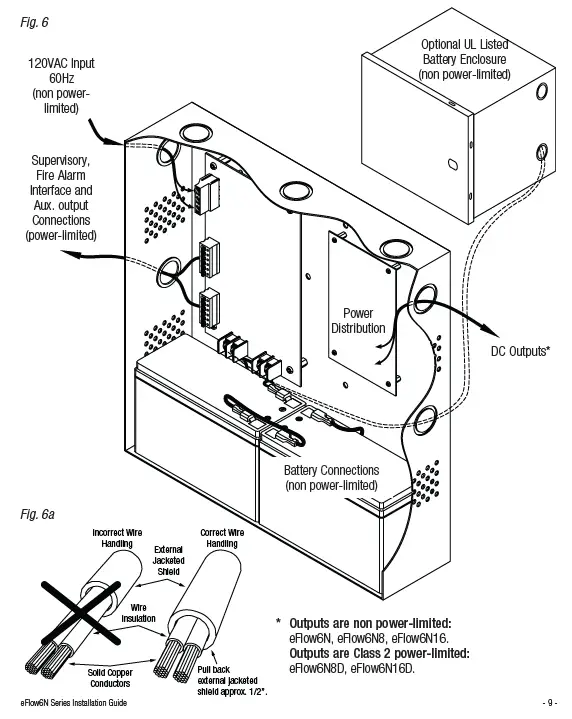

Power-limited and non-power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non-power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non-power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this is shown below. Your specific application may require different conduit knockouts to be used. Any conduit knockouts may be used. For power-limited applications use of conduit is optional. All field wiring connections must be made employing suitable gauge CM or FPL jacketed wire (or equivalent substitute). Optional UL Listed battery enclosure must be mounted adjacent to the power supply via Class 1 wiring methods. For Canadian installations use shielded wiring for all connections.

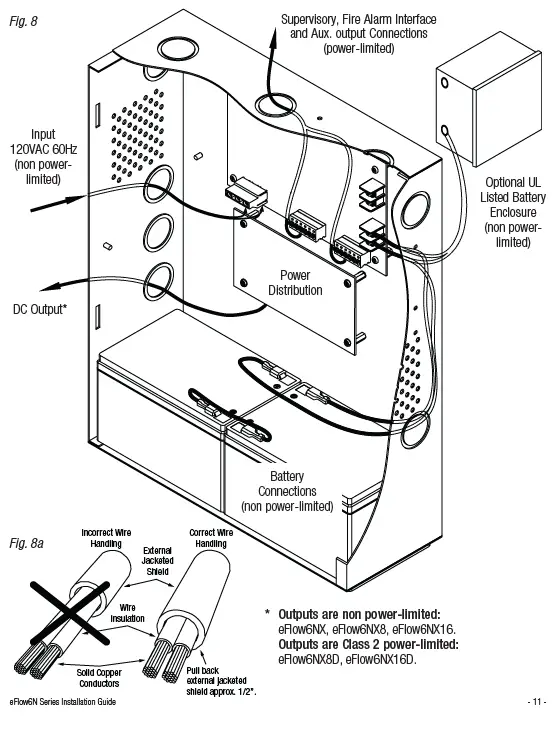

Note: Refer to wire handling drawing below for the proper way to install the CM or FPL jacketed wire (Fig. 6a).

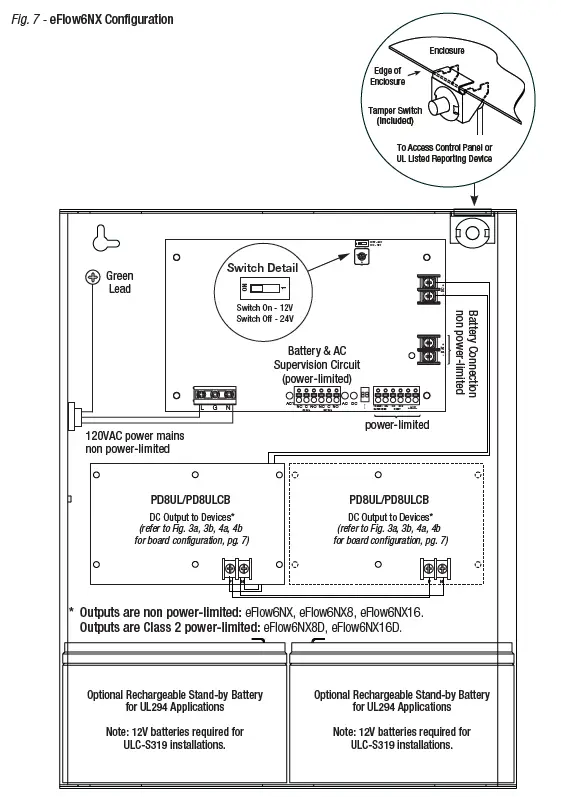

Fig. 7 – eFlow6NX Configuration

CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC stand-by battery. Keep power-limited wiring separate from non-power-limited. Use minimum 0.25″ spacing.

• 12AH Rechargeable batteries are the largest batteries that can fit in this enclosure. A UL-listed external battery enclosure must be used if using 40AH or 65AH batteries.

NEC Power-Limited Wiring Requirements for eFlow6NX Models:

Power-limited and non-power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non-power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non-power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this is shown below. Your specific application may require different conduit knockouts to be used. Any conduit knockouts may be used. For power-limited applications use of conduit is optional. All field wiring connections must be made employing suitable gauge CM or FPL jacketed wire (or equivalent substitute). Optional UL Listed battery enclosure must be mounted adjacent to the power supply via Class 1 wiring methods. For Canadian installations use shielded wiring for all connections.
Note: Refer to the wire handling drawing below for the proper way to install the CM or FPL jacketed wire (Fig. 8a).

Appendix A – UL Listed Compatible Devices

A.1 Four (4) Wire Smoke Detectors

Table A-1 below lists four (4) wire smoke detectors compatible with eFlow6N output.

Contact manufacturer for current draws.

A.2 Relays
Table A-2 below lists relays compatible with eFlow6N output.

Compatible only with eFlow6N, eFlow6NX, eFlow6N8, eFlow6NX8, eFlow6N16, eFlow6NX16. ** Compatible only when unit is set for 24VDC.

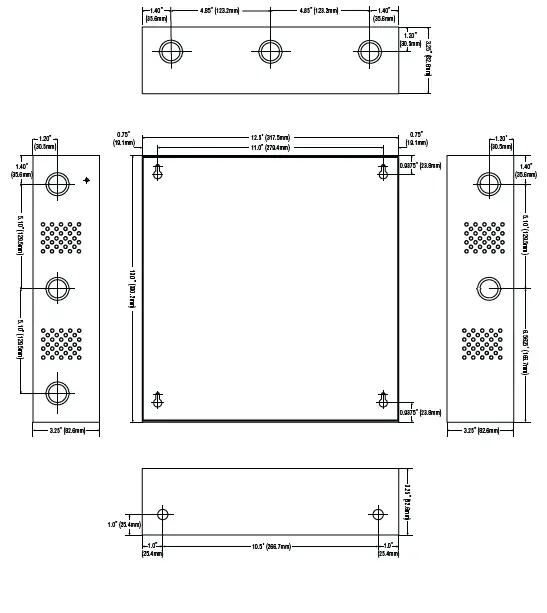

Enclosure Dimensions (BC300):
eFlow6N, eFlow6N8, eFlow6N8D, eFlow6N16, eFlow6N16D 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.6mm)

Enclosure Dimensions (BC400):

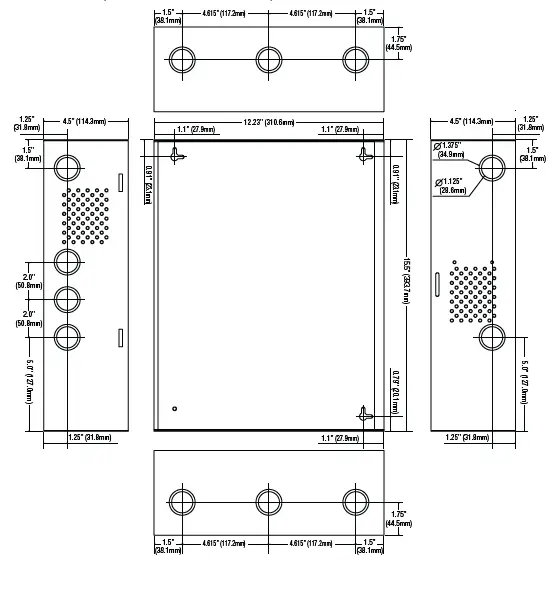

eFlow6NX, eFlow6NX8, eFlow6NX8D, eFlow6NX16, eFlow6NX16D 15.5” x 12” x 4.5” (393.7mm x 304.8mm x 114.3mm)

Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: [email protected] | Lifetime Warranty IIeFlow6N Series G23U

eFlow Power Supply/Chargers can be Controlled and Monitored while Reporting Power/Diagnostics from Anywhere over the Network…

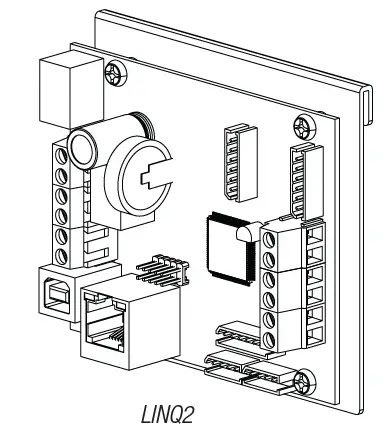

• LINQ2 – Network Communication Module
• LINQ2 provides remote IP access to real-time data from eFlow power supply/chargers to help keep systems up and running at optimal levels. It facilitates fast and easy installation and set-up, minimizes system downtime, and eliminates unnecessary service calls, which helps reduce Total Cost of
• Ownership (TCO) – as well as creating a new source of Recurring Monthly Revenue (RMR).

Features:

• UL Listed in the U.S. and Canada.
• Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN.
• Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
• Access control and user managment: Restrict read/write, Restrict users to specific resources
• Two (2) integral network controlled Form “C” Relays.
• Three (3) programmable input triggers: Control relays and power supplies via external hardware sources.
• Email and Windows Dashboard notifications
• Event log tracks history.
• Secure Socket Layer (SSL).
• Programmable via USB or web browser – includes operating software and 6 ft. USB cable.

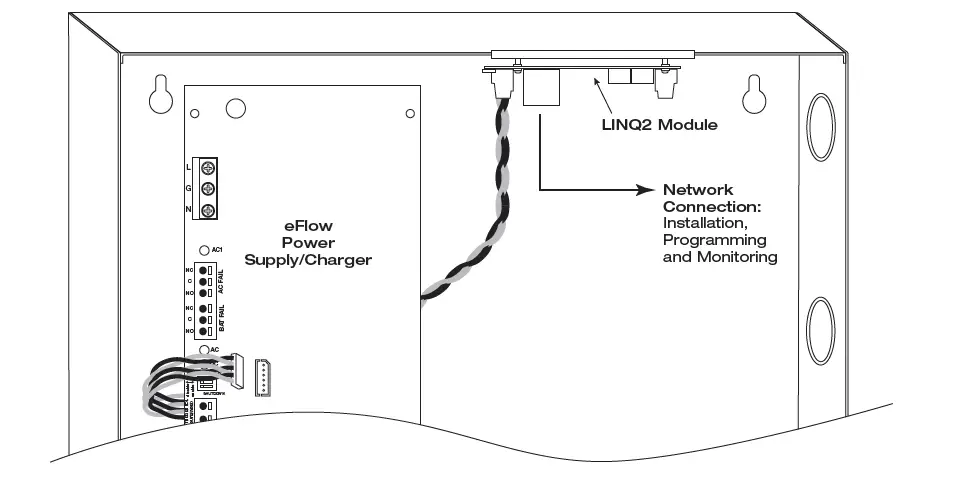

LINQ2 Mounts Inside any eFlow Enclosure

Power Supply/Chargers Operating Guide

Models Include:

Overview:

The eFlow6N series power supply/chargers convert a 120VAC, 60Hz input to a 12VDC or 24VDC output.

Stand-by Specifications:

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 1.54A.
• Automatic switch over to stand-by battery when AC fails.
  Transfer to stand-by battery power is instantaneous with no interruption.

LED Diagnostics:

• Installing Company: _______________
• Service Rep. Name: __________________________________
• Address:
• Phone #: __________________

Refer to the eFlow Power Supply/Chargers Installation Guide: IIeFlow6N Series, Rev. 6NRP020819 for complete instructions. This sheet is to be removed, framed, and posted next to the unit. Rev. 6NRP020819
