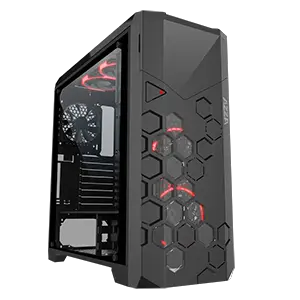

STORM 6000
User Manual
www.azzatek.com
Specifications
| Model | |
| Model Name | Storm 6000-RGB |
| Mod& Number | CSAZ-6000RGB/VV/B |
| Spec | |
| Type | ATX Full Tower |
| Side Panel | Tempered glass side panel with EVA Anti Vibration Pad |
| Max CPU Cooler Height | Up to 175mm |
| Max VGA Card Length | Up to 420mm |
| Water cooling radiator | Front: up to 280mm; Top: up to 360mm |
| Motherboard Compatibility | E-ATX(<272mm), ATX, Micro ATX |
| Power Supply Locations | Rear Bottom |
| RGB light effects | External switch for RGB controller |
| 120mm AZZA HURRICANE RGB LITE fan x4 | |
| External 5.25″ Drive Bays | 1 |
| Internal 2.5″ Drive Bays | Up to 6 |
| Internal 3.5″ Drive Bays | Up to 4 |
| Expansion slots | 10 |
| Front Ports | 2 x USB 3.0, 2 x USB 2.0, HD Audio, Mic. |
| Cooling System (installed) | 2x120mm AZZA HURRICANE RGB LITE fan in front; 2x120mm AZZA HURRICANE RGB LITE fan on top; 1x120mm black fan in the rear |
| Available Fan Ports | |
| Front | 2x120mm or 2x140mm |
| Top | 3x120mm or 2x140mm |
| Rear | 1x120mm or 1x140mm |
| Physical Specs | |
| Dimensions (HxWxD) | 537.7x225x525mm / 21.17×8.86×20.67(inch) |
| Weight | 11.1 Kg (24.4Ibs) |
| Carton Size (HxWxD) | 640x335x646mm / 25.2×13.19×25.43(inch) |

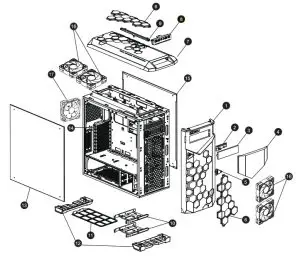

Chassis Parts
| 1 | Front bezel |
| 2 | RGB control PCB |
| 3 | 5.25″ Device cover X1 |
| 4 | Door |
| 5 | Power switch |
| 6 | Acrylic cover |
| 7 | Top cover |
| 5 | USB & Audio port |
| 9 | LED lens |
| 10 | HDD/SSD tray |
| 11 | Dust filter |
| 12 | Stand X2 |
| 13 | Tempered Glass Side Panel |
| 14 | PCI slot cover |
| 15 | Right side panel |
| 16 | RGB fan X4 |
| 17 | 120mm black fan X1 |

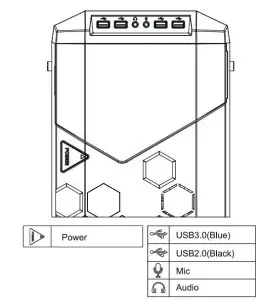

Control panel functions

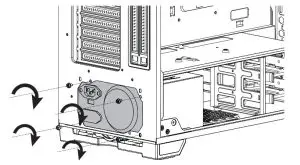

PSU Installation

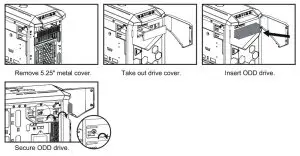

ODD Installation

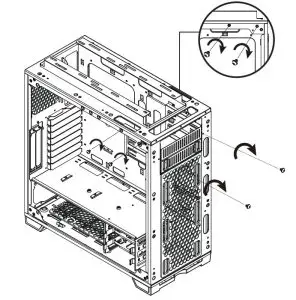

ODD Cage Removal

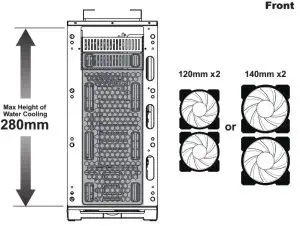

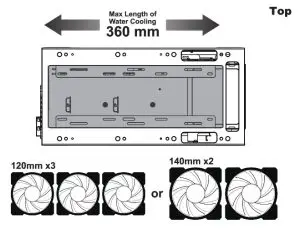

Colling System Installation

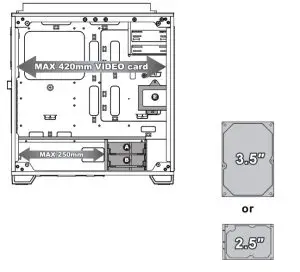

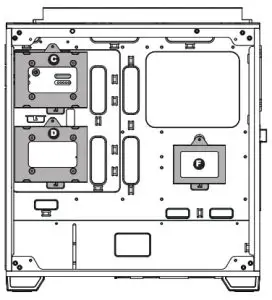

3.5″/2.55″ HDD Installation
- Supports video cards up to 420mm in length.
- Supports PSUs up to 250mm in length.
- Four multifunctional brackets support 3.5″ HDD or 2.5″ SSD. (ABCD)
- Two brackets support 2.5″ Devices. (COG)

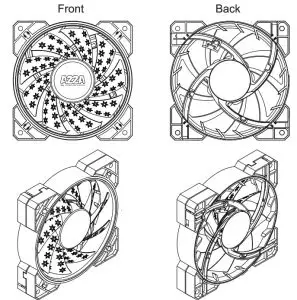

HURRICANE RGB LITE fan
Patented Design
VORTEX AIR (Patented)
To help improve cooling performance, our patented Shark Teeth design helps channel the air into a concentrated stream for more powerful airflow.
SILENCE (Patented)
Special grooves carved into the fan blades help reduce noise levels up to ten percent! SYNC RGB (Patented) By plugging the Hurricane RGB fan into an RGB-compatible motherboard, lighting and fan speed can be controlled directly without the need for additional hardware.
CYLINDRICAL LIGHTNING (Patented)
More light is better. With a frame made of acrylic material, the RGB lighting is spread all throughout the fan’s frame, giving a clean, uniform look.
| Model Name | HURRICANE RGB LITE |
| Model Number | FNAZ-12RGB-B-002 |
| FNAZ-12RGB-W-002 | |
| Rated Voltage | 12V |
| Fan Speed | 1500 RPM |
| Max. Air Pressure | 1.26 mm-H20 |
| Max. Air Flow | 47RPM |
| Max. Noise Level | 28.7dB(A) |
| Bearing Type | Sleeve Bearing |
| Life expectation | 60,000 hrs,40 C |
| Connector
| 3-Pin |
| 4-PIN RGB: Male & Female | |
| Fan Dimension | 120x120x25mm |
| Color | 7 Color with RF remote 16.8M with LUMI |

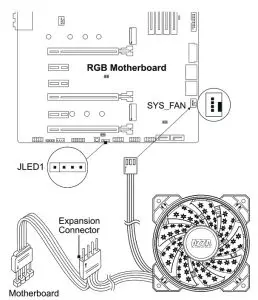

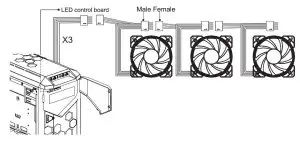

The first RGB fan is to be connected to the RGB LED control board in the chassis, while the rest of them can be daisy-chained to the first one with their own male and female plugs.
- If you have an RGB-compatible motherboard, then you can connect the Hurricane fan’s 4-pin connector directly into your motherboard. You can then adjust fan colors using your native fan control software.
The first RGB fan is to be connected to the RGB LED control board in the chassis, while the rest of them can be daisy-chained to the first one with their own male and female plugs.
